Molecular titanium nitrides: nucleophiles unleashed

Lauren N. Grant a, Balazs Pinter b, Takashi Kurogi a, Maria E. Carroll a, Gang Wu c, Brian C. Manor a, Patrick J. Carroll a and Daniel J. Mindiola *a
aDepartment of Chemistry, University of Pennsylvania, 231 South 34th Street, Philadelphia, PA 19104, USA. E-mail: mindiola@sas.upenn.edu
bEenheid Algemene Chemie (ALGC), Vrije Universiteit Brussel (VUB), Pleinlaan 2, 1050, Brussels, Belgium
cDepartment of Chemistry, Queen's University, Kingston, Ontario, Canada K7L 3N6

Received 1st August 2016 , Accepted 19th September 2016

First published on the web 22nd September 2016


In this contribution we present reactivity studies of a rare example of a titanium salt, in the form of [μ2-K(OEt2)]2[(PN)2Ti[triple bond, length as m-dash]N]2 (1) (PN = N-(2-(diisopropylphosphino)-4-methylphenyl)-2,4,6-trimethylanilide) to produce a series of imide moieties including rare examples such as methylimido, borylimido, phosphonylimido, and a parent imido. For the latter, using various weak acids allowed us to narrow the pKa range of the NH group in (PN)2Ti[triple bond, length as m-dash]NH to be between 26–36. Complex 1 could be produced by a reductively promoted elimination of N2 from the azide precursor (PN)2TiN3, whereas reductive splitting of N2 could not be achieved using the complex (PN)2Ti[double bond, length as m-dash]N[double bond, length as m-dash]N[double bond, length as m-dash]Ti(PN)2 (2) and a strong reductant. Complete N-atom transfer reactions could also be observed when 1 was treated with ClC(O)tBu and OCCPh2 to form NCtBu and KNCCPh2, respectively, along with the terminal oxo complex (PN)2Ti[triple bond, length as m-dash]O, which was also characterized. A combination of solid state 15N NMR (MAS) and theoretical studies allowed us to understand the shielding effect of the counter cation in dimer 1, the monomer [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N], and the discrete salt [K(2,2,2-Kryptofix)][(PN)2Ti[triple bond, length as m-dash]N] as well as the origin of the highly downfield 15N NMR resonance when shifting from dimer to monomer to a terminal nitride (discrete salt). The upfield shift of 15Nnitride resonance in the 15N NMR spectrum was found to be linked to the K+ induced electronic structural change of the titanium-nitride functionality by using a combination of MO analysis and quantum chemical analysis of the corresponding shielding tensors.


Introduction

Investigation of transition metal nitrides by synthetic and physical chemists alike over the past several decades has revealed the relevance of this ubiquitous functional group to industrial and biological processes, as well as their applications in materials and surface chemistry.1–7 Nitride reactivity can be tuned with the appropriate transition metal ion to render this site either nucleophilic or electrophilic. High oxidation states, generally, can be stabilized with this type of motif and are known to participate in reactivity spanning various transformations8 such as N-atom transfer reactions and nitrile-alkyne cross-metathesis,9,10 and also to act as surface supports that engage in important industrial processes such as Haber–Bosch11–14 and hydrodenitrogenation and hydrodesulfurization.15–19 The nitride ligand can also provide a realistic snapshot of the active site of nitrogenases through molecular platforms modeling N2 reductive splitting reactions.6,20 Additionally, nitride-based materials are investigated for use in thin films, often derived via chemical vapor deposition and by direct current electron sputtering.21–25 Consequentially, the nitride group is extremely important in small molecule activation, in modeling and performing N2 to ammonia synthesis, and in producing new materials with important electronic properties or applications.

While the synthesis of both terminally bound as well as bridging metal nitrides are rather routine for groups 6–7 transition metals,7,26–29 a convergent synthesis of these highly nucleophilic terminal transition metal nitrides for groups 4 or 5 metals has not been documented until recently, and hence, their reactivity has been rather unexplored when compared to groups 6 and 7 derivatives.30–41 Of particular interest are group 4 terminally bound Ti nitrides, expected to be highly ionic given the disparity in Pauling electronegativities between Ti (1.5) and N (3.0). Only in certain cases could the nitride ligand be installed with protecting Lewis acidic groups (Fig. 1).42–44 However, examples of well-defined group 4 nitrides are indeed known, and can be isolated as dinuclear (Fig. 1), trinuclear (Fig. 1), tetranuclear, and even hexanuclear species.42–51 Thus, we focused our attention on group 4, especially on Ti, since reactivity studies of mononuclear nitrides in this group have largely evaded the reach of the synthetic chemist until recently.52,53 The fact that mononuclear titanium nitrides are exceedingly rare is rather surprising since group 4 nitrides have been proposed in N2 activation and reductive splitting reactions, and the nitride group is often generated in route to the deposition of thin metal nitride films. The elusive nature of terminal titanium nitrides, adjunct with the wealth of useful reactivity established in mid-transition metal nitrides, calls for the attention to probe the nature of this highly polarized bond and to determine the degree of nucleophilicity in this rather uncharacterized motif.


image file: c6sc03422e-f1.tif

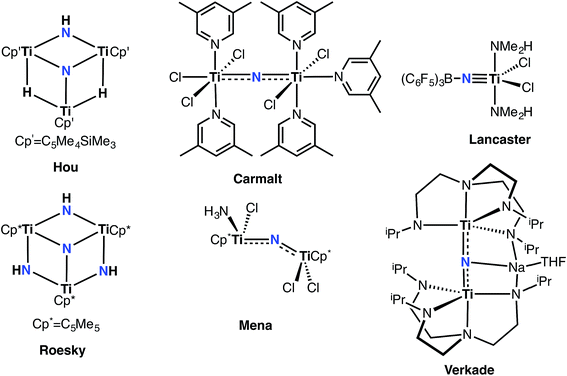

Fig. 1 Examples of molecular titanium nitrides.

Recently, we reported the synthesis of a dinuclear titanium-nitride complex supported by a sterically encumbering β-diketiminate (BDI) ligand (Fig. 2).52 However, due to degradation in this ligand scaffold, as well as other decomposition pathways, reactivity studies of this system were quite restricted. We turned instead to new titanium nitrides supported by two PN ligands (PN = N-(2-(diisopropylphosphino)-4-methylphenyl)-2,4,6-trimethylanilide, Fig. 2), derived from a more direct route via reduction of the corresponding azide precursor.53,54 This ligand framework was selected as it was speculated to be more robust, lacking vulnerable protons in the ligand backbone, as well as the imine group present in β-diketiminates, which can be split under reducing conditions.55 Inspired by Parkin and Woo's five coordinate LnTi[double bond, length as m-dash]X complexes56,57 (Ln2− = meso-substituted porphyrin, octamethyldibenzotetraaza[14]annulene; X = chalcogen or imide group), we hypothesized that two PN ligands could enforce a pseudo tetragonal ligand field environment suitable for the construction of a terminally bound nitride or other isoelectronic atoms or groups. Fig. 3 depicts a simplified d-orbital splitting diagram for a square planar Ti4+ fragment supported by four σ donor nitrogen ligands, two of which could also serve as π-donors in a transoid orientation, akin to the ubiquitous porphyrin scaffold. For a d0 fragment, the empty and hybridized dz2 as well as π-like dxz and dyz orbitals are available to form a triple bond with an incoming axial ligand. Further evidence that a chelating ligand such as PN could enable a more robust Ti–X multiple bond (such as a nitride) derived from the fact that terminally bound chalcogenido complexes of the Ti4+ ion supported by two monoanionic benzamidinate ligands could be isolated as demonstrated in the work by Arnold.58–60 However, unlike the highly constrained porphyrin or octamethyldibenzotetraaza[14]annulene dianion ligands, the use of two chelating ligands allows for a more flexible geometric interplay between trigonal bipyramidal and square pyramidal scaffolds when such a system is confronted by a fifth ligand.


image file: c6sc03422e-f2.tif

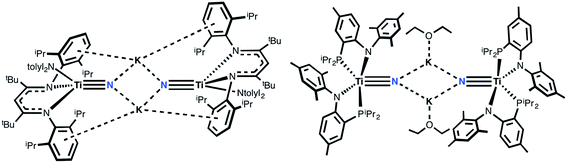

Fig. 2 Structures of molecular titanium nitrides salts using β-diketiminate or phosphino-anilide ligands.

image file: c6sc03422e-f3.tif
Fig. 3 Simplified d-orbital splitting diagram for a tetragonal ML4 fragment (d0) and its compatibility with a nitride ligand N3−.

Isolation of the dinuclear, or mononuclear titanium nitride complexes having the anionic core [(PN)2Ti[triple bond, length as m-dash]N], presents an exciting opportunity to exploit such functionality, either by salt elimination followed by complete and incomplete N-atom (where the nitride is not relinquished by the metal center) transfer. Herein, we report reactivity of the dinuclear nitride complex [μ2-K(OEt2)]2[(PN)2Ti[triple bond, length as m-dash]N]2 (1) including the access to a rare parent imide ligand, in addition to a variety of other uncommon imide species. We examine the basicity of this nitride, and we report salt elimination reactions, some of which result in complete N-atom transfer. In conjunction with solution-state spectroscopic studies of these species we also report solid state 15N NMR spectroscopy (via MAS) to further elucidate the electronic nature of the Ti–Nnitride bond and the effect on this bond by cation coordination. In addition, with the aid of theory we also carry out a detailed study of the Ti–Nnitride multiple bond and the role of the counter cation in the Ti–Nnitride bonding.

Experimental section

General procedures

Unless otherwise stated, all operations were performed in a M. Braun Lab Master double-dry box under an atmosphere of purified dinitrogen or using high vacuum standard Schlenk techniques under an argon atmosphere. NMR spectra were recorded on a Bruker AV-II 500 MHz spectrometer for 13C spectra, and a Bruker AVIII 400 MHz spectrometer for 1H and 31P{1H} spectra. 1H NMR spectra are reported with reference to residual proteo solvent resonances of benzene-d6 at 7.16 ppm. 13C{1H} NMR spectra were referenced to solvent resonances of benzene-d6 at 128.06 ppm. 31P{1H} NMR spectra were referenced to external H3PO4 (0 ppm). Pentane, hexanes, benzene, and toluene were purchased from Fisher Scientific and stabilizer-free diethylether (Et2O) and tetrahydrofuran (THF) were purchased from Sigma Aldrich. Solvents were sparged with argon for 20 minutes and dried using a two-column solvent purification system where columns designated for pentane, hexanes, benzene, and toluene were packed with Q5 and alumina respectively, and columns designated for Et2O and THF were packed with alumina. Deuterated benzene and deuterated toluene were purchased from Cambridge Isotope Laboratories (CIL) and were dried over 4 Å sieves, and degassed by freeze–pump–thaw cycles. All solvents were transferred into a dry box and were stored over 4 Å sieves. All sieves were heated to 200 °C under vacuum overnight prior to use. Celite used for filtrations was also heated to 200 °C under vacuum overnight prior to use. Compounds 1, 1-15N, [K(2,2,2-Kryptofix)][(PN)2Ti[triple bond, length as m-dash]15N], and (PN)2TiCl were prepared following published procedures.53 The UV-Vis absorption spectra were obtained in a J-young valve 1 cm quartz cell on a Cary 5000 UV-Vis-NIR. Elemental analyses were performed at a FLASH EA 1112 Series CHN analyzer (Thermo Finnigan).
(PN)2Ti[double bond, length as m-dash]N[double bond, length as m-dash]N[double bond, length as m-dash]Ti(PN)2 (2). In a 20 mL scintillation vial, (PN)2TiCl (700 mg, 0.916 mmol, 1 equiv.) was dissolved in 5 mL toluene as a dark brown solution. To this solution was added a 5 mL slurry of KC8 (123.8 mg, 0.916 mmol, 1 equiv.) while stirring with a glass coated metal stirbar. The mixture was stirred overnight at room temperature, during which time it became a deep red color. This solution was filtered over a thick pad of celite. The product is highly insoluble, so the celite pad was washed with 80 mL of toluene in order to extract the product free from the salt. The filtrate solution was concentrated to 50 mL, and then layered with 20 mL of hexane. Storage at −35 °C overnight resulted in the formation of a magenta powder, which was isolated over a frit, followed by washing with 10 mL cold toluene (673 mg, 0.458 mmol, 49%). Single crystals suitable for X-ray diffraction could be grown from a concentrated benzene solution after one week at room temperature. 1H NMR (400 MHz, 25 °C, benzene-d6): δ 7.04 (br, Δν1/2 = 8 Hz, 2H, meta-ArHMesityl), 6.85 (dd, 3JH–H = 4.12 Hz, 1H, meta-ArHTolyl), 6.73 (s, 1H, meta-ArHTolyl), 5.85 (dd, 3JH–H = 4.10 Hz, 1H, ortho-ArHTolyl), 2.87 (s, 3H, CH3Tolyl), 2.73 (br, 1H, P–CH–CH3), 2.23 (s, 3H, ortho-CH3Mesityl), 1.87 (s, 3H, para-CH3Mesityl), 1.40 (d, 3JH–H = 4.16 Hz, 3H, P–CH–CH3), 0.54 (br, 3H, P–CH–CH3), 0.29 (sept, 3JH–H = 4.13 Hz, 1H, P–CH–CH3). 31P{1H} NMR (162 MHz, 25 °C, benzene-d6): δ 18.98 (s, 2P, PN). Unfortunately, the poor solubility of this complex prevented us from obtaining reliable 13C NMR spectra. Anal. calcd for C94H130N6P4Ti2 (including 1 benzene per dinuclear complex): C: 72.20, H: 8.38, N: 5.37. Found: C: 73.18, H: 9.19, N: 3.96. The loss of N2 in the complex resulted in a lower % of nitrogen.
(PN)2Ti[triple bond, length as m-dash]NMe (3). In a 20 mL scintillation vial, compound 1 (200 mg, 0.105 mmol, 1 equiv.) was dissolved in 5 mL toluene. To this light orange solution was added methyl iodide dropwise by microsyringe (13.3 μL, 0.210 mmol, 2 equiv.) while stirring at room temperature. The color of the solution changed during addition of methyl iodide from light orange to dark red. The solution was stirred at room temperature for 15 minutes. Volatiles were removed under vacuum, resulting in a dark red residue. The residue was triturated three times with five mL of pentane. The resulting powder was dissolved in 5 mL pentane and filtered through celite to remove the salt. Crystallization from the 5 mL filtrate solution overnight at −35 °C resulted in the isolation of red crystals (149.9 mg, 0.198 mmol, 94.6%), which were suitable for X-ray diffraction studies. 1H NMR (400 MHz, 25 °C, benzene-d6): δ 6.91 (br, 2H, meta-ArHMesityl), 6.78 (s, 1H, meta-ArHTolyl), 6.89 (br, Δν1/2 = 4 Hz, 1H, meta-ArHTolyl), 5.84 (dd, 3JH–H = 4.10 Hz, 1H, ortho-ArHTolyl), 2.63 (s, 3H, N–CH3), 2.69 (br, Δν1/2 = 20 Hz, 3H, P–CH–CH3), 2.23 (s, 3H CH3Tolyl), 2.17 (s, 3H, para-CH3Mesityl), 2.47, (br, 3H, P–CH–CH3), 0.81 (br, 3H, P–CH–CH3), 0.34 (br, 1H, P–CH–CH3). 31P{1H} NMR (162 MHz, 25 °C, benzene-d6): δ 12.48 (s, 2P, PN). 13C{1H} NMR (125.8 MHz, 25 °C, benzene-d6): δ 161.8 (Ar–C), 147.3 (Ar–C), 133.4 (Ar–C), 131.9 (Ar–C), 123.8 (Ar–C), 112.9 (Ar–C), 112.8 (Ar–C), 57.44 (NCH3), 20.9 (PCH(CH3)2), 20.7 (PCH(CH3)2), 18.4 (Ar–CH3), 16.0 (Ar–CH3). We were unable to obtain satisfactorily elemental analysis due to the thermal sensitivity of this complex.
(PN)2Ti[double bond, length as m-dash]NTMS (4). In a 20 mL scintillation vial, compound 1 (166 mg, 0.088 mmol, 1 equiv.) was dissolved in 3 mL toluene as a light orange solution. To this solution was added trimethylsilylazide dropwise via a microsyringe (23 μL, 0.175 mmol, 2 equiv.) while stirring. The solution rapidly turned to a deep red, along with precipitation of a solid that deposited on the walls of the vial. The volatiles were taken to dryness after 5 minutes of stirring, and the resulting red residue was triturated with 5 mL pentane resulting in a dark red powder. This powder was dissolved in 5 mL pentane, filtered through celite, and the filtrate concentrated to 3 mL. Cooling to −35 °C overnight resulted in the isolation of dark red crystals suitable for X-ray diffraction (128.1 mg, 0.157 mmol, 90.2%). 1H NMR (400 MHz, 25 °C, benzene-d6): δ 7.00 (s, 1H, meta-ArHTolyl), 6.89 (br, Δν1/2 = 8 Hz, 2H, meta-ArHMesityl), 6.80 (dd, 3JH–H = 4.12 Hz, 2H, meta-ArHMesityl), 5.81 (dd, 3JH–H = 4.56 Hz, 1H, ortho-ArHTolyl), 2.53 (br, 3H, P–CH–CH3), 2.23 (s, 3H, CH3Tolyl), 2.14 (s, 3H, para-CH3Mesityl), 1.02 (s, 6H, ortho-CH3Mesityl), 0.217 (s, 9H, NSiMe3). 31P{1H} NMR (162 MHz, 25 °C, benzene-d6): δ 13.33 (s, 2P, PN). 13C{1H} NMR (125.8 MHz, 25 °C, benzene-d6): δ 161.7 (Ar–C), 147.6 (Ar–C), 133.9 (Ar–C), 133.6 (Ar–C), 133.3 (Ar–C), 124.2 (Ar–C), 113.4 (Ar–C), 20.9 (PCH(CH3)2), 20.6 (PCH(CH3)2), 5.3 (TMS-CH3). We were unable to obtain satisfactorily elemental analysis due to the thermal sensitivity of this complex.
(PN)2Ti[double bond, length as m-dash]NPiPr2 (5). In a 20 mL scintillation vial, compound 1 (213 mg, 0.112 mmol, 1 equiv.) was dissolved in 5 mL toluene as a light orange solution in a 20 mL vial and cooled to −35 °C. After cooling for 20 minutes, to this solution was added chlorodiisopropylphosphine dropwise via microsyringe (34.5 μL, 0.225 mmol, 2 equiv.) while stirring. The solution rapidly turned dark green, and salt deposited on the walls of the vial. The volatiles were taken to dryness after five minutes, and the resulting red residue was triturated with 5 mL pentane to give a dark green powder. This powder was dissolved in 5 mL pentane, filtered over celite, and concentrated to 3 mL pentane. Cooling to −35 °C overnight resulted in the isolation of large dark green hexagonal crystals suitable for X-ray diffraction (182.2 mg, 0.212 mmol, 94.1%). 1H NMR (400 MHz, 25 °C, benzene-d6): δ 7.05 (s, 2H, meta-ArHTolyl), 6.95 (br, Δν1/2 = 20 Hz, 2H, meta-ArHTolyl), 6.82 (br s, 2H, meta-ArHMesityl), 5.86 (br, Δν1/2 = 20 Hz, 1H, ortho-ArHTolyl), 2.95 (br, 3H, P–CH–CH3), 2.86 (s, 3H, CH3Tolyl), 2.21 (s, 3H, CH3Tol), 2.16 (s, 3H, para-CH3Mesityl), 2.12 (s, 6H, ortho-CH3Mesityl), 1.96 (sept, 3JH–H = 4.31 Hz, 1H, N PCH(CH3)2), 1.61, 1.49 (br, 3H, NPCH(CH3)2), 0.30 (br, Δν1/2 = 28 Hz, 1H, P–CH–CH3). 31P{1H} NMR (162 MHz, 25 °C, benzene-d6): δ 152.33 (br, Δν1/2 = 16 Hz, 1P, NPiPr2), 13.65 (br, Δν1/2 = 30 Hz, 2P, PN). 13C{1H} NMR (125.8 MHz, 25 °C, benzene-d6): δ 137.8 (Ar–C), 133.6 (Ar–C), 130.2 (Ar–C), 127.5 (Ar–C), 124.7 (Ar–C), 113.2 (Ar–C), 22.1 (NPCH(CH3)2), 20.9 (NPCH(CH3)2), 20.7 (PCH(CH3)2), 20.6 (PCH(CH3)2), 18.5 (Ar–CH3), 14.4 (Ar–CH3). We were unable to obtain satisfactorily elemental analysis due to the thermal sensitivity of this complex.
(PN)2Ti[double bond, length as m-dash]NBCat (6). In a 20 mL scintillation vial, compound 1 (297.5 mg, 0.157 mmol, 1 equiv.) was dissolved 5 mL toluene. To this light orange solution was added a 5 mL colorless toluene solution of chlorocatecholborane at room temperature (48.4 mg, 0.314 mmol, 2 equiv.). The solution immediately turned a deep green in color. After stirring at room temperature for 15 minutes, a colorless solid was observed on the walls of the vial, and all volatiles were removed under vacuum. The green residue was triturated once with 7 mL pentane, and then dissolved in 10 mL pentane. The solution was filtered through celite, and then the filtrate solution concentrated to 5 mL. Large green block crystals formed after cooling the solution overnight to −35 °C (239.5 mg, 0.278 mmol, 88.5%). Suitable crystals for single crystal X-ray diffraction studies were grown from the saturated hexane solution at −35 °C. 1H NMR (400 MHz, 25 °C, benzene-d6): δ 7.05 (dd, 3JH–H = 4.10 Hz, 1H, meta-ArHTolyl), 6.92 (br, Δν1/2 = 8 Hz, 2H, meta-ArHMesityl), 6.84 (s, 1H, meta-ArHTolyl), 6.82 (s, 2H, Ar–Hcatechol), 6.75 (m, 3JH–H = 8.10 Hz, 2H, Ar–Hcatechol), 5.87 (dd, 3JH–H = 8.21 Hz, 1H, ortho-ArHTolyl), 2.96 (s, 3H, CH3Tolyl), 2.35 (sept, 3JH–H = 4.55 Hz, 1H, P–CH–CH3), 2.26 (s, 3H, ortho-CH3Mesityl), 2.12 (s, 3H, ortho-CH3Mesityl), 2.13 (s, 3H, para-CH3Mesityl), 1.40 (br, 3H, P–CH–CH3), 0.80 (br, 3H, P–CH–CH3), 0.23 (sept, 3JH–H = 4.00 Hz, 1H, P–CH–CH3). 31P{1H} NMR (162 MHz, 25 °C, benzene-d6): δ 17.19 (s, 2P, PN). 13C{1H} NMR (125.8 MHz, 25 °C, benzene-d6): δ 161.4 (Ar–C), 148.8 (Cat-C), 145.6 (Ar–C), 138.5 (Ar–C), 134.5 (Ar–C), 133.6 (Ar–C), 131.8 (Ar–C), 130.8 (Ar–C), 129.9 (Ar–C), 122.0 (Cat-C), 113.3 (Ar–C), 111.9 (Cat-C), 111.5 (Ar–C), 21.5 (PCH(CH3)2), 21.3 (PCH(CH3)2), 20.9 (PCH(CH3)2), 20.6 (PCH(CH3)2), 20.0 (PCH(CH3)2), 17.9 (Ar–CH3), 15.9 (Ar–CH3). Unfortunately, we were unable to observe a 11B resonance in the 11B NMR spectrum. We were unable to obtain satisfactorily elemental analysis due to the thermal sensitivity of this complex.
(PN)2Ti[triple bond, length as m-dash]NH (7). Experimental note: synthesis of 7 must be conducted in the absence of light; further chemical transformations proceed in ambient light. Compound 1 (300 mg, 0.16 mmol, 1 equiv.) was dissolved in 6 mL toluene in a 20 mL vial. To this light orange solution was added a 5 mL colorless toluene solution of hexamethyldisilazane (66.3 μL, 0.32 mmol, 2 equiv.) at room temperature. Immediate color change to a magenta color was observed, and the solution was stirred for 15 minutes at ambient temperature. The solution was taken to dryness and the deep red oil was triturated with 5 mL of pentane three times. This red powder was then dissolved in 7 mL pentane, filtered over celite, and concentrated to 4 mL. Cooling overnight to −35 °C resulted in the formation of dark red microcrystals (198 mg, 0.267 mmol, 83.6%). Crystals suitable for X-ray diffraction were grown from a dilute solution of 7 in THF/pentane after 2 nights at −35 °C. 1H NMR (400 MHz, 25 °C, benzene-d6): δ 7.01 (dd, 3JH–H = 4.53 Hz, 1H, meta-ArHTolyl), 6.88 (br, 2H, meta-ArHMesityl), 6.80 (s, 1H, meta-ArHTolyl), 5.81 (dd, JH–H = 4.14 Hz, 1H, ortho-ArHTolyl), 5.07 (s, 1H, Ti[double bond, length as m-dash]NH), 2.41 (sept, 3JH–H = 16.0 Hz, 1H, P–CH–CH3), 2.26 (s, 3H, CH3Tolyl), 2.22 (s, 3H, ortho-CH3Mesityl), 2.15 (s, 3H, para-CH3Mesityl), 0.79 (br, 3H, P–CH–CH3), 0.29 (sept, 3JH–H = 8.11 Hz, 1H, P–CH–CH3). 31P{1H} NMR (162 MHz, 25 °C, benzene-d6): δ 15.66 (s, 2P, PN). 13C{1H} NMR (125.8 MHz, 25 °C, benzene-d6): δ 161.6 (Ar–C), 146.4 (Ar–C), 137.6 (Ar–C), 133.7 (Ar–C), 133.4 (Ar–C), 131.6 (Ar–C), 130.4 (Ar–C), 129.9 (Ar–C), 128.4 (Ar–C), 124.2 (Ar–C), 22.6 (PCH(CH3)2), 21.3 (PCH(CH3)2), 21.0 (PCH(CH3)2), 20.8 (PCH(CH3)2), 20.7 (PCH(CH3)2), 18.2 (Ar–CH3), 15.9 (Ar–CH3). We were unable to obtain satisfactorily elemental analysis due to the thermal sensitivity of this complex.
(PN)2Ti[double bond, length as m-dash]O (8). Compound 1 (203.3 mg, 0.107 mmol, 1 equiv.) was dissolved in 3 mL toluene in a 20 mL vial. To this light orange solution was added pivaloyl chloride (26.4 μL, 0.214 mmol, 2 equiv.) by microsyringe at room temperature. The solution immediately turned a bright purple color, and a white solid precipitated. The solution was stirred for 15 minutes, and then all volatiles were removed under vacuum. The residue was extracted into 10 mL ether, and filtered over celite to remove alkali. The solution was concentrated to 7 mL. Cooling overnight to −35 °C resulted in the deposition of large purple crystalline plates on the walls of the vial (152 mg, 0.205 mmol, 95.9%) some of which were suitable for X-ray diffraction. NCtBu was formed as a side product of the reaction, in the same ration as 8, measured by integration with 1H NMR spectroscopy. Compound 8 can alternatively be synthesized by the same experimental procedure as reported above when 1 (200 mg, 0.105 mmol, 1 equiv.) was treated in the same conditions with diphenylketene (20.5 μL, 0.210 mmol, 2 equiv.). The same work-up procedure is conducted to isolate 8 from the KNCCPh2 side product (118.9 mg, 0.16 mmol, 76%). 1H NMR (400 MHz, 25 °C, benzene-d6): δ 6.88 (br, Δν1/2 = 10 Hz, 2H, para-ArHMesityl), 6.86 (s, 1H, meta-ArHTolyl), 6.81 (dd, 3JH–H = 4.12 Hz, 1H, meta-ArHTolyl), 5.82 (dd, 3JH–H = 4.14 Hz, 1H, meta-ArHTolyl), 2.79 (br, 3H, P–CH–CH3), 2.26 (s, 3H, CH3Tolyl), 2.19 (s, 3H, para-CH3Mesityl), 1.54 (d, 3H, P–CH–CH3, J value could not be determined due to overlaps), 1.26 (d, 3H, P–CH–CH3, J value could not be determined due to overlaps), 0.89 (s, 3H, ortho-CH3Mesityl), 0.78 (s, 3H, ortho-CH3Mesityl), 0.29 (sept, 3JH–H = 8.23 Hz, 1H, P–CH–CH3). 31P{1H} NMR (162 MHz, 25 °C, benzene-d6): δ 13.33 (s, 2P, PN). 13C{1H} NMR (125.8 MHz, 25 °C, benzene-d6): δ 161.9 (Ar–C), 145.3 (Ar–C), 138.3 (Ar–C), 134.2 (Ar–C), 133.7 (Ar–C), 131.7 (Ar–C), 130.5 (Ar–C), 124.7 (Ar–C), 113.1 (Ar–C), 20.9 (PCH(CH3)2), 19.6 (PCH(CH3)2), 15.6 (Ar–CH3), 15.9 (Ar–CH3). We were unable to obtain satisfactorily elemental analysis for this complex.

Results and discussion

Recently, we reported that the azide complex (PN)2Ti(N3), readily prepared from (PN)2TiCl and NaN3, could undergo reductive extrusion of N2 with KC8 in Et2O to form the nitride salt [μ2-K(OEt2)]2[(PN)2Ti[triple bond, length as m-dash]N]2 (1) along with graphite (Scheme 1).53 This route circumvents a radical mechanism commonly observed in the formation of the parent imido (tBuBDI)Ti[triple bond, length as m-dash]NH(Ntolyl2),52 which results in much lower yield due to the sacrificial H-atom source deriving from the ligand scaffold. In addition, the introduction of the nitride group directly from reduction of the azide skips an additional deprotonation step involving the parent imido. To our surprise however, we found that the dinitrogen complex (PN)2Ti[double bond, length as m-dash]N[double bond, length as m-dash]N[double bond, length as m-dash]Ti(PN)2 (2), a species prepared in 49% yield from KC8 reduction of (PN)2TiCl under N2, cannot be fragmented with excess reductant (such as KC8) to form two equivalents of complex 1. This route would undoubtedly provide a more atom economical route to 1 using a vast resource such as atmospheric N2. Complex 2 is a diamagnetic species, displaying one single PN chemical environment by both 1H and 31P NMR spectra, and as shown in Fig. 4, its solid state structure reveals a topologically linear TiN2Ti moiety where the N–N bond has been partially reduced by 2e (1.252(8) Å versus 1.0976 Å in free N2). Although a formal N24− ligand would intuitively account for its diamagnetic nature, the observed N–N and Ti–N distances and computed bond orders argue for 2 possessing two Ti(III) centers that strongly antiferromagnetically couple, i.e. its core can be best characterized formally as Ti[double bond, length as m-dash]N[double bond, length as m-dash]N[double bond, length as m-dash]Ti. In stark contrast to 2, Fryzuk and co-workers have observed N2 splitting reactions with low-valent titanium reagents, via reduction of [NPN]TiCl2 [NPN2− = PhP(CH2SiMe2NPh)2], to produce transient titanium nitrides which then undergo insertion into the Ti–P linkages of the ligand.61 For us, we attribute the lack of reactivity in 2 to being reduced is likely to be kinetic as well as thermodynamic in nature. Akin to vanadium(II) dinitrogen complexes prepared in our group, we propose the rigid PN ligands in a putative species such as 22− (22− represents 2 being reduced by two electrons) to disfavor the mixing of triplet and singlet subspaces that is critical for the dinitrogen cleavage process.62 In addition, the reactive nature of 1 suggests the formation of a nitride from N2 to be thermodynamically less stable than 22−, a common trait also observed in vanadium nitrides versus dinitrogen complexes. Compound 2 is remarkably stable, failing to react with electrophiles as well as reductants, and further attempts to functionalize the N2 have been unsuccessful. Arnold and co-workers have observed formation of a similar complex to 2 using benzamidinate ligands.59
image file: c6sc03422e-s1.tif

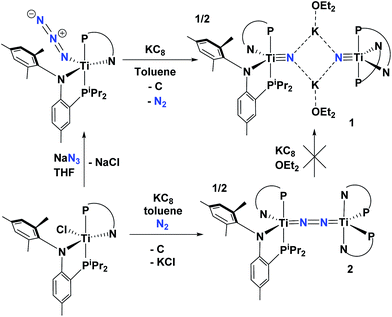

Scheme 1 Synthesis of complex 1 from reductive splitting of an azide with KC8. Also shown is the attempted synthesis of 1 from reductive splitting of N2 in 2 with excess KC8.

image file: c6sc03422e-f4.tif

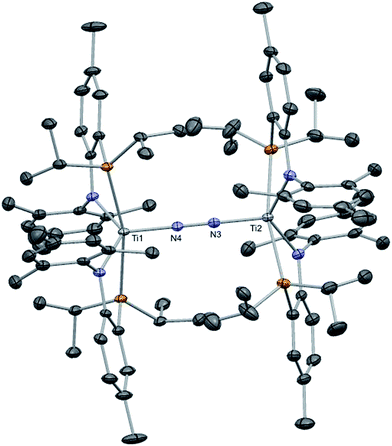

Fig. 4 Solid state structure of complex 2 showing thermal ellipsoids at the 50% probability level. Selected metrical parameters (distances Å in and angles in °) are shown in Table 1. H atoms and a residual benzene found in the asymmetric unit have been omitted for clarity.

Reactivity studies of the titanium nitride with electrophiles

Although bridging derivatives of group 4 methyl imides have been reported,63,64 terminally bound examples are unknown. Accordingly, we treated compound 1 with MeI in toluene at 25 °C causing an immediate color change from orange to dark red. Workup of the reaction mixture and recrystallization of the solid from pentane at −35 °C allowed for the isolation of the methyl-imide complex (PN)2Ti[triple bond, length as m-dash]NMe (3) in ∼95% yield (Scheme 2). The 31P NMR spectrum of 3 features a singlet at 12.45 ppm, shifted slightly upfield from 1 (7.23 ppm), while the methyl imide resonance is observed at 2.63 ppm in the 1H NMR spectrum and correlated to a resonance at 57.4 ppm in the 13C NMR spectrum. A solid state structural analysis confirmed the monomeric nature of 3 (Fig. 6), and revealed a short Ti–N distance of 1.709(3) Å with a linear Ti–N–Me angle of 178.5(4)° (Table 1). While the geometry of 1 (τ5 = 0.529) is between idealized trigonal bipyramidal (τ5 = 1) and square pyramidal (τ5 = 0), conversion to the imide species 3 (τ5 = 0.721) alters the geometry more towards a trigonal bipyramidal environment.
image file: c6sc03422e-s2.tif

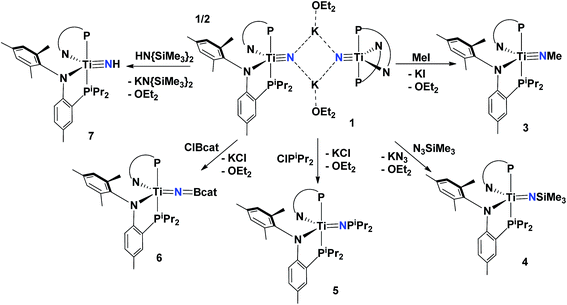

Scheme 2 Synthesis of compounds 3–7 from 1 and various electrophiles. All reactions were performed in toluene at 25 °C due to the insolubility of 1 in aliphatic solvents.
Table 1 Selected metrical parameters for complexes 1–7 showing bond distances in Å and angles in degrees. X represents the substituent on the nitride or formal nitride ligand. For 1, X = K; 2, X = N; 3, X = C; 4, X = Si; 5, X = P; 6, X = B; 7, X = H. τ5 represents (βα)/60 where β > α are the two greatest valence angles of the coordination center85
Complex 1 2 3 4 5 6 7
Ti–N 1.674(2) 1.832(3) 1.709(3) 1.730(2) 1.753(3) 1.7312(2) 1.747(2)
Ti–NPN 2.173(2) 2.107(3) 2.093(3) 2.095(2) 2.0695(2) 2.0521(1) 2.0605(1)
Ti–NPN 2.170(2) 2.091(2) 2.096(3) 2.0736(2) 2.0695(2) 2.0685(1) 2.0987(2)
Ti–P 2.6779(8) 2.6763(8) 2.6777(1) 2.6917(7) 2.7041(6) 2.6718(5) 2.6810(5)
Ti–P 2.6853(8) 2.7306(8) 2.6824(1) 2.7094(7) 2.7041(6) 2.6532(6) 2.6656(1)
N–X 2.729(2) 1.250(4) 1.431(5) 1.737(2) 1.732(3) 1.395(2) 0.860(0)

P–Ti–P 167.42(3) 166.03(4) 173.14(3) 167.14(3) 171.16(3) 175.289(2) 177.16(3)
Ti–N–X 135.40(1) 1.250(4) 178.5(4) 168.06(1) 162.21(6) 175.00(1) 180.0(0)
NPN–Ti–NPN 135.67(8) 128.79(1) 129.87(1) 134.35(8) 130.02(1) 131.33(6) 130.99(6)
P–Ti–NPN 74.88(6) 76.30(7) 75.24(8) 73.77(6) 75.88(5) 75.27(4) 74.94(4)
P–Ti–NPN 75.11(6) 75.18(7) 75.13(8) 75.46(5) 75.88(5) 76.18(4) 75.70(5)
P–Ti–N 95.83(8) 96.99(2) 93.46(1) 99.59(7) 94.419(2) 92.67(5) 92.52(6)
P–Ti–N 96.75(8) 98.31(2) 93.37(1) 96.25(7) 94.419(2) 91.96(5) 90.22(7)
τ 5 0.529 0.621 0.721 0.557 0.686 0.733 0.769


Treatment of 1 with certain azide reagents can also result in salt elimination. For example, combining 1 with N3SiMe3 yields KN3 along with the trimethylsilylimide (PN)2Ti[double bond, length as m-dash]N{SiMe3} (4) in ∼90% yield as a deep red colored material (Scheme 2). Complex 4 shows similar spectroscopic features to 3 with the trimethyl resonance being observed at 0.22 ppm in the 1H NMR spectrum. An IR spectrum of the reaction mixture confirms the formation of KN3 (νN3 = 2030 cm−1). The synthesis of complex 4 was also confirmed by monitoring reactivity of 1 with Me3SiCl by 1H NMR spectroscopy. To probe the reaction mechanism with Me3SiN3, a 15N enriched sample of 1, [μ2-K(OEt2)]2[(PN)2Ti[triple bond, length as m-dash]15N]2 (1)-15N was prepared and treated with Me3SiCl to independently prepare (PN)2Ti[double bond, length as m-dash]15N{SiMe3} (4)-15N. As expected, a resonance at 534 ppm in 15N NMR was attributable to the imide isotopomer species 4-15N. A further experiment of 1-15N with Me3SiN3 reproduced the signal for 4-15N in the 15N NMR spectrum, showing that this reaction is proceeding by salt elimination rather than by cycloaddition and a silyltropic shift. This mechanism follows the predicted behavior in reactivity with regard to the nucleophilic nitride attacking at the electrophilic silyl group of the azide. Consistent with our hypothesis, there was no reactivity between 1 and adamantyl azide or trisylazide. The solid-state structure of 4 shows an overall similar geometry to 3 but where the Ti–N distance has now been elongated to 1.730(2) Å, consistent with the presence of an electrophilic SiMe3 group. This is similar to reported Ti–N distances in Ti[double bond, length as m-dash]NSiMe3 functionalities,65–69 although some shorter derivatives have been reported to be as low as ∼1.6 Å.70 The Ti–N–Si is slightly bent at nitrogen at 168.06(1)° (Fig. 6, Table 1). In stark contrast to 3, the geometry of 4 remains quite similar to 1, confined between trigonal bipyramidal and square pyramidal (τ5 = 0.557).

In pursuit of other rare functional imide groups we treated complex 1 with ClPiPr2. Upon addition of the electrophile, the reaction mixture changed color from orange to dark green. Workup of the reaction allowed for isolation of a green colored solid in 94.1% yield and 1H, 31P and 13C NMR spectral data were consistent with formation of the phosphonylimide (PN)2Ti[double bond, length as m-dash]N{PiPr2} (5) (Scheme 2). Phosphonylimides of early transition metals are rare functionalities, with only a couple of reported examples.71,72 The 31P NMR spectrum features a broadened resonance (Δν1/2 = 16 Hz) attributable to the phosphonylimide at 152 ppm. Interestingly, the resonance for the P of the PN ligand appears as two broadened features centered at 13.73 ppm Δν1/2 = 30 Hz. Although quite broad, it is clear that these two signals account for two separate PN ligand resonances, indicating a solution-state behavior that renders these two resonances inequivalent. Additionally, when cooled, the broadened resonances slightly sharpen although P–P coupling with the phosphonylimide was unresolved, as shown in Fig. S19 (see ESI), with a sample measured at 219 K in toluene-d8. Other low temperature NMR spectra are also reported in the ESI.73 We propose that, unlike other imides reported in these studies, the phosphoylimide results in inequivalency in the PN ligands due to steric clash of iPr groups of the phosphonylimide with the iPr groups of the PN ligand. The molecular structure of 5 features a Ti–N–P angle of 162.21(6)° and elongation of the Ti–N bond to 1.753(3) Å (Fig. 5, Table 1). This latter metrical parameter is similar to hydrazido complexes reported by Mountford and Odom, with Ti[double bond, length as m-dash]N distances varying from 1.703–1.76 Å. Shorter Ti–N distances have been reported in some instances, attributable to NR3+ groups on the imido moiety.74–78 Complex 5 crystallizes in space group monoclinic I2/a, and the molecule lies along a two-fold axis. Consequently, this two-fold axis in turn causes disorder in the iPr groups of the phosphonyl group. Hence, we restrain ourselves from discussing metrical parameters in detail. However, the gross solid-state structure of 5 reveals a bent TiNiPr2 moiety thus rendering both phosphorus groups on the PN ligands inequivalent (Fig. 5).


image file: c6sc03422e-f5.tif

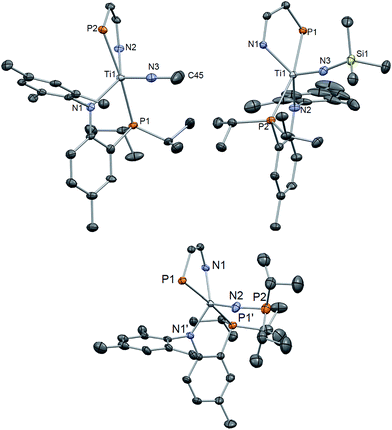

Fig. 5 Solid state X-ray structure of complexes 3–5 depicting thermal ellipsoids at the 50% probability level. H atoms and the substituents of one depicted PN ligand have been omitted for clarity. Residual solvent molecules have been also omitted.

Early-transition borylimidos are rare functional groups in inorganic chemistry. Only two examples of titanium have been reported, both being derived from non-conventional routes involving B–B, B–H, and B–C bond activation reactions.52,79 Our ability to prepare nitride 1 allows us to explore simple salt-metathesis reactions to construct these archetypal functionalities. Hence, treating 1 with ClBcat (cat = catechol) resulted in clean conversion to the borylimido (PN)2Ti[double bond, length as m-dash]N{Bcat} (6) in ∼89% yield after subsequent workup of the reaction mixture (Scheme 2). Unlike the phosphonylimide, the borylimido does not display any unusual NMR spectroscopic features, with a 31P NMR spectrum featuring one singlet resonance at 17.19 ppm. A solid-state structural study of 6 shows a topologically linear Ti[double bond, length as m-dash]N[double bond, length as m-dash]B (175.00(1)°) due to the Lewis acid nature of the boryl group. Consequently, the former titanium nitride distance Ti–N has elongated to 1.7312(2) Å, akin to 4 (Fig. 6, Table 1). In accord with these other rare examples, the linear character of the Ti[double bond, length as m-dash]N[double bond, length as m-dash]B bond angle demonstrates delocalized π electrons in these bonds.


image file: c6sc03422e-f6.tif

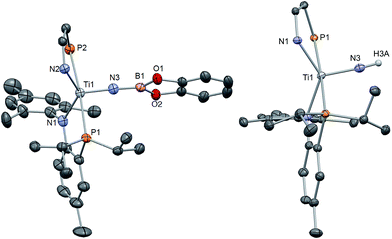

Fig. 6 Solid state X-ray structure of complexes 6 and 7 depicting thermal ellipsoids at the 50% probability level. H atoms and the substituents of one depicted PN ligand have been omitted for clarity. For 7, SQUEEZE was used to remove a disordered THF molecule.

Terminally bound imides with a hydrogen substituent (referred to as a parent imide) are exceptionally rare in early transition metals, with the only documented examples for group 4 being (BDI)Ti[triple bond, length as m-dash]NH(Ntolyl2)52,80,81 (BDI = [ArNCMe]2CH or [ArNCtBu]2CH; Ar = 2,6-iPr2C6H3), and trans-TiCl2(NH)(OPPh3)2.81 Not surprisingly, pKa information on parent imides is unknown, but one would expect the imide moiety to be a weak acid given the highly polarized nature of the nitride group. Conversely, the basicity of terminal nitride anions is also unknown. While these species have rarely been reported, it has been hypothesized that some parent imide complexes exist as transient, non-isolable intermediates.14 Since formation of 1 does not traverse through a parent imide, we treated this species with a weak acid not only to allow us entry to this rare moiety but also to provide some information about the basicity of the nitride ligand in 1. Hence, exploring various sources of a proton established HN{SiMe3}2 (pKa = 25.8, THF)82 to cleanly yield the parent imide (PN)2Ti[triple bond, length as m-dash]NH (7) in ∼84% isolated yield (Scheme 2). The imide resonance was observed in the 1H NMR spectrum as a broad feature at 5.07 ppm (Δν1/2 = 9.1 Hz) while the 31P NMR spectrum displayed a singlet at 15.66 ppm, a resonance shifted downfield from 1. Characterization by single X-ray crystallography (Fig. 6) revealed that complex 7 favors a more trigonal bipyramidal geometry, (τ5 = 0.769), which contrasts the geometry observed for the few known group 4 transition metal parent imides having coordination numbers of four and five.81 One notable feature is the nearly linear orientation of the phosphine groups (P–Ti–P, 177.16(3)°) when associated to other (PN)2Ti scaffolds (Table 1). It is also noted that single X-ray diffraction revealed that the molecule also co-crystallizes in a 4[thin space (1/6-em)]:[thin space (1/6-em)]1 ratio with a secondary product in which the N atom of the imide has inserted into the phosphorous arm of the PN ligand, and the H atom of the parent imide has formed a bond to titanium, namely the compound “(PN)(NPN)Ti(H)” (see ESI for an explanation of these co-crystals). The metal-hydride bond that is observed as a result of this transformation is under further investigation with regard to the implications this rearrangement has on reactivity of the parent imide. While the ylide Ph3PCH2 (pKb = −22, DMSO)83 failed to deprotonate the imide, attempts to use stronger bases resulted in decomposition products presumably due to the reactivity of the titanium nitride product. It was found independently that complex 7 gradually decomposes over time thus precluding reactivity with stronger bases. However, attempts to protonate the nitride with diisopropylamine, HNiPr2 (pKa = 36, THF),84 resulted in no reaction. This observation allowed us to narrow the pKa range of the parent imide to be within 26–36 based on these set of control experiments. Given these pKa ranges for the parent imide, we are able to estimate the pKb of 1 on the order of −20, in accord with such a moiety being a strong base and nucleophile as demonstrated through our reactivity.

Complete N-atom transfer of the titanium nitride

A salt elimination reaction concurrent with complete N-atom transfer could be accomplished when complex 1 was treated with ClC(O)tBu in toluene. Immediate formation of a purple solution is evidenced upon addition of the acid chloride, and workup of the reaction mixture followed by NMR spectroscopic characterization confirmed this purple species to be the oxo complex (PN)2Ti[triple bond, length as m-dash]O (8) (Scheme 3) in near quantitative yield, ∼96%. Examination of the reaction mixture also revealed the formation of another product, which was identified as the organic nitrile NCtBu based on NMR spectroscopic comparison to an authentic sample. The formation of the nitrile was monitored in 1H NMR spectroscopy to be formed in the same ratio as 8via integration. A similar transformation involving N for O/Cl exchange was originally reported by Cummins using nitride complexes such as N[triple bond, length as m-dash]W(N[iPr]Ar)3 (Ar = 3,5-Me2C6H3) or the salt [Na][N[triple bond, length as m-dash]Nb(N[Np]Ar)3] (Np = CH2tBu).31,86 Likewise, Veige more recently reported N-atom transfer to various acid chlorides using {[tBuOCO]Mo[triple bond, length as m-dash]N]Na(DMF)}2 [tBuOCO3− = 2,6-C6H3(6-tBuC6H3O)2]. In their studies the authors were able to isolate the acylimido intermediate [tBuOCO]Mo[triple bond, length as m-dash]NC(O)tBu, and mechanistically probe for an azametallacylobutene species en route to N for O exchange.87
image file: c6sc03422e-s3.tif

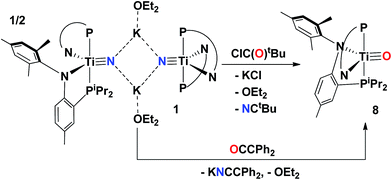

Scheme 3 Salt metathesis, and N for O-atom transfer to form the oxo complex 8.

Complex 8 was characterized by 1H and 31P NMR spectroscopy and the latter displayed a sharp singlet at 13.3 ppm. Although there are no clear diagnostic signatures for 8 in the 1H NMR spectrum, monitoring the reaction mixture by 1H NMR spectroscopy revealed clean formation of a resonance at 0.8 ppm consistent with the pivaloyl nitrile (NCtBu). Single crystal X-ray diffraction studies of 8 are in accord with a five-coordinate, mononuclear complex having a terminal oxo group, with a Ti[triple bond, length as m-dash]O length of 1.644(2) Å (Fig. 7), well within the range of many reported terminal titanium oxo moieties.58,88 Rather unsurprisingly, the oxo complex closely parallels the molecular geometry of the parent imide, complex 7, with a τ5 value of 0.769 and very similar P–Ti–P angle of 179.08(3)°. Furthermore, we explored the unusual purple color of this Ti(IV) complex via UV-vis analysis. The extremely low intensity absorption observed at 550 nm (ε = 174.8 M−1 cm−1) possibly corresponds to a similar phenomenon like that observed in MnO4, where the complex absorbs yellow light to promote a LMCT band.


image file: c6sc03422e-f7.tif

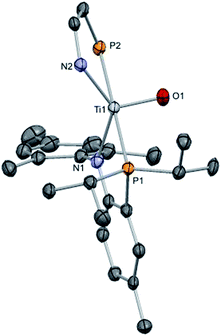

Fig. 7 Solid state X-ray structure of complex 8, depicting thermal ellipsoids at the 50% probability level. H atoms and the substituents of one depicted PN ligand have been omitted for clarity.

Complex 1 can also transfer the nitride atom to other carbonyl containing groups such as the ketene O[double bond, length as m-dash]C[double bond, length as m-dash]CPh2 (Scheme 3). Accordingly, addition of the ketene to 1 rapidly produces the signature purple color indicative in formation of 8, as confirmed by both 1H and 31P NMR spectroscopy. However, upon addition of the ketene a salt is also produced which could be readily separated from the mixture via filtration. Given the insoluble nature of this yellow solid (presumably KN[double bond, length as m-dash]C[double bond, length as m-dash]CPh), we proceeded to treat it with Me3SiCl, immediately forming a salt (KCl) and a neutral species which was unequivocally identified to be the azaallene Me3SiN[double bond, length as m-dash]C[double bond, length as m-dash]CPh2 based on 1H NMR spectroscopic comparison to a literature report.89

Solid state 15N NMR spectroscopic studies of titanium nitrides

Isolation of dinuclear and mononuclear nitrides of titanium presented us with a rare opportunity to investigate their axial symmetry. Hence, we prepared the 50% 15N enriched complex 1-15N and converted it to the terminal nitride [K(2,2,2-Kryptofix)][(PN)2Ti[triple bond, length as m-dash]15N] by addition of the cryptand (2,2,2-Kryptofix = 4,7,13,16,21,24-hexaoxa-1,10-diazabicyclo[8.8.8]hexacosane).53 We were able to analyze this discrete salt by magic angle spinning (MAS) 15N NMR spectroscopy. In accord with our expectations,38,52 this species reveals a significantly downfield chemical shift (δiso = 902 ppm), which is attributable to a highly deshielded terminal nitride species (Fig. 8). As presented in Fig. 8, the simulated 15N NMR solid state spectrum agrees well with experimentally collected values in both solid and solution state phases (δ = 958 ppm).53 Tensor components span a large chemical shift anisotropy (CSA) of nearly 1500 ppm, with δ11δ22 = 1392 ± 50 and δ33 = −78 ± 50 ppm. Such anisotropy has been similarly observed in other mononuclear metal nitride species, namely 15N[triple bond, length as m-dash]Mo(N[tBu]Ar′)3 (Ar′ = 3,5-Me2C6H3) and [K(OEt2)]2[(tBuBDI)Ti[triple bond, length as m-dash]15N(Ntolyl2)]2 (tBuBDI = [ArNCtBu]2CH; Ar = 2,6-iPr2C6H3), which also have a range of several hundred ppm for CSA in their tensor components.52,90–92 The observed 15N NMR chemical shift tensors were then used to compute the axial symmetry component, κ = 3(δ22δiso)/(δ11δ33) = 1 ± 0.2. Gratifyingly, the κ value close to unity supports the triply bound nature of the Ti-nitride moiety in [K(2,2,2-Kryptofix)][(PN)2Ti[triple bond, length as m-dash]15N], and which is the favorable bonding due to a pseudo-tetragonal environment shown in Fig. 3 (vide supra). The κ value observed here deviates notably from that reported previously for a less symmetrical Ti-nitride containing the BDI ligand, which has κ = 0.64.”.
image file: c6sc03422e-f8.tif

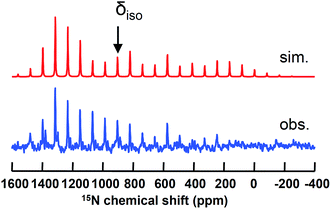

Fig. 8 Simulated (top) and observed (bottom) solid state MAS 15N NMR spectrum of [K(2,2,2-Kryptofix)][(PN)2Ti[triple bond, length as m-dash]15N].

Computational studies scrutinizing the titanium nitride functionality

To understand the observed characteristic reactivity and some of the measured physicochemical properties of the titanium nitride functionality we carried out a comprehensive computational and theoretical study on the putative anion [(PN)2Ti[triple bond, length as m-dash]N] as well as complexes 1 and [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N], that we recently characterized. Using the X-ray structures as guiding geometries, the slightly truncated models were fully optimized using the BLYP functional93,94 in combination with the Def2-TZVP(-f) basis set.95 The structural modifications included only the replacement of two para-methyl substituents to hydrogens in each PN ligand and were introduced to facilitate an all-electron DFT investigation for systems of the size of 1, which still consists of 232 atoms after truncation. Dispersion has been also taken into account during optimizations using Grimme's D3 method.96 Dispersion turned out to be a critical component of our computational practice as it significantly contributed to finding accurate equilibrium geometries for both the dimer species, 1 and 2, and for monometallic systems, that is [(PN)2Ti[triple bond, length as m-dash]N], [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N]. It is important to note that we observed a substantial improvement in the computed distances of weak Ti–P and K+⋯N interactions for the latter systems when compared to our earlier simulations without dispersion.53 As a matter of fact, the computational protocol outlined in the ESI might offer useful practical solutions to few of the inborn weaknesses of standard DFT for such very extended transition-metal- and alkali-metal-containing systems. For example, one might obtain more realistic results for the notoriously overestimated bond lengths of weak metal–ligand interactions when taking into account inter ligand dispersion. One might be able to discard the surreal behavior of alkali-metal(s) in simulations, which was recently noted by Holland and co-workers to be detrimental for a systematic computational study on the alkali metal effect on Fe[double bond, length as m-dash]N[double bond, length as m-dash]N[double bond, length as m-dash]Fe functionalities.97 As Fig. 9 reveals, the computed equilibrium structures are very similar to the experimentally determined molecular geometries established by single crystal X-ray diffraction studies. Also, in excellent agreement with our experiments, calculations predict the 15N NMR spectroscopic chemical shifts to be 913 ppm, 970 ppm and 878 ppm using the slightly truncated models of [(PN)2Ti[triple bond, length as m-dash]N], [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N], and 1, respectively. These two benchmarks convincingly imply that our computer models capture the most salient features of the electronic structure of these molecular systems reasonably well and that the introduced structural simplification is acceptable. In particular, the agreement between the computed and experimentally observed effect of alkali-metal coordination on 15N NMR spectroscopic resonances supports the notion that the corresponding electronic structural changes are captured computationally in at least a plausible fashion.
image file: c6sc03422e-f9.tif

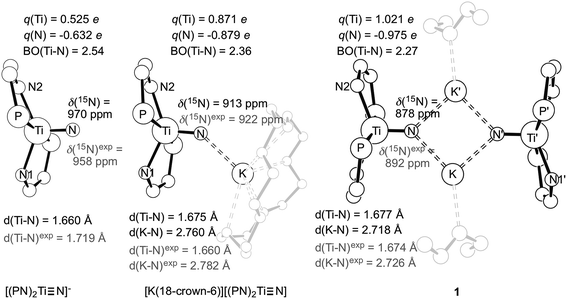

Fig. 9 Equilibrium geometries for [(PN)2Ti[triple bond, length as m-dash]N], [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] and 1 together with the most important structural metrics computed and determined by single crystal X-ray diffraction (grey). Also given are the computed and measured 15N NMR chemical shifts of the nitride centers as well as Mulliken charges of titanium, q(Ti), and the nitride center, q(N) together with the Mayer bond order (BO) index of the Ti[triple bond, length as m-dash]N interaction.

As noted in our earlier communication,53 various computed electronic structure descriptors imply that the main difference in the Ti–Nnitride bonding is the different covalent/ionic character of the bond in the monomeric species [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] and [(PN)2Ti[triple bond, length as m-dash]N]. Namely, the Ti[triple bond, length as m-dash]N bond in [(PN)2Ti[triple bond, length as m-dash]N] exhibits a greater degree of covalent character than in [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N]. In the case of the latter, the proximity of the K+ ion electrostatically stabilizes the highly charged nitride center and, concomitantly, induces a density shift from the Ti center towards the Nnitride. This electron density shift induced by the proximity of K+ renders the titanium-nitride bond more ionic in [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] than in [(PN)2Ti[triple bond, length as m-dash]N]. As a matter of fact, the different ionic character can be clearly witnessed in the computed atomic charges of Ti (0.53 e in [(PN)2Ti[triple bond, length as m-dash]N] and 0.87 e in [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N]) and N (−0.63 e in [(PN)2Ti[triple bond, length as m-dash]N]vs. −0.88 e in [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N]) (Fig. 10). The reduced bond order in [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] (2.36 vs. 2.54 in [(PN)2Ti[triple bond, length as m-dash]N]) also conforms to a lower degree of covalent character of the Ti[triple bond, length as m-dash]N bond in this structure. These pronounced differences in Ti–Nnitride bonding are further enhanced with the presence of two potassium ions in 1. In particular, atomic charges (q(Ti) = 1.02 e and q(N) = −0.975 e) as well as the reduced bond order of 2.27 indicate the higher ionic and lower covalent character of the Ti[triple bond, length as m-dash]N bond in 1 to either [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] or [(PN)2Ti[triple bond, length as m-dash]N] (Fig. 9).


image file: c6sc03422e-f10.tif

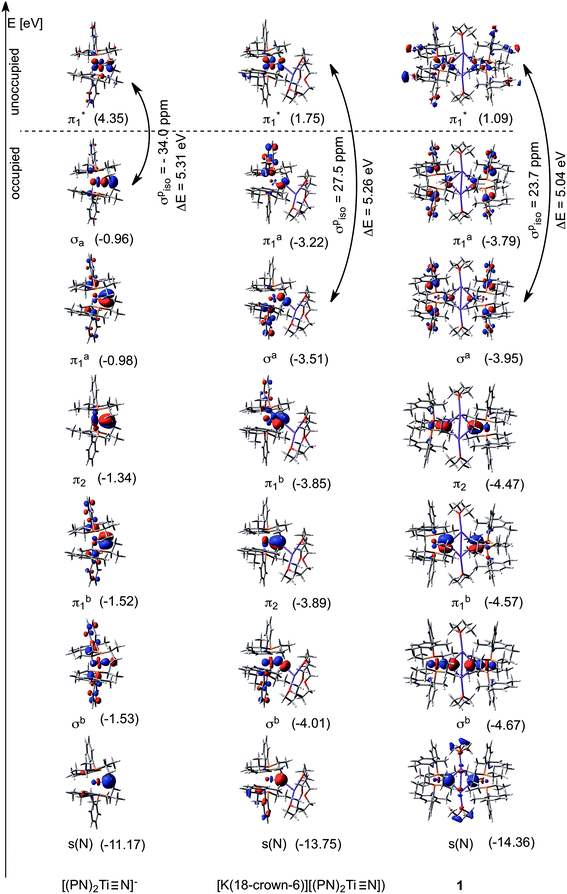

Fig. 10 Most relevant occupied MOs for [(PN)2Ti[triple bond, length as m-dash]N], [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] and 1 describing the electronic structure of the Ti[triple bond, length as m-dash]N functionality. One of the unoccupied orbitals, image file: c6sc03422e-t4.tif, which is critical for the paramagnetic shielding of Nnitride is also depicted.

More thorough insights into the electronic structure changes induced by the alkali-metal ion are gained through a close inspection of the molecular orbitals (MOs) that describe the bonding of the titanium-nitride functionality. A conceptual MO-diagram that highlights the most relevant molecular orbitals of the metal–nitride interactions is given in Fig. 3, implying one σ- and two π-bonds and a lone pair at Nnitride. Instead of the expected four MOs representing these functions, however, Fig. 10 depicts six occupied orbitals for each Ti[triple bond, length as m-dash]N functionality merely because the σ-bond as well as one of the Ti–N π-bonds can be defined by two MOs. In detail, the Ti–Nnitride σ-interaction of each Ti[triple bond, length as m-dash]N functionality in Fig. 10 is represented by two MOs, σb and σa, which evolve due to the formation of a bonding (b) and an anti-bonding (a) combination with a π-type orbital of the PN ligand(s). Similarly, orbitals πb1 and πa1, which appear again as a bonding/anti-bonding pair with a PN ligand orbital, together characterize one of the Ti–Nnitride π-interactions. In addition, π2 represents the other π-type interaction which lies about in the P–Ti–P plane whereas, as hypothesized in Fig. 3, the lone pair at Nnitride has a strong component of s atomic orbital character and it is of low energy.

Although the crown ether-encapsulated K+ breaks the symmetry in [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] as well as it alters the ordering of the orbitals, the computed MOs characterize the same Ti–Nnitride interactions as for [(PN)2Ti[triple bond, length as m-dash]N]. Moreover, the analogous MOs can also be intuitively recognized for the dimer species 1 (Fig. 10), for which only the symmetric combinations are illustrated for clarity. The side-by-side comparison of the corresponding MOs reveal that the σ-interaction, mostly σa, as well as πa1 experiences a significant change in character when being confronted by the alkali metal ion(s); the atomic contribution of Ti decreases whereas that of Nnitride increases in these MOs when going from [(PN)2Ti[triple bond, length as m-dash]N] to [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] or 1. This difference in corresponding MOs conforms to the additional polarization of the Ti–Nnitride bond that was discussed above and which was supported with charge distribution measures and bond descriptors. Finally, the stabilization effect of the nearby cation on the electron rich Nnitride can be clearly witnessed in the computed orbital energies, which are much more negative in 1 and in [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] than in [(PN)2Ti[triple bond, length as m-dash]N].

The observed and computed 15N NMR chemical shift of Nnitride is not only useful for precisely determining the identity of these species in solution, but can also be utilized as a diagnostic tool that gives direct information on the chemical environment about Nnitride and, as such, on the Ti–Nnitride interaction. In particular, the gradual upfield shift of 50–30 ppm when going from [(PN)2Ti[triple bond, length as m-dash]N] to [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] and 1 suggests a subtle change in the electronic structure due to the nearby cation(s). In order to put this trend of 15Nnitride chemical shift into context with the underlying electronic structures it is critical to realize that magnetic shielding of heavy nuclei does not directly correlate with the electron density at the nucleus. Rather, heavy nuclei, such as 15N, have access to low-energy molecular orbitals of p and d-type atomic contributions that make the electron density around these nuclei very dynamic in the sense that local fluctuations of the electron cloud become more prevalent in an external magnetic field. The magnetic shielding that results from these electron density fluctuations is conventionally referred to as paramagnetic shielding, σp, and is typically more sensitive to the changes in chemical bonding than the diamagnetic shielding, σd, which originates from tightly-bound electron density at the nucleus. In a recent study we discussed the basic relationships of such density fluctuations with MOs, shielding tensors and chemical shifts and, by scrutinizing vanadium- and molybdenum-cyclo-P3 complexes, we showed how a thorough analysis of shielding tensors of heavy nuclei can lead to a conceptual understanding of the bonding characteristics of unusual transition metal–ligand interactions.98

To understand what makes the Nnitride nucleus more shielded in the case of K+ ligated species, we computed and analyzed the 15N magnetic shielding tensors of the above-described slightly truncated versions of the complexes [(PN)2Ti[triple bond, length as m-dash]N], [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] and 1. In general, the magnetic shielding at a NMR-active nucleus and the resulting chemical shift can be calculated from first principles to a reasonable degree of accuracy91,99–101 and, accordingly, the computed values shown in Fig. 10 also agree well with measured solution-state 15N NMR spectroscopic resonances. In addition, the above-discussed large chemical shift anisotropy (CSA) is reproduced computationally (∼1500 ppm vs. 1470 ppm) for [(PN)2Ti[triple bond, length as m-dash]N] as well as the corresponding principal components of the shielding tensor (δ11 = 1562.2 ppm, δ22 = 1285.0 ppm and δ33 = 61.9 ppm) are in line with the experimentally determined components in solid state (δ11δ22 = 1392 ± 50 ppm and δ33 = −78 ± 50 ppm) for [K(2,2,2-Kryptofix)][(PN)2Ti[triple bond, length as m-dash]N]. Due to omitting the K(2,2,2-Kryptofix)+ counter ion and other condensed phase effects in the simulations, however, a difference of about 280 ppm between δ11 and δ22 appears in silico, which manifests in an underestimated axial symmetry component (κ = 0.63 vs. app. 1) for the computationally considered model system, [(PN)2Ti[triple bond, length as m-dash]N]. As expected, the diamagnetic term displays a narrow range of shielding contributions with computed σd values of 339.7, 341.3 and 347.7 ppm for 15Nnitride in [(PN)2Ti[triple bond, length as m-dash]N], [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] and 1, respectively. The paramagnetic contribution, on the other hand, differs significantly with computed shielding parameters of −1050.3, −996.3 and −967.3 ppm, respectively. These values illustrate the general concept mentioned above that σp dominates the overall shielding of heavy nuclei and, thus, determines the chemical shift δavg against a reference.

As we demonstrated recently,98 the thorough analysis of the paramagnetic contribution to the shielding can be challenging, because one has to decompose the sum of a great number of individual magnetic fields originating from occupied–unoccupied orbital pairs that couple through the angular momentum operator. In addition, the magnetic fields generated by what is most spontaneously understood as electron density fluctuations are hard to visualize or imagine. Finding a few numbers of distinguishing orbital-pairs that make a decisive contribution and that are characteristic for the certain species under investigation is the key to understanding such paramagnetic shielding. Nevertheless, we could pinpoint one occupied orbital, σa, whose contribution to shielding changes significantly in the presence of a nearby K+ (Fig. 10). For example, the total paramagnetic shielding contribution of σa is −504.6 ppm in [(PN)2Ti[triple bond, length as m-dash]N] whereas it drops to −128.0 ppm in [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] and even becomes shielding (157.6 ppm) in 1. This σa MO couples most intensively with the vacant π* orbitals corresponding to the antibonding combinations of Ti–Nnitride π-bonds, e.g.image file: c6sc03422e-t1.tif illustrated in Fig. 10. In this context it is worth noting that Morokuma, Schrock, Griffin and Cummins reported very similar findings for the unusual 31P NMR chemical shielding tensors of terminal phosphide (M[triple bond, length as m-dash]P) complexes of molybdenum and tungsten.91 In the latter systems the σ(M[triple bond, length as m-dash]P) and π*(M[triple bond, length as m-dash]P) MO mixing makes the primary contribution to the 31P paramagnetic shielding due to the components of the applied magnetic field which are oriented perpendicular to the M[triple bond, length as m-dash]P bond. Fig. 10 also illustrates how the paramagnetic shielding contribution of σaimage file: c6sc03422e-t2.tif mixing varies for each nitride species. The coupling of these orbitals in an external magnetic field induces a density flow that has a deshielding effect in [(PN)2Ti[triple bond, length as m-dash]N], whereas it generates a shielding effect in [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] and 1, where the K+ affects the bonding characteristics. The energy gap (ΔE) between interacting orbitals is also given in Fig. 10, as the coupling efficiency is inversely proportional to the energy difference between the interacting orbitals.99 For example, the 31P NMR chemical shift of triple bonded phosphorous has been found to correlate very well with the σ–π* energy gap as well as we also reported the significance of energy gap of coupling orbitals in determining the chemical shielding of phosphorous nuclei in metal-cyclo-P3 complexes.98 The very small differences in energy gaps (ΔE in Fig. 10), however, cannot account for the qualitatively different paramagnetic shielding effects of σ–π* coupling in the studied systems. Rather, the qualitative difference of paramagnetic contributions, i.e. deshielding in [(PN)2Ti[triple bond, length as m-dash]N] and more shielding in K+–ligated systems, implies that the spatial distribution of these molecular orbitals alters upon K+ coordination. Accordingly, the localization of σa on the nitride center as well as the localization of image file: c6sc03422e-t3.tif on Ti in K+–ligated systems results in a constructive orbital overlap when these orbitals couple through the angular momentum operator, in contrast to the destructive overlap (deshielding effect) in naked [(PN)2Ti[triple bond, length as m-dash]N]. Hence, the upfield shift of 15Nnitride resonance is linked to the K+ induced electronic structure change of the titanium-nitride functionality as demonstrated through a quantum chemical analysis of the corresponding shielding tensors.

Finally, our calculations reveal, in line with the N⋯K distances larger than 2.7 Å, that the Ti[triple bond, length as m-dash]N⋯K+ interaction is merely electrostatic in nature without any sign of covalent contribution. This electrostatic interaction, beyond inducing the above-scrutinized change of the Ti[triple bond, length as m-dash]N functionality, represents the main source of thermodynamic stabilization and driving force for forming well-structured complexes such as [K(18-crown-6)][(PN)2Ti[triple bond, length as m-dash]N] and the dimer 1.

Conclusions

No previous study has thoroughly explored or elucidated the reactivity of molecular titanium nitrides prior to the work presented herein. Our findings imply in general that the Ti[triple bond, length as m-dash]N functionality is a very strong nucleophile, which readily reacts with electrophilic reagents to serve as a full or partial N-atom transfer reagent. A combined experimental and theoretical investigation has helped us understand the bonding and structure in these systems as well as rationalize the nature of the 15N chemical shift of the nitride ligand and the role of the K+ counteraction. Looking forward, we seek to further understand how this nitride moiety can be tuned and modified to generate ammonia under hydrogen, and further, generate the nitride instead from nitrogen as opposed to azide to extend the scope of this chemistry to a more sustainable and atom-efficient process.

Acknowledgements

For funding, we thank the University of Pennsylvania and the Chemical Sciences, Geosciences, and Biosciences Division, Office of Basic Energy Sciences, Office of Science, U.S. Department of Energy (DEFG02-07ER15893). B. P. also thanks the Research Foundation Flanders (FWO) for the financial support (1279414N).
