Tailored oxido-vanadium(V) cage complexes for selective sulfoxidation in confined spaces

Dawei Zhangab, Kelsey Jamiesonb, Laure Guy*b, Guohua Gao*a, Jean-Pierre Dutastab and Alexandre Martinez*bc
aShanghai Key Laboratory of Green Chemistry and Chemical Processes, School of Chemistry and Molecular Engineering, East China Normal University, 3663 North Zhongshan Road, Shanghai, 200062, P. R. China
bLaboratoire de Chimie, École Normale Supérieure de Lyon, CNRS, UCBL, 46 allée d’Italie, F-69364 Lyon, France
cAix Marseille Univ, CNRS, Centrale Marseille, iSm2, Marseille, France. E-mail:

Received 11th July 2016 , Accepted 4th September 2016

First published on the web 5th September 2016

Five sets of oxido-vanadium(V) complexes, which include both cages and open structures, were prepared and tested in the catalytic oxidation of sulfides. It was found that the hemicryptophane complexes, which are simultaneously comprised of cyclotriveratrylene (CTV), binaphthol and oxido-vanadium(V) moieties, are the most efficient supramolecular catalysts. The specific shape of the confined hydrophobic space above the metal center leads to a strong improvement in the yield, selectivity and rate of the reaction, compared to the other catalysts investigated herein. A remarkable turnover number (TON) of 10[thin space (1/6-em)]000 was obtained, which can be attributed to both the high reactivity and stability of the catalyst. Similarly to enzymes, the kinetic analysis shows that the mechanism of oxidation with the supramolecular catalysts obeys the Michaelis–Menten model, in which initial rate saturation occurs upon an increase in substrate concentration. This enzyme-like behavior is also supported by the competitive inhibition and substrate size-selectivity observed, which underline the crucial role played by the cavity.

1. Introduction

Molecular cages, which bear a well-defined cavity with suitable endohedral functionalities, are very attractive since they can mimic biological systems, such as enzymes, to realize supramolecular catalysis of various reactions in their confined space.1 These cage catalysts are capable of surrounding the surfaces of reactants and impose a specific orientation and conformation to the substrate in the vicinity of the catalytic site, thus leading to new and original reactivity.2 Importantly, the goal of using such systems as true synthetic analogues of enzymes requires not only high selectivity but also enhancement of reaction rates, like in enzymatic reactions.3 However, product inhibition using supramolecular catalysts is commonly observed, since the high affinity of the product with the cavity can prevent further catalytic cycles.4 Consequently, relatively large catalyst loadings are frequently required and low turnover numbers (TONs) are usually obtained. This issue has become one of the biggest challenges in supramolecular catalysis.4a A pioneering work presenting high-turnover catalysis with supramolecular catalysts was reported by the Raymond and Bergman groups in 2011.5 They incorporated a ruthenium(II) cation into a supramolecular assembly, which was active in the isomerization of allyl alcohols with turnovers reaching 1070. Recently, using the same assembly, high TONs (>300) were also reached in alkyl–alkyl reductive elimination catalyzed by encapsulated gold(III) or platinum(IV) complexes.2j

Although tremendous advances have been made in the development of self-assembled hosts for guest encapsulation and transformation, it should be noted that covalent cages present several advantages, such as their stability and easy endohedral functionalization.2n–p,6 Among the covalent cage compounds hemicryptophanes, which are constructed from a cyclotriveratrylene (CTV) moiety and one other different C3 symmetrical unit, have recently received growing interest. The endohedral functionalization of their cavities via covalent bonds is versatile and gives rise to various excellent supramolecular catalysts which present improved selectivity, reactivity, TON and/or stability compared to the related model catalysts which lack a cavity.7 For instance, an oxido-vanadium(V) active site was attached inside the hydrophobic cavity of hemicryptophanes (complexes in Set III, Fig. 1), which were efficient in the oxidation of a hydrophobic sulfide substrate into the hydrophilic sulfoxide product with 180 turnovers.7e

image file: c6sc03045a-f1.tif

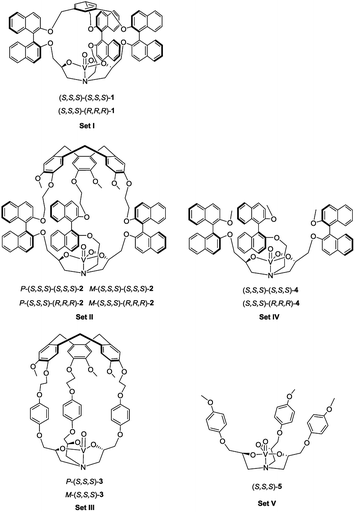

Fig. 1 Structures of the five sets of oxido-vanadium(V) complexes.

In the present work, we have designed hemicryptophane derivatives containing binaphthol moieties (complexes in Set II, Fig. 1), with the aim of constructing more hydrophobic cavities. In addition, compared with the catalysts in Set III, the location of the bulky binaphthol units in the linkers can isolate more efficiently the heart of the cavity from the bulk solution, thus the effect of the confinement in stabilizing a transition state should be more pronounced. We have also prepared the oxido-vanadium(V) complexes of the related open structure (complexes in Set IV and V) and of cages with a smaller cavity size (cage complexes in Set I) to demonstrate the necessity of having a cavity and the essential role of its size. Sulfoxidation, which is an important oxidation reaction due to the importance of sulfoxides in the synthesis of pharmaceutical and agrochemical products,8 was chosen as the model reaction. It was found that the new hemicryptophane complexes (Set II) combining both a CTV moiety and binaphthol units are most efficient for the oxidation of thioanisol, and exhibit a TON of 10[thin space (1/6-em)]000, which is a remarkable TON for a supramolecular cage catalyst. Mechanism studies show that the catalytic behaviors exhibit Michaelis–Menten kinetics, competitive inhibition and substrate size-selectivity, which suggest that the reaction occurs inside the cavity of the hemicryptophanes.

2. Results and discussion

2.1 Design and synthesis

The synthesis of the oxido-vanadium complexes 3 and 5 has been previously reported.7e,9 Complexes 2 and 4 were obtained from the corresponding stereoisomers10 by reaction with vanadium(V)-oxytriisopropoxide in CHCl3 at room temperature (r.t.) with excellent yields (>90%). The 1H NMR spectra of each isomer of complexes 2 and 4 are consistent with a C3 symmetry. The synthetic route for the vanadium complexes in set I, such as (S,S,S)-(S,S,S)-1, is shown in Scheme 1. Firstly, the enantiopure binaphthol 6 was mono-protected with an allyl group via the reaction of S-6 with 1 equiv. of allyl bromide in acetone in the presence of K2CO3 to give S-7. The enantiopure epoxide (S,S)-8 was obtained by the regioselective nucleophilic substitution reaction of S-7 on commercially available (S)-(+)-glycidyl nosylate in DMF. An excess of ammonia in methanol was then reacted with (S,S)-8 to give the primary amine (S,S)-9. The C3 symmetrical allyl-protected trialkanolamine (S,S,S)-(S,S,S)-10 was obtained by the trimerization reaction of 9 with 2 equiv. of 8 in MeOH for 5 days. Compound 10 was subsequently deprotected to generate the phenol derivative (S,S,S)-(S,S,S)-11, followed by a [1 + 1] reaction with 1,3,5-tris(bromomethyl)benzene in DMF under high dilution conditions to give the cage (S,S,S)-(S,S,S)-12. Compared to our previously reported synthesis of compound 11 based on the deprotection of methoxy groups,10 this new pathway gives a higher yield (56% vs. 33%) and displays an easier purification step. Finally, the oxido-vanadium complex (S,S,S)-(S,S,S)-1 was obtained by the reaction of 12 with 1.0 equiv. of vanadium(V)-oxytriisopropoxide in CHCl3. Derivative (S,S,S)-(R,R,R)-12 was obtained following the same procedure starting from enantiopure binaphthol S-6 and (R)-(−)-glycidyl nosylate. However, the subsequent complexation of vanadium failed to give the desired complex, even in the presence of an excess of vanadium(V)-oxytriisopropoxide, probably because of the more hindered conformation of the cavity.
image file: c6sc03045a-s1.tif

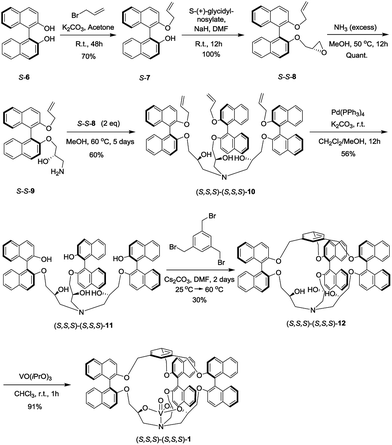

Scheme 1 Synthesis of the complex (S,S,S)-(S,S,S)-1.

2.2 Catalytic properties

These complexes were first tested in the oxidation of thioanisol sulfide into sulfoxide, using cumene hydroperoxide (CHP) as the terminal oxidant with 1.5 mol% of catalyst loading in CH2Cl2 at 0 °C. The results at 180 min and the kinetics are shown in Table 1 and Fig. S1, respectively. It can be seen that (i) with CHP as the oxidant, all the supramolecular complexes in Set II are very efficient, giving rise to high yields from 85% (P-(S,S,S)-(R,R,R)-2) to 93% (P-(S,S,S)-(S,S,S)-2) (Table 1, entries 2–5). The excellent selectivity is (>91%) evidenced by the typical kinetic curves of both yield and conversion of P-(S,S,S)-(S,S,S)-2 which are almost identical (Fig. S2). (ii) In addition, the yields obtained with hemicryptophane catalysts 2 (entries 2–5) are also significantly higher than that obtained with the corresponding model catalysts 4, which lack a cavity (entries 8 and 9), and the performances of catalysts 4 and 5 are very close, which indicate that the cage structure is essential for efficient sulfoxidation. (iii) Noticeably, the hemicryptophane catalysts 2 are more effective than the smaller cage catalyst 1 (entry 1), which highlights the important role of the cavity size. (iv) Furthermore, the yields with the new hemicryptophane catalysts in Set II are much higher than those with the previous hemicryptophane catalysts in Set III (entries 6 and 7). The improvement of the hydrophobicity and more pronounced confinement effect induced by these specific bulky binaphthol linkages could account for the enhancement of the reaction rates and yields. (v) It is also interesting to note that the kinetic curves, which monitor the yields as a function of time, are very close to each other among the catalysts in each set (Fig. S1). The use of tert-butyl hydroperoxide (TBHP) as the terminal oxidant led to similar trends in reactivity (Fig. S3). Therefore, the order of the catalytic activity,i.e. Set II > Set I > Set III > Set IV ≈ Set V, emphasizes that only the cages simultaneously containing CTV, binaphthol and oxido-vanadium moieties can serve as highly efficient supramolecular catalysts. The specific shape of the confined hydrophobic space above the metal center efficiently isolates the substrate from the surrounding solvent and expels the hydrophilic product, thus leading to a strong improvement in activity.2 Moreover, the stabilization of the transition state with catalysts 2 may also account for this improvement since the oxygen transfer will give a partial positive charge on the sulphur atom in the transition state which can be better stabilized by the numerous aromatic rings of the cage.
Table 1 Oxidation of thioanisol with CHP in the presence of catalysta
Entry Catalyst Yieldb (%) Selectivityb (%)
a Conditions: 1.5 mol% catalyst, 1.0 equiv. of CHP, CH2Cl2, 0 °C, 180 min.b Yield and selectivity were determined by HPLC with benzophenone as the internal standard. Selectivity is defined as the yield/conversion ratio.
1 Set I (S,S,S)-(S,S,S)-1 74 93
2 Set II P-(S,S,S)-(S,S,S)-2 93 97
3 M-(S,S,S)-(S,S,S)-2 88 94
4 P-(S,S,S)-(R,R,R)-2 85 91
5 M-(S,S,S)-(R,R,R)-2 91 97
6 Set III M-(S,S,S)-3 40 90
7 P-(S,S,S)-3 39 90
8 Set IV (S,S,S)-(R,R,R)-4 16 64
9 (S,S,S)-(S,S,S)-4 15 50
10 Set V (S,S,S)-5 16 89

To more accurately evaluate ratio of the kinetic constants, the catalyst amount was decreased to 1.0 mol% while the other conditions were kept identical and CHP used as the oxygen source. As shown in Fig. 2, the reaction rate with P-(S,S,S)-(S,S,S)-2 is much faster than with the other catalysts, and 91% yield was reached within 120 min. Based on the initial rate, the kinetic constant with P-(S,S,S)-(S,S,S)-2 was estimated to be 3-, 5- and 33-fold higher than with (S,S,S)-(S,S,S)-1, M-(S,S,S)-3 and (S,S,S)-(S,S,S)-4, respectively, which again emphasizes the efficiency of the new hemicryptophane complexes.

image file: c6sc03045a-f2.tif
Fig. 2 Oxidation of thioanisol with four typical catalysts: (S,S,S)-(S,S,S)-1 in Set I, P-(S,S,S)-(S,S,S)-2 in Set II, M-(S,S,S)-3 in Set III and (S,S,S)-(S,S,S)-4 in Set IV (1.0 mol% catalyst, 1.0 equiv. of CHP, 0 °C, CH2Cl2).

Since the confinement can strongly improve the reaction rate and no product inhibition effect was exhibited, we wondered if the new hemicryptophane complexes in Set II can overcome the issue of a low TON, which is commonly observed in supramolecular catalysis.5 Thus, the oxidation of thioanisol was carried out with M-(S,S,S)-(R,R,R)-2 at a low loading (0.01%) at r.t. As shown in Fig. 3, a yield of 85% was obtained within 10 h, and a rarely observed remarkable TON up to 10[thin space (1/6-em)]000 was reached after 13 h. The turnover frequency (TOF) of 1200 h−1 further indicates the high catalytic activity of this family of confined catalysts. Albeit the catalyst loading was extremely low, the high selectivity for the reaction was also retained (>90%), which suggests the stability of the catalyst. To further evaluate this stability, catalytic cycles using the same catalyst (0.1 mol%) for the oxidation of thioanisol in CH2Cl2 at room temperature was performed. It was found that no noticeable alteration in catalytic activity over four-cycle experiments was observed (Fig. S4), which emphasizes the high stability of the encaged catalyst. Obviously, the constraint cage structure protects the metal active site from degradation, which we, and also other groups, have previously reported.5,7d

image file: c6sc03045a-f3.tif

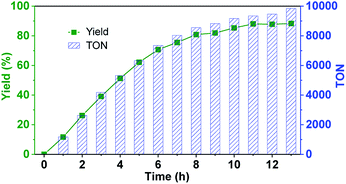

Fig. 3 Oxidation of thioanisol catalyzed by catalyst M-(S,S,S)-(R,R,R)-2 (0.01 mol% catalyst, 1.0 equiv. of CHP, r.t., CH2Cl2).

2.3 Mechanism investigation

To understand whether the reaction catalyzed by hemicrytophane catalysts is similar to enzymatic catalysis, more detailed investigations of Michaelis–Menten kinetics were explored. In enzymatic reactions, a substrate and enzyme typically participate in a reversible equilibrium with an enzyme–substrate complex, and usually rate saturation at high substrate concentrations can be observed.2g As shown in Fig. 4a, when the substrate concentration was increased while maintaining constant amounts of hemicryptophane catalyst M-(S,S,S)-(R,R,R)-2 and oxidant, initial rate saturation was observed, which is consistent with the Michaelis–Menten rate profile. Strict compliance was further confirmed by re-plotting the data to give the Lineweaver–Burk plot in Fig. 4b with an excellent fit (R2 = 0.99). The slope and y-intercept gave Km = 18.72 mM and Vmax = 4.08 × 10−2 mM s−1. The latter value was used to calculate the turnover rate, Kcat (Vmax/[catalyst]), which was 3.71 × 10−2 s−1. To determine the rate enhancement, a Kcat/Kuncat background experiment, which was oxidation of thioanisol by CHP under the same conditions without any catalyst, was performed. It was observed that after 7 days, the conversion was <2%, thus giving rise to a Kuncat of <3.3 × 10−9 s−1. Therefore, it can be evaluated that the rate acceleration, Kcat/Kuncat, is larger than 1.12 × 107, which is an enzyme-like value.
image file: c6sc03045a-f4.tif

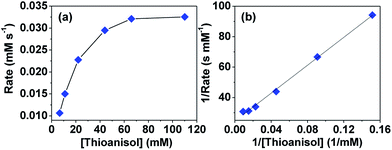

Fig. 4 (a) Initial rate dependence on the concentration of thioanisol in CH2Cl2 with 1.1 mM hemicryptophane catalyst M-(S,S,S)-(R,R,R)-2 and 110 mM CHP at 0 °C. (b) Corresponding Lineweaver–Burke line plotted by 1/rate as a function of 1/[thioanisol].

Another characteristic aspect of enzymatic catalysis is the possible inhibition of the enzyme active site with a suitable nonreactive molecule. A bound inhibitor can exclude the substrate from the cavity, thereby inhibiting the activity of the enzyme. The Me4N+ cation was expected to be encapsulated by the hemicryptophane cage because of the possible cation–π interactions between this cationic guest and numerous aromatic rings of the cage.11 As shown in Fig. S5, upon progressive addition of a concentrated solution of the host M-(S,S,S)-(R,R,R)-2 to a solution of guest Me4N+Pic in CD2Cl2, the 1H NMR signals of the protons of Me4N+ display up-field shifts, which can be attributed to the shielding effect induced by guest encapsulation. Modelling the titration curve with HypNMR2008 afforded a binding constant of 547 M−1 for the 1[thin space (1/6-em)]:[thin space (1/6-em)]1 host–guest complex (Fig. S5).12 Hence Me4N+ was considered as the competitive inhibitor, and oxidation of thioanisol in the presence of Me4N+ catalyzed by either the cage M-(S,S,S)-(R,R,R)-2 or model (S,S,S)-(R,R,R)-4 catalyst was carried out. Me4N+Pic (1.33 catalyst equiv.) was added to the reaction mixture since this concentration corresponds to its solubility limit in CH2Cl2 at r.t., and also, based on the binding constant, on average more than half of the cavities can be occupied by the Me4N+ guest. As expected, the catalytic activity of the cage M-(S,S,S)-(R,R,R)-2 strongly decreased in the presence of Me4N+, whereas that of the model compound (S,S,S)-(R,R,R)-4 almost remained constant (Fig. 5). Indeed, the reaction rate became 3.5-fold slower in the presence of 1.33 equiv. of Me4N+ when the cage M-(S,S,S)-(R,R,R)-2 was used as the catalyst, while no obvious change was observed with the open model catalyst. These results evidence the crucial role played by the cavity and also indicate that the catalytic process occurs inside the cavity. Once the cavity is blocked, the benefit induced by the hydrophobic confinement is lost, hence the catalytic activity of the cage complex drops significantly.

image file: c6sc03045a-f5.tif

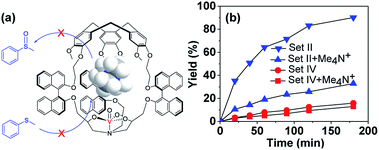

Fig. 5 (a) Graphical representation of catalysis inhibition by Me4N+. (b) Oxidation of thioanisol in the absence or presence of Me4N+ catalyzed by M-(S,S,S)-(R,R,R)-2 of Set II or (S,S,S)-(R,R,R)-4 of Set IV (1.5 mol% catalyst, 1.0 equiv. of CHP, 0 °C, CH2Cl2).

To further elucidate the significant role of the cavity on the catalysis, catalytic oxidation of larger substrates, such as benzylphenyl sulfide (B) and naphthylmethyl phenyl sulfide (C), was performed to explore the substrate size-selectivity (Fig. 6). Under the same conditions used for thioanisol (A), the new hemicryptophane complexes in Set II are still the most efficient catalysts for both substrates (B and C), displaying high yield and selectivity (Fig. S6–S9). Interestingly, it was found that the reaction rate catalyzed by the smaller cage (S,S,S)-(S,S,S)-1 continually decreased with an increase in substrate size (Fig. 6). In contrast, the reactivity of M-(S,S,S)-(R,R,R)-2 first increased when the substrate was changed from thioanisol (A) to benzylphenyl sulfide (B), followed by a remarkable drop for the oxidation of the largest naphthylmethyl phenyl sulfide (C) (Fig. 6). Moreover, the Michaelis–Menten kinetics for B and C with catalyst M-(S,S,S)-(R,R,R)-2 were also investigated (Fig. S10 and 11), and it was found that the values of Kcat are 3.71 × 10−2 s−1, 4.89 × 10−2 s−1 and 3.78 × 10−2 s−1 for substrates A, B and C, respectively, with a Km of 18.72 mM, 17.13 mM and 18.33 mM. The smaller Km of substrate B suggests the better binding of B by the cage 2 compared with that of A and C.3 Therefore, all these results indicate that benzylphenyl sulfide and naphthylmethyl phenyl sulfide are too sterically demanding to fully access the cavity of (S,S,S)-(S,S,S)-1, while the size of benzylphenyl sulfide is suitable and complementary for the cavity of M-(S,S,S)-(R,R,R)-2. This substrate size-dependent behavior further evidences that the cavity of supramolecular catalysts plays an essential role for efficient catalysis that mimics enzymatic functions.

image file: c6sc03045a-f6.tif

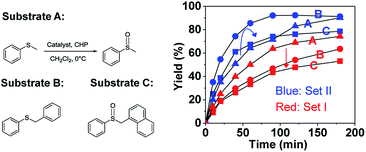

Fig. 6 Oxidation of thioanisol (substrate A), benzylphenyl sulfide (substrate B), or naphthylmethyl phenyl sulfide (substrate C) with catalyst M-(S,S,S)-(R,R,R)-2 in Set II or (S,S,S)-(S,S,S)-1 in Set I (1.5 mol% catalyst, 1.0 equiv. of CHP, 0 °C, CH2Cl2).

3. Conclusions

In summary, using the oxidation of sulfide as a model reaction, we have described herein five sets of oxido-vanadium(V) complexes, including both cages (Sets I–III) and open (Sets IV and V) structures. It was found that only the complexes (Set II) simultaneously holding CTV, binaphthol and oxido-vanadium groups are the most efficient catalysts because of the construction of a hydrophobic cavity with the right size, which is suitable to accommodate and convert the sulfide substrates, and to expel the product from the inner cavity. The oxidation of thioanisol using the catalysts of Set II displayed reaction rates 3-, 5- and 33-fold faster than that obtained with catalysts of Sets I, III and IV, respectively. The specific shape of the confined hydrophobic space above the metal center induced by the bulky binaphthol linkages, leads to strong improvement in yield, selectivity and also catalytic activity. Hence, the present case constitutes a rare example of supramolecular catalysts that exhibit extremely high levels of efficiency with 10[thin space (1/6-em)]000 turnovers. The catalytic reaction obeys the Michaelis–Menten model of enzyme kinetics, and competitive inhibition of this reaction was observed using Me4N+ as an inhibitor. The substrate size-selectivity of the cage catalysts further indicates that the reaction occurs inside the cavity of the hemicryptophane hosts, thus mimicking enzymatic functions. Determination of the catalytic activities of these new supramolecular catalysts toward other reactions, which benefit from the encapsulated vanadium(V) active sites, such as the oxidation of lignin models, are in progress in our laboratory.


A. Martinez would like to thank ANR OH-risque for funding, grant number: N° ANR-14-OHRI-0015- 01.

Notes and references

  1. (a) M. Raynal, P. Ballester, A. Vidal-Ferran and P. W. N. M. Van Leeuwen, Chem. Soc. Rev., 2014, 43, 1660 RSC; (b) M. Raynal, P. Ballester, A. Vidal-Ferran and P. W. N. M. Van Leeuwen, Chem. Soc. Rev., 2014, 43, 1734 RSC; (c) C. J. Brown, F. D. Toste, R. G. Bergman and K. N. Raymond, Chem. Rev., 2015, 115, 3012 CrossRef CAS PubMed; (d) M. D. Pluth, R. G. Bergman and K. N. Raymond, Acc. Chem. Res., 2009, 42, 1650 CrossRef CAS PubMed; (e) S. H. A. M. Leenders, R. Gramage-Doria, B. de Bruin and J. N. H. Reek, Chem. Soc. Rev., 2015, 44, 433 RSC; (f) B. Breiner, J. K. Clegg and J. R. Nitschke, Chem. Sci., 2011, 2, 51 RSC; (g) T. K. Hyster, L. Knörr, T. R. Ward and T. Rovis, Science, 2012, 338, 500 CrossRef CAS PubMed; (h) T. Heinisch, M. Pellizzoni, M. Dürrenberger, C. E. Tinberg, V. Köhler, J. Klehr, T. Schirmer, D. Baker and T. R. Ward, J. Am. Chem. Soc., 2015, 137, 10414 CrossRef CAS PubMed; (i) M. W. Hosseini, J. M. Lehn, K. C. Jones, K. E. Plute, K. B. Mertes and M. P. Mertes, J. Am. Chem. Soc., 1989, 111, 6330 CrossRef CAS.
  2. (a) Y. Kohyama, T. Murase and M. Fujita, J. Am. Chem. Soc., 2014, 136, 2966 CrossRef CAS PubMed; (b) S. Horiuchi, T. Murase and M. Fujita, Angew. Chem., Int. Ed., 2012, 51, 12029 CrossRef CAS PubMed; (c) K. Ikemoto, Y. Inokuma and M. Fujita, J. Am. Chem. Soc., 2011, 133, 16806 CrossRef CAS PubMed; (d) Y. Nishioka, T. Yamaguchi, M. Kawano and M. Fujita, J. Am. Chem. Soc., 2008, 130, 8160 CrossRef CAS PubMed; (e) Z. J. Wang, K. N. Clary, R. G. Bergman, K. N. Raymond and F. D. Toste, Nat. Chem., 2013, 5, 100 CrossRef CAS PubMed; (f) W. M. Hart-Cooper, K. N. Clary, F. D. Toste, R. G. Bergman and K. N. Raymond, J. Am. Chem. Soc., 2012, 134, 17873 CrossRef CAS PubMed; (g) C. J. Hastings, D. Fiedler, R. G. Bergman and K. N. Raymond, J. Am. Chem. Soc., 2008, 130, 10977 CrossRef CAS PubMed; (h) Z. J. Wang, C. J. Brown, R. G. Bergman, K. N. Raymond and F. D. Toste, J. Am. Chem. Soc., 2011, 133, 7358 CrossRef CAS PubMed; (i) M. D. Pluth, R. G. Bergman and K. N. Raymond, Science, 2007, 316, 85 CrossRef CAS PubMed; (j) D. M. Kaphan, M. D. Levin, R. G. Bergman, K. N. Raymond and F. D. Toste, Science, 2015, 350, 1235 CrossRef CAS PubMed; (k) S. R. Shenoy, F. R. P. Crisostomo, T. Iwasawa and J. Rebek Jr, J. Am. Chem. Soc., 2008, 130, 5658 CrossRef CAS PubMed; (l) M. M. J. Smulders and J. R. Nitschke, Chem. Sci., 2012, 3, 785 RSC; (m) R. Gramage-Doria, J. Hessels, S. H. A. M. Leenders, O. Tröppner, M. Dürr, I. Ivanović-Burmazović and J. N. H. Reek, Angew. Chem., Int. Ed., 2014, 53, 13380 CrossRef CAS PubMed; (n) B. Kersting, Z. Anorg. Allg. Chem., 2004, 630, 765 CrossRef CAS; (o) S. Käss, T. Gregor and B. Kersting, Angew. Chem., Int. Ed., 2006, 45, 101 CrossRef PubMed; (p) G. Steinfeld, V. Lozan and B. Kersting, Angew. Chem., Int. Ed., 2003, 42, 2261 CrossRef CAS PubMed; (q) S. Di Stefano, R. Cacciapaglia and L. Mandolini, Eur. J. Org. Chem., 2014, 7304 CrossRef CAS; (r) E. A. Kataev and C. Müller, Tetrahedron, 2014, 70, 137 CrossRef CAS.
  3. (a) Z. J. Wang, C. J. Brown, R. G. Bergman, K. N. Raymond and F. D. Toste, J. Am. Chem. Soc., 2011, 133, 7358 CrossRef CAS PubMed; (b) C. J. Hastings, R. G. Bergman and K. N. Raymond, Chem.–Eur. J., 2014, 20, 3966 CrossRef CAS PubMed; (c) C. J. Hastings, M. D. Pluth, R. G. Bergman and K. N. Raymond, J. Am. Chem. Soc., 2010, 132, 6938 CrossRef CAS PubMed; (d) S. Kopilevich, A. Muller and I. A. Weinstock, J. Am. Chem. Soc., 2015, 137, 12740 CrossRef CAS PubMed.
  4. (a) R. J. Hooley, Nat. Chem., 2016, 8, 202 CrossRef CAS PubMed; (b) Q.-Q. Wang, S. Gonell, S. H. A. M. Leenders, M. Dürr, I. Ivanović-Burmazović and J. N. H. Reek, Nat. Chem., 2016, 8, 225 CrossRef CAS PubMed; (c) W. Cullen, M. C. Misuraca, C. A. Hunter, N. H. Williams and M. D. Ward, Nat. Chem., 2016, 8, 231 CrossRef CAS PubMed; (d) J. K. Sanders, Chem.–Eur. J., 1998, 4, 1378 CrossRef CAS; (e) M. Yoshizawa, M. Tamura and M. Fujita, Science, 2006, 312, 251 CrossRef CAS PubMed; (f) J. Kang and J. Rebek Jr, Nature, 1997, 385, 50 CrossRef CAS PubMed; (g) S. Mosca, Y. Yu, J. V. Gavette, K. D. Zhang and J. Rebek Jr, J. Am. Chem. Soc., 2015, 137, 14582 CrossRef CAS PubMed.
  5. C. J. Brown, G. M. Miller, M. W. Johnson, R. G. Bergman and K. N. Raymond, J. Am. Chem. Soc., 2011, 133, 11964 CrossRef CAS PubMed.
  6. (a) K. I. Assaf and W. M. Nau, Chem. Soc. Rev., 2015, 44, 394 RSC; (b) K. I. Assaf, M. S. Ural, F. Pan, T. Georgiev, S. Simova, K. Rissanen, D. Gabel and W. M. Nau, Angew. Chem., Int. Ed., 2015, 54, 6852 CrossRef CAS PubMed; (c) H. S. El-Sheshtawy, B. S. Bassil, K. I. Assaf, U. Kortz and W. M. Nau, J. Am. Chem. Soc., 2012, 134, 19935 CrossRef CAS PubMed; (d) S. J. Barrow, S. Kasera, M. J. Rowland, J. del Barrio and O. A. Scherman, Chem. Rev., 2015, 115, 12320 CrossRef CAS PubMed; (e) F. Liu, R. C. Helgeson and K. N. Houk, Acc. Chem. Res., 2014, 47, 2168 CrossRef CAS PubMed; (f) I. Pochorovski and F. Diederich, Acc. Chem. Res., 2014, 47, 2096 CrossRef CAS PubMed; (g) D. S. Kim and J. L. Sessler, Chem. Soc. Rev., 2015, 44, 532 RSC.
  7. (a) P. D. Raytchev, A. Martinez, H. Gornitzka and J.-P. Dutasta, J. Am. Chem. Soc., 2011, 133, 2157 CrossRef CAS PubMed; (b) B. Chatelet, H. Gornitzka, V. Dufaud, E. Jeanneau, J.-P. Dutasta and A. Martinez, J. Am. Chem. Soc., 2013, 135, 18659 CrossRef CAS PubMed; (c) B. Chatelet, V. Dufaud, J.-P. Dutasta and A. Martinez, J. Org. Chem., 2014, 79, 8684 CrossRef CAS PubMed; (d) B. Chatelet, L. Joucla, J.-P. Dutasta, A. Martinez and V. Dufaud, Chem.–Eur. J., 2014, 20, 8571 CrossRef CAS PubMed; (e) A. Martinez and J.-P. Dutasta, J. Catal., 2009, 267, 188 CrossRef CAS; (f) Y. Makita, K. Sugimoto, K. Furuyoshi, K. Ikeda, S. I. Fujiwara and T. Shin-ike, Inorg. Chem., 2010, 49, 7220 CrossRef CAS PubMed; (g) O. Perraud, A. B. Sorokin, J.-P. Dutasta and A. Martinez, Chem. Commun., 2013, 49, 1288 RSC.
  8. S. S. Negi, K. Sivaranjani, A. P. Singh and C. S. Gopinath, Appl. Catal., A, 2013, 452, 132 CrossRef CAS.
  9. A. Gautier, J.-C. Mulatier, J. Crassous and J.-P. Dutasta, Org. Lett., 2005, 7, 1207 CrossRef CAS PubMed.
  10. D. Zhang, J. C. Mulatier, J. R. Cochrane, L. Guy, G. Gao, J.-P. Dutasta and A. Martinez, Chem.–Eur. J., 2016, 22, 8038 CrossRef CAS PubMed.
  11. (a) O. Perraud, V. Robert, A. Martinez and J.-P. Dutasta, Chem.–Eur. J., 2011, 17, 4177 CrossRef CAS PubMed; (b) L. Garel, B. Lozach, J.-P. Dutasta and A. Collet, J. Am. Chem. Soc., 1993, 115, 11652 CrossRef CAS.
  12. C. Frassineti, S. Ghelli, P. Gans, A. Sabatini, M. S. Moruzzi and A. Vacca, Anal. Biochem., 1995, 231, 374 CrossRef CAS PubMed.


Electronic supplementary information (ESI) available: Materials and instrumentations, synthesis and characterization, experimental details, catalytic kinetic data, 1H NMR titrations, etc. See DOI: 10.1039/c6sc03045a
