Fatereh Asghari-Haji,
Kurosh Rad-Moghadam* and
Nosrat O. Mahmoodi
Department of Chemistry, Faculty of Sciences, University of Guilan, PO Box 41335-1914, Rasht, Iran. E-mail: radmm@guilan.ac.ir; Fax: +98 133 333 3262; Tel: +98 133 333 3262
First published on 10th March 2016
Synthesis of the dyes 3,3′-(arylmethylene)bis(2-hydroxynaphthalene-1,4-diones) was achieved efficiently in mild and metal-free conditions from a pseudo three-component reaction between 2-hydroxynaphthalene-1,4-dione and aldehydes under catalysis of O-carboxymethyl chitosan as a green, available, low-cost, and water-soluble bio-derived catalyst. This method combines the advantages of homogeneous catalysis in aqueous medium with convenient recovery and repeated recycling of the polymeric catalyst. The catalytic action of O-carboxymethyl chitosan is reminiscent of soft catalysis of enzymes and seems to be exerted by proton donating and accepting functions of the ammonium and amino groups arranged along the backbone of the polymeric bio-inspired catalyst.
In this context, synthesis of 3,3′-(arylmethylene)bis(2-hydroxynaphthalene-1,4-diones) via the reaction of aldehydes with two equivalents of HNQ have received much attention from chemists in recent years. Since this synthesis is based on an inherently slow and catalyst-demanding reaction, several catalysts, mostly acidic, such as [Et3NH]Cl,17,18 LiCl,19 sulfamic acid,20 and ionic liquids21,22 have been introduced to facilitate this reaction. Moreover, non-conventional techniques such as microwave and ultrasound irradiations were shown to have promotional impacts on these reactions.23 Very recently, L. Wang and co-workers have reported an efficient synthesis of 3,3′-(arylmethylene)bis(2-hydroxynaphthalene-1,4-diones) under catalysis of a lipase.24 Lipases are inexpensive lipoproteins which, depending on their different structures resolved from diverse bio-resources, may show uncharacteristic catalytic activities in addition to their typical esterase action. Catalytic activity of enzymes, such as lipases, decrease in presence of some organic inhibitors or by denaturation at above 60 °C. Moreover, their multiple catalytic activities may lead to formation of side-products. Therefore, development of a robust, environmentally benign, and efficient catalytic system that avoids all of the above drawbacks is highly desirable. Upon recent social consciousness about environmental issues, such developments are required to minimize waste disposal and employ renewable materials. In this respect, application of natural products; in particular biopolymers, for designing catalysts is more desirable.25 Cellulose and chitosan have been the most attractive biopolymers which were considered for this purpose. Chitosan, the second most abundant natural polymer after cellulose has prominent properties such as non-toxicity, biocompatibility, bio-degradability to harmless products, physiological inertness, recyclability, and stability to air and moisture.26 It can activate the nucleophilic as well as electrophilic components of reactions by hydrogen bonding and its interacting electron lone pairs positioned at its heteroatoms.27 This bioproduct has been used as a heterogeneous solid base for efficient catalysis of aldol condensation,28 Knoevenagel condensation,29 Michael addition,30 Biginelli reaction,31 Huisgen [3 + 2]-cycloaddition,32 Suzuki cross-coupling,33 Ullmann reaction34 and Heck reaction.35 It has also been utilized for the synthesis of jasminaldehyde,36 pyridones and phthalazines.37 The poor solubility of unmodified chitosan in both water and organic solvents makes its utilization limited. Indeed, chitosan forms a network of strong intra- and inter-molecular hydrogen bonding between its individual chains that is responsible for the rigid crystalline and low-solubility of this bioderived polymer in many solvents. As a result, a majority of the amino, acetamino and hydroxyl groups which involved in the hydrogen bonding get buried within the structural hierarchy of chitosan fibres where they are not accessible to interact with substrates and so can not take part in catalysis actions. Therefore, considerable efforts have been paid to chemical modification of chitosan aiming at producing either nano-sized chitosan composites or to prepare its functional derivatives which are soluble in water over a wider pH range.38 Water is the most economical and environmentally benign solvent in the world. It induces unique reactivity and selectivity to both in-water and on-water39 reactions owing to its prominent characteristics such as large dielectric constant, high polarity, excellent heat capacity, and strong cohesive strength.
Here we explain a clean and efficient protocol for synthesis of bis-benzoquinonylmethanes via the pseudo three-component reaction between HNQ and aldehydes on-water under catalysis of O-carboxymethyl chitosan.
1H NMR, FT-IR, XRD and TGA-DSC of the solid are consistent with the structure of cm-chitosan and confirm its formation. Details of the characteristic spectral data are given in the “ESI”.† The degree of carboxymethylation of O-cm-chitosan was determined by pH-titration method41 and found to be 0.75.

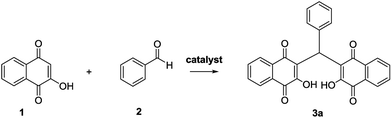

Scheme 1 Synthesis of the model product 3,3′-(phenylmethylene)bis(2-hydroxynaphthalene-1,4-dione) (3a). |
As is shown in Table 1 (entry 1), initial tests of the trial reaction on water in the presence of suspended chitosan gave a fairly high yield of the desired product. This result delineates a surface catalysis mechanism for chitosan in which the substrates get adsorbed on surface of the biopolymer where they become exposed to the catalytic reactions of the functional groups positioned at the surface. Addition of 1% acetic acid to the reaction medium led to dissolution of chitosan and an increase in yield of the product (Table 1, entry 2). To answer the question if acetic acid is the main catalyst responsible for the yield increment, the trial reaction was tested in 1% acetic acid and absence of chitosan. No product was formed in 1% acetic acid at 70 °C within comparable time periods (Table 1, entry 3). This experiment shows that acetic acid at 1% concentration in water, regardless of serving as cosolvent for dissolution of chitosan, has no virtual effect by itself on the rate and yield of the reaction. Notably, neither cellulose, with similar structure to chitosan, nor its acidic water-soluble carboxymethyl derivative appeared effective in the catalyst screening tests (Table 1, entry 4 and 5). Based on these observations, the catalytic function is assayed to the α-amino groups of chitosan which differentiate it from cellulose. Moreover, chitosan do not play merely as a simple base in this catalytic process. As detected by TLC, a mixture of products was obtained when ammonium acetate or triethylamine were used as simple amines to simulate the catalytic role of chitosan (Table 1, entries 6 and 7). Evidently, chitosan involves as a set of binary catalyst sites in this surface catalysis rather than playing as a simple primary amine. At this end, we turned our attention toward using water-soluble derivatives of chitosan, in order to avoid the addition of acetic acid as cosolvent. Of the two water-soluble chitosan derivatives which we selected for catalyst screening, N-(3-sulfonylbutyl)chitosan showed no obvious catalytic activity for the model reaction (Table 1, entry 8). Very likely, the catalytic activity of this compound is blocked by steric constraints of the sulfonylbutyl substituents positioned at the amino groups. However, O-cm-chitosan by possessing both the primary amino groups and the hydrophilic carboxymethyl substituents efficiently catalyzed the model reaction. Efficiency of this zwitter-ionic amino acid in terms of increasing the yield and rate of the model reaction is similar to that of chitosan in 1% acetic acid solution. This finding lends some credit to suggesting a central catalytic role for the amino groups of chitosan. It is likely that the substrates come into close vicinity to each other by stacking on chitosan mainly through hydrogen bonding with its pendant hydroxyl and amino groups. The hydrogen bondings are associated with significant proton transfers between the substrates and chitosan, making the substrates activated toward nucleophilic addition. The dense array of amino and ammonium groups located along the chitosan chain seems to create the main catalytic system for mediating proton transfer from HNQ to the reacting aldehydes. Upon losing a proton to an amino group of chitosan, HNQ gains an enhanced nucleophilic character to quickly add onto the aldehydes which in turn are activated by hydrogen bonding with ammonium groups of chitosan. The resulting adduct of the two substrates undergo dehydration with the aid of chitosan to give the intermediate 3-arylidenenaphthalene-1,2,4-trione 5a. This intermediate reacts in a Michael manner with the second nucleophilic molecule of HNQ 1 to give the adduct 6a which subsequently tautomerizes into the desired product 3a (Scheme 2).
Entry | Catalyst | Yieldb (%) | Time |
---|---|---|---|
a Reaction condition: HNQ (2 mmol), benzaldehyde (1 mmol), solvent (water/methanol: 4/1 mL), catalyst (60 mg, otherwise stated), 70 °C.b Isolated yields. | |||
1 | Chitosan 110 mg | 84 | 50 min |
2 | Chitosan dissolved in acetic acid 1% | 88 | 45 min |
3 | Acetic acid 1%, 5 mL | 19 | 24 h |
4 | Cellulose | 35 | 24 h |
5 | Carboxymethylcellulose | 39 | 24 h |
6 | Ammonium acetate, 30 mol% | 22 | 24 h |
7 | Diethylamine, 30 mol% | 26 | 24 h |
8 | N-(3-Sulfonylbutyl)chitosan | 21 | 24 h |
9 | O-Carboxymethyl chitosan | 89 | 45 min |
10 | No catalyst | 19 | 24 h |

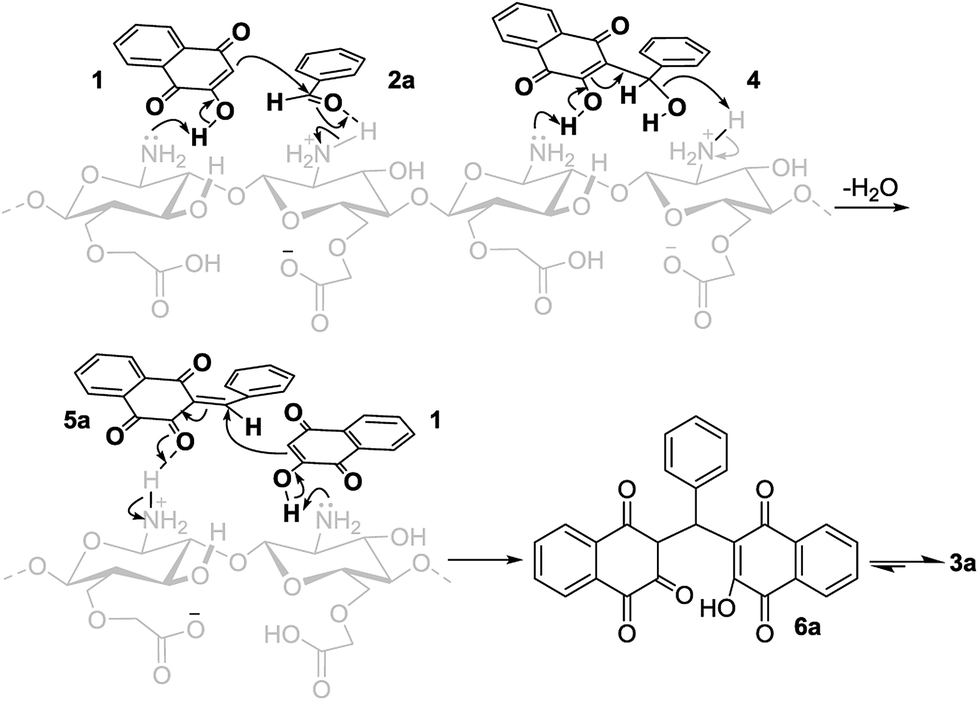

Scheme 2 A proposed mechanism for the synthesis of 3,3′-(arylmethylene)bis(2-hydroxynaphthalene-1,4-dione) (3a–i) under catalysis of cm-chitosan. |
In order to determine the optimized amount of the catalyst, the model reaction was carried out with varying loads of O-cm-chitosan. It is clear from the results, summarized in Fig. 1, that 60 mg of cm-chitosan per mmol of aldehyde in 5 mL reaction mixture is sufficient to achieve the optimum yield of the product within a short reaction time. The trial reactions carried out by using less than 60 mg of cm-chitosan (15, 20, 30, 40, 50, 55 mg) resulted in moderate yields of the product (41–84%) even after longer reaction times. In the same time, the yield was not promoted further when an excess amount of catalyst (65 mg) was loaded.
Fig. 1 Effect of cm-chitosan loading on the synthesis of 3,3′-(phenylmethylene)bis(2-hydroxynaphthalene-1,4-dione) 3a using water/methanol (4/1 mL) as solvent at 70 °C. |
Certainly, polar solvents can intercept the hydrogen bonding of substrates with cm-chitosan and so dramatically influence its catalytic performance. Therefore, the impact of different solvents on progress of the model reaction was explored. As Table 2 (entries 1 and 2) shows, moderate yields of the product are obtained when the reaction is performed in MeOH or EtOH. Both the yield and rate of the model reaction were improved by performing the reaction on water (Table 2, entries 3 and 4). Water forms reactive interfaces with the hydrophobic droplets and micelles of the substrates, at which cm-chitosan and water are present as unmet hydrogen bonded and so reactive molecules. Owing to its polar and organic nature, cm-chitosan would tend to migrate toward the interface and enter its hydrophobic part into the micelles. Probably, a fraction of cm-chitosan chains gets entirely into the micelles and does its catalysis actions there. Yet, water is not the superior solvent of Table 2, perhaps due to its inability to remove the products from cm-chitosan, its strong cohesion that prevents the formation of fine micelles, and negligible organic mass transfer in this solvent.
Entry | Solvent | Yieldb (%) |
---|---|---|
a Reaction condition: HNQ (2 mmol), benzaldehyde (1 mmol), cm-chitosan (60 mg), 70 °C, 45 min.b Isolated yields. | ||
1 | Methanol 100% | 75 |
2 | Ethanol 95% | 64 |
3 | Acetic acid 1% in water | 84 |
4 | H2O | 84 |
5 | H2O/methanol (1:1) | 79 |
6 | H2O/methanol (4:1) | 89 |
7 | H2O/ethanol (4:1) | 81 |
8 | H2O/ethanol (1:1) | 66 |
9 | Dichloromethane | 45 |
10 | Acetonitrile | 52 |
A slightly higher yield of the model reaction was obtained by using 4:1 mixture of water and methanol as solvent (Table 2, entry 6). Efficiency of this solvent may be referred to its high polarity and partially organic nature that enables it to displace the binding equilibria of products and cm-chitosan in favour of solution side and therefore to disrobe more catalytic sites for the reaction of HNQ and aldehydes. In addition, products are insoluble in this optimal solvent, so were separated easily by filtration. The model reaction in dichloromethane and acetonitrile resulted in inferior yields even within longer reaction times (Table 2, entries 9 and 10).
As is expected, temperature has a remarkable effect on both the rate and yield of the model reaction. The results shown in Table 3 indicate that the yield and rate of the reaction are greatly improved by increasing the temperature and reach the maximum value of 89% yield at 70 °C after 45 min. Further increase of temperature (above 70 °C) has no additional improvement on efficiency of the reaction.
At the end of the reaction, cm-chitosan was recovered through a sequence of aqueous-extraction from the reaction mixture, precipitation by addition of ethanol, filtration, and drying at 50 °C. The catalytic efficiency of the recovered cm-chitosan was evaluated by several recycling in the same reaction. As shown in Fig. 2, the yield of the model reaction is almost the same even after six cycles. The chemical structure of recovered O-cm-chitosan was verified by using FT-IR spectroscopy. There was no significant difference between the FT-IR of fresh O-cm-chitosan and recovered O-cm-chitosan (see ESI†).
Fig. 2 Comparative catalytic efficiencies of the recycled chitosan and O-cm-chitosan in terms of yield of the model reaction within 45 min. |
On the other hand, recovery of chitosan from the acidic reaction mixture is a little more complicated than that of cm-chitosan. After completion of the reaction and filtration of the crude product, the acidic aqueous-filtrate was alkalized up to pH ≈ 8 by addition of 0.2 mol L−1 NaOH solution to make chitosan precipitate. The precipitates were filtered and dried at 50 °C before recycling. A slight amount of chitosan is lost in each recovery cycle and a decrease in catalytic activity of chitosan is seen after several recycling (Fig. 2).
A comparison between cm-chitosan and some familiar catalysts, previously reported for synthesis of 3,3′-(phenylmethylene)bis(2-hydroxynaphthalene-1,4-dione), 3a, was made in Table 4. This table represents cm-chitosan as an alternative effective catalyst for this reaction.
Entry | Catalyst/conditions | Time | Yield (%) |
---|---|---|---|
1 | Et3N & HCl | 2.5 h | 89 (ref. 18) |
2 | LiCl/H2O/reflux | 12 h | 83 (ref. 19) |
3 | [bmim][BF4]/90 °C | 4 h | 90 (ref. 22) |
4 | H2SO4/reflux | 15 min | 90 (ref. 21) |
5 | LiCl/H2O/microwave | 15 min | 92 (ref. 23) |
6 | LiCl/H2O/ultrasound irradiation | 15 min | 91 (ref. 23) |
7 | Lipase/60 °C | 2 h | 88 (ref. 24) |
8 | Sulfamic acid/r.t. | 19 h | 92 (ref. 20) |
9 | Carboxymethyl chitosan/70 °C | 45 min | 89 (This study) |
10 | Chitosan/70 °C | 50 min | 84 (This study) |
11 | Chitosan in acetic acid 1%/70 °C | 45 min | 88 (This study) |
In order to explore the substrate scope and generality of this method, a variety of aromatic aldehydes were selected to react with HNQ under the optimal conditions. As is evident from Table 5, the reaction is applicable to various aromatic aldehydes containing either electron-donating or electron-accepting groups to give good to fairly high yields of the corresponding products (82–94%).
Entry | Aldehyde | Product | Yieldb (%) | Time (min) | mprep | mplit |
---|---|---|---|---|---|---|
a Reaction condition: HNQ (2 mmol), benzaldehyde (1 mmol), O-cm-chitosan (60 mg), at 70 °C.b Isolated yields. | ||||||
1 | 3a | 89 | 50 | 200–202 | 198–200 (ref. 20) | |
202–204 (ref. 19) | ||||||
2 | 3b | 94 | 45 | 198–200 | 195–196 (ref. 20) | |
180–182 (ref. 19) | ||||||
3 | 3c | 85 | 60 | 212–214 | 213–215 (ref. 20) | |
175–177 (ref. 19) | ||||||
4 | 3d | 86 | 55 | 184–185 | 185–187 (ref. 19) | |
5 | 3e | 93 | 42 | 180–181 | 177–179 (ref. 19) | |
6 | 3f | 89 | 50 | 170–171 | 170–172 (ref. 19) | |
7 | 3g | 82 | 55 | 220–222 | 219–220 (ref. 20) | |
221–223 (ref. 19) | ||||||
8 | 3h | 85 | 55 | 222–224 | 220–222 (ref. 19) |
The physical and spectral data of these products are well consistent with those reported in other studies.19,20 The structures of products were deduced from their 1H NMR.
