A hexameric [MnIII18Na6] wheel based on [MnIII3O]7+ sub-units

Maria Manoli a, Ross Inglis b, Stergios Piligkos c, Lan Yanhua d, Wolfgang Wernsdorfer d, Euan K. Brechin *b and Anastasios J. Tasiopoulos *a
aDepartment of Chemistry, University of Cyprus, 1678 Nicosia, Cyprus. E-mail: atasio@ucy.ac.cy; Fax: +357 22895451; Tel: +357 22892765
bEaStCHEM School of Chemistry, The University of Edinburgh, David Brewster Road, Edinburgh, EH9 3FJ, UK. E-mail: E.Brechin@ed.ac.uk
cDepartment of Chemistry, University of Copenhagen, Universitetsparken 5, Copenhagen, Denmark
dInstitut Néel, CNRS, BP-166, Grenoble Cedex 9, France

Received 12th August 2016 , Accepted 23rd September 2016

First published on the web 23rd September 2016


A novel hexameric [MnIII18Na6] wheel-like aggregate consisting of [MnIII3O] triangles is reported. It is the second highest nuclearity oxime-based Mn cluster, the largest member of the recently-developed family of molecular oligomers based on [MnIII3O] triangles, and the only one with a wheel-like metal topology.


There is significant interest in the synthesis of large molecular aggregates due to their interesting physical properties and beautiful crystal structures.1,2 One of the main goals in the area of molecular magnetism involves the development of new methods for the utilization of magnetically interesting compounds as building-blocks for the construction of large clusters and multidimensional coordination polymers.2a,3 Despite the significant efforts to achieve this target, examples of such large clusters based on smaller magnetic clusters are still rather limited.2a,4 Amongst the most common building-blocks in manganese coordination chemistry are the homovalent [MnIII33-O)]7+ and heterovalent [MnIII2MnII3-O)]6+ oxo-centred metal triangles which are often found as the main structural components in large compounds with complex structures.2,5 Efforts aimed at developing high nuclearity clusters based on [MnIII3O] sub-units were intensified after the discovery of discrete [MnIII33-O)]7+ clusters displaying ferromagnetic exchange interactions and single-molecule magnetism (SMM) behaviour,6 the isolation of a family of [MnIII6] SMMs that includes a member with a record energy barrier to magnetization reversal for transition metal SMMs,7 and several other clusters displaying interesting magnetic properties originating from tightly linked [Mn33-O)]n+ triangles sharing one or more of their edges.8 More recently there has been significant interest in the construction of oligomeric clusters consisting of covalently linked oxime-based [MnIII3O]7+ building-blocks. These investigations have afforded some dimeric [Mn3]2 and tetrameric [Mn3]4 aggregates displaying tetrahedral or rectangular core topologies.9

We have been interested in the development of new synthetic methods for the construction of high nuclearity Mn clusters. One of these methods, that involves the combination of phenolic oximes with diols, has afforded two structurally impressive complexes that describe a [Mn32] double-decker wheel,10a and an 1-D coordination polymer containing a [Mn40] octagonal super-structure.10b We now report the synthesis, structure and magnetic behaviour of the hexameric [MnIII3Na]6 molecular wheel [MnIII18Na63-O)6(sao)18Br12(H2O)18(DMF)6] (1) (sao2− is the dianion of salicylaldoxime) which is the second largest oxime-based Mn cluster known to date, the largest member of the family of molecular oligomers based on [Mn3] triangles, and the only one with a wheel-like metal topology.

The reaction of MnBr2·4H2O, 2-(hydroxymethyl)phenol (hpH2) and saoH2 in the presence of sodium cyanate (NaOCN) in a 1[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1 molar ratio in a 4[thin space (1/6-em)]:[thin space (1/6-em)]1 MeCN/DMF solvent mixture leads to the formation of 1 in ∼45% yield.§ The molecular structure§ of 1 (Fig. 1 and 2) contains a [MnIII18Na6] wheel-like cluster consisting of six crystallographically equivalent oxime-based [MnIII3O]7+ triangles linked through six Na+ ions. The [MnIII3Na] repeat unit of 1 contains one oxo-centred triangular arrangement of three MnIII ions and a Na+ ion attached to it via the O-atoms of the sao2− ligands, which occupy the edges of the triangle. The axial coordination sites of the MnIII ions are occupied by one bridging H2O molecule, and terminal Br ions (2), H2O (2) and DMF (1) molecules. The MnIII ions are hexa-coordinated with distorted octahedral coordination geometries and all display the expected Jahn–Teller (JT) axial elongation, with the JT axes being perpendicular to the plane of the [Mn3] triangle. Two μ3-, one μ4-sao2−, and one bridging H2O ligand connect each [MnIII3O] triangle with two neighbouring Na+ ions, which in turn are linked to the next [MnIII3O] sub-units forming the [Mn18Na6] wheel. Two sao2− ligands bridge in a η1123-mode to two MnIII ions and one Na+ ion, and one bridges in a η2124-fashion to two MnIII and two Na+ ions. The phenyl rings of twelve of the sao2− ligands are located outside the [Mn18Na6] wheel, whereas those of the remaining six occupy the central cavity creating a hydrophobic shell (Fig. 2, top). The Mn–O–N–Mn torsion angles are rather small, ranging from 6.4 to 12.9°, in agreement with the values observed for other sao2−-based [MnIII3O] triangles.6,7 The neighbouring [MnIII3O] sub-units are significantly tilted as revealed from the angle between the planes defined by the Mn3+/O2− ions of adjacent [MnIII3O] units which is ∼52.2° (Fig. 2, bottom). As a result the aggregate of 1 deviates significantly from planarity. The [MnIII3O] triangles are well separated from each other, the shortest inter-triangle Mn⋯Mn distance being ∼6.23 Å. Complex 1 is of nano-sized dimensions with an outer diameter of ∼2.8 nm (Fig. 2, top) and a thickness of ∼0.8 nm. Clearly, complex 1 is a large cluster and indeed is one of the largest oxime-based Mn complexes known, being smaller only than the [Mn32] double-decker wheel.10a Close examination of the packing of 1 reveals a parallel arrangement of [Mn18Na6] molecules in the crystal and the formation of columns running along the c-axis of the cell (Fig. S1, ESI).


image file: c6cc06644e-f1.tif

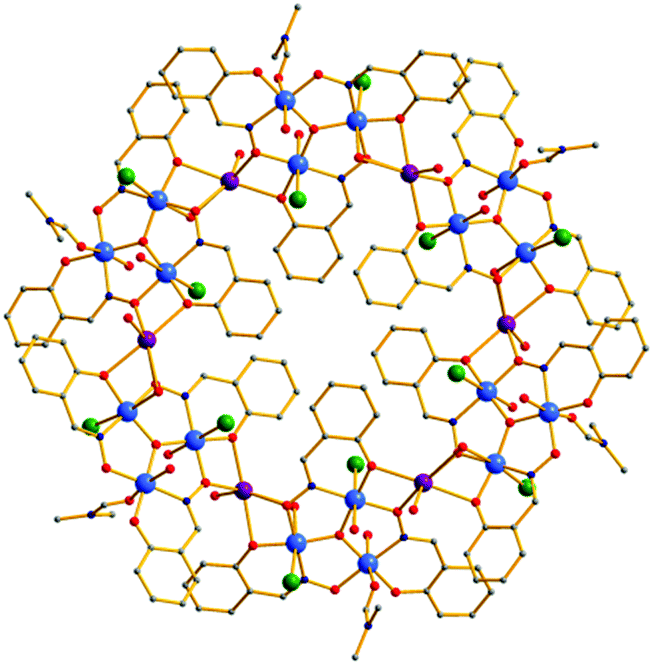

Fig. 1 Representation of the molecular structure of 1. Colour code: Mn blue; Na, purple; Br, green; O, red; N, dark blue; C, grey. H atoms are omitted for clarity.

image file: c6cc06644e-f2.tif

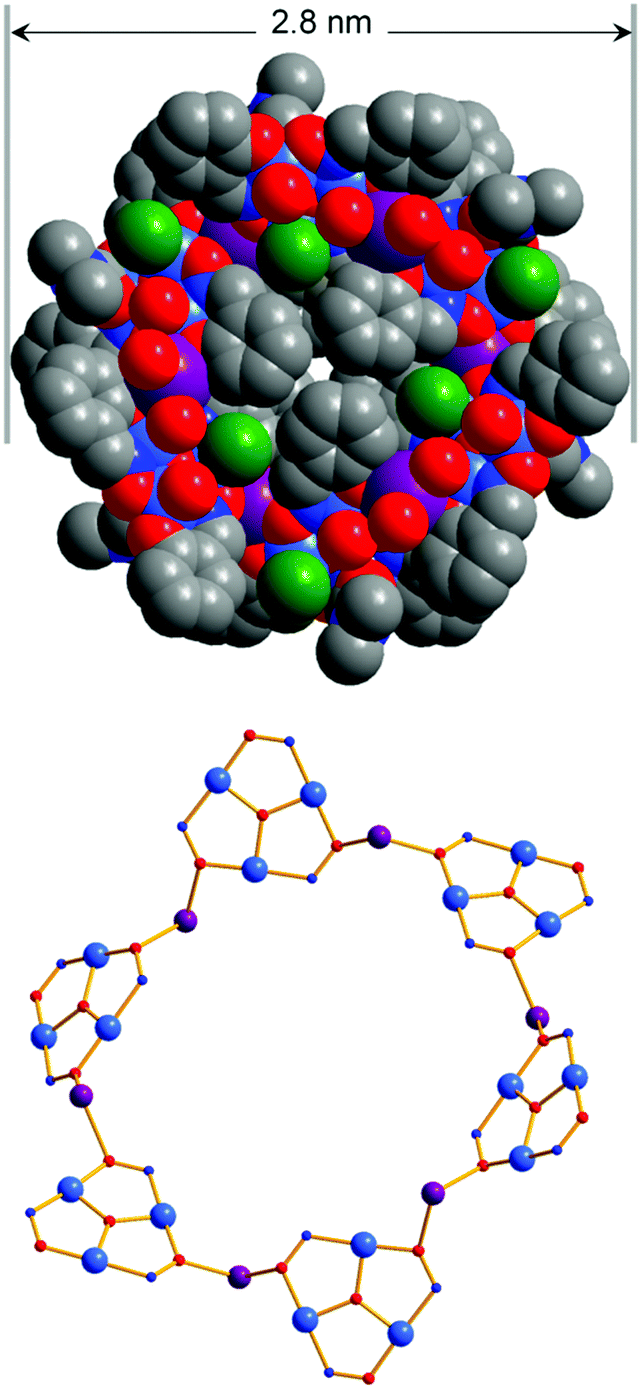

Fig. 2 Space-filling representation of the molecular structure of 1, emphasizing its nano-sized dimensions (top). The structural core of 1 highlighting the [Mn3] triangles linked through Na+ ions (bottom). Colour code: Mn, blue; Na, purple; Br, green; O, red; N, dark blue; C, grey. H atoms are omitted for clarity.

The direct current (dc) molar magnetic susceptibility, χ (where χ = M/B; and M is the magnetization), of polycrystalline 1·3DMF·30H2O was measured in an applied magnetic field, B, of 0.1 T, over the 5–300 K temperature range. The data is plotted in Fig. 3 per [MnIII3] triangle. At room temperature, the χT product of 1 is 7.8 cm3 mol−1 K. This value is lower than that expected from the spin-only contribution to the magnetism of a MnIII trinuclear unit (9.0 cm3 mol−1 K, with gMn = 2.00), assuming that the magnetic properties of 1 arise as the superposition of the magnetic properties of six non-interacting [MnIII3] units. Upon cooling, the χT product decreases continuously to reach 2.5 cm3 mol−1 K per [MnIII3] at T = 5 K. This behaviour is indicative of antiferromagnetic interactions within the [MnIII3] units. To better define the magnetic properties of 1, variable-temperature-and-variable-field (VTVB) magnetization data were collected in the field range 0.5–7.0 T and in the temperature range 2–7 K. These data are shown as M/μBversus μBB/kT in the inset of Fig. 3.


image file: c6cc06644e-f3.tif

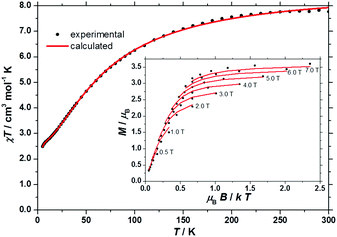

Fig. 3 χT product of 1versus T plotted per [MnIII3] triangle. Inset: Variable temperature-and-variable-field (VTVB) magnetization data of 1 in the field range 0.5 to 7.0 T and in the temperature range 2 to 7 K. The experimental data are shown as black circles. The calculated curves, obtained from full matrix diagonalization of spin-Hamiltonian (1) for isolated MnIII3 triangles, are shown as solid red lines.

For the interpretation of the magnetic properties of 1, we consider that they arise as a superposition of the magnetic properties of six non interacting [MnIII3] units. Thus, we used spin-Hamiltonian (1):


image file: c6cc06644e-t1.tif(1)
with i, j running over all MnIII centres of a [MnIII3] unit, J the isotropic magnetic exchange interaction between MnIII centres, Ŝ a spin-operator, μB the Bohr magneton, B the applied magnetic field, gMn = 2, the isotropic g-factor common to all MnIII centres, D the axial magnetic anisotropy of MnIII, and S = 2. Taking into consideration the crystal structure of 1, we use in our model three distinct exchange interaction parameters (J12, J23, J13) reflecting the scalene nature of the triangular [MnIII3] units. The experimental χT product and VTVB magnetization data were numerically fitted to spin-Hamiltonian (1) by use of the simplex algorithm.11 This resulted in the following best-fit parameters: J12 = −6.35 cm−1, J23 = −2.22 cm−1, J13 = −0.85 cm−1 and DMn = −2.0 cm−1. The three different best-fit exchange parameter values can be correlated to the three different Mn–N–O–Mn torsion angles in the [MnIII3] units, which are smallest between Mn1 and Mn2 and largest between Mn1 and Mn3. The best-fit curves are shown as solid red lines in Fig. 3. Neglecting the MnIII anisotropy, the ground spin-state is an S = 2 state separated by approximately 9 cm−1 from the first excited spin state, which is an S = 1 state. This is in agreement with previous studies on analogous, isolated [Mn3O(sao)3]+ triangles with similar torsion angles.6,7a,b,12 Single crystal hysteresis loop measurements on complex 1 show no sign of SMM behaviour, even to temperatures as low as 30 mK (Fig. S3, ESI).

Concluding, an aesthetically pleasing nano-sized hexameric wheel-like cluster containing oxime-based [MnIII33-O)]7+ sub-units is reported. It is the largest member of the recently-developed family of molecular oligomers consisting of [MnIII3] triangles and the only one with a wheel-like metal topology.9 Complex 1 is also the only oxime-based [MnIII3]n (n > 2) molecular oligomer where the sub-units are connected via a diamagnetic metal ion; in all other oligomeric complexes they are linked through bulky organic ligands. Because the Na+ ions are intimately associated with the [MnIII3] triangles, 1 can also be described as a heterometallic [M24] cluster, being the second-largest oxime-containing Mn cluster reported to date. This compound was prepared by a method involving the use of a combination of a phenolic oxime with a diol in reactions with Mn salts, although only the oxime appears in the final product, as was also the case for the largest known oxime – based Mn cluster, the Mn32 double-decker wheel.10a Reactions repeated without the diol present do not form 1. Clearly this synthetic method is proving invaluable for the isolation of high nuclearity clusters. Further investigations are in progress targeting [Mn18Na6] analogues with different oximes and alternative [diamagnetic and paramagnetic] connecting metals ions. The formation of complex 1 therefore opens up new avenues in the roadmap of molecular oligomers based on [MnIII3] triangles that should provide access to structurally and magnetically novel complexes.
