DOI: 10.1039/C4OB02629B (Communication) Org. Biomol. Chem., 2015, 13, 2895-2900

Regiodivergent Lewis base-promoted O- to C-carboxyl transfer of furanyl carbonates†

Craig D. Campbell , Caroline Joannesse , Louis C. Morrill , Douglas Philp and Andrew D. Smith *
EaStCHEM, School of Chemistry, University of St Andrews, St Andrews, KY16 9ST, UK. E-mail: ads10@st-andrews.ac.uk

Received 19th December 2014 , Accepted 16th January 2015

First published on 3rd February 2015

Abstract

Triazolinylidenes promote γ-selective C-carboxylation (up to 99[thin space (1/6-em)]:[thin space (1/6-em)]1 regioselectivity) in the O- to C-carboxyl transfer of furanyl carbonates in contrast to DMAP that promotes preferential α-C-carboxylation with moderate regiocontrol (typically 60[thin space (1/6-em)]:[thin space (1/6-em)]40 regioselectivity). The generality of this process is described and a simple mechanistic and kinetic model postulated to account for the observed regioselectivity

Introduction

The butenolide architecture is recognized as a privileged structure in synthetic chemistry, and is present in a variety of biologically active natural products.1 The preparation of functionalized butenolides is commonly achieved by generation of the corresponding furanyl dienolate and reaction with an appropriate electrophile, with alkylations, vinylogous Mukaiyama–aldol, Mukaiyama–Michael and Mukaiyama–Mannich reactions all extensively explored, generally giving high levels of selectivity for γ-functionalization.2 Limited catalytic methodologies have been developed with the formation of quaternary centers, although a number of organocatalytic3 and metal-catalyzed processes show promise in this area.4 As an alternative strategy to generate quaternary-functionalized butenolides, Vedejs et al. have investigated the Lewis base5-promoted regio- and enantioselective O- to C-carboxyl transfer of 5-aryl-3-methylfuranyl carbonates 1 using TADMAP 2.6 In this process, the electronic characteristics of the C(5)-aryl substituent markedly affects the observed regioselectivity of this carboxyl transfer process. For example, while a C(5)-phenyl furanyl carbonate gave a 60[thin space (1/6-em)]:[thin space (1/6-em)]40 mixture of α[thin space (1/6-em)]:[thin space (1/6-em)]γ products, an electron-donating C(5)-4-MeOC6H4 substituent favored α-functionalization (α[thin space (1/6-em)]:[thin space (1/6-em)]γ up to 92[thin space (1/6-em)]:[thin space (1/6-em)]8) while an electron-withdrawing C(5)-4-NCC6H4 substituent favored γ-functionalization (α[thin space (1/6-em)]:[thin space (1/6-em)]γ up to 20[thin space (1/6-em)]:[thin space (1/6-em)]80) (Fig. 1).
image file: c4ob02629b-f1.tif

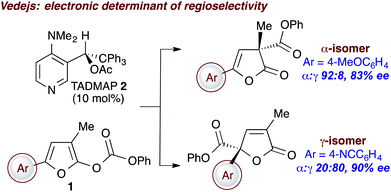

Fig. 1 Vedejs’ regioselective carboxyl transfer.

Building upon our interest in Lewis base catalysis7,8 and O- to C-carboxyl transfer rearrangements,9 we have recently developed a catalyst selective regiodivergent O- to C- or N-carboxyl transfer reaction of pyrazolyl carbonates (Fig. 2, eqn (1)).10 In this process, NHCs promote selective O- to C-carboxyl transfer, while DMAP promotes selective O- to N-transfer, with quantum mechanics calculations used to probe the observed catalyst selective divergence. In this manuscript we probe the generality of this principle by application to the O- to C-carboxyl transfer of furanyl carbonates. We sought to apply this catalyst selective11 regiodivergence to promote γ-C-carboxylation in this process that would be independent of the electronic nature of furanyl substitution, allowing a direct comparison with the electronic bias observed by Vedejs.12 In this manuscript (Fig. 2, eqn (2)), triazolinylidene NHCs promote highly γ-selective C-carboxylation of furanyl carbonates in this rearrangement process (regioselectivity up to 1[thin space (1/6-em)]:[thin space (1/6-em)]99 α[thin space (1/6-em)]:[thin space (1/6-em)]γ), while DMAP gives preferential, but modest, α-selectivity (regioselectivity typically 60[thin space (1/6-em)]:[thin space (1/6-em)]40 α[thin space (1/6-em)]:[thin space (1/6-em)]γ).


image file: c4ob02629b-f2.tif

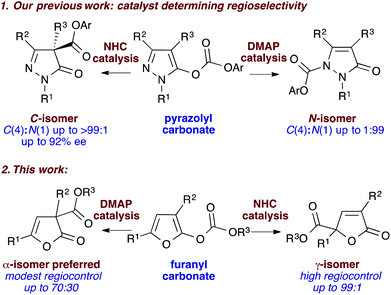

Fig. 2 Regiodivergent Lewis base promoted carboxyl transfer.

Results and discussion

Model studies: regioselective O- to C-carboxyl transfer of furanyl carbonate 5

Initial studies probed the effectiveness of archetypal amine-centered Lewis bases 4-dimethylaminopyridine 3 (DMAP) and isothiourea 3,4-dihydro-2H-pyrimido[2,1-b]benzothiazole 4 (DHPB) to promote the γ-regioselective rearrangement of 5. Under standardized conditions (34 mM, 10 mol%) of the Lewis base, and with a one hour reaction time, both catalysts promoted O- to C-carboxyl transfer with modest regiocontrol, giving an approximate 60[thin space (1/6-em)]:[thin space (1/6-em)]40 ratio of α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-products 6[thin space (1/6-em)]:[thin space (1/6-em)]7 (Table 1, entries 1 and 3).13 The ability of triazolinylidene NHCs to catalyze the rearrangement of 5 was next investigated. Using KHMDS as the base to generate NHC 8 from the corresponding precatalyst gave efficient catalysis, generating a 16[thin space (1/6-em)]:[thin space (1/6-em)]84 ratio of α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-regioisomers (individual isomers were isolated in 6% and 72% yield respectively) (entry 4). Alternative N-C6F5 and N-4-MeOC6H4 substituted triazolinylidenes 9 and 10 give identical preferential γ-regioselectivity (entries 5–6).14 Further investigation using NHC catalyst 8 showed that at higher NHC concentrations (∼85 mM, 22.5 mol%) an identical 16[thin space (1/6-em)]:[thin space (1/6-em)]84 ratio of α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-carboxyl products 6[thin space (1/6-em)]:[thin space (1/6-em)]7 was obtained. However, upon sequentially lowering the NHC concentration (to 3.4 mM, 0.9 mol% entries 7–11) the reaction still progressed rapidly to completion (<5 min), giving a 2[thin space (1/6-em)]:[thin space (1/6-em)]98 ratio of α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-products after five minutes (entry 10), which decayed to a 4[thin space (1/6-em)]:[thin space (1/6-em)]96 ratio of α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-products after one hour (entry 11). Further lowering of the NHC concentration (1.7 mM, 0.45 mol%) and sampling the reaction before full consumption of the carbonate starting material (1 min) showed that at 90% conversion, exclusively the γ-carboxyl product 7 was formed (entry 12). After one hour, and at full conversion, a 2[thin space (1/6-em)]:[thin space (1/6-em)]98 ratio of α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-products was observed (entry 13). Using DMAP gave a consistent 60[thin space (1/6-em)]:[thin space (1/6-em)]40 ratio of α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-products irrespective of concentration (34 mM, 10 mol% or 3.4 mM, 1 mol%). Unfortunately, treatment of 5 with a number of archetypal chiral NHCs in an attempt to promote the regio- and enantioselective version of this transformation returned exclusively starting material in each case.
Table 1 Regioselective O- to C-carboxyl transfer of model furanyl phenyl carbonate 5[thin space (1/6-em)]a

image file: c4ob02629b-u1.tif
Entry Lewis base (mol%) [Lewis base]/mM Ratio 6(α)[thin space (1/6-em)]:[thin space (1/6-em)]7(γ)b Yieldc (%)
a In all cases the NHCs were prepared by prior deprotonation of the corresponding triazolium precatalyst salt with a sub-stoichiometric quantity (0.9 equiv.) of KHMDS. b As shown by 1H NMR spectroscopic analysis of the crude reaction product. c Isolated yield; isomer shown in parentheses. d Reaction time 1 hour. e Reaction time 5 minutes. f Reaction time 1 minute.
1d DMAP 3 (10) 34 60[thin space (1/6-em)]:[thin space (1/6-em)]40 60 (α)
2d DMAP 3 (1) 3.4 60[thin space (1/6-em)]:[thin space (1/6-em)]40 —
3d DHPB 4 (10) 34 56[thin space (1/6-em)]:[thin space (1/6-em)]44 —
4d NHC 8 (9) 34 16[thin space (1/6-em)]:[thin space (1/6-em)]84 72 (γ)
5d NHC 9 (9) 34 16[thin space (1/6-em)]:[thin space (1/6-em)]84 —
6d NHC 10 (9) 34 16[thin space (1/6-em)]:[thin space (1/6-em)]84 —
7d NHC 8 (22.5) 85 16[thin space (1/6-em)]:[thin space (1/6-em)]84 —
8d NHC 8 (4.5) 17 16[thin space (1/6-em)]:[thin space (1/6-em)]84 —
9d NHC 8 (1.8) 6.8 10[thin space (1/6-em)]:[thin space (1/6-em)]90 —
10e NHC 8 (0.9) 3.4 2[thin space (1/6-em)]:[thin space (1/6-em)]98 85 (γ)
11d NHC 8 (0.9) 3.4 4[thin space (1/6-em)]:[thin space (1/6-em)]96 —
12f NHC 8 (0.45) 1.7 0[thin space (1/6-em)]:[thin space (1/6-em)]100 —
13d NHC 8 (0.45) 1.7 2[thin space (1/6-em)]:[thin space (1/6-em)]98 —

These product distributions indicate that both DMAP 3 and NHC 8 are effective catalysts for this transformation, yet offer complementary product regioselectivities, with DMAP 3 favoring the α-isomer (with modest regiocontrol) and NHCs 8–10 the γ-isomer with excellent regiocontrol. To further investigate these mechanistic pathways, the individual regioisomeric products 6 and 7 were resubjected to the reaction conditions. Retreatment of both 6 and 7 with DMAP (17 mM, 5 mol%) for extended reaction times returned only the individual starting materials. However, treatment of the α-carboxyl product 6 with NHC 8 (17 mM, 4.5 mol%, five hour reaction time) returned a 16[thin space (1/6-em)]:[thin space (1/6-em)]84 ratio of α[thin space (1/6-em)]:[thin space (1/6-em)]γ products, consistent with significant regioisomeric exchange to favor the γ-carboxyl product 7 (Scheme 1, eqn (1)). Similarly, treatment of the γ-carboxyl regioisomer 7 with NHC 8 (17 mM, 4.5 mol%, five hour reaction time) delivered a 14[thin space (1/6-em)]:[thin space (1/6-em)]86 ratio of α[thin space (1/6-em)]:[thin space (1/6-em)]γ products (eqn (2)); both ratios within experimental error of the 14[thin space (1/6-em)]:[thin space (1/6-em)]86 ratio observed in Table 1 at higher catalyst loadings and concentration.


image file: c4ob02629b-s1.tif

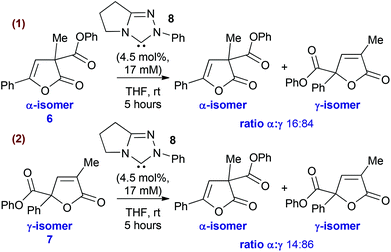

Scheme 1 Retreatment experiments of individual isomers under NHC-catalysis.

The variation in ratio of α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-products with NHC concentration, catalyst loading, and reaction time, suggest the interconversion of the α- and γ-regioisomeric products during the NHC-catalyzed reaction. These findings suggest that C-carboxylation with DMAP is irreversible in this system, with moderate, but preferential α-regiocontrol. Under NHC-catalysis reversible C-carboxylation is observed, with initial preferential formation of the γ-isomer, with subsequent equilibration leading to a mixture of α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-products.15 These observations contrast the irreversible C-carboxylation process observed in the rearrangement of oxazolyl carbonates with NHC 8.9a While the origin of the regioselectivity preference observed under either DMAP or NHC-mediated catalysis is currently unknown in this system, mechanistic studies indicate extensive carbonate crossover, consistent with rapid and reversible O-transcarboxylation as an initial reaction step as previously observed for oxazolyl carbonates.16

A simple kinetic framework for this NHC-mediated process can be constructed and simulated (Fig. 3) by recognizing that the behavior of this system can be explained by invoking three coupled equilibria. The first process involves the rapid and reversible C-carboxylation of the NHC by the furanyl carbonate. This process is characterized by Ki, which, in our kinetic model, is arbitrarily set at a large value of 1000. Additionally, the value for the forward rate constant for this process, ki, is the largest in the system. Formation of the α- and γ-products proceeds though two further equilibria, characterized by two further equilibrium constants Kγ and Kα. The ratio of these two equilibrium constants (Kγ/Kα = 5.67) reflects the final ratio of the α- and γ-products (∼85[thin space (1/6-em)]:[thin space (1/6-em)]15) reached at equilibrium. In this mechanism, free NHC is required both for reaction initiation from the furanyl carbonate and to allow equilibration of the C-carboxyl products. Since Ki is large with respect to both Kγ and Kα, the concentration of free NHC will be low up to conversions in excess of 90% (based upon 10 mol% added NHC), leading to preferential kinetic formation of the γ-furanyl product. However, with increasing time and NHC concentration the α- and γ- isomers can interconvert to generate the observed thermodynamic product ratio. Interestingly, for this model to mirror the observed selectivity for the γ-product at low conversions and/or low catalyst loadings, it is necessary to set kγ to be 100 × kα and for initiation (ki) to be at least 10 × kγ. Using this parameter set, this model correctly predicts the behavior of the experimental system – at short reaction times and low NHC loading; the system is highly γ-selective (red areas in Fig. 3). As the reaction time increases, the reactivation of the product (by addition of the NHC to product 7) drives the system towards the thermodynamic distribution of α- and γ- isomers (white area in Fig. 3). The reasons for the differential rates of transfer to the α- and γ- positions are unclear at this stage and in future work we intend to probe these issues computationally.


image file: c4ob02629b-f3.tif

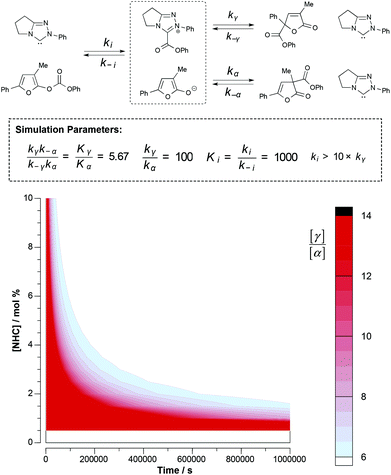

Fig. 3 Postulated kinetic framework and simulation of NHC-promoted carboxyl transfer.

Reaction generality

The generality of this regiodivergent Lewis base-promoted process was next probed (Table 2).17 A range of furanyl carbonates varying in substitution at both C(5)- and C(3)-positions, as well as the carbonate group, were each treated with DMAP 3 (34 mM, 10 mol%) and NHC 8 (34 mM, 9 mol% or 3.4 mM, 0.9 mol%) to assess the regioselectivity of the O- to C-carboxyl transfer process. In each case DMAP 3 favored the formation of the α-isomer with modest selectivity, while the NHC 8 favored the γ-isomer with good to excellent levels of regioselectivity independent of variation of the carbonate group, as well as C(5)- and C(3)-substitution. For example, phenyl, trichloroethyl and the sterically hindered but electronically activated β,β,β-trichloro-tert-butyl carbonate groups are tolerated, alongside variation at C(3) from Me to Et, Bn or allyl. In all cases, using NHC-mediated catalysis optimal γ-selectivity (up to 99[thin space (1/6-em)]:[thin space (1/6-em)]1) is observed at lower NHC concentrations and using short reaction times, allowing the isolation of the γ-isomer in 67–91% yield.

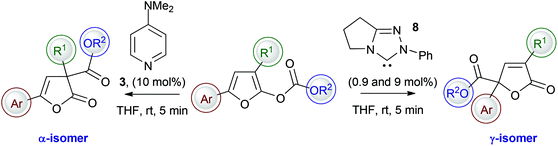

Table 2 Generality of the regiodivergent O- to C-carboxyl transfer of furanyl carbonates with NHC 8 or DMAP 3

image file: c4ob02629b-u2.tif
  R1 Ar R2 Lewis base (mM, mol%) Ratio α[thin space (1/6-em)]:[thin space (1/6-em)]γ[thin space (1/6-em)]a Yieldb (%)
a As shown by 1H NMR spectroscopic analysis of the crude reaction product. b Isolated yield.
1 Me Ph Ph DMAP 3 (34, 10) 60[thin space (1/6-em)]:[thin space (1/6-em)]40 60 (α)
2 NHC 8 (34, 9) 16[thin space (1/6-em)]:[thin space (1/6-em)]84 72 (γ)
3 NHC 8 (3.4, 0.9) 2[thin space (1/6-em)]:[thin space (1/6-em)]98 85 (γ)

4 Bn Ph Ph DMAP 3 (34, 10) 64[thin space (1/6-em)]:[thin space (1/6-em)]36 45 (α)
5 NHC 8 (34, 9) 19[thin space (1/6-em)]:[thin space (1/6-em)]81 67 (γ)
6 NHC 8 (3.4, 0.9) 4[thin space (1/6-em)]:[thin space (1/6-em)]96 67 (γ)

7 Bn Ph CMe2CCl3 DMAP 3 (34, 10) 62[thin space (1/6-em)]:[thin space (1/6-em)]38 56 (α); 26 (γ)
8 NHC 8 (34, 9) 4[thin space (1/6-em)]:[thin space (1/6-em)]96 80 (γ)
9 NHC 8 (3.4, 0.9) 1[thin space (1/6-em)]:[thin space (1/6-em)]99 91 (γ)

10 Bn Ph CH2CCl3 DMAP 3 (34, 10) 54[thin space (1/6-em)]:[thin space (1/6-em)]46 44 (α); 37 (γ)
11 NHC 8 (34, 9) 5[thin space (1/6-em)]:[thin space (1/6-em)]95 71 (γ)
12 NHC 8 (3.4, 0.9) 1[thin space (1/6-em)]:[thin space (1/6-em)]99 86 (γ)

13 Et Ph Ph DMAP 3 (34, 10) 47[thin space (1/6-em)]:[thin space (1/6-em)]53 32 (α)
14 NHC 8 (34, 9) 21[thin space (1/6-em)]:[thin space (1/6-em)]79 54 (γ)
15 NHC 8 (3.4, 0.9) 1[thin space (1/6-em)]:[thin space (1/6-em)]99 71 (γ)

16 4-BrBn Ph Ph DMAP 3 (34, 10) 53[thin space (1/6-em)]:[thin space (1/6-em)]47 43 (α)
17 NHC 8 (34, 9) 10[thin space (1/6-em)]:[thin space (1/6-em)]90 80 (γ)

18 Allyl Ph Ph DMAP 3 (34, 10) 61[thin space (1/6-em)]:[thin space (1/6-em)]39 54 (α); 32 (γ)
19 NHC 8 (34, 9) 31[thin space (1/6-em)]:[thin space (1/6-em)]69 24 (α); 50 (γ)
20 NHC 8 (3.4, 0.9) 6[thin space (1/6-em)]:[thin space (1/6-em)]94 81 (γ)

21 Me 4-FC6H4 Ph DMAP 3 (34, 10) 71[thin space (1/6-em)]:[thin space (1/6-em)]29 52 (α)
22 NHC 8 (34, 9) 12[thin space (1/6-em)]:[thin space (1/6-em)]88 67 (γ)
23 NHC 8 (3.4, 0.9) 10[thin space (1/6-em)]:[thin space (1/6-em)]90 71 (γ)

24 Me 4-FC6H4 CH2CCl3 DMAP 3 (34, 10) 67[thin space (1/6-em)]:[thin space (1/6-em)]33 60 (α)
25 NHC 8 (34, 9) 15[thin space (1/6-em)]:[thin space (1/6-em)]85 76 (γ)
26 NHC 8 (3.4, 0.9) 4[thin space (1/6-em)]:[thin space (1/6-em)]96 87 (γ)

27 Bn 4-FC6H4 Ph DMAP 3 (34, 10) 71[thin space (1/6-em)]:[thin space (1/6-em)]29 56 (α)
28 NHC 8 (34, 9) 20[thin space (1/6-em)]:[thin space (1/6-em)]80 56 (γ)
29 NHC 8 (3.4, 0.9) 7[thin space (1/6-em)]:[thin space (1/6-em)]93 78 (γ)

30 Et 4-FC6H4 Ph DMAP 3 (34, 10) 48[thin space (1/6-em)]:[thin space (1/6-em)]52 46 (α)
31 NHC 8 (34, 9) 20[thin space (1/6-em)]:[thin space (1/6-em)]80 61 (γ)
32 NHC 8 (3.4, 0.9) 4[thin space (1/6-em)]:[thin space (1/6-em)]96 83 (γ)

To further probe the structural factors necessary for γ-selectivity in this NHC-mediated transformation, the rearrangement of a C(3)-phenyl–C(5)-methyl furanyl carbonate 11 was investigated. Treatment of 11 with DMAP 3 (10 mol%) gave poor regiocontrol (α[thin space (1/6-em)]:[thin space (1/6-em)]γ 57[thin space (1/6-em)]:[thin space (1/6-em)]43), while NHC 8 (34 mM, 9 mol% or 3.4 mM, 0.9 mol%) showed excellent control for the γ-isomer even after extended reaction time, consistent with γ-selective O- to C-carboxyl transfer under NHC-mediated catalysis not requiring a C(5)-aryl unit as a necessary structural feature (Table 3).18

Table 3 Regiodivergent O- to C-carboxyl transfer of furanyl carbonates; C(3)-phenyl substitution

image file: c4ob02629b-u3.tif
Entry Lewis base (mM, mol%) Ratio α-[thin space (1/6-em)]:[thin space (1/6-em)]γ-a Yieldb (%)
a As shown by 1H NMR spectroscopic analysis of the crude reaction product. b Isolated yield of major isomeric product.
1 DMAP 3 (34, 10) 57[thin space (1/6-em)]:[thin space (1/6-em)]43 48 (α)
2 NHC 8 (34, 9) 1[thin space (1/6-em)]:[thin space (1/6-em)]99 85 (γ)
3 NHC 8 (3.4, 0.9) 0[thin space (1/6-em)]:[thin space (1/6-em)]100 88 (γ)

Conclusions

In conclusion, under kinetic control triazolinylidenes promote γ-selective C-carboxylation (up to 99[thin space (1/6-em)]:[thin space (1/6-em)]1 regioselectivity) in the O- to C-carboxyl transfer of furanyl carbonates, in contrast to DMAP that promotes preferential α-C-carboxylation with moderate regiocontrol. Current work from within our laboratory is focused upon demonstrating further applications of NHC-mediated organocatalytic transformations in the construction of poly-functionalized building blocks for synthesis.

Acknowledgements

The authors would like to thank the Royal Society for a University Research Fellowship (ADS), The Carnegie Trust for the Universities of Scotland (CDC and LCM) and the EPSRC (CJ) for funding, and the EPSRC National Mass Spectrometry Service Centre (Swansea).

Notes and references

  1. For representative examples see: (a) B. Figadére, Acc. Chem. Res., 1995, 28, 359–365 CrossRef; (b) L. Tu, Y. Zhao, Z. Yu, Y. Cong, G. Xu, L. Peng, P. Zhang, X. Cheng and Q. Zhao, Helv. Chim. Acta, 2008, 91, 1578–1587 CrossRef CAS; (c) F. S. de Guzman and F. J. Schmitz, J. Nat. Prod., 1990, 53, 926–931 CrossRef CAS; (d) A. Evidente and L. Sparapano, J. Nat. Prod., 1994, 57, 1720–1725 CrossRef CAS; (e) J. Dogné, C. T. Supuran and D. Pratico, J. Med. Chem., 2005, 48, 2251–2257 CrossRef PubMed; (f) M. F. Braña, M. L. García, B. Lòpez, B. de Pascual-Teresa, A. Ramos, J. M. Pozuelo and M. T. Domínguez, Org. Biomol. Chem., 2004, 2, 1864–1871 RSC.
  2. For representative examples illustrating butenolide functionalization see: (a) C. W. Jefford, A. W. Sledeski and J. Boukouvalas, J. Chem. Soc., Chem. Commun., 1988, 364–365 RSC; (b) S. Ma, L. Lu and P. Lu, J. Org. Chem., 2005, 70, 1063–1065 CrossRef CAS PubMed; (c) Y. Jiang, Y. Shi and M. Shi, J. Am. Chem. Soc., 2008, 130, 7202–7203 CrossRef CAS PubMed; (d) H. Nagao, Y. Yamane and T. Mukaiyama, Chem. Lett., 2007, 36, 8–9 CrossRef CAS; (e) M. Asaoka, N. Yanagida, K. Ishibashi and H. Takei, Tetrahedron Lett., 1981, 22, 4269–4270 CrossRef CAS; (f) K. Kong and D. Romo, Org. Lett., 2006, 8, 2909–2912 CrossRef CAS PubMed; (g) G. A. Kraus and B. Roth, Tetrahedron Lett., 1977, 18, 3129–3132 CrossRef; (h) H. Suga, T. Kitamura, A. Kakehi and T. Baba, Chem. Commun., 2004, 1414–1415 RSC; (i) S. P. Brown, N. C. Goodwin and D. W. C. MacMillan, J. Am. Chem. Soc., 2003, 125, 1192–1194 CrossRef CAS PubMed; (j) M. C. F. de Oliveira, L. S. Santos and R. A. Pilli, Tetrahedron Lett., 2001, 42, 6995–6997 CrossRef CAS; (k) A. Yamaguchi, S. Matsunaga and M. Shibasaki, Org. Lett., 2008, 10, 2319–2322 CrossRef CAS PubMed; (l) A. Takahashi, H. Yanai, M. Zhang, T. Sonoda, M. Mishima and T. Taguchi, J. Org. Chem., 2010, 75, 1259–1265 CrossRef CAS PubMed; (m) M. Hayashi, M. Sano, Y. Funahashi and S. Nakamura, Angew. Chem., Int. Ed., 2013, 52, 5557–5560 CrossRef CAS PubMed.
  3. For excellent examples of asymmetric Mukaiyama–Michael reactions that generate enantioenriched γ-butenolides with a quaternary stereogenic centre see: (a) S. P. Brown, N. C. Goodwin and D. W. C. MacMillan, J. Am. Chem. Soc., 2003, 125, 1192–1194 CrossRef CAS PubMed; (b) R. P. Singh, B. M. Foxman, M. Bruce and L. Deng, J. Am. Chem. Soc., 2010, 132, 9558–9560 CrossRef CAS PubMed.
  4. For a Pd-mediated γ-selective enolate arylation see: A. M. Hyde and S. L. Buchwald, Org. Lett., 2009, 11, 2663–2666 CrossRef CAS PubMed.
  5. For an excellent recent review of Lewis base mediated reaction processes see: S. E. Denmark and G. L. Beutner, Angew. Chem., Int. Ed., 2008, 47, 1560–1638 CrossRef CAS PubMed.
  6. S. A. Shaw, P. Aleman, J. Christy, J. W. Kampf, P. Va and E. Vedejs, J. Am. Chem. Soc., 2006, 128, 925–934 CrossRef CAS PubMed.
  7. For representative examples of isothiourea-mediated catalysis from this laboratory see: (a) B. Belmessieri, L. C. Morrill, C. Simal, A. M. Z. Slawin and A. D. Smith, J. Am. Chem. Soc., 2011, 133, 2714–2720 CrossRef PubMed; (b) C. Simal, T. Lebl, A. M. Z. Slawin and A. D. Smith, Angew. Chem., Int. Ed., 2012, 51, 3653–3657 CrossRef CAS PubMed; (c) L. C. Morrill, T. Lebl, A. M. Z. Slawin and A. D. Smith, Chem. Sci., 2012, 3, 2088–2093 RSC; (d) D. Belmessieri, D. B. Cordes, A. M. Z. Slawin and A. D. Smith, Org. Lett., 2013, 15, 3472–3475 CrossRef CAS PubMed; (e) L. C. Morrill, J. Douglas, T. Lébl, A. M. Z. Slawin, D. J. Fox and A. D. Smith, Chem. Sci., 2013, 4, 4146–4155 RSC; (f) E. R. T. Robinson, C. Fallan, C. Simal, A. M. Z. Slawin and A. D. Smith, Chem. Sci., 2013, 4, 2193–2200 RSC; (g) D. G. Stark, L. C. Morrill, P.-P. Yeh, A. M. Z. Slawin, T. J. C. O'Riordan and A. D. Smith, Angew. Chem., Int. Ed., 2013, 52, 11642–11646 CrossRef CAS PubMed; (h) P.-P. Yeh, D. S. B. Daniels, D. B. Cordes, A. M. Z. Slawin and A. D. Smith, Org. Lett., 2014, 16, 964–967 CrossRef CAS PubMed; (i) L. C. Morrill, L. A. Ledingham, J.-P. Couturier, J. Bickel, A. D. Harper, C. Fallan and A. D. Smith, Org. Biomol. Chem., 2014, 12, 624–636 RSC; (j) P.-P. Yeh, D. S. B. Daniels, D. B. Cordes, A. M. Z. Slawin and A. D. Smith, Org. Lett., 2014, 16, 964–967 CrossRef CAS PubMed; (k) S. R. Smith, J. Douglas, H. Prevet, P. Shapland, A. M. Z. Slawin and A. D. Smith, J. Org. Chem., 2014, 79, 1626–1639 CrossRef CAS PubMed; (l) L. C. Morrill, S. M. Smith, A. M. Z. Slawin and A. D. Smith, J. Org. Chem., 2014, 79, 1640–1655 CrossRef CAS PubMed; (m) T. H. West, D. S. B. Daniels, A. M. Z. Slawin and A. D. Smith, J. Am. Chem. Soc., 2014, 136, 4476–4479 CrossRef CAS PubMed; (n) D. Belmessieri, A. de la Houpliere, E. D. D. Calder, J. E. Taylor and A. D. Smith, Chem. – Eur. J., 2014, 20, 9762–9769 CrossRef CAS PubMed.
  8. For representative examples of NHC-mediated catalysis see: (a) N. Duguet, C. D. Campbell, A. M. Z. Slawin and A. D. Smith, Org. Biomol. Chem., 2008, 6, 1108–1113 RSC; (b) C. Concellón, N. Duguet and A. D. Smith, Adv. Synth. Catal., 2009, 351, 3001–3009 CrossRef; (c) K. B. Ling and A. D. Smith, Chem. Commun., 2011, 47, 373–375 RSC; (d) C. J. Collett, R. S. Massey, O. R. Maguire, A. S. Batsanov, A. C. O'Donoghue and A. D. Smith, Chem. Sci., 2013, 4, 1514–1522 RSC; (e) J. Douglas, J. E. Taylor, G. Churchill, A. M. Z. Slawin and A. D. Smith, J. Org. Chem., 2013, 78, 3925–3938 CrossRef CAS PubMed; (f) A. T. Davies, J. E. Taylor, J. Douglas, C. J. Collett, L. C. Morrill, C. Fallan, A. M. Z. Slawin, G. Churchill and A. D. Smith, J. Org. Chem., 2013, 78, 9243–9257 CrossRef CAS PubMed; (g) J. E. Taylor, D. S. B. Daniels and A. D. Smith, Org. Lett., 2013, 15, 6058–6061 CrossRef CAS PubMed.
  9. (a) J. E. Thomson, K. Rix and A. D. Smith, Org. Lett., 2006, 8, 3785–3788 CrossRef CAS PubMed; (b) J. E. Thomson, C. D. Campbell, C. Concellón, N. Duguet, K. Rix, A. M. Z. Slawin and A. D. Smith, J. Org. Chem., 2008, 73, 2784–2791 CrossRef CAS PubMed; (c) C. D. Campbell, N. Duguet, K. A. Gallagher, J. E. Thomson, A. G. Lindsay, A. O'Donoghue and A. D. Smith, Chem. Commun., 2008, 3528–3530 RSC; (d) C. Joannesse, C. Simal, C. Concellón, J. E. Thomson, C. D. Campbell, A. M. Z. Slawin and A. D. Smith, Org. Biomol. Chem., 2008, 6, 2900–2907 RSC; (e) C. Joannesse, C. P. Johnston, C. Concellón, C. Simal, D. Philp and A. D. Smith, Angew. Chem., Int. Ed., 2009, 48, 8914–8918 CrossRef CAS PubMed; (f) C. D. Campbell, C. J. Collett, J. E. Thomson, A. M. Z. Slawin and A. D. Smith, Org. Biomol. Chem., 2011, 9, 4205–4218 RSC; (g) C. Joannesse, L. C. Morrill, C. D. Campbell, A. M. Z. Slawin and A. D. Smith, Synthesis, 2011, 1865–1879 CAS.
  10. E. Gould, D. M. Walden, K. Kasten, R. C. Johnston, J. Wu, A. M. Z. Slawin, T. J. L. Mustard, B. Johnston, T. Davies, P. A.-H. Cheong and A. D. Smith, Chem. Sci., 2014, 5, 3651–3658 RSC.
  11. For an excellent review that details the power of catalyst selective synthesis see: J. Mahatthananchai, A. M. Dumas and J. W. Bode, Angew. Chem., Int. Ed., 2012, 51, 10954–10990 CrossRef CAS PubMed.
  12. For an interesting manuscript detailing the regioselective iodide-catalysed alkylation of 2-methoxyfurans see: J. Chen, S. Ni and S. Ma, Adv. Synth. Catal., 2012, 354, 1114–1128 CrossRef CAS.
  13. The formation of the parent furanone and diphenyl carbonate are minor by-products in the O- to C-carboxyl rearrangement of furanyl phenyl carbonates and typically account for <5% of the crude reaction product mixture.
  14. Further investigation of this NHC-promoted protocol showed that imidazolinium or imidazolium derived NHCs (such as IMes) did not prove catalytically active in this protocol.
  15. Control experiments showed that the NHC 8 is necessary for catalysis is this system, and that the furanyl dienolate (generated from the parent butenolide with KHMDS) is not catalytically active in this reaction manifold.
  16. Consistent with the NHC-mediated Steglich rearrangement of oxazolyl carbonates, crossover experiments indicate an intermolecular reaction process using furanyl carbonates.
  17. A range of C(3)-alkyl–C(5)-aryl furanyl carbonates were readily prepared from (phenylthio)acetic acid and an appropriate epoxide, followed by alkylation, oxidation/elimination and carbonate formation as reported previously. See ref. 9g and ESI† for full experimental details.
  18. The rearrangement of 11 with either DMAP 3 or NHC 8 proceeded with a significantly retarded rate in comparison with its isomer 5, although with similar levels of regioselectivity.

Footnote

† Electronic supplementary information (ESI) available: Full experimental procedures and characterisation, as well as 1H and 13C NMR spectra for novel compounds. See DOI: 10.1039/c4ob02629b
