Improved microwave absorption in lightweight resin-based carbon foam by decorating with magnetic and dielectric nanoparticles

Abstract

Carbon foams (CFoams) are sponge-like high performance lightweight engineering materials that possess excellent electrical and mechanical properties as well as thermal stability. CFoams possess bulk density in the range from 0.30 to 0.40 g cm⁻³ and open porosity of more than 70%. The CFoam consists of pore walls, i.e., ligaments, which are responsible for the conduction path and hence the electrical conductivity due to mobile charge carrier (delocalized π electron), are interconnected to each other. The high value of electrical conductivity causes the CFoam to act as an electromagnetic radiation reflector rather than an absorber; however, in certain applications, shielding materials must be able to absorb the maximum electromagnetic radiation. Therefore, to improve the absorptivity of electromagnetic radiation in lightweight CFoams, the CFoams are decorated by Fe₃O₄ and ZnO nanoparticles. It is observed that coating with Fe₃O₄ and Fe₃O₄–ZnO nanoparticles not only improved the absorption losses but also enhanced the compressive strength of CFoam by 100%. This modified CFoam demonstrated excellent shielding response in the frequency range from 8.2 to 12.4 GHz, in which the total shielding effectiveness (SE) was dominated by absorption losses. The total SE is −45.7 and −48.5 dB of Fe₃O₄ and Fe₃O₄–ZnO-coated CFoam, respectively, and it is governed by absorption losses of −34.3 dB and −41.5 dB, respectively. Moreover, the absorption losses increased by 236% in Fe₃O₄-coated CFoam and 281% in Fe₃O₄–ZnO-coated CFoam without much enhancement in the bulk density. This is due to the high level of magnetic and dielectric losses of nanoparticles with high surface area. Note that the absorption losses are 80% higher than any value reported for CFoam; thus, lightweight CFoam decorated with magnetic and dielectric nanoparticles is an excellent material for stealth technology.

---

1. Introduction

Recently, considerable interest has been generated in the realization of innovative electromagnetic (EM)-absorbing materials that are even more lightweight and have multifunctional properties. Particularly, EM radiation-absorbing materials have gained lot of interest in civil and military applications such as in stealth technology or the reduction of radar signatures of aircrafts, ships, and tanks. Stealth technology allows an aircraft to be partially invisible to radar or any other means of detection;^1,2 i.e., it does not allow the aircraft to be fully invisible on radar, which is similar to the camouflage tactics used by soldiers in jungle warfare. Recently, different metals and their nanoparticles have been explored as EM shielding materials or coatings; however, they have drawbacks of high density, corrosion, difficult/uneconomic processing and low specific shielding capability.³ Among different materials for civil and military applications, carbon-based materials have gained popularity because of their high electrical/thermal conductivity, low density, good corrosion resistance, thermal stability and processing advantages.⁴ The properties of carbon materials can be tailored by controlling processing parameters. Carbon-based shielding materials not only protect from EM radiation but also control regulation of thermal heating in electronic power systems to protect them from any form of damage or catastrophe. Therefore, technologists and scientists are looking for highly efficient, thermally conducting and lightweight radar absorbing material (RAM) particularly for aerospace transportation vehicles in civilian, military and space applications. The shielding materials should not only have strong microwave absorption properties but should also be lightweight and cost-effective.⁵

Recently, lightweight carbon foam (CFoam) has emerged as a promising candidate for different applications owing to its outstanding properties such as low density, large surface area with open cell wall structure, good thermal/electrical transport properties and mechanical stability.^6,7 The CFoams are sponge-like high performance engineering materials, in which carbon ligaments are interconnected to each other, and have recently attracted attention due to their potential applications in various fields.⁸ The CFoam is generally developed from thermosetting and thermoplastic polymers by various techniques.^9–12 The thermosetting polymer, i.e. phenolic resin derived CFoam, is less electrically and thermally conductive,^13–15 while coal tar pitch and mesophase pitch derived CFoams are thermally and electrically conductive.^16,17 In both the cases, EM shielding effectiveness (SE) is dominated by reflection losses rather than absorption losses due to the high electrical conductivity value of CFoam.^18,19

In the literature, a few studies on CFoam are available, in which CFoam is heat-treated in temperatures ranging from 400 to 800 °C.^20–27 Yang et al.²⁰ reported the development of CFoam from mesophase pitch by foaming technique and studied its microwave (2–18 GHz) absorption characteristics. It is found that CFoam heat-treated at 600 and 700 °C exhibits better microwave absorption (reflection loss 10 dB). Fang et al.²² reported electromagnetic characteristics of CFoams with different pore size and electrical conductivities, which are controlled by carbonization temperature (700–760 °C). The electromagnetic parameters of these CFoams and their corresponding pulverized powders are measured by a resonant cavity perturbation technique at a frequency of 2.45 GHz. Note that CFoam has a dielectric loss that is several times larger than their corresponding pulverized powder. Recently, Moglie et al.²³ studied the EM SE of CFoam (GRAFOAM FPA-20 and FRA-10) in the frequency band of 1–4 GHz using the nested reverberation chamber method. It has been reported that total SE increases with increasing thickness of CFoam. Micheli et al.²⁴ reported the effect of a multi-walled carbon nanotube epoxy resin mixture filled in the pores of CFoam, and studied its role on EM radiation absorption properties of CFoam in the frequency range 2–3 GHz. It is found that reflection coefficient reaches up to −45 dB. Blacker et al.²⁵ reported EM SE (40 dB) in the frequency range of 400 MHz to 18 GHz of rigid porous electrically conductive CFoam, in which electrically conductive carbon nanofiber polymer matrix is used for joining the CFoam enclosures. Blacker et al.²⁶ reported the development of an electrically graded CFoam material whose electrical resistivity increases with increasing the thickness and decreases with increasing processing temperature. These electrically graded CFoams can be used as radar absorbers. Kuzhir et al.²⁷ reported the EM SE of CFoam developed from commercial tannin and furfuryl alcohol, which is pyrolysed at 900 °C. The absorption and reflection of EM SE in microwaves depends on the density of the CFoam. The maximal SE value is 23 dB in K_α band (26–40 GHz) achieved for the density (0.150 g cm⁻³) of CFoam.

The microwave absorption of shield material is due to the different interactive energy dissipation processes of polarization and magnetization.²⁸ Therefore, in the present study, to improve the microwave absorption, CFoams derived from phenolic resin are coated with magnetic ferrofluid and dielectric zinc oxide nanoparticles. The resultant CFoams are characterized by scanning electron microscopy, transmission electron microscopy, Raman spectroscopy, X-ray diffraction, vibration sample magnetometer and vector network analyzer.

2. Experimental section

2.1 Development of carbon foam

Thermosetting phenolic resin-based CFoams were prepared by sacrificial template route by impregnating phenolic resin into the commercially available polyurethane (PU) foams. The PU foam used as template possesses density 0.030 g cm⁻³ and average pore size 0.45 mm. The solution of phenolic resin (40 wt%) and organic solvent was prepared to impregnate the PU foam. The porous PU foam slabs were cleaned with acetone and dried for 15 minutes followed by drying in a hot oven for 2 h, and the dried foams were impregnated with the resin solution at room temperature. The impregnation was carried out carefully by removing excess resin solution in order to avoid retention of resin into the pores of the substrate foam resulting in a uniform structure in the final product. Then, impregnated foams were dried at 60 °C for 12 h, and the dried resin impregnated foams were cured at 150 °C in the presence of air atmosphere for 12 h for increasing the cross-linking between the polymeric chains. These cured foam slabs were pyrolysed at 500 °C for 1 h and later carbonized at 1000 °C in inert atmosphere to obtain the CFoam. The resulting carbonized foam was denoted as CFoam C1.

The CFoam C1 was coated with magnetic (Fe₃O₄) and dielectric ZnO nanoparticles to improve the radar emission absorptivity, i.e. EM radiation can be absorbed by material. In the first case, CFoam C1 was coated with ferrofluid solution using dip coating and the resultant product is denoted as CFoam C2. Note that the ferrofluid was a colloidal suspension of Fe₃O₄ nanoparticles. In another case, CFoam C1 was coated with ferrofluid and ZnO nanoparticles and the resultant product is denoted as CFoam C3. The ZnO nanoparticles were prepared by thermal evaporation of zinc acetate²⁹ at 60–70 °C with slow heating. After coating with nanoparticles, these CFoams were heat-treated at 650 °C for 10 minutes in an inert atmosphere. Moreover, in the case of CFoam C2, loading of the Fe₃O₄ nanoparticles was 14 wt%, whereas in the case of CFoam C3, Fe₃0₄ and ZnO loading was 7 wt% each with respect to weight of CFoam. These CFoams were characterized by different techniques for evaluation of radar emission absorptivity.

2.2 Characterization

Raman spectra of the CFoam samples were recorded using Renishaw inVia Raman spectrometer, UK, with laser as an excitation source at 514 nm. The crystal structure of the CFoam samples was studied by X-ray diffraction (XRD, D-8 Advanced Bruker diffractometer) using CuK_α radiation (λ = 1.5418 Å). The surface morphology of the CFoam samples was observed by a scanning electron microscope (SEM, VP-EVO, MA-10, Carl-Zeiss, UK) operating at an accelerating potential of 10.0 kV. The electrical conductivity CFoam (size 60 mm × 20 mm × 4 mm) was measured by DC four probe contact method using a Keithley 224 programmable current source for providing current. The voltage drop was measured by Keithley 197A auto ranging digital microvoltmeter. The values reported in the text are an average of six readings of voltage drops at different portions of the sample. EM-SE and EM attributes (complex permittivity and permeability) were measured by waveguide using vector network analyzer (VNA E8263B Agilent Technologies). The rectangular samples of thickness 2.75 mm were placed inside the cavity of the sample holder, which matches the internal dimensions of the X-band (8.4–12.4 GHz) wave guide. The sample holder was placed between the flanges of the waveguide connected between the two ports of the VNA. The magnetic property of the CFoam samples was measured by vibration sample magnetometer (VSM) model 7304 (Lakeshore Cryotronics Inc., USA) with a maximum magnetic field of 1.2 T, using a Perspex holder vibrating horizontally at frequency of 76 Hz.

3. Results and discussion

3.1 Electrical conductivity of CFoams

The CFoam C1 developed by sacrificial template technique from thermosetting phenolic resin possesses bulk density of 0.34 g cm⁻³. The coating of Fe₃O₄ particles on CFoam, increases the bulk density of CFoam C2 from 0.34 g cm⁻³ to 0.40 g cm⁻³. Furthermore, the density of CFoam C1 coated with a mixture of Fe₃O₄–ZnO nanoparticles (CFoam C3) is almost the same as CFoam C2. The attenuation of microwaves depends upon the electric and magnetic properties of the CFoam; therefore, electrical conductivity of all the CFoam was measured, and it is listed in Table 1. The electrical conductivity of CFoam C1 is 20 S cm⁻¹ because foam derived from the phenolic resin possesses higher conductivity due to the delocalized π electron in the carbon network, but the electrical conductivity is comparatively very less compared to pitch-based carbon foam.³⁰ However, Fe₃O₄-coated CFoam C2 electrical conductivity decreases to 13 S cm⁻¹. Furthermore, on mix coating of Fe₃O₄–ZnO (CFoam C3), the electrical conductivity is almost the same as CFoam C2. The decrease in conductivity is due to the Fe₃O₄ and ZnO inhibiting the conduction path of the electrons. The interactions between conducting CFoam and Fe₃O₄–ZnO particles during heat treatment at temperature 650 °C form a complex, which can reduce the conductivity; moreover, the coating of magnetic and dielectric nanoparticles on the surface of the CFoam increases the contact resistance, which can inhibit the conduction path.

Table 1 Properties of carbon foam

CFoam	Bulk density (g cm^−3)	Electrical conductivity (S cm^−1)	Thermal conductivity (W m^−1 K^−1)	Compressive strength (MPa)
C1	0.34	20.00	0.54	4.00
C2	0.40	14.00	—	7.00
C3	0.40	13.50	—	8.00

---

The Fe₃O₄ and ZnO nanoparticle coating on the CFoam have a positive effect on the mechanical properties. Strength is one of the essential requirements of CFoams because compressive forces are often encountered during their use in real application. Therefore, the compressive strength of CFoam should be sufficient to avoid any form of structural damage. The compressive strength of CFoam depends mainly on two factors, namely, microstructure and bulk density. It is observed that the compressive strength of CFoam C1, Fe₃O₄-coated CFoam C2 and Fe₃O₄–ZnO-coated CFoam C3 is 4.0 MPa, 7 MPa and 8 MPa, respectively. This enhancement in strength is related to the increase in bulk density and decrease in stress concentration centre as the coating might reduce the number of cracks in the CFoam. In the shield, material heat is generated due to the absorption of EM radiation; therefore, the CFoam should have sufficient thermal conductivity for heat dissipation. The thermal conductivity of CFoam is measured by laser flash method, and it is found to be 0.54 W m⁻¹ K⁻¹.

3.2 Morphology of CFoam

Fig. 1 depicts the SEM micrographs of the PU template foam, CFoam C1, C2 and C3. The PU template foam possesses different size and shapes of cells (Fig. 1a), which are connected by thin walls. In CFoam C1, the cells are of different sizes and the distribution of cells is not uniform (Fig. 1b). In CFoam C1, cells are mainly open with incomplete cell membranes and each cell is partly sealed off from its neighboring cell, i.e., ligaments. In Fe₃O₄-coated CFoam C2 (Fig. 1c), stress is exerted on the cell membranes during heat treatment at 650 °C and as a results the cells are open; however, cracks developed in the Fe₃O₄-coated ligaments (Fig. 1d, magnified view of cell wall) due to the differential thermal expansion of CFoam and Fe₃O₄ nanoparticles. The ferrofluid consists of Fe₃O₄ nanoparticles of size ranging from 50–100 nm, and after coating on the CFoam it will get agglomerated (ESI, Fig. S1a and b†). Moreover, as depicted in Fig. 1d, cracks developed on the surface of CFoam in the coating area which are maximum on the pore walls or ligaments (ESI, Fig. S1c†). Fig. 1e shows SEM image of CFoam C3 coated with Fe₃O₄–ZnO nanoparticles. As observed in CFoam C2 (Fig. 1c), the Fe₃O₄ particles are coated on the surface of the ligaments of CFoam; however, in the case of CFoam C3, Fe₃O₄ is coated on the ligaments and ZnO nanoparticles impregnated inside the pores.

Fig. 1 SEM images of (a) polyurethane template foam, (b) CFoam C1, (c) CFoam C2 coated with Fe₃O₄, (d) CFoam C2, in which cracks were generated after heating, (e) CFoam C3 coated with Fe₃O₄–ZnO, (f) ZnO nanorods generated inside the pores of CFoam C3.

The evolution of in situ ZnO nanorods in the pores after heat treatment of CFoam at 650 °C is shown in Fig. 1(e and f). The ZnO nanoparticles were synthesized by thermal evaporation of zinc acetate at low temperature (60–70 °C) and the morphology of the ZnO nanoparticles is shown in the ESI (Fig. S2a†). The ZnO nanoparticles with ferrofluid solution were coated on the CFoam and heat-treated at 650 °C. Fe₃O₄ was mostly coated on the surface of the CFoam, while some Fe₃O₄ nanoparticles and ZnO impregnated mostly into the pores of the CFoam. After heat treatment, a flower-type morphology of ZnO and Fe₃O₄ is observed inside the pores, which is shown in the ESI (Fig. S2b–d†). From the transmission electron microscopy (TEM) image of ZnO nanoparticles, it is observed that ZnO nanoparticles have an average diameter of 70 nm. At higher magnification, a fringe type structure is repeatedly observed in the nanorods, which is evidence of the fact that during heat treatment ZnO particles transform into a nanorod-like structure (Fig. 1f).

3.3 X-ray diffraction and Raman spectra of CFoams

Fig. 2 shows the XRD pattern of CFoams C1, C2 and C3. The CFoam C1 is carbon derived from the phenolic resin and consists of two peaks at 2θ equal to 24.1° and 44.4°, corresponding to the amorphous carbon of 002 and 101 lattice planes. The CFoam C2 is Fe₃O₄-coated and consists of peaks of amorphous carbon and Fe₃O₄ at 2θ equal to 29.18°, 35.1°, 43.26°, 44.6°, 57.15° and 62.55°. The XRD pattern of magnetic nanoparticles (Fe₃O₄) is given in the ESI (Fig. S4†). During the heat treatment, interactions between the carbon and Fe₃O₄ nanoparticles occur at temperatures ranging from 500 to 650 °C, which form Fe–C. It is well known that carbon is a reducing agent that can react with Fe–O compounds during heat treatment and these compounds can transform into iron carbide.³¹ Moreover, the peaks of Fe₃O₄ are shifted to a lower diffraction angle, which suggests successful incorporation of the dopant in the host matrix.

Fig. 2 X-ray diffraction patterns of CFoams C1, C2 and C3.

In case of CFoam C3, it is observed that ZnO and Fe₃O₄ coexist with carbon, which results in a change in the peak position and has a positive effect on the magnetic properties of the CFoams. Therefore, CFoam C3 consists of peaks for amorphous carbon, Fe₃O₄ and ZnO at 2θ equal to 24.70°, 29.26°, 31.66°, 34.46°, 36.22°, 44.626°, 47.42°, 56.43°, 62.876°, 64.95°, 67.958° and 75.32°. In Fig. S4,† the X-diffraction pattern of ZnO is given (ESI†). The spectrum consist of peaks at 2θ equal to 31.8°, 34.5°, 36.4°, 47.6°, 56.4°, 62.9°, and 68.0°, corresponding to the 100, 002, 101, 102, 110, 103, and 200 lattice planes of the wurtzite ZnO structure.³²

Fig. 3a shows the Raman spectra of CFoams C1, C2 and C3 in the Raman shift range of 1000–3000 cm⁻¹. Raman spectra illustrate common features in the Raman shift 1000–3000 cm⁻¹ region with the G, D and 2D band observed at around 1560, 1360 and 2700 cm⁻¹, respectively. The G band corresponds to the E_2g phonon at the Brillion zone centre. The D band is due to the breathing modes of the sp² atoms and requires a defect for its activation, and it only gives information about the amount of disorder in the given structure.^33,34 In this investigation, the CFoam is derived from a phenolic resin, which is heat-treated at 1000 °C, and it gives hard carbon, which is amorphous in nature. The spectrum of CFoam C1 consists of D and G band peaks at 1349 and 1597 cm⁻¹ while in the case of CFoam C2 and C3 peaks appear at almost the same Raman shift (1348 and 1601 cm⁻¹) but the intensity is different. The intensity ratio of the D and G (I_D/I_G) peaks gives an idea of the defect level in the structure of the CFoam, i.e. sp³-bonded carbon. The higher the I_D/I_G ratio of CFoam, the lower the amount of sp²-bonded carbon, i.e. more defects in the structure.

The CFoam C1 has an I_D/I_G ratio of 0.955 while in the case of C2 and C3 it increases to 1.03. This demonstrates that the Fe₃O₄ and ZnO coating form a complex with the sp³ carbon and as a consequence increase the I_D/I_G ratio and decrease the electrical conductivity of C2 and C3. The decreases in electrical conductivity due to the increases in defect level in the CFoam can influence the shielding effectiveness of the CFoams C2 and C3. As a result, the absorption component increases and the reflection component of total SE decreases in CFoams C2 and C3. Hence, total SE increases due to the higher contribution of the absorption component. The Raman spectra in the range of 200–1000 cm⁻¹ of CFoam are depicted in Fig. 3b; in this region, the peak appears to be related to the Fe₃O₄ and ZnO nanoparticles. In the case of Fe₃O₄-coated CFoam C2 peaks observed at Raman shift of 215, 280, 380, 422, 496 and 663 cm⁻¹ and the peak between 710 and 720 cm⁻¹ is clear evidence of the magnetite nanocrystals (Fe₃O₄) with the surface partially oxidized to maghemite.^29,35 However, in the case of the Fe₃O₄ and ZnO-coated CFoam C3, peaks ∼340, 442, and 580 cm are attributable to the ZnO nanoparticles, in addition to the peaks for Fe₃O₄. Raman active zone-center optical phonons predicted by the group theory are A₁ + E₁ + 2E₂. The phonons of A₁ and E₁ symmetry are polar phonons; hence, they exhibit different frequencies for the transverse-optical (TO) and longitudinal-optical (LO) phonons. Nonpolar phonon modes with symmetry E₂ have two frequencies. E₂H is associated with oxygen atoms and E₂L is associated with the Zn sub lattice. The presence of a sharp E₂H (442 cm⁻¹) mode with high intensity and the second-order Raman mode at 340 cm⁻¹ in the Raman spectra indicates that the obtained sample possesses wurtzite ZnO. According to the theory of polar optical phonons, the wave number of LO phonon mode in ZnO should be between 574 and 591 cm⁻¹ for wurtzite nanocrystals.

Fig. 3 (a) Raman spectra of CFoams C1, C2 and C3. (b) Raman spectra of CFoams C2 and C3 in the Raman shift range (100–900 cm⁻¹).

3.4 Permittivity and magnetic permeability of CFoam

Fig. 4 shows the EM attributes, relative complex permittivity (ε* = ε′ − iε′′) and relative complex permeability (μ* = μ′ − iμ′′) of CFoam measured in the frequency region 8.2–12.4 GHz to correlate with the microwave shielding properties of CFoams. These complex parameters have been estimated from experimental scattering parameters (S₁₁ & S₂₁) by standard Nicholson–Ross and Weir theoretical calculation.^36,37 The estimated real part of the EM parameters (ε′, μ′) is directly associated with the amount of polarization occurring in the material, which represents the storage ability of the electric and magnetic energy, while the imaginary part (ε′′, μ′′) signifies the dissipated electric and magnetic energy. Fig. 4a and b clearly demonstrate that both the real and the imaginary part of the permittivity (ε′, ε′′) vary with frequency in all the CFoams. The real permittivity in CFoams C2 and C3 decreases with increasing frequency while CFoam C1 exhibits a broad peak in the frequency region 9.5–10.5 GHz, which reveals the resonance behaviour due to the high electrical conductivity (Fig. 4a). Furthermore, skin effect becomes significant³⁸ in CFoam due to its high surface area and high conductivity. The decreasing permittivity in C2 and C3 with frequency could be ascribed to the decreasing capability of the dipoles to sustain the in-phase movement with the speedily pulsating electric vector of the incident radiation. The real permittivity at fixed frequency of 10 GHz is 90, 40 and 15 for CFoams C1, C2 and C3, respectively.

Fig. 4 (a) Real permittivity and permeability (ε′, μ′), (b) imaginary permittivity and permeability (ε′′, μ′′) of CFoams C1, C2 and C3.

According to EM theory,^39,40 the AC conductivity (σ_AC) and skin depth (δ) are related to the imaginary permittivity (ε′′), frequency (ω) and real permeability (μ′) as σ_AC = ωε₀ε′′, (σ = σ_AC + σ_DC) and , by which we can calculate reflection (SE_R) and absorption loss (SE_A) as follows:

Reflection loss (SE_R) is:

SE_R(dB) = 10 log{σ_AC/16ωε₀μ′} (I)

and absorption loss (SE_A) is

From eqn (I), it can be deduced that SE_R is related to frequency (ω), conductivity (σ_AC) and real permeability while the AC conductivity (σ_AC = ωε₀ε′′) depends upon the frequency and imaginary permittivity (ε′′). As shown in Fig. 4a, the real permeability increases with increasing frequency, and it is at the maximum in the case of CFoam C3 and at the minimum in C1, while imaginary permittivity (Fig. 4b) also varies with frequency and it is minimum in the case of CFoam C3. This clearly demonstrates that SE_R is minimum in the case of CFoam C3 and maximum in CFoam C1.

The SE_A is related to thickness, real permeability, frequency and conductivity. Fig. 4 shows that maximum real permeability is observed in case of Fe₃O₄–ZnO-coated CFoam C3, followed by C2, and then CI, which has the minimum real permeability, and in all cases the thickness is same.

With a coating of Fe₃O₄ and ZnO nanoparticles on conducting CFoam C1, electrical conductivity decreases in the case of CFoams C2 and C3, leading to a reduction in the imaginary permittivity. The higher the imaginary component of permittivity, the larger is the loss in the shield material. A material with a low dielectric loss can store energy, but will not dissipate the stored energy. However, a material with a high dielectric loss does not store energy efficiently, and large part of the energy of the incident wave is converted into heat within the shield material. Therefore, materials with lower value of conductivity yield large losses that inhibit the propagation of EM radiation, i.e., absorption losses are more in the case of CFoam C3. Thus, higher value of real permeability is also responsible for the radiation absorption in CFoam C3. In CFoam, the existence of interfaces between Fe₃O₄ nanoparticles–CFoam, ZnO nanorods–CFoam, and Fe₃O₄–ZnO are responsible for interfacial polarization, which further contributes to dielectric losses. Interfacial polarization occurs in heterogeneous media due to the accumulation of charges at the interfaces and the formation of large dipoles. Ferromagnetic nanoparticles act as tiny dipoles that are polarized in the presence of EM field and as a result provide better microwave absorption.

The real permeability value of CFoam C3 is more than that of CFoam C2 and C1 (Fig. 4a). This is due to the improvement of magnetic properties along with the parallel reduction of eddy current losses since the coating material has ferromagnetic behaviour. In the microwave range, the natural resonances in the X-band can be attributed to the small size of the Fe₃O₄ nanoparticles and ZnO nanorods in the CFoams. Anisotropy energy of the small size materials, especially at the nanoscale, would be higher due to the surface anisotropic field effect of the smaller material.⁴¹ The higher anisotropy energy also contributed to the enhancement of microwave absorption. The real and imaginary part of complex permeability increases with frequency in CFoam C3 and reaches a maximum at a frequency of 12.4 GHz, while in CFoams C2 and C1, it slightly decrease with frequency (Fig. 4b). This has a positive effect on the absorption of microwave radiation. The magnetic and dielectric coating on the surface of the CFoam (C2 and C3) leads to better matching of input impedance along with a reduction of skin depth. This contributes further to the increase of absorption losses of CFoam. This was confirmed further by measuring saturation magnetization of the CFoam C1, C2 and C3, which is responsible for adsorption losses.

3.5 Magnetic properties of CFoam

Fig. 5 shows the room temperature magnetization plot of CFoams C1, C2 and C3. The magnetization data reveals that CFoam C1 does not show any magnetization throughout the magnetic field because carbon is nonmagnetic with high electrical conductivity observed because of the delocalized π electron. However, Fe₃O₄-coated CFoam C2 and Fe₃O₄–ZnO-coated CFoam C3 both display a narrow hysteresis loop.

Fig. 5 The room temperature magnetization plot of CFoams C1, C2 and C3.

CFoam C2 possesses saturation magnetization 4.2 emu g⁻¹ at 4.9 kG, while in CFoam C3 saturation magnetization is 5.8 emu g⁻¹. The improved saturation magnetization in the case of CFoam C3 is due to the addition of ZnO in Fe₃O₄, which can also contribute to magnetization. The ZnO is doped by Fe₃O₄ and as a consequence ZnO becomes ferromagnetic due to the interaction between zinc oxide and ferrous oxide, which form the complex Zn–FeO.^32,42 This can increase the overall magnetic properties of CFoam C3. These results are in agreement with the results of electromagnetic attributes discussed in section 3.4. This clearly demonstrates that even a small uptake of nanoparticle coating on the conducting CFoam is very effective for absorption of radar emission due to its large surface area and its properties.

3.6 Electromagnetic shielding and microwave absorbing properties

The microwave shielding can be validated by measuring shielding effectiveness (SE) in terms of reflection and absorption losses. The SE of any shield is the ability to attenuate electromagnetic (EM) radiation that can be expressed in terms of the ratio of incoming (incident) and outgoing (transmitted) power.⁴³ The EM attenuation offered by a shield may depend on three mechanisms: reflection of the wave from the front face of shield, absorption of the wave as it passes through the shield and multiple reflections of the waves at various interfaces.⁴⁴ Therefore, SE is attributed to three types of losses, i.e. reflection loss (SE_R), absorption loss (SE_A) and multiple reflection losses (SE_M), and can be expressed (eqn (IV)) as follows:

SE_T(dB) = SE_R + SE_A + SE_M = 10 log(P_t/P_i) (IV)

where P_i and P_t are power of incident and transmitted EM waves, respectively. As P_t is always less than P_i; therefore, SE is a negative quantity such that a shift towards a more negative value means an increase in the magnitude of SE. It is important to note that the losses associated with multiple reflections can be ignored (SE_M ∼ 0) in all practical cases when achieved SE_T is more than −10 dB. Therefore, SE_T can be expressed as (eqn (V)) follows:

SE_T(dB) = SE_R + SE_A (V)

Fig. 6 shows the EM SE of CFoams C1, C2 and C3 in the X-band (8.2 to 12.4 GHz) frequency region. It is observed that SE_T is almost constant throughout the X-band frequency range in all the three types of CFoam, while the reflection component in the form of losses vary with frequency. The SE is the average of 201 data points from 8.2 to 12.4 GHz for the different CFoams. The average value of SE_T for CFoam C1 is −22.3 dB, while in the case of CFoams C2 and C3, it increases to −45.7 and −48.5 dB, respectively. It is interesting to note that in CFoams C2 and C3 the observed SE_T is more than double that of CFoam C1. In the case of CFoam C1, the SE_T is equally shared by both reflection and absorption losses, while in the case of Fe₃O₄ coated CFoam C2, SE_T is governed by absorption losses (−34.3 dB) and partially shared by reflection losses (SE_R = 11.3 dB). In Fe₃O₄–ZnO-coated CFoam C3, the presence of ZnO nanorods along with ferrite nanoparticles further improves the absorption losses (−41.5 dB), effectively reducing reflection losses (−7.0 dB) and as a consequence gives the maximum value of SE_T (48.5 dB) among the three types of CFoam. Furthermore, CFoam C3 provides higher surface and large interfacial area in comparison to CFoam C2 and C1 because of the high aspect ratio of the nanorods, which further enhances the SE due to the absorption. The ZnO nanoparticles not only contribute to the dielectric losses but also to the magnetic losses and as a result the maximum absorption losses were observed in CFoam C3.

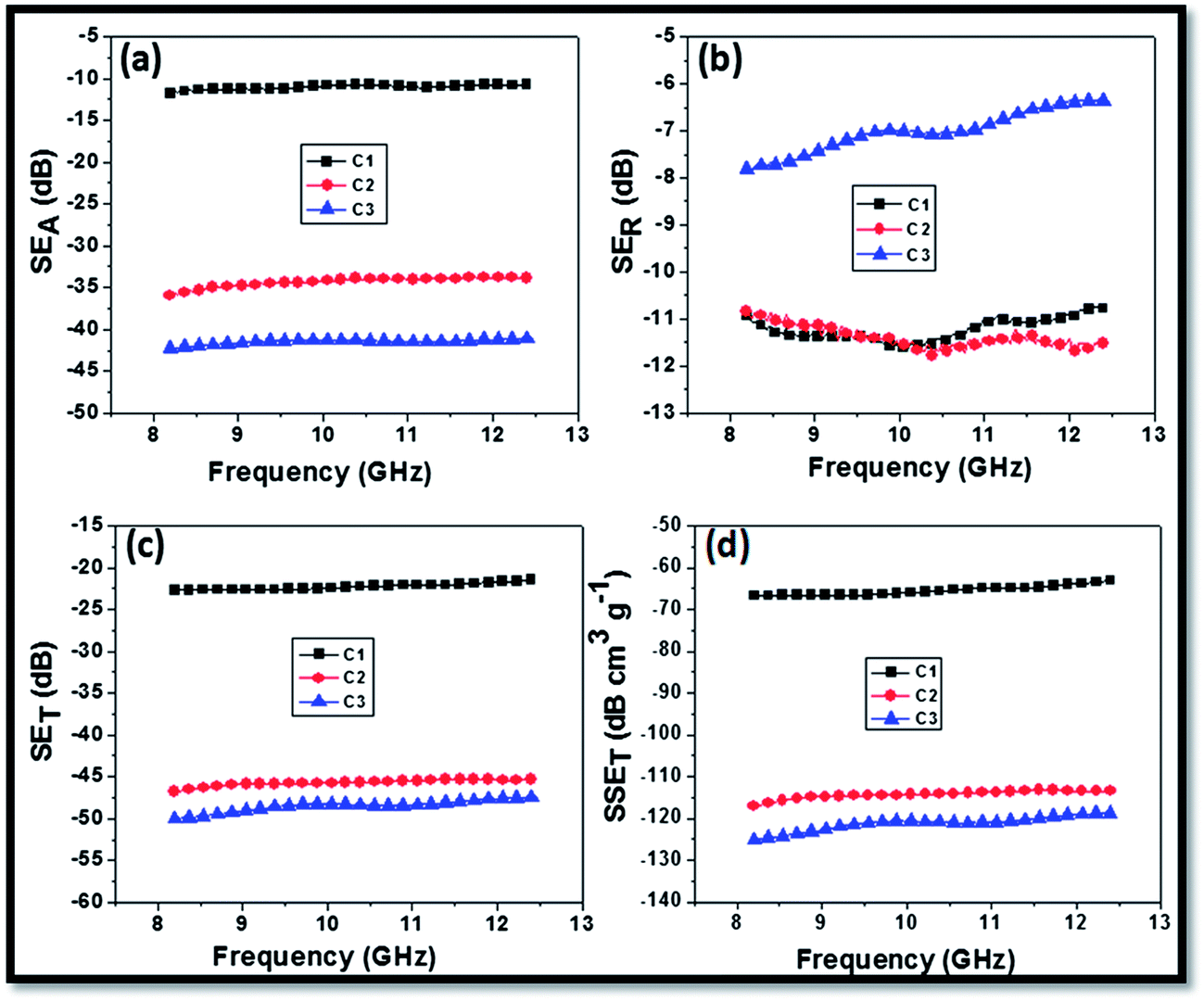

Fig. 6 Electromagnetic shielding effectiveness (a) SE_A (b) SE_R (c) SE_T and (d) specific SE_T of CFoams C1, C2 and C3.

In general, the SE increases with increase in conductivity but it is not always true. In our study, electrical conductivity of CFoams C2 and C3 is less than C1, but the SE is double that of C1 (as discussed in the earlier section). This behaviour can be attributed to the incorporation of ferrite particles of lowered complex permittivity (ε_r), which improved the equally complex permittivity and permeability (ε_r and μ_r) of the CFoam, which can help in impedance matching.^41,45 The specific shielding effectiveness of CFoams C1, C2 and C3 are −66, −117 and −125 dB cm³ g⁻¹, respectively (Fig. 6d). This is due to the fact that the coatings of Fe₃O₄ and ZnO nanoparticles play an important role in improving magnetic and dielectric losses in the CFoams C2 and C3, which further improves the attenuation of EM radiation.

In Table 2 the available data on the shielding effectiveness of the CFoam is compared. Note that very little information is available in the literature on CFoam as an EMI shield material. From the table, it is very clear that the approach adapted in this study has to date not been applied for improving microwave absorption in CFoam. In most of the reported studies, the total SE is dominated by reflection losses. The reported studies' maximum absorption losses are 25%, while in the present study the absorption losses are more than 80% of the total SE. Due to the high value of EM absorption by magnetic and dielectric nanoparticles coated CFoam, this can be an excellent material for use in stealth technology.

Table 2 Comparison of total shielding effectiveness of different CFoam

Carbon foam processing temp. (°C)	Frequency range GHz	Thickness of material (mm)	Total shielding effectiveness (dB)	Reflection loss (dB)	Absorption loss (dB)	Ref.
400–800	2–18	—	—	10	—	20
800	8.2–12.4	20	—	8–10		21
700–760	2.45	1–3	—	—	—	22
900–1000	1–4 GHz	4.0	40	—	—	23
—	2–3 GHz	—		45		24
—	400 MHz–18	—	40	—	—	25
900	26–40	—	23	16	7	27
1000	8.2–12.4	2.75	50	8	42	Present

---

4. Conclusions

In summary, lightweight conducting CFoams decorated with magnetic and dielectric nanoparticles have been developed by a simple sacrificial template technique as a radar emission absorbing material. The coatings of magnetic and dielectric particle significantly increase the radar absorption without considerable enhancement in the density of the CFoam. The coating materials can facilitate reducing the number of defects, i.e. cracks on the ligaments, which improve the compressive strength by 100%. The CFoams demonstrate excellent shielding response in the frequency range from 8.2 to 12.4 GHz with absorption dominated total shielding effectiveness value of −47 dB (−37 dB absorption losses) in the case Fe₃O₄ coated and −50 dB (−41.5 dB absorption losses) in the case Fe₃O₄–ZnO coated CFoam. The lightweight CFoams' absorptivity increases due to the decrease in electrical conductivity and increase in dielectric and magnetic losses. Thus, the absorptivity in CFoam increases by 236% in the Fe₃O₄ coated CFoam and 281% in the Fe₃O₄–ZnO-coated CFoam as compared to the uncoated CFoam. Even though ZnO is a dielectric material, in the vicinity of iron oxide it will also turn into a somewhat ferromagnetic material after high temperature treatment, which can also contribute to both magnetic and dielectric losses. This study clearly shows that even a small uptake of magnetic and dielectric nanoparticles significantly influences the absorption of EM radiation in conducting CFoams. The lightweight CFoams have absorption losses of 80% and 20% reflection losses, thus they can be excellent useful RAMs in stealth technology and in civilian and military applications.

Acknowledgements

Authors are highly grateful to Director, NPL, for his kind permission to publish the results. Moreover, they are thankful to Mr Jai Tawale and Dr K.N. Sood for the SEM analysis. Rajeev Kumar would like to thank CSIR for the SRF fellowship.
