A Pd-mediated direct C–H bond functionalisation of tryptophan has been developed, both as a single amino acid residue and within peptides. Important mechanistic insight into this process has been gained by characterising a Pd catalytically competent nanoparticle phase which evolves during the early stages of reaction.
The C–H bond functionalisation of indoles mediated by Pd is well established.8 We recognised that Sanford's methodology8d could be applied to selectively functionalise tryptophan, which employs PhB(OH)2 and PhI(OAc)2 as reagents, forming diaryliodonium salts in situ,9 and catalytic Pd(OAc)2. These reactions could proceed via a PdII/IV catalytic manifold.10 In this paper we detail the selective arylation of tryptophan and tryptophan-containing peptides under mild catalytic conditions.
Sanford's reaction conditions were initially applied to N-acetyl, O-methyl protected-tryptophan 1 to afford, after column chromatography, 2-phenyltryptophan 2 in 56% yield (Fig. 1). Changes to the catalytic conditions included modifying the Pd catalyst and loading, solvent, inert atmosphere and reaction temperature, but no increase in yield was recorded. Optimal turnover numbers and yields were seen between 2.5–5 mol% Pd.
Intriguingly, reaction of 1 with PhB(OH)2 and PhI(OAc)2 led to the rapid formation of Pd0 nanoparticles (PdNPs) during the first few minutes of the reaction. This finding is in keeping with another Pd-mediated C–H bond functionalisation of benzoxazoles using PhI(OAc)2, which we recently reported upon.11 The in situ generated PdNPs from reaction 1 → 2a were encapsulated by addition of exogenous polymer stabilizer (i.e. polyvinylpyrrolidinone, PVP), which was added to an aliquot of the reaction mixture after 1 h (2.5 mL, containing ∼4.8 μmol Pd; 10 equiv. PVP added and AcOH removed at 40 °C and ca. 0.750 mmHg). This allows reliable analysis of the size and distribution of the PdNPs without concern that solvent removal leads to metal aggregation. Transmission electron microscopy (TEM) confirmed the presence of the encapsulated PdNPs (n = 100; average PdNP size is 2.52 nm, represented in Fig. 2).12
Fig. 2 (a) Histogram of particle size (diameter, nm) for a sample of PdNPs (encapsulated by PVP); (b) TEM image of PVP-encapsulated PdNPs after 1 h heating; (c) appearance of PdNPs in reaction. |
Pre-synthesised PVP-PdNPs13 (average size ∼1.8 nm, Pd0, 5 mol%) were also found to be a viable catalytic species for the tryptophan arylation, affording 2a in 57% yield (Fig. 3). This result shows that PdNPs are catalytically competent under the reaction conditions. In the example given in Fig. 1, we propose that the PdNPs are acting as a reservoir for Pd0, akin to related Heck arylation chemistry.14 Glorius and co-workers have nicely shown that heterogeneous C–H bond activation is viable in benzo[b]thiophene arylation (Scheme 1).15
Fig. 3 Pre-synthesised PVP-PdNPs are catalytically competent species in the arylation of 1 to afford 2a. |

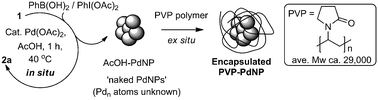

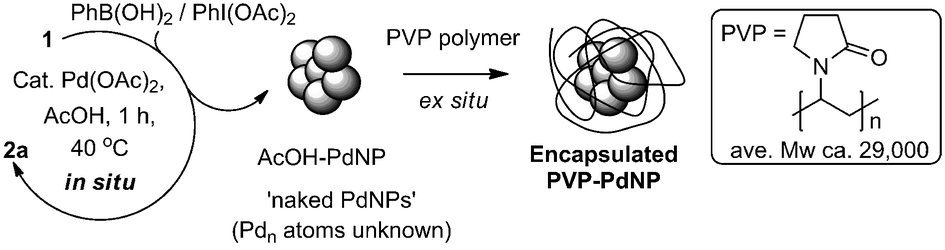

Scheme 1 PVP-encapsulation of in situ generated PdNPs from the reaction detailed in Fig. 1 (TEM characterisation in Fig. 2). |
The reaction of tryptophan 1 with Pd(OAc)2 (1:1) in THF at ambient temperature (0.5 h) was monitored by in situ infrared spectroscopy (Fig. 4). The carbonyl stretching band at 1616 cm−1 is Pd(OAc)2, which disappears on addition of 1, with the appearance of a new band at 1606 cm−1, proposed to be Pd(OAc)2(1)2. Only small changes were noted by 1H NMR spectroscopic analysis, which is in keeping with the tryptophan ligand being weakly coordinated to PdII. Crucially, Pd(OAc)2(1)2 rapidly reduces to form Pd0 and is the seed that leads to the generation of PdNPs under the catalytic conditions – amine ligands lower the PdII reduction potential to give Pd0 ions.4b

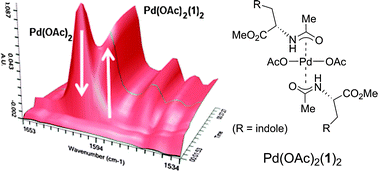

Fig. 4 Changes in the IR spectra observed on the reaction of Pd(OAc)2 (1616 cm−1) with 1, affording Pd(OAc)2(1)2 (1606 cm−1). |
Following this study, some limitations were revealed in terms of the substrate scope using Pd(OAc)2 as the precatalyst.‡ For example, a simple switch from PhB(OH)2 to 4-MeC6H4B(OH)2 led to the biaryl compound derived from the latter only {PhI(OAc)2 could be aiding oxidative homocoupling of the aryl boronic acid}.16 Simply switching the oxidant to Cu(OAc)2 afforded 2a in 93% yield (under the conditions described in Fig. 5). Here, Cu(OAc)2 is assisting the reoxidation of Pd0 (with O2 from air). This was confirmed by conducting the same reaction under an Ar atmosphere, which showed ∼11% conversion to 2a, i.e. a single turn-over of the CuII co-catalyst. A series of analogues (2b–2d) were formed in good yields using this procedure. The electron-rich p-anisoyl boronic acid was susceptible to oxidative homocoupling, leading to 2e being formed in modest yield, expected under oxidative conditions.
The specific optical rotations of the products, and analysis by chiral HPLC, indicated that the arylated tryptophan products maintained their stereochemical purity (see ESI†).
Single crystal X-ray diffraction structures for analogues 2c and 2d (Fig. 6), confirm absolutely their structural connectivity. The data shows in the solid-state that the aryl and indole groups deviate from planarity, which is likely a crystal packing effect. The conformational preference of the ester, amino and aryl moieties could affect the intrinsic fluorescence properties and provide a useful starting point for future TDDFT calculations.
Fig. 6 Single crystal X-ray structures for 2c (left) and 2d (right); ellipsoids shown at 50%, H-atoms omitted. |
UV-vis and fluorescence measurements reveal the effect of the different aryl groups within the tryptophan framework (Fig. 7). The most electronically distinct analogues, 2d (4-CF3) and 2e (4-OMe), exhibit the highest absorption shifts, generating a characteristic V-shape. Such a correlation has been reported by Marder and co-workers in 1,4-bis(p-R-phenylethynyl)benzenes and 2,5-bis(phenylethynyl) thiophenes, and could be an indication of a push–pull type system within the series 2a–e.17 The largest fluorescence intensity is seen for 2a – the other compounds 2b–e exhibit lower fluorescence intensity. Within the series of 2a–e, 2c (4-F) exhibits the largest Stokes shift. Moreover, the emission wavelength is red-shifted relative to free tryptophan (ca. 360 nm) (Table 1).

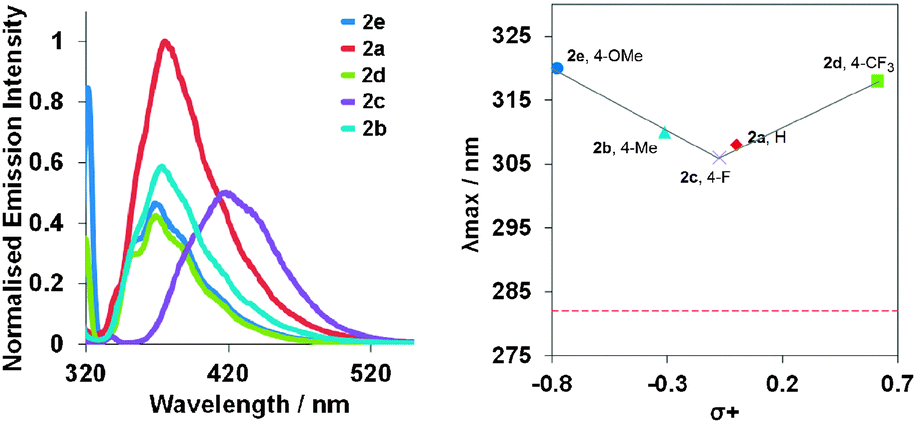

Fig. 7 Fluorescence spectra for 2-aryl-tryptophan 2a–e (the red dotted line denotes the cut-off from amino acid residues in proteins). |
Compound | Abs. λmax (nm) | Em. (nm) | Stokes shift | ε/cm−1 mol−1 dm−3 |
---|---|---|---|---|
a Solutions of 2a–e in CH2Cl2. | ||||
2a | 308 | 370 | 62 | 9120 |
2b | 310 | 375 | 65 | 8893 |
2c | 306 | 416 | 110 | 14684 |
2d | 318 | 368 | 50 | 10297 |
2e | 320 | 368 | 48 | 11644 |
Selective arylation of peptides. We have successfully applied our best reaction conditions (given in Fig. 5) to the arylation of dipeptide 3 (Scheme 2), which gave 4 in >95% conversion (by HPLC analysis). When applied to a more complicated system – the six residue peptide AcTrpLysLeuValGlyAlaOH 5 – in a reaction with PhB(OH)2 to give 6 – it was necessary to increase catalyst loading to 30 mol% and 60 mol% for Pd and Cu respectively. This reaction proceeded in good conversion (86%).
In summary, we have reported a mild and selective direct C–H functionalisation reaction for the amino acid tryptophan, both as a single residue and as a residue in short and longer-chained peptides. It is tempting to suggest that the amino acid may play some role in interacting with and stabilising the PdNPs, particularly for the longer peptides, especially as it is known that certain peptides template (by reduction) the formation of specifically-sized and shaped PdNPs.18 These aspects pertaining to C–H bond functionalisation are currently being investigated within our laboratories.
We thank Dr Meg Stark for TEM measurements, Mr Henry Durant for exploratory work. EPSRC funded T.J.W. (DTA PhD, grant code EP/P505178/1) and Royal Society partly-funded I.J.S.F. (URF). This article is published in celebration of the 50th Anniversary of the opening of the Chemistry Department at the University of York.
