A modular LHC built on the DNA three-way junction

Markus Probst , Simon M. Langenegger and Robert Häner *
Department of Chemistry and Biochemistry, University of Bern, Freiestrasse 3, CH-3012 Bern, Switzerland. E-mail: robert.haener@dcb.unibe.ch; Tel: +41 31 631 4382

Received 30th September 2013 , Accepted 17th October 2013

First published on 18th October 2013


A light-harvesting complex composed of a π-stacked multichromophoric array in a DNA three-way junction is described. The modular design allows for a ready exchange of non-covalently attached energy acceptors.


In attempts to mimic the naturally occurring process of light harvesting and energy transfer in green plants,1–5 scientists are developing artificial systems6–17 that allow an efficient transfer of absorbed photons to a collection centre. A key aspect in all efforts is the proper arrangement of suitable chromophores. The field of DNA nano-architectures has received wide attention over the past years. The DNA double helix serves as a scaffold for the controlled arrangement of functional molecules,18–23 including a wide range of different chromophores.24–32 Also the DNA three-way junction33 has been exploited for this purpose.34–42 Recently, several DNA-based light-harvesting antenna systems have been reported.43–51 Here, we describe the use of the DNA three-way junction (3WJ) as a versatile scaffold for the modular construction of an artificial light harvesting complex (LHC).

The architecture of the 3WJ, its sequences and the corresponding building blocks are shown in Scheme 1. The phenanthrene (P),52 pyrene (S and X)53,54 perylenediimide (E),55 and the commercially available cyanine (Cy) phosphoramidite building blocks were incorporated into the oligomers by automated oligonucleotide synthesis. All oligomers were purified by reverse phase HPLC and analysed by LC-MS (see ESI). In 3WJ-2, -3, -4 and -5, the LHC is composed of a phenanthrene (P) stack, the light absorbing antenna (strands a and b), and an exchangeable acceptor chromophore (strands d–g). 3WJ-1 serves as a control bearing no acceptor dye in the third strand (c). Formation of the 3WJs was demonstrated by polyacrylamide gel electrophoresis (ESI). Thermal denaturation experiments showed a single transition for all 3WJs. Melting temperature (Tm) values ranging from 57–63 °C are listed in Table 1. UV/Vis spectra of the different 3WJs (Fig. 1) reveal the following long-wavelength absorptions of the various chromophores: P (λmax = 316 nm); S (λmax = 353 nm); X (λmax = 391 nm); E (λmax = 561 nm); and Cy (λmax = 652 nm).


image file: c3cc47490a-s1.tif

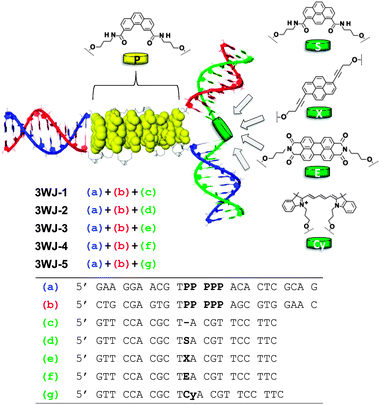

Scheme 1 Schematic illustration of the light harvesting 3WJ, the chromophores used and the corresponding sequences.
Table 1 T m values and fluorescence quantum yields (ΦF)a of 3WJsb
  3WJ-1 3WJ-2 3WJ-3 3WJ-4 3WJ-5
a Standard: 2-aminopyridine; for details see ESI. b Conditions as in Fig. 1. c Phenanthrene excitation (320 nm). d Total ΦF (1.5% from phenanthrene and 4.9% from Cy emission).
Acceptor S X E Cy
T m (°C) 57 59 58 63 59
Φ F c 0.10 0.21 0.32 0.02 0.06d



image file: c3cc47490a-f1.tif
Fig. 1 UV/Vis spectra of the investigated three-way junctions. Conditions: 1 μM single strand, 100 mM NaCl, 10 mM sodium phosphate buffer, pH 7.0; acceptors are given in brackets.

The effectiveness of the 3WJs as LHCs was investigated by fluorescence spectroscopy. Fig. 2 shows the emission spectra of 3WJ-1 to 3WJ-4 after excitation of phenanthrene at 320 nm. 3WJ-2 and 3WJ-3, both of which contain a pyrene derivative as acceptor, exhibit strong exciplex emission (λmax = 435 and 455 nm, respectively56). This is in agreement with the observation made previously with a duplex containing a phenanthrene antenna with a covalently attached pyrene (S).46 In the present case, however, the acceptor dye is brought into proximity of the phenanthrene antenna in a non-covalent fashion.


image file: c3cc47490a-f2.tif
Fig. 2 Fluorescence emission spectra of 3WJ-1, 3WJ-2, 3WJ-3 and 3WJ-4. Conditions: see Fig. 1; λex: 320 nm; ex./em. slit: 5 nm.

A quantum yield of 0.21 (Table 1) is obtained for 3WJ-2. Similar results are obtained for 3WJ-3. However, some pyrene monomer fluorescence (peak at 400 nm and shoulder at around 425 nm) is present in addition to the exciplex emission. The total quantum yield of 3WJ-3 with 1,6-dialkynylpyrene as the acceptor dye is 0.32.

Irradiation of the control 3WJ-1, which contains the phenanthrene stack but no acceptor chromophore, at 320 nm results in a broad, unstructured emission band centred around 415 nm, which is assigned to phenanthrene excimer fluorescence.57–60ΦF for 3WJ-1 was 0.10 (Table 1). This is considerably less than the values found for 3WJ-2 and -3 (0.21 and 0.32) that contain a terminal pyrene chromophore.

In three-way junction 3WJ-4, a perylenediimide unit is used in strand c. This chromophore quenches the phenanthrene excimer fluorescence to a considerable extent (ΦF 0.02). The quenching effect61,62 is strong, but not as pronounced as in the case of pyrene excimer quenching by the same perylenediimide derivative.37,63 The reduced effect can be rationalized by a smaller spectral overlap in the present case (phenanthrene–perylenediimide) than between pyrene and perylenediimide.63

The emission spectra obtained by direct excitation of the two-pyrene acceptor dyes (S or X) are shown in Fig. 3. Excitation was carried out at 370 nm, at which wavelength both pyrene derivatives absorb and phenanthrene excitation is negligible. Two aspects are worth noting: (i) the fluorescence intensities are significantly lower than that obtained after excitation of phenanthrene, which shows that the phenanthrene–pyrene 3WJ functions as a LHC; and (ii) the fraction of monomer emission in 3WJ-3 is somewhat larger than after phenanthrene excitation (cf.Fig. 2). Furthermore, direct excitation of control 3WJ-1 at 370 nm (Fig. 3) results in no significant fluorescence.


image file: c3cc47490a-f3.tif
Fig. 3 Fluorescence spectra of 3WJ-1, 3WJ-2 and 3WJ-3. Conditions: see Fig. 1. Instrumental set-up as in Fig. 2 (except for λex: 370 nm).

Energy transfer is also observed from phenanthrenes to Cy. Fig. 4 shows the effect of a stepwise build-up of 3WJ-5. In this experiment, the phenanthrene antenna (i.e. a 1[thin space (1/6-em)]:[thin space (1/6-em)]1-mixture of strands a and b) is added stepwise to the acceptor dye (strand g). A gradual increase in Cy fluorescence is observed until antenna and acceptor are present in equimolar concentrations. Phenanthrene excimer emission is also present and grows parallel to Cy fluorescence. Further addition of the antenna beyond the 1[thin space (1/6-em)]:[thin space (1/6-em)]1-ratio does not result in additional growth of Cy fluorescence, while phenanthrene fluorescence grows proportionally. The quantum yields for P and Cy emission amount to 0.015 and 0.049, respectively (Table 1). Cy has no significant absorbance (see ESI, Fig. S28) at the irradiation wavelength (320 nm) or in the region of phenanthrene emission (360–530 nm). As shown by the corresponding excitation spectra (Fig. 5), phenanthrene excitation (320 nm) leads to Cy emission only in 3WJ-5 but not in single strand g. These experiments demonstrate that Cy fluorescence in 3WJ-5 is due to energy transfer from the phenanthrenes.64 A Förster radius of ∼26 Å is calculated (ESI). Considering the dimensions of the cavity in a typical 3WJ (∼12 Å)65 as well as its inherent flexibility,33,65 energy transfer via FRET is, thus, possible. On the other hand, molecular contact between the donor and the acceptor is also feasible (as e.g. shown by exciplex formation in 3WJ-2 and -3) rendering excitation transfer via Dexter electron exchange a plausible mechanism.61,66


image file: c3cc47490a-f4.tif

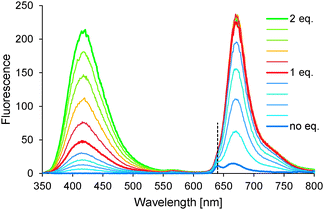

Fig. 4 Build-up of 3WJ-5: fluorescence spectra after stepwise addition of strands a and b (1[thin space (1/6-em)]:[thin space (1/6-em)]1-mixture) to single strand g. The two strands were pre-annealed and added in 0.2 molar equivalents; an equilibration time of 5 minutes was given before recording the spectrum; other conditions were as shown in Fig. 2. Dashed marker indicates artefacts caused by the second order transmission of the monochromator.

image file: c3cc47490a-f5.tif
Fig. 5 Fluorescence excitation spectra of 3WJ-5 and single strand g. Conditions: Fig. 1; instrumental set-up: Fig. 2, except for λem: 670 nm; dashed marker: see Fig. 4.

In conclusion, we have described the construction of LHCs on the basis of the DNA 3WJ. The LHC is based on a modular construction in which a phenanthrene antenna is located in one of the three stems and the acceptor is brought into proximity of the antenna through the annealing of the third strand. Phenanthrene excitation (320 nm) is followed by energy transfer to pyrene, perylenediimide or a cyanine dye. In the case of pyrene, exciplex fluorescence is observed, whereas perylenediimide acts as a quencher. In the case of cyanine, energy transfer leads to cyanine fluorescence. The study demonstrates the use of the DNA 3WJ for the modular assembly of artificial LHCs.

This work was supported by the Swiss National Foundation (Grant 200020-149148).

Notes and references

  1. D. Gust, T. A. Moore and A. L. Moore, Acc. Chem. Res., 1993, 26, 198–205 CrossRef CAS .
  2. Light-Harvesting Antennas in Photosynthesis, ed. B. R. Green and W. W. Parson, Kluwer Acad. Publ., Dordrecht, 2003 Search PubMed .
  3. Artificial Photosynthesis – From Basic Biology to Industrial Applications, ed. A. F. Collings and C. Critchley, Wiley-VCH, Weinheim, 1st edn, 2005 Search PubMed .
  4. A. Hagfeldt and M. Graetzel, Acc. Chem. Res., 2000, 33, 269–277 CrossRef CAS PubMed .
  5. I. McConnell, G. H. Li and G. W. Brudvig, Chem. Biol., 2010, 17, 434–447 CrossRef CAS PubMed .
  6. S. E. Webber, Chem. Rev., 1990, 90, 1469–1482 CrossRef CAS .
  7. M. Graetzel, J. Photochem. Photobiol., C, 2003, 4, 145–153 CrossRef .
  8. V. Balzani, A. Credi and M. Venturi, ChemSusChem, 2008, 1, 26–58 CrossRef CAS PubMed .
  9. A. C. Benniston and A. Harriman, Mater. Today, 2008, 11, 26–34 CrossRef CAS .
  10. B. C. Thompson and J. M. J. Frechet, Angew. Chem., Int. Ed., 2008, 47, 58–77 CrossRef CAS PubMed .
  11. M. R. Wasielewski, Acc. Chem. Res., 2009, 42, 1910–1921 CrossRef CAS PubMed .
  12. C. Li, M. Y. Liu, N. G. Pschirer, M. Baumgarten and K. Müllen, Chem. Rev., 2010, 110, 6817–6855 CrossRef CAS PubMed .
  13. G. Calzaferri, R. Meallet-Renault, D. Brühwiler, R. Pansu, I. Dolamic, T. Dienel, P. Adler, H. R. Li and A. Kunzmann, ChemPhysChem, 2011, 12, 580–594 CrossRef CAS PubMed .
  14. R. W. Wagner and J. S. Lindsey, J. Am. Chem. Soc., 1994, 116, 9759–9760 CrossRef CAS .
  15. S. Delahaye, C. Loosli, S. X. Liu, S. Decurtins, G. Labat, A. Neels, A. Loosli, T. R. Ward and A. Hauser, Adv. Funct. Mater., 2006, 16, 286–295 CrossRef CAS .
  16. N. Sakai, M. Lista, O. Kel, S. Sakurai, D. Emery, J. Mareda, E. Vauthey and S. Matile, J. Am. Chem. Soc., 2011, 133, 15224–15227 CrossRef CAS PubMed .
  17. V. Garg, G. Kodis, P. A. Liddell, Y. Terazono, T. A. Moore, A. L. Moore and D. Gust, J. Phys. Chem. B, 2013, 117, 11299–11308 CrossRef CAS PubMed .
  18. N. C. Seeman, Annu. Rev. Biochem., 2010, 79, 65–87 CrossRef CAS PubMed .
  19. C. K. McLaughlin, G. D. Hamblin and H. F. Sleiman, Chem. Soc. Rev., 2011, 40, 5647–5656 RSC .
  20. M. Endo and H. Sugiyama, ChemBioChem, 2009, 10, 2420–2443 CrossRef CAS PubMed .
  21. M. A. Campbell and J. Wengel, Chem. Soc. Rev., 2011, 40, 5680–5689 RSC .
  22. B. Sacca and C. M. Niemeyer, Angew. Chem., Int. Ed., 2012, 51, 58–66 CrossRef CAS PubMed .
  23. M. Famulok and G. Mayer, Acc. Chem. Res., 2011, 44, 1349–1358 CrossRef CAS PubMed .
  24. V. V. Filichev and E. B. Pedersen, in Wiley Encycl. Chem. Biol., 1, ed. T. P. Begley, Wiley, Hoboken, 2009, pp. 493–524 Search PubMed .
  25. R. Varghese and H. A. Wagenknecht, Chem. Commun., 2009, 2615–2624 RSC .
  26. V. L. Malinovskii, D. Wenger and R. Häner, Chem. Soc. Rev., 2010, 39, 410–422 RSC .
  27. T. J. Bandy, A. Brewer, J. R. Burns, G. Marth, T. Nguyen and E. Stulz, Chem. Soc. Rev., 2010, 40, 138–148 RSC .
  28. E. Schwartz, S. Le Gac, J. J. L. M. Cornelissen, R. J. M. Nolte and A. E. Rowan, Chem. Soc. Rev., 2010, 39, 1576–1599 RSC .
  29. H. Kashida and H. Asanuma, Phys. Chem. Chem. Phys., 2012, 14, 7196–7204 RSC .
  30. Y. N. Teo and E. T. Kool, Chem. Rev., 2012, 112, 4221–4245 CrossRef CAS PubMed .
  31. M. E. Ostergaard and P. J. Hrdlicka, Chem. Soc. Rev., 2011, 40, 5771–5788 RSC .
  32. C. Dohno and K. Nakatani, Chem. Soc. Rev., 2011, 40, 5718–5729 RSC .
  33. D. M. J. Lilley, Q. Rev. Biophys., 2000, 33, 109–159 CrossRef CAS .
  34. M. H. Hansen, P. Blakskjaer, L. K. Petersen, T. H. Hansen, J. W. Hojfeldt, K. V. Gothelf and N. J. V. Hansen, J. Am. Chem. Soc., 2009, 131, 1322–1327 CrossRef CAS PubMed .
  35. I. T. Seemann, V. Singh, M. Azarkh, M. Drescher and J. S. Hartig, J. Am. Chem. Soc., 2011, 133, 4706–4709 CrossRef CAS PubMed .
  36. H. Xiong, P. Leonard and F. Seela, Bioconjugate Chem., 2012, 23, 856–870 CrossRef CAS PubMed .
  37. M. Probst, D. Wenger, S. M. Biner and R. Häner, Org. Biomol. Chem., 2012, 10, 755–759 CAS .
  38. J. L. Duprey, Y. Takezawa and M. Shionoya, Angew. Chem., Int. Ed., 2013, 52, 1212–1216 CrossRef CAS PubMed .
  39. W. Su, C. R. Bagshaw and G. A. Burley, Sci. Rep., 2013, 3, 1883,  DOI:10.1038/srep01883 .
  40. P. Kumar, K. I. Shaikh, A. S. Jorgensen, S. Kumar and P. Nielsen, J. Org. Chem., 2012, 77, 9562–9573 CrossRef CAS PubMed .
  41. O. Reinstein, M. A. Neves, M. Saad, S. N. Boodram, S. Lombardo, S. A. Beckham, J. Brouwer, G. F. Audette, P. Groves, M. C. Wilce and P. E. Johnson, Biochemistry, 2011, 50, 9368–9376 CrossRef CAS PubMed .
  42. L. Feng, C. Zhao, Y. Xiao, L. Wu, J. Ren and X. Qu, Chem. Commun., 2012, 48, 6900–6902 RSC .
  43. O. N. Sancho, W. R. Browne and G. Roelfes, Chem.–Eur. J., 2013, 19, 2457–2461 CrossRef PubMed .
  44. P. K. Dutta, R. Varghese, J. Nangreave, S. Lin, H. Yan and Y. Liu, J. Am. Chem. Soc., 2011, 133, 11985–11993 CrossRef CAS PubMed .
  45. B. Albinsson, J. K. Hannestad and K. Boerjesson, Coord. Chem. Rev., 2012, 256, 2399–2413 CrossRef CAS PubMed .
  46. F. Garo and R. Häner, Angew. Chem., Int. Ed., 2012, 51, 916–919 CrossRef CAS PubMed .
  47. O. O. Adeyemi, V. L. Malinovskii, S. M. Biner, G. Calzaferri and R. Häner, Chem. Commun., 2012, 48, 9589–9591 RSC .
  48. J. G. Woller, J. K. Hannestad and B. Albinsson, J. Am. Chem. Soc., 2013, 135, 2759–2768 CrossRef CAS PubMed .
  49. C. M. Spillmann, M. G. Ancona, S. Buckhout-White, W. R. Algar, M. H. Stewart, K. Susumu, A. L. Huston, E. R. Goldman and I. L. Medintz, ACS Nano, 2013, 7, 7101–7118 CrossRef CAS PubMed .
  50. Charge Transfer in DNA – From Mechanism to Application, ed. H. A. Wagenknecht, Wiley-VCH, Weinheim, Germany, 2005 Search PubMed .
  51. C. V. Kumar and M. Duff, J. Am. Chem. Soc., 2009, 131, 16024–16026 CrossRef CAS PubMed .
  52. S. M. Langenegger and R. Häner, ChemBioChem, 2005, 6, 848–851 CrossRef CAS PubMed .
  53. S. M. Langenegger and R. Häner, Chem. Commun., 2004, 2792–2793 RSC .
  54. H. Bittermann, D. Siegemund, V. L. Malinovskii and R. Häner, J. Am. Chem. Soc., 2008, 130, 15285–15287 CrossRef CAS PubMed .
  55. N. Rahe, C. Rinn and T. Carell, Chem. Commun., 2003, 2119–2121 Search PubMed .
  56. The slight differences are attributed to changes in the linkers, i.e. carboxamide vs. alkynyl-substituents.
  57. Y. Nakamura, T. Yamazaki and J. Nishimura, Org. Lett., 2005, 7, 3259–3262 CrossRef CAS PubMed .
  58. F. D. Lewis and E. L. Burch, J. Photochem. Photobiol., A, 1996, 96, 19–23 CrossRef CAS .
  59. J. B. Birks, in The Exciplex, ed. M. Gordon and W. R. Ware, Academic Press Inc., New York, 1975, pp. 39–73 Search PubMed .
  60. F. M. Winnik, Chem. Rev., 1993, 93, 587–614 CrossRef CAS .
  61. P. Ceroni and V. Balzani, in The Exploration of Supramolecular Systems and Nanostructures by Photochemical Techniques, 78, ed. P. Ceroni, Springer, 2012, pp. 21–38 Search PubMed .
  62. J. R. Lakowicz, Principles of Fluorescence Spectroscopy, Springer, Singapore, 3rd edn 2006 Search PubMed .
  63. N. Bouquin, V. L. Malinovskii and R. Häner, Chem. Commun., 2008, 1974–1976 RSC .
  64. D. Pevenage, M. Van der Auweraer and F. C. De Schryver, Chem. Phys. Lett., 2000, 319, 512–520 CrossRef CAS .
  65. T. Sabir, A. Toulmin, L. Ma, A. C. Jones, P. McGlynn, G. F. Schröder and S. W. Magennis, J. Am. Chem. Soc., 2012, 134, 6280–6285 CrossRef CAS PubMed .
  66. D. L. Dexter, J. Chem. Phys., 1953, 21, 836–850 CrossRef CAS .

Footnote

Electronic supplementary information (ESI) available: Synthetic and analytical details; spectroscopic data. See DOI: 10.1039/c3cc47490a
