Carbon nanotubes—electronic/electrochemical properties and application for nanoelectronics and photonics

Abstract

The fundamental chemical, redox, electrochemical, photoelectrochemical, optical and optoelectronic features of carbon nanotubes are surveyed with particular emphasis on the most relevant applications as electron donor/electron acceptor or as electron conductor/hole conductor materials, in solutions and in the solid state. Methods that aim at p- and n-doping as a means to favor hole or electron injection/transport are covered as well (critical review, 208 references).

---

Vito Sgobba received his “Laurea” in Chemistry from the University of Bari (Italy) in 2000 under the supervision of Prof. F. Naso and his PhD in Material Engineering from the University of Lecce (Italy) in 2003 with Prof. G. Vasapollo. During his PhD studies he joined Prof. L. De Cola’s group at the University of Amsterdam for a one-year Marie Curie Fellowship. Since the beginning of 2005 he has been a postdoctoral fellow with Prof. D. M. Guldi, at the Friedrich-Alexander University in Erlangen (Germany). His research interests are: synthesis, characterization, and assembly of hybrid (organic–inorganic) nanostructured materials for solar energy conversion devices.

Dirk M. Guldi graduated from the University of Cologne (Germany) in 1988, from where he received his PhD in 1990. In 1992, after a postdoctoral appointment at the National Institute of Standards and Technology, he took a research position at the Hahn-Meitner-Institute Berlin. After a brief stay as a Feodor–Lynen Stipend (Alexander von Humboldt Foundation) at Syracuse University he joined in 1995 the faculty of the Notre Dame Radiation Laboratory where he was promoted to Associate Scientist in 1996. In 1999 he completed his Habilitation at the University of Leipzig (Germany). Since 2004 he is Professor of Physical Chemistry at the Friedrich-Alexander University in Erlangen (Germany). He was awarded with the Heisenberg-Prize (1999; Deutsche Forschungsgemeinschaft), Grammaticakis-Neumann-Prize (2000; Swiss Society for Photochemistry and Photophysics), JSPS Fellowship (2003; The Japan Society for the Promotion of Science and JPP-Award (2004; Society of Porphyrins and Phthalocyanines). His primary research interests are in the areas of new multifunctional carbon-based nanostructures within the context of light-induced charge separation and solar-energy conversion.

---

Introduction

Carbon nanotubes (CNT) offer exciting opportunities for science and applications. In recent years, CNT research has been established as a highly interdisciplinary field to exploit their outstanding features.¹ Conceptually, single wall carbon nanotubes (SWCNT) are considered as small strips of graphene sheets that have been rolled up to form perfect seamless single-walled nanocylinders. The way the graphene sheets are wrapped varies largely and is represented by a pair of indices (n,m). These integers relate the structure of each SWCNT to both its diameter and chirality. In other words, each SWCNT has a distinct set of (n,m). SWCNT, where the difference between n and m is a multiple of three, are metallic—all remaining ones have semiconducting character. The diameter of most SWCNT is about 1 nm, while their length reaches into the order of centimeters. Considering the small diameter and the large aspect ratios of SWCNT, they emerge as ideal one-dimensional quantum wires.² Given their nanoscale diameters, quantum electronic confinement determine the electronic structure of CNT. Multiwall carbon nanotubes (MWCNT) are similarly regarded as coaxial assemblies of SWCNT cylinders that are, however, placed within another. The simplest representative of a MWCNT is a double wall carbon nanotube (DWCNT).

The structure of CNT is entirely composed of sp²-hybridized carbons, which are notably stronger than the sp³-hybridized carbons in diamond. As a matter of fact, CNT exhibit good chemical stability, unique tensile strength (i.e., 100 times stronger than steel and 10 times stronger than Kevlar) and outstanding elastic Young's modulus (i.e., 7 times that of steel). Moreover, CNT with a surface area up to 1500 m² g⁻¹ are lighter than aluminum, are thermally stable at temperatures exceeding 1000 °C, and have a thermal conductivity that is, at 6000 W mK⁻¹ twice that of diamond.³

Importantly, electrons move—depending on the CNT arrangement—differently in the tubes, which leads to either semiconducting or metallic properties.⁴ The electrical transport in good quality metallic SWCNT is ballistic, that is, electrons do not suffer from any scattering event over a length scale of several micrometers and/or from any electromigration, even at room temperature. As a consequence, they may carry current densities ca. 1000 times that of a typical copper wire.⁵ For semiconducting SWCNT the electron transport is also ballistic, but only in dimensions of a few hundred nanometers.

All known CNT preparation methods⁶—laser ablation, electric arc discharge, catalytic disproportionation of gaseous hydrocarbon iron (HiPCO) or cobalt molybdenum catalyzed (CoMoCat), metal organic chemical vapor deposition (MOCVD)—lead to mixtures of CNT that exhibit different chiralities, diameters and length. In addition, non-CNT carbon and metal catalysts are present in the final material. It should be noted that the removal of these byproducts/impurities is more costly than the production itself.

Early progress in understanding the optical characteristics of SWCNT was hampered by their aggregation into insoluble bundles and/or ropes when synthesized,⁷ causing a mixing of the energy states of different CNT structures. In fact, the high polarizability and the smooth surface of SWCNT are the inception to strong van der Waals interactions, reaching values as high as 500 eV per 1 μm of CNT length.⁸ Such features are responsible for the low solubility and, in turn, the low reactivity of SWCNT in common organic solvents. However, the preparation of functional CNT based nanocomposites necessitates the disentanglement of bundles and/or ropes.⁹ To this end, the chemical functionalization of CNT surfaces has attracted growing interest as a potent means to debundle and/or disperse them.¹⁴ Nevertheless, debundling by ultrasonication is the most widely applied method¹⁰ despite the fact that controlled conditions are key requisites to avoid/to limit damages to the sidewalls that occur during the ultrasonication treatment.¹¹ Recently, significant progress has been made in the fields of synthetic and post-synthetic methods toward SWCNT with well defined diameters, lengths, chiralities and electronic properties.¹² During the same time span, a number of techniques have been established that allow the systematic debundling, separation and characterization of different SWCNT.¹³

In the context of chemical reactivity, CNT are regarded as either sterically bulky π-conjugated ligands or as electron deficient alkenes. Their shells of sp²-hybridized carbons form highly aromatic hexagonal networks that are susceptible to a wide range of chemical reactions.¹⁴ Small diameter SWCNT¹⁵ are more reactive than those that posses larger diameters.¹⁶ An important aspect, especially when considering the separation of different (n,m) SWCNT, is the fact that metallic CNT are slightly less aromatic than semiconducting ones,¹⁷ and, in turn, are more reactive than the latter.^13a,c

A simple structural consideration suggests that CNT might be far more reactive at their ends than in the areas along the sidewalls. It is mainly the increased curvature that is responsible for such a conclusion.^18,14c Notwithstanding, the sidewalls show upon closer inspection some fairly reactive sites—carboxylic groups and other oxygenated sites. Such functional defects are formed during the growth of CNT or introduced during post processing applications (i.e., purification, separation, etc.). Depending on the actual conditions of such post treatment the defect sites might amount to around 1–3% of all carbon atoms present.¹⁹ Topological defects are also present in CNT. Here, pentagon–heptagon pairs, which are typically referred to Stone–Wales or 7/5/5/7 defects, play an important role. These structural imperfections augment the curvature along the sidewalls.^19b,20 Alternatively, the defects might originate from (i) substitutional dopant impurities, (ii) structural deformation, especially bending or twisting of CNT, and (iii) vacancies in the CNT lattice.²¹ Most of the physical and chemical properties of the CNT are impacted by the aforementioned defects.²² A remarkable demonstration of this effect is the rectifying behavior in some SWCNT that originates exclusively from naturally occurring defects.^22b

A comprehensive understanding of CNT chemistry, electrochemistry and photophysics evolves not only as a necessity but also as a central fundament for applications in artificial photosynthesis²³ and in renewable energies.²⁴

Excited, reduced and oxidized states

Excited states

Employing absorption spectroscopy of SWCNT suspensions shed light onto their electronic states. Important is in this context that 1 nm diameter tubes have a band gap of approximately 1 eV, which is close to that of silicon. But unlike silicon, semiconducting SWCNT are direct band gap materials (the minimum energy of the conduction band lies directly above the maximum energy of the valence band in momentum space) and, as such, they are known to directly absorb and/or emit light.

As already mentioned, CNT tend to aggregate when synthesized and, thereby, to limit optical studies to probe bundles of SWCNT rather than individual SWCNT. In particular, the absorption spectrum of bundles exhibits severe inhomogeneous broadening as the result of mixing energy states of different CNT structures.²⁵ To circumvent this problem, CNT must be individualized by, for example, encasing them in micellar assemblies. A common approach encompasses the ultrasonic agitation of aqueous dispersions of SWCNT in sodium dodecyl sulfate (SDS) followed by a centrifugation step to remove bundles, ropes, and residual catalyst.¹⁰ Equally successful is the wrapping with polymers²⁶ or DNA.²⁷

SWCNT suspensions—as prepared by one of the aforementioned means—reveal three set of bands that all arise from electronic transitions between different van Hove singularities. For HiPCO SWCNT, bands centered in the 950–2000 nm and 700–950 nm range are ascribed to transitions that arise between the first (S₁₁) and second (S₂₂) singularities in semiconducting SWCNT, respectively. Metallic SWCNT, on the other hand, exhibit bands in the 400–700 nm, again resulting from transitions between first (M₁₁) singularities. (See Scheme 1)²⁸ Typically, the absorption spectrum is best described as superpositions of narrower absorption bands corresponding to individual SWCNT having different (n,m).²⁹

Scheme 1 Energy diagram showing the density of states in semiconducting SWCNT—left—and metallic SWCNT—right—valence bands are grey, while conduction bands are white.

Electrostatic electron/hole interaction energies (i.e., exciton binding energies) in SWCNT are significant. To be precise: on the order of 0.3 to 0.5 eV at band gap energies of ca. 1 eV.³⁰ An immediate consequence of this strong electron/hole attraction is that a general perception treats photoexcited states of CNT excitonic (i.e., electron/hole pairs) rather than as uncoupled electrons. In SWCNT, excitons are characterized by electron/hole separations (i.e., Bohr radius) of approximately 2.5 nm.^30a,31

Interestingly, fluorescence is hardly observed from SWCNT bundles. Photoexcited carriers that are generated, for example, in semiconducting SWCNT, which actually do fluoresce, relax along efficient nonradiative pathways in metallic SWCNT that are statistically present in bundles.³² Fluorescence measurements with individual SWCNT that have been isolated in SDS aqueous surfactant suspensions have instead revealed distinct electronic absorption and emission transitions for more than 30 different species.³³ Inhomogeneous broadening and spectral overlap between fluorescence from different CNT structures hamper, nevertheless, recording fine resolved fluorescence spectra. The Stokes shifts are typically around <64.5 cm⁻¹,³⁴ and the fluorescence quantum yields are on the order of 10⁻⁴. The overall low emission efficiency has been rationalized on the basis of multiple dark excitonic states that are situated below the lowest lying bright excitonic states.³⁵ Nevertheless, a mixture of few specific (n,m) semiconducting SWCNT were selectively suspended in toluene by using commercial poly[9,9-dioctylfluorenyl-2,7-diyl] as a dispersing and stabilizing agent.³⁶ Here, a surprisingly high emission quantum yield of ca. 1% was measured.³⁷ Notably, photoluminescence in the visible from MWCNT has been observed using infrared excitation suggesting efficient multi-photon absorption.³⁸

Resonance Raman spectroscopy emerged as another powerful technique in the context of characterizing SWCNT. Notable is that allowed optical transitions between different van Hove singularities and/or excitonic transitions lead to a marked resonance enhancement of the Raman scattering. By combining data that are acquired through fluorescence and resonance Raman investigations, each optical transition has been mapped out and assigned to specific (n,m) SWCNT.^33,34

Complementary work, in which the fluorescence of SWCNT that were suspended in aqueous solutions of polyacrylic acid, disclosed an excited state decay on the time scale of 10 ps. Such a fast relaxation must be connected to nonradiative processes. Taken this into consideration the low fluorescence quantum yields could be explained. From the measured decay rate and a determination of fluorescence quantum efficiency a radiative lifetime of 110 ns was deduced.³⁹

Epifluorescence confocal microscopy performed with samples that were spun from SDS/water or dichloroethylene onto quartz enabled imaging stable emissions from single SWCNT.³² Choosing excitation at 633 nm ensured that all the Raman signals between 633 and 770 nm are distinctively different from the fluorescence signals above 850 nm. The emissive peaks have a simple narrow Lorentzian line shape and a polarization dependence, as expected for a one-dimensional system.

The local environment has a profound impact on the optical features of SWCNT. In fact, the peak positions and the line width—absorptive and emissive—from the same (n,m) SWCNT differs when dissimilar surfactants are utilized. Further alterations may arise when trap states come into play as they may evolve from structural and/or chemical defects. Moreover, the fluorescence tends to red-shift with increasing temperature⁴⁰ and is also affected from mechanical strains,⁴¹ electric⁴² and magnetic fields.⁴³ Notably, unlike almost all other known emitters—including small molecule and quantum dots—the single SWCNT fluorescence fails to blink at room temperature.³²

Their photostability, that is, their resistance to photobleaching, together with their versatile wavelength tunability—they are optically sensitive to light in the range between 800 and 1100 nm and emit between 1300–1500 nm—render SWCNT ideal single-molecule fluorophores.⁴⁴ They can also be pumped electrically to generate strong electroluminescence in the near-infrared.⁴⁵

Ultrafast transient absorption spectroscopic measurements complement the single molecule studies and have been used to clarify the time scales and nature of ground state recoveries in CNT and to extract information about excitonic lifetimes. For relaxation from the excited state, an omnipresent fast decay component (300 to 500 fs) is likely due to bundled SWCNT and/or metallic SWCNT. A much slower decay component (100 to 130 ps) only appears when probing on resonance for semiconductor SWCNT and likely corresponds to the intrinsic excited state lifetime of photoexcited excitons. Lifetimes in the 100 to 130 ps range were corroborated by photoluminescence lifetime³⁹ and by correlated single photon counting spectroscopic measurements.³⁴

If the excitation intensity is increased, multiple electron/hole pairs are generated in SWCNT. However, these e-h pairs deactivate each in less than 3 ps. The energy released by the annihilated exciton is used to excite a second exciton to a higher energy level.

Reduced states

The electron acceptor properties of CNT and the factors that control these, need careful considerations as they impact the reactivity of the reduced state, their photochemistry and photophysics. They also tie into electron storage capabilities and may answer questions on how the electron storage changes the overall energetics. Finally, aspects on how to integrate them properly into photonic, electrochemical and electronic devices should not be neglected.

Reductions of SWCNT bundles were achieved in solid films by intercalating them with alkali metals⁴⁶ and/or anion radicals⁴⁷ and followed spectroscopically by in situ Raman⁴⁸ and vis–near-infrared measurements.^46,49 In the vis-near-infrared absorption spectrum, the most profound changes are seen in the bleaching of the optical transitions associated with filling the corresponding electronic states. The gradual disappearance is noted for the S₁₁, S₂₂ and the M₁₁ transitions—although the latter are impacted only to a minor extent—in all cases.^47,48,50 For instance, exposure of SWCNT to fluorenone–lithium and anthraquinone–lithium attenuates exclusively the S₁₁ peaks. On the contrary, reaction with naphthalene–lithium yields heavily reduced SWCNT, in which the M₁₁ completely disappear. Concomitant with this disappearance is the gradual growth of new features that are positioned between those of S₁₁ and S₂₂. The nature of this newly evolving band is still unclear at this point.^46,50,51

In resonance Raman measurements, the radial breathing mode (RBM) bands are localized in the range between 160 and 365 cm⁻¹. Utilizing different laser energies assisted in resolving this part of the spectrum for several different (n,m) HiPCO SWCNT deposited onto conducting electrodes. This led to the experimental Kataura plot.^28a,52 Consequently, RBM-bands are suitable for investigating single (n,m) SWCNT effects. At first glance, when SWCNT are reduced, the intensities of the RBM-band drop due to an inherent loss of the resonant conditions (i.e., bleaching of the S₁₁, S₂₂ and M₁₁ optical transitions).⁵³ Under very strong reductive conditions also a blue-shift of these frequencies is observed. This is ascribed to charge induced C–C bond contractions and to a charge induced SWCNT debundling.⁵⁴ A similar intensity loss characterizes the G–band in the tangential vibrational modes. Again, a loss of resonance enhancement is responsible. Nevertheless, the frequency and the shape of the G–band appear to be more sensitive to reduction than the RBM-band.⁵⁵ The electrons injected into the conduction bands of SWCNT should weaken the sp² character and, in turn, red-shift the G–band as observed in other carbon based materials.⁵⁶

The electronic structure can also be tuned electrochemically by controlling the interfacial potential of a SWCNT film as a working electrode. In this case the SWCNT film is immersed in an electrochemical cell and can be a pure buckypaper^55,57 or cast on an inert back electrical contact (Pt, Au or Hg)^53a,5,58 in contact with an electrolyte solution (0.1 M KCl) where a Pt counter-electrode and a Ag/AgCl reference electrode is provided. Implicit is that the electrochemical tuning is much easier and more precise when compared with the chemical reduction. In order to increase the electrochemical window, especially in the cathodic range (i.e., less than −0.3 V), an Hg electrode is appropriate because the disturbing evolution of H₂ is minimized.

Typical cyclic voltammograms (CV) display over the entire scanning range—from, for example, −0.5 to +0.7 V—only a monotonous charge injection behavior. Double-layer charging and overlapping peaks of the charge transfer to the van Hove singularities of individual (n,m) SWCNT in the mixture lead to this feature. In protic solvents a faradaic contribution emerges between +0.2 V and −0.2 V from an involvement of carboxylic groups—see Scheme 2.^58a

Scheme 2 Reductive mechanism involving the carboxylic groups bound to SWCNT.

In situ spectroelectrochemistry, where bulk spectroscopy and phase boundary electrochemistry are complementary combined, is, nevertheless, better suited to gather details about the redox chemistry of SWCNT. For example, individual SWCNT, which were deposited from diluted water/SDS suspensions were tested by in situ micro-Raman spectroelectrochemistry.^58f,59 Aprotic electrolytes such as acetonitrile,^58a,29a ethylene carbonate/dimethylcarbonate, tetrahydrofuran^57a and especially ionic liquids such as fluoroborate 1-butyl-3-methylimidazolium salts allow exploring a broad window of electrochemical potentials.^58e

Overall, the spectroelectrochemical results are a qualitative match of the visible/near-infrared spectra recorded upon chemical reduction of SWCNT—vide supra. Additional benefits of this method are the establishment of the reversibility of the reduction and the rate of reduction.^47,51,60

Recently, the redox properties of alkali metals reduced SWCNT⁶¹ were determined in dry and deoxygenated DMSO solution containing tetrabutylammonium hexafluorophosphate as supporting electrolyte. The potentials were kept under −0.6 V to avoid additional reduction of sodium. The voltammetric and visible/near-infrared spectroelectrochemical investigations showed a 35 meV red-shift of the absorption peaks when compared with D₂O/SDS suspensions and a red-shift of 15 meV when compared with metal-free DMSO suspensions.⁶²

An accurate analysis of this data enabled calculating the average standard reduction potentials of several (n,m) SWCNT. The latter were found to be in good agreement with the experimental values that were reported for SWCNT elsewhere.⁶³

Oxidized states

Oxidation has been among the first chemical reactions that were tested with CNT⁶⁴ and is still a key step in their purification—oxidative removal of Fe, Co or Ni catalyst and of amorphous/graphitic carbon impurities.⁶⁵ When opening of the hemispherical caps, shortening and chemical functionalization accompanies in many instances the oxidative treatment.

As SWCNT are known to exist in bundles, which are composed of up to hundreds of individual tubes, their oxidation takes mainly place at the end tips and to a lesser amount at the defect sites. The reactivity is, nonetheless, limited to the outer layer of the bundles.⁶⁶ Although the oxidation of MWCNT acts, in principle, on the same sites, it is routinely employed for MWCNT thinning through the systematic removal of the outer layers.⁶⁷

O₂—in its triplet ground state—does not oxidize CNT. Instead, it physisorbs quite strongly to the sidewalls of CNT. Isolated, apparently semiconducting CNT can be converted into an apparent metal through oxygen exposure at room temperature. Upon photoexcitation, this physisorbed O₂ desorbs from the CNT sidewalls.⁶⁸ On the other hand, the much more reactive singlet oxygen—generated, for example, by UV photoexcitation—affords either [2+2] and [4+2] cycloadducts with a preference to react with metallic SWCNT (see Scheme 3). The reaction itself is accompanied by quenching of the photoluminescence. Then, upon thermal activation, the cycloadducts readily undergo O-O bond cleavage.⁶⁹ This procedure was conveniently adapted to separate CNT with different chiralities.⁷⁰

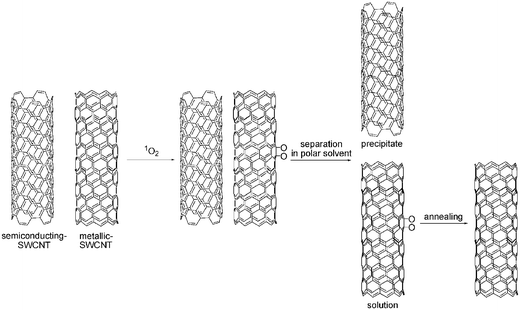

Scheme 3 Reversible cycloaddition of singlet oxygen to SWCNT and separation of semiconducting SWCNT from metallic SWCNT.

Oxidative treatment of CNT was performed under a wide variety of experimental conditions. Hereby, sonications in oxygen containing acids (i.e., HNO₃, H₂SO₄, H₂SO₄ plus K₂S₂O₈, HNO₃ plus H₂SO₄, HNO₃ plus supercritical water, trifluromethanesulfonic and chlorosulfonic acid, peroxytrifluoroacetic acid, H₂SO₄ plus KMnO₄, H₂SO₄ plus H₂O₂, HClO₄, H₂SO₄ plus K₂Cr₂O₇) play the most dominant roles. As a consequence of such treatments, carboxylate groups distributed over the CNT surface are generated. In the presence of H₂SO₄, also sulfate ketone, phenol, alcohol and ether groups were registered. Other often utilized oxidants are: dilute ceric sulfate, H₂O₂, O₂ plasma and RuO₄.^1h

Oxidation leads to the loss of structure in the ultraviolet/visible/near-infrared spectrum as a consequence of converting large numbers of sp²-hybridized carbons to sp³ analogs, which leads to altered electronic structures of CNT.^14f The concentrations of carboxylic acid that are formed during the oxidative treatment were determined by evaluating the CO_(g) and CO_2(g) concentrations at high temperatures⁷¹ or measuring the atomic oxygen percentage with calibrated energy-dispersive X-ray spectroscopy (EDX).⁷² Chemical titration assays emerged as alternative tests to macroscopically estimate the defect density in CNT. Titrations of the purified SWCNT with NaOH and NaHCO₃ solutions were used to determine the total percentage of acidic sites and carboxylic acid groups, respectively.⁷³ A recent study also highlighted the opportunity to label the carboxylic groups with TiO₂nanoparticles as markers.⁷⁴ Interesting is the observation that a MWCNT/TiO₂ composite reveals a pronounced photocatalytic activity towards the photodegradation of phenol.⁷⁵

The carboxylic acid groups, introduced during the oxidation reaction, have conveniently been converted to ester and/or to amide functionalities. The chart, shown in Scheme 4, summarizes some representative cases.^1h

Scheme 4 Derivatization of carboxylic functionalities present on CNT.

The effect of CNT chemical and electrochemical oxidation has been extensively studied with electrochemistry, photoelectrochemistry and in situ visible/near-infrared and Raman spectroelectrochemistry. The oxidation processes are commonly accompanied by the gradual disappearing of S₁₁, S₂₂ and M₁₁ bands and the growth of a new optical absorption band between S₁₁ and S₂₂. Raman spectroelectrochemistry shows a reversible drop of the intensities of both RBM- and G-modes.^53a,58e Going beyond 1.2 V, an irreversible breakdown occurs, due to the photoanodic decomposition of SWCNT.^53a,58a A strong blue-shift of the RBM is also observed between 0.5 to 1 V. The G-band blue-shifts too, because the expected stiffening of graphene is connected to the introduction of holes in the π band.⁷⁶ The intensity of the disordered D-band tends to grow irreversibly upon both oxidation^58b and reduction.^57a

Doping

The doping of SWCNT and other graphene like species is generally amphoteric,^48,46 that is, both electron or hole doping (n- or p-doping) are accessible by changing the chemical dopant or by tuning the electrochemical potential applied to the nanocarbon. The hole or the electron conductivity—together with the thermal conductivity—can be respectively raised many orders of magnitude, well above the intrinsic conductivity of the pure materials.

In terms of the rigid band structures, doping of CNT simply shifts the Fermi level E_F, while the band structure (DOS) remains intact. The position of E_F in undoped material is assumed to be in the middle of the gap between the van Hove singularities. The absolute E_F positions and the work functions of individual isolated SWCNT are not identical, but scale linearly with the gap energy.^58f,59,77 The doping induced shift, ΔE_F, changes the population of electronic states near the Fermi level. Hence, all transitions between van Hove singularities, whose transition energies (ΔE_ii) fulfill the following condition:

ΔE_ii≤ 2ΔE_f

are bleached. This, in fact, comes as a result of amphoteric depleting or filling of the corresponding valence band or conduction band singularities, respectively.

The actual ΔE_F can be quantified by Raman spectroscopy,^59,78X-ray photoelectron spectroscopy⁷⁹ and thermoelectric power measurements.^78,80

Pristine CNT are naturally p-doped. SWCNT based FET built from as grown tubes are found to be unipolar p-type, that is, no electron current flows even at large positive gate biases.⁸¹

If one succeeds in shifting the Fermi level toward the transport states, this could reduce ohmic losses, ease carrier injection from contacts, and increase the built in potential of Schottky or p–n junctions. Key points to p- and n-type CNT are stability, tuning of doping level and mass production.

In chemical redox doping of SWCNT, the number of oxidants or reductants is restricted to the reagent, which act as pure electron or holes donors without causing irreversible chemical modifications of the SWCNT surface. The charge transfer between the SWCNT and the redox active species is regulated by their ionization energy or electron affinity. In other words, reacting CNT with large electron affinity acceptors affords p-type doping, while a reaction with small ionization energy donors afford n-type doping. Major challenges involve the control of extra charges transferred to CNT and the homogeneity in the bulk sample.

The chemical doping of carbon nanotubes are realized by intercalating electron donors or acceptors, substitutional doping, encapsulating atoms, molecules or clusters gas adsorption, non-covalent functionalization with organic molecules or wrapping of polymers or covalent functionalization.

Intercalating electron donors or acceptors

Doping reactions, namely, intercalation of potassium, rubidium, iodine and bromine in the interstitial channels of SWCNT were performed in the vapor phase using the two-bulb method and studied by Raman spectroscopy.⁴⁸ The results are consistent with electron transfer from the CNT to the various dopants. A stoichiometry controlled doping with lithium and rubidium shows up as a monotonic upshift of the G-modes, loss of absorption bands and increase of conductivity.⁵¹Bromine leads, for example, to a conductivity decrease of up to 30 times, while in the case of potassium the differences are as large as 20.⁴⁸

The electron transfer doping with lithium, iodine, bromine and with the radical anions of naphthalene, fluorenone and anthraquinone were confirmed by absorption spectroscopy. Overall, the conductivity increase and the Fermi level shift are linearly proportional to the difference in redox potential between the SWCNT and the dopant.⁴⁷ In another experiment, one terminus of individual SWCNT grown on SiO₂ was n-doped with potassium. Electron and hole concentrations at these two sides were further tuned by a gate potential and an intratube p–n junction with rectifying characteristics was obtained.⁸²

The intercalation of other metals such as silver into SWCNT bundles has also been studied⁸³ here, the downshift in the G-band indicates that electrons are, however, transferred from the silver atoms to the SWCNT.⁸⁴

Recently, air-stable, iodine doped SWCNT/polymer composites were prepared. This composite showed enhancement in electrical conductivity by a factor of 2 to 5 when compared to undoped SWCNT/polymer composites.⁸⁵ Furthermore, Lewis acids (FeCl₃,⁸⁶ WF₆,⁸⁷ CrO₃,⁸³SOCl₂⁸⁸) and also Brønsted acids (sulfuric, nitric, hydrochloric,^78,79,89trifluoroacetic acid,⁹⁰N-hydroxyheptafluorobutyramide (HFBA), perfluorododecanoic acid (PFDA), 2-methyl acrylamidopropane sulfonic acid (AMPS), aminobutyl phosphonic acid (ABPA), and hexadecyl phosphonic acid (HDPA))⁹¹ were investigated for CNT p-doping.

Substitutional doping

The substitutional doping involves the replacement of carbon atoms by boron or nitrogen atoms that, in turn, introduce strongly localized electronic features in the valence or conduction bands, respectively, and enhance the number of electronic states at the Fermi level depending on the location and concentration of dopants.

Boron has one electron less than carbon, and when incorporated into SWCNT generates sharp localized states below the Fermi level (valence band). These states are caused by the presence of holes in the structure, and the tube could be considered as a p-type semiconductor. Boron doped SWCNT (B-SWCNT) with boron contents up to 3% were synthesized using laser ablation of graphite-B-Co-Ni targets.⁹² Other synthesis methods for highly doped B-SWCNT, in which 15% of the carbon atoms are replaced by boron, have been reported.⁹³ Microwave conductivity studies on bulk B-doped MWCNT reveal that these structures are intrinsically metallic.⁹⁴

One possible structure of N-SWCNT is a three-coordinated nitrogen atom within the sp²-hybridized network, which induces sharp localized states above the Fermi level due to the presence of additional electrons⁹⁵ (Scheme 5(a)). These N-SWCNT exhibit n-type conduction. The second type of substitutional nitrogen leave two-coordinated nitrogens in the SWCNT lattice—provided that an additional carbon atom is removed from the framework (Scheme 5(b)).

Scheme 5 N-SWCNT with (a) substitutional N and (b) pyridine-type N.

This type of defect induces the presence of localized states below and above the Fermi level. Therefore, either a p- or n-type conductor—depending on the level of doping, the number of nitrogen atoms and the number of removed carbon atoms within the hexagonal sheet—will result.

N-MWCNT with low concentrations of nitrogen (< 1%) were synthesized by arc-discharge in the co-presence of melamine, nickel and yttrium⁹⁶ or viapyrolysis of pyridine and methylpyrimidine.⁹⁷ The first observation of aligned arrays of N-MWCNT (<1–2%) involved the pyrolysis of aminodichlorotriazine and triaminotriazine over laser etched cobalt thin films at 1050 °C.⁹⁸ Long strands of N-SWCNT bundles that were successfully produced by pyrolyzing ferrocene in an argon atmosphere in ethanol solutions with benzylamine at 950 °C give rise to an electron conduction quite different when compared to that of pure carbon SWCNT, especially at temperatures lower than 20 K.⁹⁹

Bundles of B-SWCNT and N-SWCNT can also be produced using partial substitution in the presence of B₂O₃ vapor and N₂ at 1523–1623 K¹⁰⁰ Several groups have also succeeded in synthesizing tubes with a B_xC_yN_z composition, by arc discharge¹⁰¹ and by gas-phase pyrolysis.¹⁰²

It is also important to mention that besides nitrogen and boron, other elements such as silicon¹⁰³ and phosphorous¹⁰⁴ could also dope CNT.

Doping by encapsulating atoms, molecules or clusters in the tube interior space (endohedral doping)

The filling of carbon nanotubes with single elements, empty fullerenes, endo-, and exohedral metallofullerenes, exohedral fullerene derivatives, alkali metal, metal halides and hydroxides, transition metal oxide and complexes, etc. has been a very active field.^14j,105 The endohedral guest are viewed as dopants that, in turn, help to gain control over the nanotube properties such as conductance¹⁰⁶ and/or electronic band gap.¹⁰⁷ It has been demonstrated that, for example, periodic arrays of C₆₀ in SWCNT give rise to a new hybrid electronic band.¹⁰⁸ The resulting increase in CNT conductivity is based on electron transfer that occurs from SWCNT to C₆₀ leaving holes as the primary charge carriers behind.¹⁰⁹ Important insights into the electronic structure of the encapsulated C₆₀, C₈₂, La@C₈₂, and Gd@C₈₂¹¹⁰ were lent from Raman spectroscopy. In particular, dramatic changes relative to empty SWCNT are seen:¹¹¹ a sharp and intense line, for example, at 142 cm⁻¹ has been interpreted as a polymerization signature of the encapsulated metallofullerenes. Additional signals appeared at 400, 520 and 640 cm⁻¹. The upshift (stiffening) of the G-band suggest also in this case a charge transfer process from SWCNT to the encapsulated fullerene.¹¹²

Interestingly, encapsulation of metallocenes like bis(cyclopentadienyl)cobalt and bis(ethylcyclopentadienyl) cobalt inside SWCNT, has led to hybrid systems with modified electronic and optical properties. Electron transfer from the cobalt ions to the SWCNT is implied when considering the change in the charge state of the encapsulated molecules. The filling of the tubes induces a red-shift of the photoluminescence emission, which is attributed to the formation of localized states that are located below the conduction band of SWCNT.¹¹³

A variety of organic molecules with different ionization energies and electron affinities (i.e., anthracene, tetracene, pentacene, tetracyanoquinodimethane (TCNQ), tetrafluorotetracyano-p-quinodimethane (F₄TCNQ), tetrakis(dimethylamino)ethylene (TDAE), tetrathiafulvalene (TTF), tetramethyl tetraselenafulvalene (TMTSF), 3,5-dinitrobenzonitrile) encapsulate within the interior of SWCNT.¹¹⁴ Depending on the electron affinity and/or ionization potential of the dopant, the resulting SWCNT turn out to be either p-type or n-type semiconductor. The resistivity of TCNQ@SWCNT, TDAE@SWCNT, TTF@SWCNT, TMTSF@SWCNT and F4TCNQ@SWCNT was approximately 50% of that found for pristine SWCNT and was with the exception of TDAE@SWCNT stable under air. A pronounced intratubular charge transfer evolves around TCNQ@SWCNT, which contrasts, nevertheless, the lack of charge transfer activity in C₆₀@SWCNT. Note that TCNQ and C₆₀ have approximately the same electron affinity.^114,115

Doping by gas adsorption

The CNT electrical resistance, thermoelectric power, and local density of states, as determined by transport measurements and scanning tunneling spectroscopy are extremely sensitive to exposure to air or oxygen. Such parameters are reversibly tuned by surprisingly small concentrations of adsorbed gases. An impressing demonstration of such alterations is that an intrinsically semiconducting nanotube converts into an apparent metallic one once exposed to air/oxygen.^68c,80a,116Annealing the contacts of a SWCNT FET in vacuum¹¹⁷ or in an inert gas,¹¹⁸ removes the adsorbed oxygen and reconverts the device from p- to n-type. n-type doping of SWCNT by ammonia adsorption was also observed.¹¹⁹ Smaller are the effects when SWCNT are in contact with H₂, He and N₂. Simply, weaker interactions are responsible for such trends.¹²⁰

Doping by noncovalent functionalization with organic molecules or wrapping of polymers

Molecular physisorption as it affects the electrical properties of SWCNT is of fundamental interest and importance to potential molecular electronics and sensors.^22a,68c,121

SWCNT that were suspended in aqueous SDS suspension were tested with different electron acceptors—7,7,8,8-tetracyanoquinodimethane (TCNQ), 2,3,5,6-tetrafluoro-7,7,8,8-tetracyanoquinodimethane (TFTCNQ), mordant yellow 10 (MY) and 4-amino-1,1-azobenzene-3,4-disulfonic acid (AB)—as charge transfer agents. Time resolved emission spectra attest that the intensity loss starts with the tubes of lowest energy band gap and largest diameter and progresses with time to the largest band gap/smallest diameter semiconductors. Common is this trend for all the mentioned electron acceptors. They differ, only, in rate and effectiveness of charge transfer.¹²² While TCNQ increased the CNT conductivity, adsorption of TTF onto the nanotube surface led correspondingly to a decrease.¹²³

Notably, adsorption of polymers such as polyethyleneimine evokes n-doping of SWCNT and to stabilize the doped state. A 10 cm⁻¹ downshift of the G-band confirm the electron transfer from the polymer to the CNT surface.¹²⁴Nafion, on the other hand, exerted to SWCNT in a solvent mixture containing deionized water and 1-propanol a p-type behavior. Subsequent treatment with nitric acid removed the Nafion layer and de-doped the SWCNT. Nevertheless, acid-treated SWCNT/Nafion is not so sensitive to environmental changes.¹²⁵

Electrical transport measurements reveal that the electrical conductance of SWCNT changes drastically upon adsorption of butylamine and 3′-(aminopropyl)triethoxysilane. The amine groups are electron donors and responsible for the charge transfer, and, thus, the observed electrical conductance change. Adsorption of amines causes modulated chemical gating and intramolecular wire junctions that exhibits pronounced rectifying diode behavior. The physisorbed amines desorb typically within 12 h and the nonrectifying characteristics are restored. Cross-linking of heterofunctional 3′-(aminopropyl)triethoxysilane on partially exposed nanotubesviasiloxane bridges however fixes intrananotube rectifying behavior.¹²⁶

Electron acceptor/electron donor in donor–acceptor systems

CNT that are modified by photoactive molecules are very actively studied as donor–acceptor nanohybrid models and as building blocks in optoelectronic devices.¹²⁷

Electron acceptor in donor–acceptor systems

The carboxylated CNT defect sites are often transformed into amine or ester by amination or esterification. The most widely studied photoactive components bound to CNT are porphyrins known to be good light harvesting chromophores and/or excited state electron donors.¹²⁸Scheme 6 documents how photo- and redox-active porphyrins have been linked to the carboxylate functionalities through esterification of SWCNT bound carboxylic acid. FTIR and thermal analysis indicated that amide or ester bonds were formed to bridge between the excited state electron donor and SWCNT. In the corresponding electron donor–acceptor nanoconjugates (i.e., SWCNT–H₂P), the photoexcited porphyrins deactivate through a transduction of excited state energy. Interestingly, the rates and efficiencies of the excited state transfer depend on the length of the tether that links the porphyrins with the SWCNT. To this end materials with shorter tethers showed the least fluorescence quenching.¹²⁹

Scheme 6 Synthesis of SWCNT bearing porphyrins.

Similarly, phthalocyanines have drawn considerable attention as molecular materials with outstanding electronic and optical properties (i.e., broad light absorption combined with high photo- and chemical stability).^128d,130 Unsymmetrically-substituted aminophthalocyanines (ZnPc) react with SWCNT at the terminal carboxylic acid groups of shortened, chemically-etched samples.¹³¹ However, the resulting materials are nearly insoluble in common organic solvents. The solubility/dispersability of the SWCNT–ZnPc conjugates is, however, an indispensable task for a ready manipulation and a feasible solution phase processing.

Applying the same protocol was successful to integrate very strong electron donors like tetrathiafulvalene (TTF) and extended tetrathiafulvalene (exTTF)—see Scheme 7.¹³² A detailed photophysical investigation supports the occurrence of photoinduced electron transfer processes. Importantly, inserting spacers of different length fine controls the rate of the electron transfer.¹³³

Scheme 7 Synthesis of SWCNT bearing TTF and exTTF.

CNT amides or esters are important precursors in the context of various fluorescent dyes—for a summary of leading examples see Scheme 8.^1h,134

Scheme 8 Some leading examples of fluorescent dyes that are covalently attached to SWCNT: (a) naphthalimide, (b) 5-(5-aminopentyl)thioureidyl fluorescein, (c) asymmetrically substituted viologen and (d) phenosafranin (a cationic dye PS⁺, 3,7-diamino-5-phenylphenazinium).

Importantly, ruthenium(II) bipyridine complexes that act as photoexcited state electron donors to CNT when linked to them¹³⁵ are integrative components for dye sensitized solar cells (DSSC)¹³⁶ or as a tool for controlling the conductivity of CNT in molecular electronics.¹³⁷ On the other hand, the reversible coordination of copper(II) terpyridine afforded a thermally stable, neutral nanocomposite possessing notable luminescence properties (see Scheme 9).¹³⁸

Scheme 9 Synthesis of SWCNT bearing polypyridyl complexes.

Carboxylate chemistry permitted also the immobilization of tailorable metallic and/or semiconducting nanoparticles onto the surface of CNT. One very successful strategy aims at tethering gold nanoparticles, for example, to SWCNT and MWCNT. This strategy encompasses the treatment of oxidized SWCNT, namely, thiol-derivatized, by reacting them with NH₂–(CH₂)_n–SH.¹³⁹ A different strategy involves the reduction of carboxylates at the open ends of CNT, their chlorination and subsequent thiolation. The corresponding thiol groups were afterward conveniently assembled to silver¹⁴⁰ and gold nanoparticles,¹⁴¹ or even to cadmium sulfide (CdS) nanoparticles.¹⁴² Oxidized SWCNT and MWCNT react with carboxylic acid terminated cadmium selenide (CdSe) nanocrystals that are capped with mercaptothiol derivatives.¹⁴³ Similarly, titanium dioxide (TiO₂) nanocrystals, functionalized with 11-aminoundecanoic acid, were probed. Hereby, the aid of intermediary linking agents, which were either ethylenediamine or semicarbazide, was extremely beneficial to guarantee the integrity of the nanoscale heterostructured materials.¹⁴⁴ Similarly, oxidized MWCNT interact with thiol-stabilized ZnS-capped CdSe quantum dots containing amine terminal groups.¹⁴⁵

Moreover, SWCNT that are oxidized by either acid or ozone treatment assemble quite efficiently onto amine modified gold surfaces.^139e,146 The corresponding electrodes are ideally suited to investigate the charge transfer process between SWCNT and the underlying substrates.^146a When the oxidized ends of CNT are functionalized asymmetrically¹⁴⁷ onto gold and mercury surfaces the modulation of current rectification has been recently demonstrated.¹⁴⁸

By cycloaddition of azomethine ylides—generated in situ by the condensation of α-amino-acids and aldehydes—several electron donors were attached to the sidewalls of CNT. In this context, ferrocene¹⁴⁹—see Scheme 10(a)—and tetraphenylporphyrins¹⁵⁰ bridged by a second generation of polyamidoamine (PAMAM) dendrimers—see Scheme 10(b)—are leading examples. In the latter case, the dendrimers are linked directly to the SWCNT surface using a divergent methodology. This approach allows increasing the number of functional groups on the nanotubes without provoking significant damages to the conjugated π-system of SWCNT. The photophysical properties of the resulting nanoconjugates (i.e., SWCNT–(H₂P)_n) have been investigated with a series of steady state and time resolved spectroscopic methods. The fluorescence kinetics, for example, provides evidence for two transient decays: one very short-lived (i.e., 0.04 ± 0.01 ns) and one long-lived (i.e., 8.6 ± 1.2 ns). A plausible explanation is that some porphyrin units do not interact with the nanotubes, thus exhibiting a fluorescence lifetime similar to that of the free porphyrin. Complementary transient absorption measurements not only corroborate the fast decay of the photoexcited H₂P, but also confirm that intraconjugate charge separation evolves from the excited porphyrin to the SWCNT.

Scheme 10 Amidoferrocenyl (a) and PAMAM bridged tetraphenyl porphyrin (b) SWCNT nanoconjugates.

Additional examples are (see Scheme 11) free base phthalocyanines (H₂Pc)¹⁵¹ and zinc phthalocyanines (ZnPc)¹⁵² that were grafted via1,3-dipolar cycloaddition of azomethine ylide to SWCNT.

Scheme 11 H₂Pc–SWCNT and ZnPc–SWCNT nanoconjugate by 1,3 dipolar cycloaddition.

Similar but not identical is the use of 1,3-cycloaddition of nitrile oxide to ester modified SWCNT. In particular, pyridyl isoxazolino units were added along the CNT sidewalls—Scheme 12.¹⁵³ The attached pyridines form complexes with ZnP as established by electrochemical studies. Upon photochemical excitation, mainly energy transfer funnels the light from the singlet excited porphyrins to SWCNT.

Scheme 12 1,3-Cycloaddition of nitrile oxide and formation of SWCNT–ZnP nanoconjugates.

Functionalization with aryl diazonium salts, generated in situ is another effective method for CNT sidewall grafting.^14j What is particularly interesting is that the metallic SWCNT seem to react more rapidly than the semiconducting analogous. The selectivity is dictated by the availability of electrons near the Fermi level to stabilize a charge transfer transition state preceding the bond formation. This opens the way for a selective solubilization and separation. In the last step, UV laser irradiation might remove these aryl moieties and, in turn, facilitates the recovery of purified—but yet pristine—SWCNT.¹⁵⁴In situ generated tetraphenylporphyrin diazonium salts react directly with SWCNT. These functionalized SWCNT show superior optical limiting effects when compared with pristine SWCNT—see Scheme 13.¹⁵⁵

Scheme 13 SWCNT–H₂P nanoconjugates.

Still an important consideration when associating CNT with electron donor building blocks is to preserve as much as possible the unique electronic structures of the CNT. A versatile approach involves grafting SWCNT with polymers such as poly(sodium 4-styrenesulfonate) (SWCNT–PSSⁿ⁻) with a SWCNT to PSSⁿ⁻ ratio of 55:45—see Scheme 14(b).¹⁵⁶ In turn, highly stable water dispersable SWCNT were prepared with relative ease. The attached PSSⁿ⁻ functionalities also assist in exfoliating individual SWCNT–PSSⁿ⁻ from the larger bundles. AFM and TEM analysis corroborated the presence of SWCNT with lengths reaching several micrometers and diameters around 1.2 nm.

Scheme 14 SWCNT based nanohybrids: (a) SWCNT/pyrene⁺/ZnP⁸⁻; (b) SWCNT–PSS⁻/ZnP⁸⁺; (c) SWCNT–PVP/ZnP; (d) SWCNT–PVBTA/ZnP⁸⁻; (e) SWCNT/PVBTA/ZnP⁸⁻.

A Coulomb complex formation was achieved between SWCNT–PSSⁿ⁻ and an octapyridinium H₂P salt (H₂P⁸⁺)—see Scheme 14(b). Several spectroscopic techniques such as absorption, fluorescence and TEM were used to monitor the complex formation between SWCNT–PSSⁿ⁻ and H₂P⁸⁺, yielding SWCNT–PSSⁿ⁻/H₂P⁸⁺. Importantly, photoexcitation of H₂P⁸⁺ results in the newly formed nanohybrid in an efficient intrahybrid charge separation event (0.3 ns). The charge separation is governed by a large thermodynamic driving force of 0.81 eV. The newly formed radical ion pair exhibits a remarkably long lifetime of 14 μs under anaerobic conditions, which constitutes one of longest reported for any CNT ensemble found so far.

Similarly, dispersable SWCNT—grafted with poly(4-vinylpyridine) (PVP)—were assayed in coordination tests with ZnP—see Scheme 14(c).¹⁵⁷ Grafting of the polymer to the SWCNT sidewalls was supported by Raman and near-IR spectra and the composition of the resulting SWCNT–PVP was estimated as 61/39. Kinetic and spectroscopic evidence corroborates the successful formation of SWCNT–PVP/ZnP nanohybrids in solutions. Within this SWCNT–PVP/ZnP nanohybrid, static electron transfer quenching 2.0 (±0.1)×10⁹ s⁻¹ converts the photoexcited ZnP chromophore into a microsecond-lived radical ion pair state; that is, one-electron oxidized ZnP and reduced SWCNT.

Reacting poly((vinylbenzyl)trimethylammonium chloride) (PVBTAⁿ⁺) through free-radical polymerization of the monomer in the presence of SWCNT yielded polymer grafted SWCNT. A donor–acceptor nanohybrid have been afterward prepared using electrostatic/van der Waals interactions between covalent SWCNT-PVBTAⁿ⁺ and 5,15-bis[2′,6′-bis{2″,2″-bis(carboxy)ethyl}methyl-4′-tert-butylphenyl]-10,20-bis(4′-tert-butylphenyl)porphyrin octasodium (H₂P⁸⁻ and/or ZnP⁸⁻)—see Scheme 14(d).¹⁵⁸

SWCNT/PVBTAⁿ⁺ are water suspendable SWCNT, in which PVBTAⁿ⁺ are non-covalently wrapped around them. For an illustration see Scheme 14(e). Versatile donor acceptor nanohybrids have been prepared using electrostatic/van der Waals interactions between SWCNT/PVBTAⁿ⁺ nanohybrids and porphyrins (H₂P⁸⁻ and/or ZnP⁸⁻). Several spectroscopic, microscopic, transient and photoelectrochemical measurements were employed to characterize the resulting supramolecular complexes. The photoexcitation of the nanohybrids afforded long-lived radical ion pairs with lifetimes as long as 2.2 μs.¹⁵⁸

Polycyclic aromatic hydrocarbons (i.e., pyrene¹⁵⁹ or naphthalene¹⁶⁰) that bear ionic, namely, anionic and cationic functionalities are similarly suited to suspend SWCNT. Crucially, the interactions between CNT and the adsorbates have also been attributed to charge transfer. Water-soluble SWCNT were obtained in aqueous solutions of 1-(trimethylammoniumacetyl)pyrene (pyrene⁺) (see Scheme 14(a)).¹⁶¹ Decisive evidence for SWCNT/pyrene⁺ interactions came from fluorescence experiments, which showed the quenching of pyrene⁺ fluorescence and amplification of fine structure in the near-visible region due to the successive removal of free pyrene⁺.¹⁶² The solubility of CNT in the resulting black suspensions is as high as 0.2 mg ml⁻¹ and the stability reaches several months under ambient conditions without showing any apparent precipitations. TEM and AFM images revealed the coexistence of very thin bundles of SWCNT/pyrene⁺, 1–3 μm in length and 3–20 nm in diameter, and individual SWCNT/pyrene⁺ with diameters as small as 1.3 nm.¹⁶³ Decisive information about excited state interactions came from transient absorption measurements, where the spectral changes in the 400–600 nm region reflect the features associated with pyrene⁺ excited state, while the changes in the 600–800 nm region correspond to SWCNT. Now that the surface of SWCNT is covered with positively charged ionic head groups, van der Waals and electrostatic interactions are utilized to complex oppositely charged electron donors. Water-soluble porphyrin salts (H₂P⁸⁻) and the related zinc complexes (ZnP⁸⁻) were selected as ideal candidates for the development of SWCNT-based photoactive systems—see Scheme 14(a).¹⁶⁴ The supramolecular association was followed by spectroscopic (absorption and fluorescence) and microscopic (TEM and AFM) means. In absorption experiments, the successful complex formation—for instance, of CNT and ZnP⁸⁻—were confirmed by red-shifted Soret- and Q-bands and the development of a series of isosbestic points. In the composite systems, fluorescence and transition absorption studies showed rapid intrahybrid electron transfer (0.2 ± 0.05 ns). The differential absorption changes of the SWCNT/pyrene⁺/ZnP⁸⁻ or SWCNT/pyrene⁺/H₂P⁸⁻assemblies are governed by broad absorptions in the visible between 600–800 nm because of ZnP⁸⁻ or H₂P⁸⁻ centered redox products.

As alternatives water soluble electron donors like a copolymer of unsubstituted thiophene and 7-(thien-3-ylsulfanyl)heptanoic acid (PSCOOH)¹⁶⁵ and size-quantized thioglycolic acid stabilized cadmium telluride (CdTe@TGA) nanoparticles¹⁶⁶ emerged, which were combined with SWCNT/pyrene⁺—see Scheme 15. In the resulting nanohybrids strong electronic interactions were noted. In particular, polythiophene and/or CdTe tend to donate an excited state electron to the ground state of SWCNT.

Scheme 15 CdTe@TGA and PSCOOH that interact with CNT via non-covalent means.

Stable SWCNT/H₂P composites were also realized when condensing tetraformylporphyrins and diaminopyrenes onto SWCNT.¹⁶⁷ The degree of interaction between SWCNT and H₂P polymer was evaluated by absorption and fluorescence spectra, and chemical removal of H₂P from SWCNT. In SWCNT/H₂P, the Soret and Q bands of H₂P moieties were significantly broadened and their fluorescence was almost completely quenched.

A highly soluble, conjugated ZnP-polymer was synthesized and found to immobilize onto the surface of SWCNT, producing a soluble SWCNT/ZnP-polymer complex. Successful complexation required, however, the addition of trifluoroacetic acid.¹⁶⁸ The SWCNT/ZnP-polymer assembly resulted in enhanced planarization and conjugation within the porphyrin polymer, which was manifested in a 127 nm bathochromic shift of the Q-band absorption. Control experiments with the ZnP-monomer indicated that homogeneous solutions could be prepared by means of sonication, but the SWCNT/ZnP-monomer interactions were significantly weaker, leading to SWCNT precipitation within minutes. Similarly, a novel triply fused ZnP-trimer—Scheme 16—gives rise to extremely strong and nearly irreversible supramolecular interactions with SWCNT, resulting in stable solutions of SWCNT/ZnP-trimer in THF.¹⁶⁹

Scheme 16 Porphyrin derivatives that interact with CNT via non-covalent means.

An impressive SWCNT solubility has been achieved upon treatment with tetraphenylporphyrin (i.e., H₂P and ZnP) in DMF.¹⁷⁰TEM and AFM images revealed the existence of high density SWCNT and exfoliation of individual SWCNT as a result of the tedious work up procedure. The CNT diameter ranged typically from 0.9 to 1.5 nm, underlining the successful debundling properties of ZnP. Evidence for interactions between porphyrins and SWCNT was obtained from fluorescence spectra, where the porphyrin fluorescence was significantly quenched compared to that of the bare porphyrin. The fluorescence quenching has been ascribed to energy transfer between the photoexcited porphyrin and SWCNT.

In a similar fashion SWCNT were non-covalently functionalized with porphyrins (i.e., H₂P and ZnP).¹⁷¹ The absorption and fluorescence spectra of SWCNT/H₂P showed efficient electronic communications between the π-systems of SWCNT and H₂P, while weaker interactions were observed for SWCNT/ZnP. Clear evidence for π–π interactions between SWCNT and H₂P were derived from AFM measurements. The AFM image of SWCNT/H₂P revealed smaller bundles than SWCNT/ZnP with some individual CNT (diameter 1.5 ± 0.2 nm). Moreover, the SWCNT/H₂P suspensions are more stable than those of SWCNT/ZnP.

Water-soluble H₂P [meso(tetrakis-4-sulfonatophenyl)porphine dihydrochloride] polymers were exploited to suspend SWCNT in aqueous solutions.¹⁷² Owing to interacting H₂P and SWCNT the suspensions are stable for several weeks and protect the free base against protonation to the corresponding diacid. Under mildly acidic conditions SWCNT mediated J-aggregates are formed, which are, however, unstable in solution. Consequently, the precipitation of SWCNT occurs over the course of a few days.

Suspending SWCNT in the presence of H₂P—[5,10,15,20-tetrakis(hexadecyloxyphenyl)-21H,23H-porphine] (Zn-THPP)—in organic solvents yielded novel soluble SWCNT/H₂P.¹⁷³ The insoluble and recovered SWCNT were separated from H₂P by treatment with acetic acid and vigorous centrifugation. After heating the recovered SWCNT and the free SWCNT to 800 °C in a nitrogen atmosphere, the spectroscopic analysis showed that the semiconducting SWCNT and the free SWCNT are enriched in recovered and metallic SWCNT, respectively. Under ambient conditions, the bulk conductivity of the semiconducting SWCNT (i.e., recovered) is 0.007 S cm⁻¹, while that of the metallic SWCNT (i.e., free) is 1.1 S cm⁻¹. Thus, selective interactions between H₂P and semiconducting SWCNT are the inception to a successful separation of metallic SWCNT and semiconducting SWCNT.

Electron donors in donor–acceptor systems

To this date, fewer examples of nanohybrids, where CNT function as a photoinduced electron donor, are known. One of the few is the electron transfer system that is based on SWCNT and [5,15-bis(4-pyridyl)-2,8,12,18-tetraethyl-3,7,13,17-tetramethyl zinc porphyrin]—see Scheme 17(a).¹⁷⁴ Field effect transistor characteristics suggests that the rate and magnitude of the process depends both on the wavelength and on the intensity of applied light, with a maximum value of 0.37 electrons per porphyrin upon 420 nm illumination with 100 W m⁻².

Scheme 17 (a) SWCNT/[5,15-bis(4-pyridyl)-2,8,12,18-tetraethyl-3,7,13,17-tetramethyl zinc porphyrin]; (b) SWCNT/Pyrene-NH₃⁺/crown-C₆₀; (c) SWCNT/sapphyrin.

A more recent demonstration aimed at designing an alkyl ammonium functionalized pyrene (pyrene-NH₃⁺). This not only interacts with SWCNT, but also complexes benzo-18-crown-6. Such ammonium/crown ether interactions were used to associate C₆₀ (i.e., crown-C₆₀) to yield stable SWCNT/pyrene-NH₃⁺/crown-C₆₀ nanohybrids (see Scheme 17(b)). Steady-state and time-resolved absorption spectroscopy prompted to a photoinduced electron transfer, by which SWCNT and C₆₀ are oxidized and reduced, respectively. The lifetime of the newly formed charge separate state was on the order of 100 ns.¹⁷⁵

Scheme 17(c) displays the final example, namely, a supramolecular complex between SWCNT and a functionalized sapphyrin diol macrocycle. An impressive benefit is the SWCNT solubilization in water and in 1-butyl-3-methylimidazolium hexafluorophosphate (BMIM-PF₆). In these solvents, proofs of a photoinduced electron transfer from SWCNT to the sapphyrin moiety came from a combination of steady-state investigations, femtosecond transient absorption spectroscopies and pulse radiolysis experiments.¹⁷⁶

Integrative components in photoelectrodes/photoanodes and photocathodes

In recent years the continuing interest in alternative photovoltaic technologies, especially with respect to lowering production costs, triggered extensive research in the fields of organic photovoltaic (OPV) devices. Compared with inorganics materials, organic materials offer great incentives including device production at exceptionally low costs, lightweight and flexible devices that enabling versatile applications.¹⁷⁷

In this context, organic materials absorb light in most of the visible and near-infrared regions of the solar spectrum to generate conduction band electrons and valence band holes. Coulombic interactions between the spatially confined charges result in strongly bound excitons. These excitons must, however, be separated, at the interphases between the electron donors and the electron acceptors or between the photoactive materials and semiconducting electrodes, before they recombine or relax in alternative fashions to the ground state.¹⁷⁸ Finally, the resulting free charge carriers (i.e., electrons and holes) should be transported to an external circuit, while minimizing recombination pathways. To this end, the main obstacles to realize widespread applicability of organic semiconductor for OPV are: high exciton binding energy, low charge carrier mobility and susceptibility to degradation. All these factors impact adversely the device efficiency and its lifetime.

Relative to known organic materials, CNT bear the great advantage to be structurally robust, chemically stable and highly conductive. They can improve exciton dissociation in the presence of an external field at the heterointerfaces. Their high surface area—of ca. 1500 m² g⁻¹—favors large donor–acceptor contact surfaces within the photoactive layer.¹⁷⁹ All of these aspects are very important to separate the aforementioned excitons. Also the tubular shape of CNT appears interesting. This in particular, should enable a lower percolation threshold for the acceptor phase and consequently a more efficient charge transport to the external circuit.¹⁸⁰

Thin film photovoltaics

Pioneering studies have revealed rectifying heterojunctions that are formed between poly(2,5-bis(cholestanoxy)-1,4-phenylene vinylene) and MWCNT and that are photosensitive.¹⁸¹ Since these initial studies much research efforts has focused on SWCNT-¹⁸² or MWCNT-conjugated polymer composites,¹⁸³ sometimes with the co-presence of C₆₀¹⁸⁴, CdSe¹⁸⁵ or phthalocyanine.^182c

Typically, CNT are dispersed in solutions containing the electron donating polymer—typically poly(3-hexylthiophene) (P3HT) or poly(3-octylthiophene) (P3OT). The obtained blends are spin coated onto transparent conductive electrodes in order to obtain a bulk heterojunction film having thicknesses that range from 60 to 120 nm. Such electrodes are glass slides covered with indium tin oxide (ITO). A thin 30–70 nm sublayer of (poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) between ITO and photoactive layer favors selective hole injection into ITO electrode, helps in smoothing the ITO surface, reduces the density of pinholes and suppresses current leakage effects that arise around shunting paths. Finally, a cathode consisting of a 20–70 nm thick layer of aluminium—sometimes with an intermediate layer of lithium fluoride—is thermally evaporated and/or sputtered on top of the photoactive material. Post fabrication treatment such as heating to the point beyond the glass transition temperature of either P3HT or P3OT is beneficial for manipulating the phase separation of the blend. Since the polymers are microcrystalline systems it also affects the ordering of the polymeric chains. Overall, this annealing improves charge transfer, charge transport, and charge collection throughout the device.¹⁸⁶ As a consequence of such ordering, the hole mobility, and hence the power efficiency of the polymer CNT device, increases significantly.¹⁸⁷ So far, following this strategy a maximum power conversion efficiency (η) of 0.22% has been obtained.¹⁸⁸ Although the polymer CNT cells give rise to an exceptionally high open circuit voltage between 0.75 and 1 V as well as an advantageous near infrared light harvesting,¹⁸⁹ their photocurrents are quite low.¹⁹⁰ Please compare, for example, photocurrents of 0.25 to 0.5 mA cm² to 10.6 mA cm² measured for an optimized ITO/PEDOT:PSS/P3HT:[6,6]-phenyl-C₆₁-butyric acid methyl ester (PCBM)/Al OPV device.¹⁹¹

Quantum mechanical ab initio calculations were run to provide insights into the heterojunction interfaces between CNT and P3HT. In the case of the semiconducting SWCNT, the results show small interactions between CNT and the polymer, which forms heterojunctions with an interface desirable for photovoltaic. However, when considering the metallic SWCNT, appreciable charge transfer was found to prevail from P3HT, in its ground state, to CNT. This enhances the susceptibility of P3HT for negative charges at the interface. Implicit is an electron transfer to the CNT, which is, nevertheless, counter-productive during the step of exciton dissociation.¹⁹² These studies explain the moderate photocurrents observed for the P3HT/CNT photoactive blends, compared to, for example, P3HT/C₆₀. This incomplete exciton dissociation dominates at low CNT concentrations—about 1 wt% for SWCNT¹⁹³ and 5 wt% for MWCNT.¹⁹⁴ Suspending, on the other hand, higher percentages of CNT within the polymer matrix, decreases the efficiency. This trend is rationalized on the basis of short circuits, since the CNT length is comparable with the overall thickness of the photoactive layer. Finally, the presence of CNT ropes/bundles and, moreover, appreciable amounts of metallic entities should be considered. All these rationales decrease the carrier selectivity (i.e., holes and electrons) in the device and favor the recombination processes.

In a recent publication an impressive power conversion of 4.9% was obtained in a modified ITO/PEDOT:PSS/P3HT:PCBM/Al solar cell, after depositing a SWCNT layer between the ITO and the PEDOT:PSS or between the PEDOT:PSS and the photoactive blend. Here, SWCNT were deposited by dip-coating from a hydrophilic suspension after an initial argon plasma treatment of the surface.¹⁹⁵

Photoelectrochemical cells

Some promising reports on photoelectrochemical devices integrating SWCNT—as electron acceptor—on ITO are based on the layer by layer strategy (LbL). The films are formed by dip coating, that is, depositing alternating layers of oppositely charged materials. In most of these instances the ITO electrodes were covered with a base layer of polyelectrolyte (i.e., poly(diallyldimethylammonium chloride) (PDDAⁿ⁺) or sodium poly(styrene-4-sulfonate) (PSSⁿ⁻)) through hydrophobic forces.^165,166,196SWCNT/pyrene⁺ and finally water-soluble but oppositely charged porphyrins (i.e., ZnP⁸⁻) were assembled electrostatically—see Scheme 14(a). Lately, this approach has been applied to DWCNT, MWCNT and thin-MWCNT. Among the tested CNT, thin-MWCNT showed the best performance as electron acceptor layer material with monochromatic power conversion efficiencies of up to 10.7% for devices that contain single layers of thin-MWCNT and single layers of ZnP⁸⁻.¹⁹⁶

Similarly, PSCOOH—Scheme 15(b)—were integrated together with SWCNT/pyrene⁺ onto photoactive ITO electrodes by van der Waals and electrostatic interactions. PSCOOH functions in the device as the light harvesting chromophore that donates electrons to the electron accepting SWCNT. Quite remarkably, the monochromatic incident photoconversion efficiencies for single and eight sandwiched layers of PSCOOH were determined as 1.2 and 9.3%, respectively.¹⁶⁵

With the same assembly method, PDDA/SWCNT-PVBTAⁿ⁺/ZnP⁸⁻ or PDDA/SWCNT/PVBTAⁿ⁺/ZnP⁸⁻—Scheme 14(d) and (e)—were layered onto ITO substrates. To this end, photoelectrochemical characterization showed IPCE values that maximized at 3.32% and 5.80%, respectively.¹⁵⁸

Organic/inorganic composite materials, in which the inorganic semiconductors play a key role for managing charge transfer, were also tested. Very exciting is the use of size quantized CdTe quantum dots (QD).^166,197 In particular, water-soluble positively or negatively charged green (2.4 nm), yellow (3.4 nm), and red QD (5.0 nm) have been examined, carrying either L-cysteine or thioglycolic acid—Scheme 15(a)—as surface stabilizers. These surface stabilizers have been beneficial for interactions with pyrene⁺ immobilized onto CNT. Highest monochromatic IPCE, of up to 2.3%, were registered for hybrid cells consisting of single SWCNT/pyrene⁺/red-emitting CdTe stacks.¹⁶⁶

Another interesting assembly strategy relies on electrophoresis.¹⁹⁸ Exposing, for example, SWCNT that were suspended by tetraoctylammonium bromide in tetrahydrofuran to an electrophoretic field assists in depositing them onto ITO covered with SnO₂.¹⁹⁹ Considerable photoconversion efficiencies were achieved when SWCNT were deposited and assembled with light harvesting CdS QD and/or porphyrins with maximal values of 0.5% and 6.5%, respectively.²⁰⁰ Again, electrophoresis was the key technology to deposit a mixture of 8-aminopentadecane functionalized SWCNT and C₆₀clusters on SnO₂. An impressive maximum IPCE of 18% was achieved when a potential of 0.05 V versusSCE was applied.²⁰¹

A ruthenium dye SWCNT nanoconjugate—Scheme 9—suspended in an ethanolic solution was attached to the TiO₂ surface by dip casting. Current voltage characteristics, evaluated in a photoelectrochemical cell, revealed a 0.1 V increase in the open circuit voltage with essentially no change in the short circuit photocurrent, when compared to a reference cell that was soley built on the ruthenium dye. Still, the cell performance (η = 0.34%) is much lower than that of typical Ru dye-based DSSC (η = 10%). Such an increase in open circuit voltage was attributed to the NH groups present in ethylenediamine. A change in basicity of the TiO₂ surface results in the negative shift of the conduction band of TiO₂. The role of SWCNT as a light scattering layer was also suggested.^135b

A different study demonstrated the use of SWCNT networks deposited by electrophoresis on a conducting electrode surface as scaffolds for dye sensitized TiO₂ particles to promote charge transport. The TiO₂ paste was spread on the ITO/SWCNT/TOAB electrode by the doctor blade technique. After annealing in air, the electrodes were immersed into an ethanol solution of Ru(2,2′-bipyridine)₂(2,2′-bipyridine-4,4′-dicarboxylic acid)²⁺ (Ru(bpy)₂(dcbpy)²⁺). Such an electrode revealed an IPCE enhancement of 1.4 when compared to that lacking SWCNT, due to the suppression of the charge recombination and the improvement of the electron transport.²⁰² Utilizing CdS QD instead of Ru(bpy)₂(dcbpy)²⁺ and the co-presence of a sub layer of SWCNT turned out to be beneficial leading to power conversion efficiencies (1.86%) that increase relative to the electrode lacking SWCNT (1.24%).²⁰³

Electrode materials

There is a huge market for transparent electronic conductors such as indium tin oxide (ITO). Between plenty of applications also solar cells necessitate the implementation of conducting, flexible and transparent electrodes. The target for OPV devices is a surface resistivity ≤ 50 ohm sq⁻¹ and a transmittance ≥85% in the solar spectrum.²⁰⁴

While extensively developed and optimized, ITO bears, nevertheless, a number of deficiencies. One disadvantage results from its high deposition temperature of around 600 °C, which renders a compatibility with, for example, flexible substrates more than just problematic. Conductivities of ITO on polyethylene terephthalate are about five times lower than that on glass. In addition, cracks appear after repeated bending or strain, and it is not resistant to acid.²⁰⁵ What is even more puzzling is that traditional ITO has poor mechanical properties. Of economical concern is that high quality ITO is expensive.

SWCNT films on polyethyleneterephthalate do not crack after bending, while ITO films become insulating.²⁰⁶ Their high thermal conductivities²⁰⁷ to tolerate heat dissipation and their high radiation resistance—even when irradiated in air—are also particularly striking. Its high optical transparency in a very broad spectral range that starts in the ultraviolet and visible and that extends deep into the near infrared range (3–5 μm) is another benefit. Notable, many transparent conducting coatings are transparent in the visible part of the spectrum, but only a few materials retain good transparency in the infrared while maintaining good electrical conductivity.²⁰⁸

Concluding remarks

To achieve meaningful improvements in the performance of CNT based solar cell, it is highly desirable to use sorted semiconducting SWCNT. Particularly crucial is in this context the energetic location of the conduction band. A controlled cutting of these SWCNT appears also to be necessary, especially to reduce shunting effects in the devices. Finally, deposition methods and post-deposition treatments should be considered as they represent powerful tools to optimize the nano-segregation and orientation of the CNT in the resulting blend/photoactive layer.

Performances of CNT electrodes are strongly connected to material qualities such as degree of dispersion, diameter, defect, purity, metallicity and wall number. Equally decisive are interactions between CNT and the other components of the photoactive material, since they impact the optimal energy band offset at the interphase. The fabrication of films with long metallic CNT, which are optimally oriented for charge injection and charge collection at the external circuit, would constitute another milestone toward improved photoelectrodes.

References

1. (a) S. Reich, C. Thomsen and J. Maultzsch, Carbon Nanotubes: Basic Concepts and Physical Properties, Wiley-VCH, Weinheim, Germany, 2004; (b) M. S. Dresselhaus, G. Dresselhaus and P. Avouris, Carbon Nanotubes: Synthesis, Structure, Properties and Applications, Springer, Berlin, Germany, 2001; (c) P. J. F. Harris, Carbon Nanotubes and Related Structures: New Materials for the Twenty-First Century, Cambridge University Press, Cambridge, UK, 2001; (d) S. Roth and D. Carroll, One-Dimensional Metals: Conjugated Polymers, Organic Crystals, Carbon Nanotubes, Wiley-VCH, Weinheim, Germany, 2004; (e) M. Meyyappan, Carbon Nanotubes, Science and Application, Wiley-VCH, Weinheim, Germany, 2006; (f) Special issue on Carbon Nanotubes, Acc. Chem. Res., 2002, 35, 997; (g) V. Sgobba, G. M. A. Rahman, C. Ehli and D. Guldi, Covalent and Non-covalent Approaches Toward Multifunctional Carbon Nanotubes Materials, in Fullerenes-Principles and Applications, ed. F. Langa and J. F. Nierengarten, RSC, Cambridge, UK, 2007; (h) V. Sgobba, G. M. A. Rahman and D. M. Guldi, in Carbon Nanotubes in Electron Donor–Acceptor Nanocomposites, Chemistry of Carbon Nanotubes, ed. V. A. Basiuk, American Scientific Publishers, USA, 2006.
2. S. J. Tans, M. H. Devoret, H. Dal, A. Thess, R. E. Smalley, L. J. Geerligs and C. Dekker, Nature, 1997, 386, 474.
3. E. Pop, D. Mann, Q. Wang, K. Goodson and H. Dai, Nano Lett., 2006, 6, 96.
4. P. M. Ajayan and O. Z. Zhou, Carbon Nanotubes, 2001, 80, 391.
5. J. Robertson, Mater. Today, 2004, 7, 46.
6. D. Mann, Carbon Nanotubes, 2006, 19.
7. A. Thess, R. Lee, P. Nikolaev, H. Dai, P. Petit, J. Robert, C. Xu, Y. H. Lee, S. G. Kim, A. G. Rinzler, D. T. Colbert, G. E. Scuseria, D. Tomanek, J. E. Fischer and R. E. Smalley, Science, 1996, 273, 483.
8. L. A. Girifalco, M. Hodak and R. S. Lee, Phys. Rev. B: Condens. Matter, 2000, 62, 13104.
9. D. Tasis, N. Tagmatarchis, V. Georgakilas and M. Prato, Chem. Eur. J., 2003, 9, 4000.
10. M. J. O’Connell, S. M. Bachilo, C. B. Huffman, V. C. Moore, M. S. Strano, E. H. Haroz, K. L. Rialon, P. J. Boul, W. H. Noon, C. Kittrell, J. P. Ma, R. H. Hauge, R. B. Weisman and R. E. Smalley, Science, 2002, 297, 593.
11. M. Monthioux, B. W. Smith, B. Burteaux, A. Claye, J. E. Fischer and D. E. Luzzi, Carbon, 2001, 39, 1251.
12. (a) X. Li, X. Tu, S. Zaric, K. Welsher, W. S. Seo, W. Zhao and H. Dai, J. Am. Chem. Soc., 2007, 129, 15770; (b) B. Wang, L. Wei, L. Yao, L. J. Li, Y. Yang and Y. Chen, J. Phys. Chem. C, 2007, 111, 14612; (c) M. C. Hersam, Nat. Nanotechnol., 2008, 3, 387.
13. (a) M. S. Strano, C. A. Dyke, M. L. Usrey, P. W. Barone, M. J. Allen, H. Shan, C. Kittrell, R. H. Hauge, J. M. Tour and R. E. Smalley, Science, 2003, 301, 1519; (b) G. Zhang, P. Qi, X. Wang, Y. Lu, X. Li, R. Tu, S. Bangsaruntip, D. Mann, L. Zhang and H. Dai, Science, 2006, 314, 974; (c) R. Krupke, F. Hennruch, H. v. Löhneysen and M. M. Kappes, Science, 2003, 301, 344.
14. For reviews, see: (a) S. Baneriee, T. Hemraj-Benny and S. S. Wong, Adv. Mater., 2005, 17, 17; (b) A. Hirsch, Angew. Chem., Int. Ed., 2002, 41, 1853; (c) X. Lu and Z. Chen, Chem. Rev., 2005, 105, 3643; (d) J. L. Bahr and J. M. Tour, J. Mater. Chem., 2002, 12, 1952; (e) D. Tasis, N. Tagmatarchis, A. Bianco and M. Prato, Chem. Rev., 2006, 106, 1105.
15. P. Nikolaev, M. J. Bronikowski, R. K. Bradley, F. Rohmund, D. T. Colbert, K. A. Smith and R. E. Smalley, Chem. Phys. Lett., 1999, 313, 91.
16. (a) K. Mylvaganam and L. C. Zhang, J. Phys. Chem. B, 2004, 108, 5217; (b) X. Lu, F. Tian, X. Xu, N. Wang and Q. Zhang, J. Am. Chem. Soc., 2003, 125, 10459; (c) E. T. Mickelson, C. B. Huffmann, A. G. Rinzler, R. E. Smalley, R. H. Hauge and J. L. Margrave, Chem. Phys. Lett., 1998, 296, 188; (d) H. F. Bettinger, ChemPhysChem, 2003, 4, 1283.
17. J. Aihara, J. Phys. Chem. A, 1999, 103, 7487.
18. J. Zhao and P. B. Balbuena, J. Phys. Chem. A, 2006, 110, 2771.
19. (a) H. Hu, P. Bhowmik, B. Zhao, M. H. Hamon, M. E. Itkis and R. C. Haddon, Chem. Phys. Lett., 2001, 291, 283; (b) A. J. Stone and D. J. Wales, Chem. Phys. Lett., 1986, 128, 501.
20. (a) H. F. Bettinger, J. Phys. Chem. B, 2005, 109, 6922; (b) X. Lu, Z. Chen and P. v. R. Schleyer, J. Am. Chem. Soc., 2005, 127, 4313.
21. (a) A. Hashimoto, K. Suenaga, A. Gloter, K. Urita and S. Iijima, Nature, 2004, 430, 870; (b) P. C. P. Watts, W. K. Hsu, H. W. Kroto and D. R. M. Walton, Nano Lett., 2003, 333, 549; (c) J. C. Charlier, Acc. Chem. Res., 2002, 35, 1063; (d) M. Ouyang, J. L. Huang, C. L. Cheung and C. M. Lieber, Science, 2001, 291, 97; (e) S. G. Louie, Top. Appl. Phys., 2001, 80, 113; (f) T. W. Ebbesen and T. Takada, Carbon, 1995, 33, 973; (g) J. C. Charlier, T. W. Ebbesen and P. Lambin, Phys. Rev. B, 1996, 53, 11108; (h) V. H. Crespi and M. L. Cohen, Phys. Rev. Lett., 1997, 79, 2093; (i) L. Chico, M. P. L. Sancho and M. C. Muñoz, Phys. Rev. Lett., 1998, 98, 1278.
22. (a) M. Ouyang, J. L. Huang and C. M. Lieber, Acc. Chem. Res., 2002, 35, 1018; (b) Z. Yao, H. W. C. Postma, L. Balents and C. Dekker, Nature, 1999, 402, 273.
23. (a) A. F. Collings and C. Critchley, Artificial Photosynthesis: From Basic Biology to Industrial Application, Wiley-VCH, Weinheim, Germany, 2005; (b) V. Balzani, Electron Transfer in Chemistry, Wiley-VCH, Weinheim, Germany, 2001; (c) D. M. Guldi, Chem. Soc. Rev., 2002, 31, 22; (d) J. Deisenhofer and J. R. Norris, The Photosynthetic Reaction Center, Academic Press, San Diego, CA, 1993; (e) D. M. Guldi, G. M. A. Rahman, V. Sgobba and C. Ehli, Chem. Soc. Rev., 2006, 35, 471.
24. (a) J. Nelson, The Physics of Solar Cells (Properties of Semiconductor Materials), Imperial College Press, London, UK, 2003; (b) C. Brabec, V. Dyakonov, J. Parisi and S. Sariciftci, Organic Photovoltaics: Concepts and Realization, Springer Series in Materials Science, Springer, Berlin, Germany, 2003.
25. A. Hartschuh, H. N. Pedrosa, J. Peterson, L. Huang, P. Anger, H. Qian, A. J. Meixner, M. Steiner, L. Novotny and T. D. Krauss, ChemPhysChem, 2005, 6, 577.
26. N. Grossiord, J. Loos, O. Regev and C. E. Koning, Chem. Mater., 2006, 18, 1089.
27. M. Zheng, A. Jagota, M. S. Strano, A. P. Santos, P. Barone, S. G. Chou, B. A. Diner, M. S. Dresselhaus, R. S. Mclean, G. B. Onoa, G. G. Samsonidze, E. D. Semke, M. Usrey and D. J. Walls, Science, 2003, 302, 1545.
28. (a) H. Kataura, Y. Kumazawa, Y. Maniwa, I. Umezu, S. Suzuki, Y. Ohtzuka and Y. Achiba, Synth. Met., 1999, 103, 2555; (b) M. A. Amon, M. E. Itkis, S. Niyogi, T. Alvarez, C. Kuper, M. Menon and R. C. Haddon, J. Am. Chem. Soc., 2001, 123, 11292.
29. (a) S. Kazaoui, N. Minami, H. K. N. Matsuda and Y. Achiba, Appl. Phys. Lett., 2001, 78, 3433; (b) N. Nair, M. L. Usrey, W. J. Kim, R. D. Braatz and M. S. Strano, Anal. Chem., 2006, 78, 7689.
30. (a) V. Perebeinos, J. Tersoff and P. Avouris, Phys. Rev. Lett., 2004, 92, 257402; (b) H. Zhao and S. Mazumdar, Phys. Rev. Lett., 2004, 93, 157402; (c) C. D. Spataru, S. Ismail-Beigi, L. X. Benedict and S. G. Louie, Phys. Rev. Lett., 2004, 92, 077402; (d) Z. Wang, H. Zhao and S. Mazumdar, Phys. Rev. B, 2006, 74, 195406.
31. F. Wang, G. Dukovic, L. E. Brus and T. F. Heinz, Science, 2005, 308, 838.
32. A. Hartschuh, H. N. Pedrosa, L. Novotny and T. D. Krauss, Science, 2003, 301, 1354.
33. S. M. Bachilo, M. S. Strano, C. Kittrell, R. H. Hauge, R. E. Smalley and R. B. Weisman, Science, 2002, 298, 2361.
34. M. Jones, C. Engtrakul, W. K. Metzger, R. J. Ellingson, A. J. Nozik, M. J. Heben and G. Rumbles, Phys. Rev. B, 2005, 71, 115426/1.
35. S. M. Dresselhaus, G. Dresselhaus, R. Saito and A. Jorio, Annu. Rev. Phys. Chem., 2007, 58, 719.
36. F. Chen, B. Wang, Y. Chen and L. J. Li, Nano Lett., 2007, 7, 3013.
37. S. Lebedkin, F. Hennrich, O. Kiowski and M. M. Kappes, Phys. Rev. B, 2008, 77, 165429.
38. (a) Y. Zhang, T. Gong, W. Liu, X. Zhang, J. Chang, K. Wang and D. Wu, Appl. Phys. Lett., 2005, 87, 173114; (b) M. E. Brennan, J. N. Coleman, M. Panhuis, L. Marty and W. J. Blau, Synth. Met., 2001, 119, 641.
39. F. Wang, G. Dukovic, L. E. Brus and T. F. Heinz, Phys. Rev. Lett., 2004, 92, 177401-1.
40. S. B. Cronin, Y. Yin, A. Walsh, R. B. Capaz, A. Stolyarov, P. Tangney, M. L. Cohen, S. G. Louie, A. K. Swan, M. S. Ünlü, B. B. Goldberg and M. Tinkham, Phys. Rev. Lett., 2006, 96, 127403.
41. G. Shan and S. Bao, Physica E, 2006, 35, 161.
42. (a) A. G. Walsh, A. N. Vamivakas, Y. Yin, S. B. Cronin, M. S. Ünlü, B. B. Goldberg and A. K. Swan, Nano Lett., 2007, 7, 1485; (b) M. T. Woodside and P. L. McEuen, Science, 2002, 296, 1098; (c) P. L. McEuen, M. Bockrath, D. H. Cobden, Y. G. Yoon and S. G. Louie, Phys. Rev. Lett., 1999, 83, 5098.
43. S. Zaric, G. N. Ostojic, J. Kono, J. Shaver, V. C. Moore, M. S. Strano, R. H. Hauge, R. E. Smalley and X. Wei, Science, 2004, 304, 1129.
44. (a) P. W. Barone, R. S. Parker and M. S. Strano, Anal. Chem., 2005, 77, 7556; (b) P. W. Barone, S. Baik, D. A. Heller and M. S. Strano, Nat. Mater., 2005, 4, 86.
45. J. A. Misevich, R. Martel, P. Avouris, J. C. Tsang, S. Heinze and J. Tersoff, Science, 2003, 300, 783.
46. S. Kazaoui, N. Minami, R. Jacquemin, H. Kataura and Y. Achiba, Phys. Rev. B, 1999, 60, 13339.
47. (a) P. Petit, C. Mathis, C. Journet and P. Bernier, Chem. Phys. Lett., 1999, 305, 370; (b) E. Jouguelet, C. Mathis and P. Petit, Chem. Phys. Lett., 2000, 318, 561.
48. A. M. Rao, P. C. Eklund, S. Bandow, A. Thess and R. E. Smalley, Nature, 1997, 388, 257.
49. L. Kavan and L. Dunsch, ChemPhysChem, 2007, 8, 974.
50. R. Jacquemin, S. Kazaoui, D. Yu, A. Hassanien, N. Minami, H. Kataura and Y. Achiba, Synth. Met., 2000, 115, 283.
51. N. Bendiab, E. Anglaret, J. L. Bantignies, A. Zahab, J. L. Sauvajol, P. Petit and C. Mathis, Phys. Rev. B, 2001, 64, 245424.
52. H. Son, A. Reina, G. G. Samsonidze, R. Saito, A. Jorio, M. S. Dresselhaus and J. Kong, Phys. Rev. B, 2006, 74, 073406.
53. (a) L. Kavan, P. Rapta, L. Dunsch, M. J. Bronikowski, P. Willis and R. E. Smalley, J. Phys. Chem. B, 2001, 105, 10764; (b) S. Gupta, M. Hughes, A. H. Windle and J. Robertson, J. Appl. Phys., 2004, 95, 2038.
54. L. Kavan, M. Kalbáč, M. Zukalová and L. Dunsch, J. Phys. Chem. B, 2005, 109, 19613.
55. P. M. Rafailov, J. Maultzsch, C. Thomsen and H. Kataura, Phys. Rev. B, 2005, 72, 045411.
56. M. S. Dresselhaus and G. Dresselhaus, Adv. Phys., 1981, 30, 139.
57. (a) A. Claye, S. Rahman, J. E. Fischer, A. Sirenko, G. U. Sumanasekera and P. C. Eklund, Chem. Phys. Lett., 2001, 333, 16; (b) M. Stoll, P. M. Rafailov, W. Frenzel and C. Thomsen, Chem. Phys. Lett., 2003, 375, 625; (c) S. Gupta and J. Robertson, J. Appl. Phys., 2006, 100, 083711.
58. (a) L. Kavan, P. Rapta and L. Dunsch, Chem. Phys. Lett., 2000, 328, 363; (b) P. Corio, P. S. Santos, V. W. Brar, G. G. Samsonidze, S. G. Chou and M. S. Dresselhaus, Chem. Phys. Lett., 2003, 370, 675; (c) L. Kavan and L. Dunsch, Nano Lett., 2003, 3, 969; (d) P. Corio, A. Jorio, N. Demir and M. S. Dresselhaus, Chem. Phys. Lett., 2004, 392, 396; (e) L. Kavan and L. Dunsch, ChemPhysChem, 2003, 4, 944; (f) K. Murakoshi and K. Okazaki, Electrochim. Acta, 2005, 50, 3069.
59. K. Okazaki, Y. Nakato and K. Murakoshi, Phys. Rev. B, 2003, 68, 035434.
60. J. Cambedouzou, J. L. Sauvajol, A. Rahmani, E. Flahaut, A. Peigney and C. Laurent, Phys. Rev. B, 2005, 69, 235422.
61. A. Pénicaud, P. Poulin, A. Derré, E. Anglaret and P. Petit, J. Am. Chem. Soc., 2005, 127, 8.
62. D. Paolucci, M. M. Franco, M. Iurlo, M. Marcaccio, M. Prato, F. Zerbetto, A. Pénicaud and F. Paolucci, J. Am. Chem. Soc., 2008, 130, 7393.
63. Z. Wang, H. Pedrosa, T. Krauss and L. Rothberg, Phys. Rev. Lett., 2007, 98, 019702.
64. P. M. Ajayan, T. W. Ebbesen, T. Ichihashi, S. Iijima, K. Tanigaki and H. Hiura, Nature, 1993, 362, 522.
65. (a) J. Fan, M. Yudasaka, J. Miyawaki, K. Ajima, K. Murata and S. Iijima, J. Phys. Chem. B, 2006, 110, 1587; (b) C. A. Furtado, U. J. Kim, H. R. Gutierrez, L. Pan, E. C. Dickey and P. C. Eklund, J. Am. Chem. Soc., 2004, 126, 6095151; (c) R. Sen, S. M. Rickard, M. E. Itkis and R. C. Haddon, Chem. Mater., 2003, 15, 4273.
66. E. Dujardin, T. W. Ebbesen, A. Treacy and M. M. J. Krishnan, Adv. Mater., 1998, 10, 611.
67. P. M. Ajayan and S. Iijima, Nature, 1993, 361, 333.
68. (a) M. Shim, J. H. Back, T. Ozel and K. W. Kwon, Phys. Rev. B, 2005, 71, 205411/1; (b) Y. Miyamoto, N. Jinbo, H. Nakamura, A. Rubio and D. Tomanek, Phys. Rev. B, 2004, 70, 233408; (c) P. G. Collins, K. Bradley, M. Ishigami and A. Zettl, Science, 2000, 287, 1801.
69. (a) R. K. Saini, I. W. Chiang, H. Peng, R. E. Smalley, W. E. Billups, R. H. Hauge and J. L. Margrave, J. Am. Chem. Soc., 2003, 125, 3617; (b) P. J. Boul, J. Liu, E. T. Mickelson, C. B. Huffman, L. M. Ericson, I. W. Chiang, K. A. Smith, D. T. Colbert, R. H. Hauge, J. L. Margrave and R. E. Smalley, Chem. Phys. Lett., 1999, 310, 367.
70. T. Kawai and Y. Miyamoto, Chem. Phys. Lett., 2008, 453, 256.
71. D. B. Mawhinney, V. Naumenko, A. Kuznetsova, J. T. Yates Jr, J. Liu and R. E. Smalley, Chem. Phys. Lett., 2000, 324, 213.
72. J. Chen, A. M. Rao, S. Lyuksyutov, M. E. Itkis, M. A. Hamon, H. Hu, R. W. Cohn, P. C. Eklund, D. T. Colbert, R. E. Smalley and R. C. Haddon, J. Phys. Chem. B, 2001, 105, 2525.
73. H. Hu, P. Bhowmik, B. Zhao, M. A. Hamon, M. E. Itkis and R. C. Haddon, Chem. Phys. Lett., 2001, 345, 25.
74. X. Li, J. Niu, J. Zhang, H. Li and Z. Liu, J. Phys. Chem. B, 2003, 107, 2453.
75. W. Wand, P. Serp, P. Kalck and J. L. Faria, J. Mol. Catal., 2005, 235, 294.
76. L. Pietronero and S. Strassler, Phys. Rev. Lett., 1981, 47, 593.
77. M. J. O’Connell, E. E. Eibergen and S. K. Doorn, Nat. Mater., 2005, 4, 412.
78. W. Zhou, J. Vavro, N. M. Nemes, J. E. Fischer, F. Borondics, K. Kamaras and D. B. Tanner, Phys. Rev. B, 2005, 71, 205423.
79. R. Graupner, J. Abraham, A. Vencelová, T. Seyller, F. Hennrich, M. M. Kappes, A. Hirsch and L. Ley, Phys. Chem. Chem. Phys., 2003, 5, 5472.
80. (a) G. U. Sumanasekera, C. K. W. Adu, S. Fang and P. C. Eklund, Phys. Rev. Lett., 2000, 85, 1096; (b) P. J. Blatt, P. A. Schroeder, C. L. Foiles and D. Greig, in Thermoelectric Power of Metals, Plenum, New York and London, 1976, ch. 2.
81. S. J. Tans, A. R. M. Verschueren and C. Dekker, Nature, 1998, 393, 49.
82. C. Zhou, J. Kong, E. Yenilmez and H. Dai, Science, 2000, 290, 1552.
83. S. B. Fagan, A. G. Souza Filho, J. Mendes Filho, P. Corio and M. S. Dresselhaus, Chem. Phys. Lett., 2005, 456, 54.
84. P. Corio, A. P. Santos, M. L. A. Temperini, V. W. Brar, M. A. Pimenta and M. S. Dresselhaus, Chem. Phys. Lett., 2004, 383, 475.
85. B. R. Sankapal, K. Setyowati, J. Chen and H. Liu, Appl. Phys. Lett., 2007, 91, 173103/1.
86. (a) V. Z. Mordkovitch, M. Baxendale, S. Yoshimura and R. P. H. Chang, Carbon, 1996, 34, 1301; (b) M. Baxendale, V. Z. Mordkovich, S. Yoshimura, R. P. H. Chang and A. G. M. Jansen, Phys. Rev. B, 1998, 57, 15629.
87. (a) D. Claves, J. Giraudet, M. C. Schouler, P. Gadelle and A. Hamwi, Solid State Commun., 2004, 130, 1; (b) V. Z. Mordkovitch, M. Baxendale, R. P. Chang and H. Yoshimura, Synth. Met., 1997, 86, 2049; (c) V. Z. Mordkovitch, Mol. Cryst. Liq. Cryst., 2000, 340, 775.
88. V. Skákalová, A. B. Kaiser, U. Dettlaff-Wegligowska, K. Hrnčariková and S. Roth, J. Phys. Chem. B, 2005, 109, 7174.
89. M. S. Strano, C. B. Huffman, V. C. Moore, M. J. O'Connell, E. H. Haroz, J. Hubbard, M. Miller, K. Rialon, C. Kittrell, S. Ramesh, R. H. Hauge and R. E. Smalley, J. Phys. Chem. B, 2003, 107, 6979.
90. L. Eberson and F. Radner, Acta Chem. Scand., 1991, 45, 1093.
91. C. Klinke, A. Afzali and P. Avouris, Chem. Phys. Lett., 2006, 430, 75.
92. P. Gai, O. Stephan, K. McGuire, A. M. Rao, M. S. Dresselhaus, G. Dresselhaus and C. Colliex, J. Mater. Chem., 2004, 14, 669.
93. E. Borowiak-Palen, T. Pichler, G. G. Fuentes, A. Graff, R. J. Kalenczuk, M. Knupfer and J. Fink, Chem. Phys. Lett., 2003, 378, 516.
94. M. Terrones, W. K. Hsu, A. Schilder, H. Terrones, N. Grobert, J. P. Hare, Y. Q. Zhu, M. Schwoerer, K. Prassides, H. W. Kroto and D. R. M. Walton, Appl. Phys. A: Mater., 1998, 66, 307.
95. R. Czerw, M. Terrones, J. C. Charlier, X. Blase, B. Foley, R. Kamalakaran, N. Grobert, H. Terrones, P. M. Ajayan, W. Blau, D. Tekleab, M. Rühle and D. L. Carroll, Nano Lett., 2001, 1, 457.
96. M. Glerup, J. Steinmetz, D. Samaille, O. Stephan, S. Enouz, A. Loiseau, S. Roth and P. Bernier, Chem. Phys. Lett., 2004, 387, 193.
97. R. Sen, B. C. Satishkumar, S. Govindaraj, K. R. Harikumar, M. K. Renganathan and C. N. R. Rao, J. Mater. Chem., 1997, 7, 2335.
98. M. Terrones, N. Grobert, J. Olivares, J. P. Zhang, H. Terrones, K. Kordatos, W. K. Hsu, J. P. Hare, P. D. Townsend, K. Prassides, A. K. Cheetham, H. W. Kroto and D. R. M. Walton, Nature, 1997, 388, 52.
99. F. Villalpando-Paez, A. Zamudio, A. L. Elias, H. Son, E. B. Barros, S. Chou, Y. A. Kim, H. Muramatsu, T. Hayashi, J. Kong, H. Terrones, G. Dresselhaus, M. Endo, M. Terrones and M. S. Dresselhaus, Chem. Phys. Lett., 2006, 424, 345.
100. D. Golberg, Y. Bando, L. Bourgeois, K. Kurashima and T. Sato, Carbon, 2000, 38, 2017.
101. (a) O. Stephan, P. M. Ajayan, C. Colliex, P. Redlich, J. M. Lambert, P. Bernier and P. Lefin, Science, 1994, 266, 1683; (b) K. Suenaga, C. Colliex, N. Demoncy, A. Loiseau, H. Pascard and F. Willaime, Science, 1997, 278, 653.
102. M. Terrones, A. M. Benito, C. Manteca-Diego, W. K. Hsu, O. I. Osman, J. P. Hare, D. G. Reid, H. Terrones, A. K. Cheetham, K. Prassides, H. W. Kroto and D. R. M. Walton, Chem. Phys. Lett., 1996, 257, 576.
103. R. J. Baierle, S. B. Fagan, R. Mota, A. J. R. da Silva and A. Fazzio, Phys. Rev., 2001, 64, 085413.
104. E. Cruz-Silva, D. Cullen, L. Gu, J. M. Romo-Herrera, E. Múnoz-Sandoval, F. López-Urías, D. J. Smith, H. Terrones and M. Terrones, ACS Nano, 2008, 2, 441.
105. (a) M. Monthioux, Carbon, 2002, 40, 1809; (b) A. N. Khlobystov, D. A. Britz and G. A. D. Briggs, Acc. Chem. Res., 2005, 38, 901; (c) O. Vostrowsky and A. Hirsch, Angew. Chem., Int. Ed., 2004, 43, 2326; (d) J. loan, A. I. Kirkland, J. L. Hutchison and M. L. H. Green, Acc. Chem. Res., 2002, 35, 1054.
106. P. W. Chiu, S. F. Yang, S. H. Yang, G. Gu and S. Roth, Appl. Phys. A, 2003, 76, 463.
107. J. Lee, H. Kim, S. J. Kahng, G. Kim, Y. W. Son, J. Ihm, H. Kato, Z. W. Wang, T. Okazaki, H. Shinohara and Y. Kuk, Nature, 2002, 415, 1005.
108. S. Okada, S. Saito and A. Oshiyama, Phys. Rev. Lett., 2001, 86, 3835.
109. J. Vavro, M. C. Llaguno, B. C. Satishkumar, D. E. Luzzi and J. E. Fischer, Appl. Phys. Lett., 2002, 80, 1450.
110. D. J. Hornbaker, S. J. Kahng, S. Misra, B. W. Smith, A. T. Johnson, E. J. Mele, D. E. Luzzi and A. Yazdani, Science, 2002, 295, 828.
111. Y. Cho, S. Han, G. Kim, H. Lee and J. Ihm, Phys. Rev. Lett., 2003, 90, 106402/1.
112. A. Debarre, R. Julien, D. Nutarelli, A. Richard and P. Tchenio, Phys. Rev. Lett., 2003, 91, 085501/1.
113. L. J. Li, A. N. Khlobystov, J. G. Wiltshire, G. A. Briggs and R. J. Nicholas, Nat. Mater., 2005, 4, 534.
114. T. Takenobu, T. Takano, M. Shiraishi, Y. Murakami, M. Ata, H. Kataura, Y. Achiba and Y. Iwasa, Nat. Mater., 2003, 2, 683.
115. L. Duclaux, J. P. Salvetat, P. Lauginie, T. Cacciaguera, A. M. Faugere, C. Goze-Bac and P. Bernier, J. Phys. Chem. Solids, 2003, 64, 571.
116. K. Bradley, S. H. Jhi, P. G. Collins, J. Hone, M. L. Cohen, S. G. Louie and A. Zettl, Phys. Rev. Lett., 2000, 85, 4361.
117. (a) V. Derycke, R. Martel, J. Appenzeller and P. Avouris, Nano Lett., 2001, 1, 453; (b) X. Liu, C. Lee, C. Zhou and J. Han, Appl. Phys. Lett., 2001, 79, 3329.
118. R. Martel, V. Derycke, C. Lavoie, J. Appenzeller, K. Chan, J. Tersoff and P. Avouris, Phys. Rev. Lett., 2001, 87, 256805.
119. D. Kang, N. Park, J. Ko, E. Bae and W. Park, Nanotechnology, 2005, 16, 1048.
120. S. H. Jhi, S. G. Louie and M. L. Cohen, Phys. Rev. Lett., 2000, 85, 1710.
121. J. Kong, N. R. Franklin, C. Zhou, M. G. Chapline, S. Peng, K. Cho and H. Dai, Science, 2000, 287, 622.
122. M. J. O’Connell, E. E. Eibergen and S. K. Doorn, Nat. Mater., 2005, 4, 412.
123. J. Oh, S. Roh, W. Yi, H. Lee and J. Yoo, J. Vac. Sci. Technol., B, 2004, 22, 1416.
124. M. Shim, T. Ozel, A. Gaur and C. Wang, J. Am. Chem. Soc., 2006, 128, 7522.
125. H. Z. Geng, K. K. Kim, C. Song, N. T. Xuyen, S. M. Kim, K. A. Park, D. S. Lee, K. H. An, Y. S. Lee, Y. Chang, Y. J. Lee, J. Y. Choi, A. Benayad and Y. H. Lee, J. Mater. Chem., 2008, 18, 1261.
126. J. Kong and H. Dai, J. Phys. Chem. B, 2001, 105, 2890.
127. D. M. Guldi, G. M. A. Rahman, F. Zerbetto and M. Prato, Acc. Chem. Res., 2005, 38, 871.
128. (a) K. Kalyanasundaram, Photochemistry of Polypyridine and Porphyrin Complexes, Academic Press, London, 1997; (b) D. Dolphin, The Porphyrins, Academic Press, New York, 1978; (c) K. M. Kadish, K. M. Smith and R. Guilard, The Porphyrin Handbook, Academic Press, New York, USA, 2003.
129. (a) D. Baskaran, J. W. Mays, X. P. Zhang and M. S. Bratcher, J. Am. Chem. Soc., 2005, 127, 6916; (b) H. Li, R. B. Martin, B. A. Harruff, R. A. Carino, L. F. Allard and Y. P. Sun, Adv. Mater., 2004, 16, 896.
130. (a) C. C. Leznoff and A. B. P. Lever, Phthalocyanines: Properties and Applications, VCH, Weinheim, Germany, 1989, 1993, 1996; (b) N. B. McKeown, Phthalocyanine Materials: Synthesis, Structure and Function, Cambridge University Press, Cambridge, UK, 1998; (c) G. de la Torre, P. Vázquez, F. Agulló-López and T. Torres, Chem. Rev., 2004, 104, 3723.
131. (a) G. de la Torre, W. Blau and T. Torres, Nanotechnology, 2003, 14, 765; (b) H. B. Xu, H. Z. Chen, M. M. Shi, R. Bai and M. Wang, Mater. Chem. Phys., 2005, 94, 342.
132. (a) J. L. Segura and N. Martin, Angew. Chem., Int. Ed., 2001, 40, 1372; (b) N. Martin, L. Sanchez, M. A. Herranz, B. Illescas and D. M. Guldi, Acc. Chem. Res., 2007, 40, 1015.
133. M. Á. Herranz, N. Martin, S. Campidelli, M. Prato, G. Brehm and D. M. Guldi, Angew. Chem., Int. Ed., 2006, 45, 4478.
134. N. W. S. Kam, T. C. Jessop, P. A. Wender and H. Dai, J. Am. Chem. Soc., 2004, 126, 6850.
135. (a) T. Y. Lee and J. B. Yoo, Diamond Rel. Mater., 2005, 14, 1888; (b) S. R. Jang, R. Vittal and K. J. Kim, Langmuir, 2004, 20, 9807.
136. B. O’Regan and M. Grätzel, Nature, 1991, 353, 737.
137. (a) R. F. Khairoutdinov, L. V. Doubova, R. C. Haddon and L. Saraf, J. Phys. Chem. B, 2004, 108, 19976; (b) F. Frehill, J. G. Vos, S. Benrezzak, A. A. Koos, Z. Konya, M. G. Ruether, W. J. Blau, A. Fonseca, J. B. Nagy, L. P. Biro, A. I. Minett and M. in het Panhuis, J. Am. Chem. Soc., 2002, 124, 13694.
138. P. Wang, C. N. Moorefield, S. Li, S. H. Hwang, C. D. Shreiner and G. R. Newkome, Chem. Commun., 2006, 1091.
139. J. Liu, A. G. Rinzler, H. Dai, J. H. Hafner, R. K. Bradley, P. J. Boul, A. Lu, T. Iverson, K. Shelimov, C. B. Huffman, F. Rodrigues-Macias, Y. S. Shon, T. R. Lee, D. T. Colbert and R. E. Smalley, Science, 1998, 280, 1253.
140. A. Zamudio, A. L. Elías, J. A. Rodríguez-Manzo, F. López-Urías, G. Rodríguez-Gattorno, F. Lupo, M. Rühle, D. J. Smith, H. Terrones, D. Díaz and M. Terrones, Small, 2006, 2, 346.
141. R. Zanella, E. Basiuk, P. Santiago, V. A. Basiuk, Edgar Mireles, I. Puente-Lee and J. M. Saniger, J. Phys. Chem. B, 2005, 109, 16290.
142. L. Sheeney-Haj-Ichia, B. Basnar and I. Willner, Angew. Chem., Int. Ed., 2005, 44, 78.
143. B. Pan, D. Cui, R. He, F. Gao and Y. Zhang, Chem. Phys. Lett., 2006, 417, 419.
144. S. Banerjee and S. S. Wong, Nano Lett., 2002, 2, 195.
145. S. Ravindran, S. Chaudhary, B. Colburn, M. Ozkan and C. S. Ozkan, Nano Lett., 2003, 3, 447.
146. (a) P. Diao and Z. Liu, J. Phys. Chem. B, 2005, 109, 20906; (b) L. Cai, J. L. Bahr, Y. Yao and J. M. Tour, Chem. Mater., 2002, 14, 4235; (c) P. Diao, Z. Liu, B. Wu, X. Nan, J. Zhang and Z. Wei, ChemPhysChem, 2002, 12, 898.
147. (a) M. Burghard, Small, 2005, 1, 1148; (b) K. M. Lee, L. Li and L. Dai, J. Am. Chem. Soc., 2005, 127, 4122; (c) N. Chopra, M. Majumder and B. J. Hinds, Adv. Funct. Mater., 2005, 15, 858.
148. Z. Wei, M. Kondratenko, L. H. Dao and D. M. Perepichka, J. Am. Chem. Soc., 2006, 128, 3134.
149. D. M. Guldi, M. Marcaccio, D. Paolucci, F. Paolucci, N. Tagmatarchis, D. Tasis, E. Vázquez and M. Prato, Angew. Chem., Int. Ed., 2003, 42, 4206.
150. S. Campidelli, C. Sooambar, E. L. Diz, C. Ehli, D. M. Guldi and M. Prato, J. Am. Chem. Soc., 2006, 128, 12544.
151. B. Ballesteros, S. Campidelli, G. de la Torre, C. Ehli, D. M. Guldi, M. Prato and T. Torres, Chem. Commun., 2007, 2950.
152. B. Ballesteros, G. de la Torre, C. Ehli, G. M. A. Rahman, F. Agullo-Rueda, D. M. Guldi and T. Torres, J. Am. Chem. Soc., 2007, 129, 5061.
153. M. Alvaro, P. Atienzar, P. de la Cruz, J. L. Delgardo, V. Troiani, H. Garcia, F. Langa, A. Palkar and L. Echegoyen, J. Am. Chem. Soc., 2006, 128, 6626.
154. J. K. Lim, B. K. Yoo, W. Yi, S. Hong, H. Y. Paik, K. Chun, S. K. Kim and S. W. Joo, J. Mater. Chem., 2006, 16, 2374.
155. Z. Guo, F. Du, D. Ren, Y. Chen, J. Zheng, Z. Liu and J. Tian, J. Mater. Chem., 2006, 16, 3021.
156. (a) S. Qin, D. Qin, W. T. Ford, J. E. Herrera, D. E. Resasco, S. M. Bachilo and R. B. Weisman, Macromolecules, 2004, 35, 3965; (b) D. M. Guldi, G. M. A. Rahman, J. Ramey, M. Marcaccio, D. Paolucci, F. Paolucci, S. Qin, W. T. Ford, D. Balbinot, N. Jux, N. Tagmatarchis and M. Prato, Chem. Commun., 2004, 2034.
157. D. M. Guldi, G. M. A. Rahman, S. Qin, M. Tchoul, W. T. Ford, M. Marcaccio, D. Paolucci, F. Paolucci, S. Campidelli and M. Prato, Chem. Eur. J., 2006, 12, 2152.
158. G. M. A. Rahman, A. Troeger, V. Sgobba, D. M. Guldi, N. Jux, M. N. Tchoul, W. T. Ford, A. Mateo-Alonso and M. Prato, Chem. Eur. J., 2008, 14, 8837.
159. N. Nakashima, Y. Tomonari and H. Murakami, Chem. Lett., 2002, 638.
160. H. Paloniemi, T. Ääritalo, T. Laiho, H. Luike, N. Kocharova, K. Haapakka, F. Terzi, R. Seeber and J. Lukkari, J. Phys. Chem. B, 2005, 109, 8634.
161. D. M. Guldi, G. M. A. Rahman, N. Jux, N. Tagmatarchis and M. Prato, Angew. Chem., Int. Ed., 2004, 43, 5526.
162. C. Ehli, G. M. A. Rahman, N. Jux, D. Balbinot, D. M. Guldi, F. Paolucci, F. Marcaccio, D. Paolucci, M. Melle-Franco, F. Zerbetto, S. Campidelli and M. Prato, J. Am. Chem. Soc., 2006, 128, 11222.
163. D. M. Guldi, E. Menna, M. Maggini, M. Marcaccio, D. Paolucci, F. Paolucci, S. Campidelli, M. Prato, G. M. A. Rahman and S. Schergna, Chem. Eur. J., 2006, 12, 3975.
164. D. M. Guldi, G. M. A. Rahman, N. Jux, N. Tagmatarchis and M. Prato, Angew. Chem., Int. Ed., 2004, 43, 5526.
165. G. M. A. Rahman, D. M. Guldi, R. Cagnoli, A. Mucci, L. Schenetti, L. Vaccari and M. Prato, J. Am. Chem. Soc., 2005, 127, 10051.
166. D. M. Guldi, G. M. A. Rahman, V. Sgobba, N. A. Kotov, D. Bonifazi and M. Prato, J. Am. Chem. Soc., 2006, 128, 2315.
167. A. Satake, Y. Miyajima and Y. Kobuke, Chem. Mater., 2005, 17, 716.
168. F. Cheng and A. Adronov, Chem. Eur. J., 2006, 12, 5053.
169. F. Cheng, S. Zhang, A. Adronov, L. Echegoyen and F. Diederich, Chem. Eur. J., 2006, 12, 6062.
170. H. Murakami, T. Nomura and N. Nakashima, Chem. Phys. Lett., 2003, 378, 481.
171. G. M. A. Rahman, D. M. Guldi, S. Campidelli and M. Prato, J. Mater. Chem., 2006, 16, 62.
172. J. Chen and C. P. Collier, J. Phys. Chem. B, 2005, 109, 7605.
173. H. Li, B. Zhou, Y. Lin, L. Gu, W. Wang, K. A. S. Fernando, S. Kumar, L. F. Allard and Y. P. Sun, J. Am. Chem. Soc., 2004, 126, 1014.
174. D. S. Hecht, R. J. A. Ramirez, M. Briman, E. Artukovic, K. S. Chichak, J. F. Stoddart and G. Gruener, Nano Lett., 2006, 6, 2031.
175. F. D’Souza, R. Chitta, A. S. D. Sandanayaka, N. K. Subbaiyan, L. D'Souza, Y. Araki and O. Ito, J. Am. Chem. Soc., 2007, 129, 15865.
176. P. J. Boul, D. G. Cho, G. M. A. Rahman, M. Marquez, Z. Ou, K. M. Kadish, D. M. Guldi and J. L. Sessler, J. Am. Chem. Soc., 2007, 129, 5683.
177. (a) G. Yu, J. Gao, J. C. Hummelen, F. Wudl and A. J. Heeger, Science, 1995, 270, 1789; (b) M. Granstrom, K. Petritsch, A. C. Arias, A. Lux, M. R. Andersson and R. H. Friend, Nature, 1998, 395, 257.
178. (a) D. H. Lien, H. W. Zan, N. H. Tai and C. H. Tsai, Adv. Mater., 2006, 18, 98; (b) J. L. Sun, J. Wei, J. L. Zhu, D. Xu, X. Liu, H. Sun, D. H. Wu and N. L. Wu, Appl. Phys. Lett., 2006, 88, 131107.
179. M. Cinke, J. Li, B. Chen, A. Cassell, L. Delzeit, J. Han and M. Meyyappan, Chem. Phys. Lett., 2002, 365, 69.
180. V. Sgobba and D. M. Guldi, J. Mater. Chem., 2008, 18, 153.
181. D. Romero, M. Carrard, W. De Heer and L. Zuppiroli, Adv. Mater., 1996, 8, 899.
182. (a) E. Kymakis and G. A. J. Amaratunga, Appl. Phys. Lett., 2002, 80, 112; (b) E. Kymakis, I. Alexandrou and G. A. J. Amaratunga, J. Appl. Phys., 2003, 93, 1764; (c) E. Kymakis and G. A. J. Amaratunga, Sol. Energy Mater. Sol. Cells, 2003, 80, 465; (d) J. Landi, R. P. Raffaelle, S. L. Castro and S. G. Bailey, Prog. Photovoltaics, 2005, 13, 165; (e) Z. Xu, Y. Wu, B. Hu, I. N. Ivanov and D. B. Geohegan, Appl. Phys. Lett., 2005, 87, 263118.
183. (a) A. J. Miller, R. A. Hatton, P. Ravi and S. Silva, Appl. Phys. Lett., 2006, 89, 123115/1; (b) A. J. Miller, R. A. Hatton, S. Silva and P. Ravi, Appl. Phys. Lett., 2006, 89, 133117/1.
184. (a) B. Pradhan, S. K. Batabyal and A. J. Pal, Appl. Phys. Lett., 2006, 88, 093106; (b) C. Li, Y. Chen, Y. Wang, Z. Iqbal, M. Chhowalla and S. Mitra, J. Mater. Chem., 2007, 17, 2406; (c) G. Kalita, S. Adhikari, H. R. Aryal, M. Umeno, R. Afre, T. Soga and M. Sharon, Appl. Phys. Lett., 2008, 92, 063508.
185. (a) B. J. Landi, S. L. Castro, H. J. Ruf, C. M. Evans, S. G. Bailey and R. P. Raffaelle, Sol. Energy Mater. Sol. Cells, 2005, 87, 733; (b) J. A. Rud, L. S. Lovell, J. W. Senn, Q. Qiao and J. T. McLeskey, Jr, J. Mater. Sci., 2005, 40, 1455.
186. Y. Kim, S. A. Choulis, J. Nelson, D. D. C. Bradley, S. Cook and J. R. Durrant, Appl. Phys. Lett., 2005, 86, 6272.
187. J. J. Dittmer, E. A. Marseglia and R. H. Friend, Adv. Mater., 2000, 12, 1270.
188. E. Kymakis, E. Koudoumas, I. Franghiadakis and G. A. J. Amaratunga, J. Phys. D: Appl. Phys., 2006, 39, 1058.
189. S. Kazaoui, N. Minami, B. Nalini, Y. Kim and K. Hara, J. Appl. Phys., 2005, 98, 084314.
190. J. Geng and T. Zeng, J. Am. Chem. Soc., 2006, 128, 16827.
191. G. Li, V. Shrotriya, J. Huang, Y. Yao, T. Moriarty, K. Emery and Y. Yang, Nat. Mater., 2005, 4, 864.
192. Y. Kanai and J. C. Grossman, Nano Lett., 2008, 8, 908.
193. E. Kymakis and G. A. J. Amaratunga, Rev. Adv. Mater. Sci., 2005, 8, 300.
194. C. D. Canestraro, M. C. Scnitzler, A. J. G. Zarbin, M. G. E. da Luz and L. S. Roman, Appl. Surf. Sci., 2006, 252, 5575.
195. S. Chaudhary, H. Lu, A. M. Müller, C. J. Bardeen and M. Ozkan, Nano Lett., 2007, 7, 1973.
196. (a) D. M. Guldi, G. M. A. Rahman, M. Prato, N. Jux, S. Qin and W. T. Ford, Angew. Chem., Int. Ed., 2005, 44, 2015; (b) D. M. Guldi, G. M. A. Rahman, V. Sgobba, S. Campidelli and M. Prato, Adv. Mater., 2006, 18, 2264.
197. (a) V. Sgobba, C. Schulz-Drost and D. M. Guldi, Chem. Commun., 2007, 565; (b) D. M. Guldi, I. Zilbermann, G. Anderson, N. A. Kotov, N. Tagmatarchis and M. Prato, J. Am. Chem. Soc., 2004, 126, 14340; (c) V. Sgobba, C. Schulz-Drost and D. M. Guldi, Chem. Commun., 2007, 6; (d) C. Schulz-Drost, V. Sgobba and D. M. Guldi, J. Phys. Chem. C, 2007, 111, 9694; (e) C. Gerhards, C. Schulz-Drost, V. Sgobba and D. M. Guldi, J. Phys. Chem. B, 2008 DOI:10.1021/jp8030094.
198. F. Itoh, I. Suzuki and K. Miyairi, Jpn. J. Appl. Chem., 2005, 44, 636.
199. (a) S. Barazzouk, S. Hotchandani, K. Vinodgopal and P. V. Kamat, J. Phys. Chem. B, 2004, 108, 17015; (b) P. V. Kamat, J. Phys. Chem. C, 2007, 111, 2834.
200. (a) I. Robel, B. A. Bunker and P. V. Kamat, Adv. Mater., 2005, 17, 2458; (b) T. Hasobe, S. Fukuzumi and P. V. Kamat, J. Phys. Chem. B, 2006, 110, 25477; (c) T. Umeyama and H. Imahori, Energy Environ. Sci., 2008, 1, 120.
201. T. Umeyama, N. Tezuka, M. Fujita, S. Hayashi, N. Kadota, Y. Matano and H. Imahori, Chem. Eur. J., 2008, 14, 4875.
202. P. Brown, K. Takechi and P. V. Kamat, J. Phys. Chem. C, 2008, 112, 4776.
203. W. Lee, J. Lee, S. Lee, W. Yi, S. H. Han and B. W. Cho, Appl. Phys. Lett., 2008, 92, 153510.
204. H. Z. Geng, K. K. Kim, K. P. So, Y. S. Lee, Y. Chang and Y. H. Lee, J. Am. Chem. Soc., 2007, 129, 7758.
205. L. Hu, G. Gruner, D. Li, R. B. Kaner and J. Cech, J. Appl. Phys., 2007, 101, 016102.
206. N. Saran, K. Parikh, D. S. Suh, E. Munoz, H. Kolla and S. K. Manohar, J. Am. Chem. Soc., 2004, 126, 4462.
207. S. Berber, Y. K. Kwon and D. Tomanek, Phys. Rev. Lett., 2000, 84, 4613.
208. Z. Wu, Z. Chen, X. Du, J. M. Logan, J. Sippel, M. Nikolou, K. Kamaras, J. R. Reynolds, D. B. Tanner, A. F. Hebard and A. G. Rinzler, Science, 2004, 305, 1273.

---

Footnote

† Part of the renewable energy theme issue.

---
