Design Principles of Spacer Cations for Suppressing Phase Segregation in 2D Halide Perovskites

Abstract

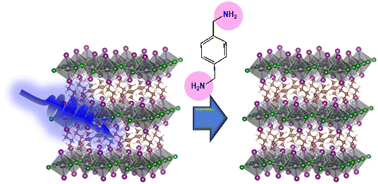

Suppression of photoinduced halide segregation in mixed halide perovskites remains a significant challenge for their application as wide bandgap semiconductors in solar cells. In addition to stability issues, halide segregation leads to a loss in power conversion efficiency in solar cells and a shift in emission wavelength in light-emitting devices. However, employing low-dimensional halide perovskites, such as two-dimensional (2D) or quasi-2D structures, offers a strategy to mitigate this segregation. Here, we have systematically studied how the molecular structure and binding configuration of spacer cations, ranging from linear alkyl chains to aromatic structures, affect photoinduced halide segregation across both Ruddlesden–Popper (RP) and Dion–Jacobson (DJ) frameworks in 2D mixed halide perovskite (Br:I = 50:50). Aromatic spacer cations within the DJ perovskite configuration were found to suppress segregation most effectively. For example, the halide segregation rate in 2D mixed halide perovskite film with DJ phase using the aromatic spacer cation 1,4-phenylenedimethanammonium (PDMA) was 9.3 × 10⁻⁴ s⁻¹—an order of magnitude lower than that observed with linear 2D RP perovskites employing butylammonium (BA) as the spacer cation (6.1 × 10⁻³ s⁻¹). Spectroscopic studies detailing the influence of spacer cation selection in mixed halide perovskites for suppressing phase segregation are discussed.
