In situ atomic-resolution study of transformations in double polymorph γ/β-Ga2O3 structures

Abstract

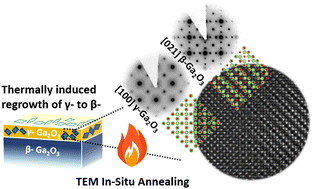

Disorder-induced formation of metastable Ga₂O₃ polymorphs as well as the recovery of the stable state upon annealing attract attention because of the fundamental novelty and rapidly increasing interest in the use of Ga₂O₃ in practical applications. In this study, double polymorph γ/β-Ga₂O₃ structures fabricated by the radiation-induced disorder approach were used as a starting point for systematic in situ annealing electron microscopy experiments. We show that, under the conditions of the TEM in situ annealing, double γ/β-Ga₂O₃ polymorph structures remained stable up to 300 °C, when onsets of the γ-to-β transformation become traceable, leading to a prominent γ- and β-mixture already at 500 °C. Interestingly, the recrystallization of the β-Ga₂O₃ occurs throughout the whole γ-film and the preferential alignments at the newly emerging γ/β-interfaces are different from that of the initial γ/β-interface formed as a result of the disorder-induced ordering. The alignments of the two polymorphs are maintained as a function of temperature – with a reduction in the volumetric ratio of γ-domains for increasing annealing temperature. Finally, at 1100 °C, γ-Ga₂O₃ fully transforms into β-Ga₂O₃, without dominating crystallographic relationships or preferred orientations, indicating that energy barriers are not any longer implied limiting factors, because of a sufficiently high thermal energy supply. Thus, these TEM in situ measurements enable a new level of accuracy for assessing polymorphic transformations in Ga₂O₃.
