A nanometallic conductive composite-hydrogel core–shell microneedle skin patch for real-time monitoring of interstitial glucose levels

Abstract

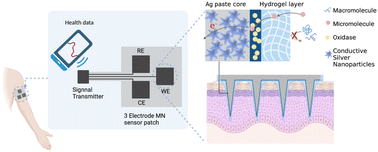

A microneedle-based skin patch system allows the minimally invasive extraction of skin interstitial fluid, which offers hope for the realization of quantitative and non-invasive diagnosis/monitoring of biological/physiological signals (biomarkers) in the human body. This work describes a nanometallic conductive composite-hydrogel core–shell microneedle skin patch that can realize minimally invasive real-time monitoring of physiological signals. The microneedle sensing system contains an inner conductive silver paste core and an outer bioactive hydrogel layer. The inner core is coated with biomarker-specific enzymes while the outer hydrogel layer extracts the biomarkers from the skin interstitial fluid. This patch can be integrated with the commercial signal processing and transmission modules and enable real-time monitoring. Taking glucose as a model biomarker, we confirm the function and potential application of this core–shell microneedle patch for transdermal diagnosis. It is proven that the core–shell microneedle patch can quickly extract skin interstitial fluid within 30 seconds and has a fast and linear response to glucose concentrations from 0 to 21 mM with a correlation coefficient of 0.9970, which may pave the way for the future development of smart wearable devices with minimally invasive transdermal biosensors.
