Noble-gas-infused neoprene closed-cell foams achieving ultra-low thermal conductivity fabrics

Author affiliations

Abstract

Closed-cell foams are widely applied as insulation and essential for the thermal management of protective garments for extreme environments. In this work, we develop and demonstrate a strategy for drastically reducing the thermal conductivity of a flexible, closed-cell polychloroprene foam to 0.031 ± 0.002 W m−1 K−1, approaching values of an air gap (0.027 W m−1 K−1) for an extended period of time (>10 hours), within a material capable of textile processing. Ultra-insulating neoprene materials are synthesized using high-pressure processing at 243 kPa in a high-molecular-weight gas environment, such as Ar, Kr, or Xe. A Fickian diffusion model describes both the mass infusion and thermal conductivity reduction of the foam as a function of processing time, predicting a 24–72 hour required exposure time for full charging of a 6 mm thick 5 cm diameter neoprene sample. These results enable waterproof textile insulation that approximates a wearable air gap. We demonstrate a wetsuit made of ultra-low thermally conductive neoprene capable of potentially extending dive times to 2–3 hours in water below 10 °C, compared with <1 hour for the state-of-the-art. This work introduces the prospect of effectively wearing a flexible air gap for thermal protection in harsh environments.

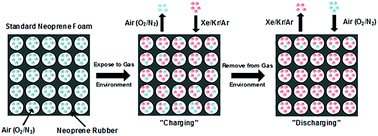

Graphical abstract: Noble-gas-infused neoprene closed-cell foams achieving ultra-low thermal conductivity fabrics

Back to tab navigation

Supplementary files

Publication details

The article was received on 11 May 2018, accepted on 23 May 2018 and first published on 18 Jun 2018


Article type: Paper
DOI: 10.1039/C8RA04037K
Citation: RSC Adv., 2018,8, 21389-21398
  • Open access: Creative Commons BY-NC license
  •   Request permissions

    Noble-gas-infused neoprene closed-cell foams achieving ultra-low thermal conductivity fabrics

    Jeffrey L. Moran, A. L. Cottrill, J. D. Benck, P. Liu, Z. Yuan, M. S. Strano and J. Buongiorno, RSC Adv., 2018, 8, 21389
    DOI: 10.1039/C8RA04037K
