Structural variations in (CuL)2Ln complexes of a series of lanthanide ions with a salen-type unsymmetrical Schiff base(H2L): Dy and Tb derivatives as potential single-molecule magnets

Author affiliations

Abstract

A new series of heterometallic trinuclear Cu2Ln complexes [lanthanide ions Ln = Gd (1), Tb (2), Dy (3), Ho (4) and Er (5)] has been synthesized using a Cu(II)-metalloligand derived from a N2O2 donor unsymmetrical Schiff base, H2L (where H2L = N-α-methylsalicylidene-N′-salicylidene-1,3-propanediamine), and structurally characterized. Among these complexes, [(CuL)2Gd(NO3)3(CH3CN)2] (1), [(CuL)2Tb(NO3)3(CH3CN)2] (2) and [(CuL)2Dy(NO3)3(CH3CN)2] (3) are isomorphic and isostructural. In these complexes two metalloligands coordinate to the central Ln(III) (Ln = Gd, Tb and Dy respectively) ion in a transoid fashion via μ2-phenoxido oxygen atoms. The Ln(III) ions are deca-coordinated with a distorted tetradecahedron geometry. The two terminal Cu(II) ions of the complexes possess a hexa-coordinated distorted octahedral geometry. In contrast, in complexes [(CuL)2Ho(NO3)3(CH3CN)], (4) and [(CuL)2Er(NO3)3(CH3CN)]·0.5(CH3CN) (5), the two metalloligands coordinated to the Ln(III) ions in a cisoid fashion. The Ho(III) ion in 4 is nona-coordinated with a distorted tricapped trigonal prismatic geometry and the Er(III) ion in 5 is octa-coordinated with a distorted square antiprismatic geometry. The two terminal Cu(II) ions in complexes 4 and 5 are penta-coordinated with a distorted square-pyramidal geometry. The dc magnetic susceptibilities and field dependent magnetization measurement of complex 1 reveal the occurrence of ferromagnetic interactions between Cu(II) and Gd(III) ions as well as intermolecular antiferromagnetic interactions. Both complexes 2 and 3 show ferromagnetic interactions between Cu(II) and Ln(III) ions. The ac magnetic susceptibilities of all the complexes were also recorded and it was found that only complexes 2 and 3 exhibit slow relaxation of magnetization reorientation below 10 K at 2000 Oe applied dc field, this being characteristic of single molecule magnets.

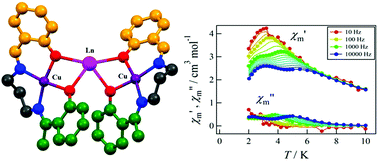

Graphical abstract: Structural variations in (CuL)2Ln complexes of a series of lanthanide ions with a salen-type unsymmetrical Schiff base(H2L): Dy and Tb derivatives as potential single-molecule magnets

Back to tab navigation

Supplementary files

Publication details

The article was received on 06 Jun 2017, accepted on 10 Aug 2017 and first published on 10 Aug 2017


Article type: Paper
DOI: 10.1039/C7DT02061A
Citation: Dalton Trans., 2017,46, 12095-12105
  •   Request permissions

    Structural variations in (CuL)2Ln complexes of a series of lanthanide ions with a salen-type unsymmetrical Schiff base(H2L): Dy and Tb derivatives as potential single-molecule magnets

    P. Mahapatra, S. Ghosh, N. Koizumi, T. Kanetomo, T. Ishida, M. G. B. Drew and A. Ghosh, Dalton Trans., 2017, 46, 12095
    DOI: 10.1039/C7DT02061A
