Effect of magnetic field strength on the alignment of α′′-Fe16N2 nanoparticle films

Author affiliations

Abstract

Aligning the magnetic orientation is one strategy to improve the magnetic performance of magnetic materials. In this study, well-dispersed single-domain core–shell α′′-Fe16N2/Al2O3 nanoparticles (NPs) were aligned by vertically applying magnetic fields with various strengths to a Si wafer substrate followed by fixation with resin. X-ray diffraction indicated that the alignment of the easy c-axis of the α′′-Fe16N2 crystal and the magnetic orientation of the NPs depended upon the applied magnetic field. Magnetic analysis demonstrated that increasing the magnetic field strength resulted in hysteresis loops approaching a rectangular form, implying a higher magnetic coercivity, remanence, and maximum energy product. The same tendency was also observed when a horizontal magnetic field was applied. The fixation of the easy c-axis alignment of each nanoparticle caused by Brownian rotation under the magnetic field, instead of Néel rotation, was the reason for the enhancement in the magnetic performance. These results on the alignment of the magnetic orientation of α′′-Fe16N2 NPs suggest the practical application of high-performance permanent bulk magnets from well-dispersed single-domain α′′-Fe16N2/Al2O3 NPs.

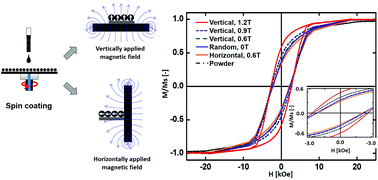

Graphical abstract: Effect of magnetic field strength on the alignment of α′′-Fe16N2 nanoparticle films

Back to tab navigation

Publication details

The article was received on 09 Nov 2015, accepted on 05 Jan 2016 and first published on 06 Jan 2016


Article type: Paper
DOI: 10.1039/C5NR07859H
Author version available: Download Author version (PDF)
Citation: Nanoscale, 2016,8, 2648-2655
  •   Request permissions

    Effect of magnetic field strength on the alignment of α′′-Fe16N2 nanoparticle films

    C. W. Kartikowati, A. Suhendi, R. Zulhijah, T. Ogi, T. Iwaki and K. Okuyama, Nanoscale, 2016, 8, 2648
    DOI: 10.1039/C5NR07859H
