Crystallization kinetics of the phase change material GeSb6Te measured with dynamic transmission electron microscopy

Author affiliations

Abstract

GeSb6Te is a chalcogenide-based phase change material that has shown great ptoential for use in solid-state memory devices. The crystallization kinetics of amorphous thin films of GeSb6Te during laser crystallization were followed with dynamic transmission electron microscopy, a photo-emission electron microscopy technique with nanosecond-scale time resolution. Nine-frame movies of crystal growth were taken during laser crystallization. The nucleation rate is observed to be very low and the growth rates are very high, up to 10.8 m sāˆ’1 for amorphous as-deposited films and significantly higher for an amorphous film subject to sub-threshold laser annealing before crystallization. The measured growth rates exceed any directly measured growth rate of a phase change material. The crystallization is reminiscent of explosive crystallization of elemental semiconductors both in the magnitude of the growth rate and in the resulting crystalline microstructures.

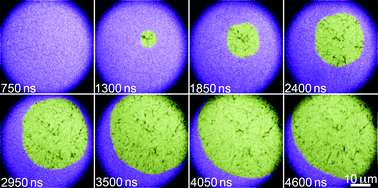

Graphical abstract: Crystallization kinetics of the phase change material GeSb6Te measured with dynamic transmission electron microscopy

Back to tab navigation

Supplementary files

Publication details

The article was received on 21 Jan 2016, accepted on 24 Mar 2016 and first published on 30 Mar 2016


Article type: Paper
DOI: 10.1039/C6DT00298F
Citation: Dalton Trans., 2016,45, 9988-9995
  •   Request permissions

    Crystallization kinetics of the phase change material GeSb6Te measured with dynamic transmission electron microscopy

    M. M. Winseck, H.-Y. Cheng, G. H. Campbell and M. K. Santala, Dalton Trans., 2016, 45, 9988
    DOI: 10.1039/C6DT00298F
