Heteroleptic Ir(III) phosphors with bis-tridentate chelating architecture for high efficiency OLEDs

Author affiliations

Abstract

Two tridentate chelates derived from functional 1,3-dipyridin-2-yl benzene, i.e. 1,3-difluoro-4,6-di(pyridin-2-yl) benzene (L1-H), 1,3-difluoro-4,6-di(4-t-butylpyridin-2-yl) benzene (L2-H), 1,3-di(pyridin-2-yl)-5-t-butylbenzene (L3-H), and 1,3-di(isoquinolinyl)-5-t-butylbenzene (L4-H), and 2-pyrazol-3-yl-6-phenylpyridine, 2-(5-trifluoromethyl-1H-pyrazol-3-yl)-6-(4-trifluoromethylphenyl) pyridine (L5-H2) and 2-(5-trifluoromethyl-1H-pyrazol-3-yl)-6-(4-t-butylphenyl) pyridine (L6-H2), were synthesized. These chelates are classified as the monoanionic and dianionic chelates according to the number of active hydrogen atoms present. Treatment of L1-H–L4-H with IrCl3·3H2O afforded chloro-bridged dimers [Ir(Ln)Cl(μ-Cl)]2 (n = 1–4); incorporation of secondary chelates L5-H2 and L6-H2 led to the formation of six judiciously selected, charge-neutral, bis-tridentate Ir(III) complexes, namely, [Ir(L1)(L5)] (1), [Ir(L2)(L5)] (2), [Ir(L3)(L5)] (3), [Ir(L3)(L6)] (4), [Ir(L4)(L5)] (5), and [Ir(L4)(L6)] (6). Detailed characterization and photophysical measurements have been performed, and computational calculations have been carried out to shed light on the enhanced emission efficiency and color tunability. This work further investigated the green-emitting and red-emitting organic light-emitting diode (OLED) applications of Ir(III) complexes 1 and 5, respectively. As a result, a maximum external quantum efficiency of 13.2%, luminance efficiency of 41.4 cd A−1, and power efficiency of 35.5 lm W−1 were obtained for the green OLED (complex 1), as opposed to 15.4%, 21.0 cd A−1, and 16.3 lm W−1 for the red-emitting OLED device (complex 5). The high electroluminescence efficiencies suggest the great potential of the titled complexes for applications in multicolor OLED displays.

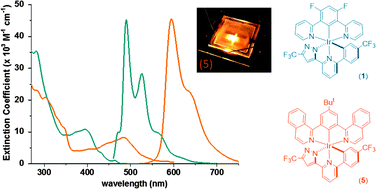

Graphical abstract: Heteroleptic Ir(iii) phosphors with bis-tridentate chelating architecture for high efficiency OLEDs

Back to tab navigation

Supplementary files

Publication details

The article was received on 17 Jan 2015, accepted on 11 Feb 2015 and first published on 11 Feb 2015


Article type: Paper
DOI: 10.1039/C5TC00163C
Author version available: Download Author version (PDF)
Citation: J. Mater. Chem. C, 2015,3, 3460-3471
  •   Request permissions

    Heteroleptic Ir(III) phosphors with bis-tridentate chelating architecture for high efficiency OLEDs

    B. Tong, H. Ku, I.-Jen Chen, Y. Chi, H. Kao, C. Yeh, C. Chang, S. Liu, G. Lee and P. Chou, J. Mater. Chem. C, 2015, 3, 3460
    DOI: 10.1039/C5TC00163C
