Synthesis and thermoresponsive properties of four-arm star-shaped poly(N-isopropylacrylamide)s bearing covalent and non-covalent cores

Abstract

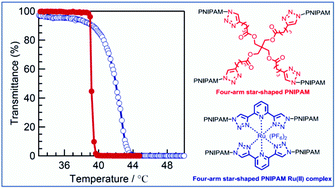

The present study describes the precise synthesis and thermoresponsive properties of two types of four-arm star-shaped poly(N-isopropylacrylamide)s (PNIPAM), i.e., the covalently linked one (3) and the non-covalently Ru(II)-chelated one (5). The atom transfer radical polymerization (ATRP) method was used to prepare the azido-terminated PNIPAM (1) arm using (2-azidoethyl)-2-chloropropionamide (AECP) as the initiator. 3 was subsequently prepared based on the click reaction of 1 with a multifunctional linker of tetra[(5-hexynyloyloxy)methyl]methane. For comparison, its linear counterpart 2 was also synthesized as a reference polymer by the same method using ethyl 5-hexynyloate. The four-arm star-shaped PNIPAM Ru complex 5, on the other hand, was prepared by a click-to-chelate approach, which involves the click reaction of 1 with 2,6-diethynylpyridine to produce the macroligand of 2,6-bis(1-PNIPAM-1,2,3-triazol-4-yl)pyridine (4) and the chelating reaction of RuCl₃ with 4 to afford 5. The thermoresponsive properties of the resulting polymers were investigated using a UV-vis spectrophotometer by measuring the optical transmittance of the polymer solution with varying solution temperature and the cloud point (T_c) at 50% transmittance intensity in order to assess their thermoresponsive properties. The detailed thermoresponsive properties of these polymers, including the effects of the polymer terminal and core linkage and constituents of the four-arm star-shaped PNIPAMs on the T_c, are significantly described in the later part of this study.
