Enabling high solubility of ZnO in TiO2 by nanolamination of atomic layer deposition

Abstract

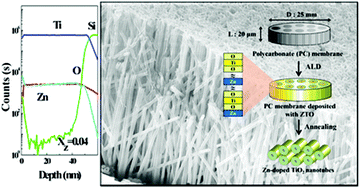

Zn-doped TiO₂ nanotubes were fabricated by nanolaminated packing of alternating layers of TiO₂ and ZnO by atomic layer deposition (ALD) using a polycarbonate (PC) membrane as a template. With 400 cycles of ALD, the nanotubes with a thickness of 28 nm and an outer diameter of 220 nm were obtained after removing the PC membrane by annealing at 450 °C. The doping concentration of ZnO in TiO₂ depends on the precursor cycle ratio of ZnO to TiO₂. With the precursor cycle ratio of ZnO : TiO₂ at 0.04, a uniform bulk solubility of ∼8 at% is obtained, and the surface concentration of Zn is even higher, ∼16 at%. From the depth profiles measured by secondary ion mass spectrometry, Zn is uniformly distributed across the thickness, which is further confirmed by analyses of X-ray photoelectron spectroscopy, X-ray diffraction, and Raman spectroscopy. Additionally, from the transmission electron microscopic observation, the highly doped anatase TiO₂ exhibits some regions of severe deformation that results in localized solid-state amorphization.
