The formation mechanism of multiple vacancies and amorphous graphene under electron irradiation

Ruiqi Zhao; Jianing Zhuang; Zilin Liang; Tianying Yan; Feng Ding

doi:10.1039/C5NR00552C

The formation mechanism of multiple vacancies and amorphous graphene under electron irradiation

Ruiqi Zhao,^a Jianing Zhuang,^b Zilin Liang,^b^c Tianying Yan*^c and Feng Ding*^b

Author affiliations

* Corresponding authors

^a School of Physics and Chemistry, Henan Polytechnic University, Henan 454003, China

^b Institute of Textiles and Clothing, Hong Kong Polytechnic University, Kowloon, China
E-mail: feng.ding@polyu.edu.hk

^c Institute of New Energy Material Chemistry, Synergetic Innovation Center of Chemical Science and Engineering (Tianjin), Tianjin Key Laboratory of Metal and Molecule Based Material Chemistry, Nankai University, Tianjin 300071, China
E-mail: tyan@nankai.edu.cn

Abstract

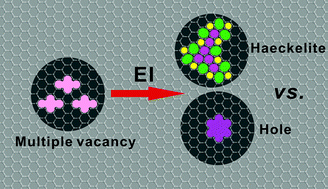

The evolution of multiple vacancies (V_ns) in graphene under electron irradiation (EI) was explored systematically by long time non-equilibrium molecular dynamics simulations, with n varying from 4 to 40. The simulations showed that the V_ns form haeckelites in the case with small n, while forming holes as n increases. The scale of the haeckelites, characterized by the number of pentagon–heptagon pairs, grows linearly with n. Such a linear relationship can be interpreted as a consequence of compensating the missing area, caused by the V_ns, in order to maintain the area of the perfect sp² network by self-healing. Beyond that, the scale of the haeckelite vs. the density of missing atoms is predicted to be S_h ∼ 6D_n, where S_h and D_n are the percentage of non-hexagonal rings and missing atoms, respectively. This study provides an intuitive picture of the formation of amorphous graphene under EI and the quantitative understanding of the mechanism.
