Analysis of bacterial plasmid DNA by solid-phase microextraction

Author affiliations


The extraction and preconcentration of DNA is a critical step in the analysis of microorganisms. In this study, a polymeric ionic liquid (PIL) sorbent coating was applied for the preconcentration of plasmid DNA (pDNA) from bacterial cells using solid-phase microextraction (SPME). PIL-based SPME devices were prepared by ultraviolet photoinitiated polymerization of a dicationic ionic liquid (IL)-based cross-linker and IL monomer on a nitinol support. pDNA was extracted from buffered aqueous solution using the PIL-based sorbent coating followed by the amplification of a target gene by polymerase chain reaction (PCR). Extraction conditions for the method were optimized based on the relative intensities of PCR amplicon bands visualized on an agarose gel. Compared to a commercial polyacrylate sorbent coating, the PIL sorbent coating extracted greater quantities of pDNA. With an extraction time of 5 min, the PIL-based SPME technique was capable of preconcentrating a sufficient amount of template pDNA from a 20 ng mL−1 solution to allow detection of the amplicon on an agarose gel. Sequence analysis demonstrated that the sequence of the pDNA was unaltered following PIL-based SPME. The developed method was successfully employed for the analysis of pDNA from two different E. coli transformants in a dilute aqueous solution.

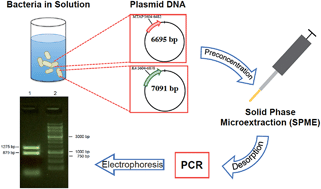

Graphical abstract: Analysis of bacterial plasmid DNA by solid-phase microextraction

Back to tab navigation

Supplementary files

Publication details

The article was received on 01 Mar 2015, accepted on 20 Mar 2015 and first published on 23 Mar 2015

Article type: Paper
DOI: 10.1039/C5AY00532A
Citation: Anal. Methods, 2015,7, 7202-7207
  •   Request permissions

    Analysis of bacterial plasmid DNA by solid-phase microextraction

    O. Nacham, K. D. Clark and J. L. Anderson, Anal. Methods, 2015, 7, 7202
    DOI: 10.1039/C5AY00532A
