Macroporous uniform azide- and alkyne-functional polymer microspheres with tuneable surface area: synthesis, in-depth characterization and click-modification

Author affiliations

Abstract

A series of uniform, macroporous poly(styrene-co-divinylbenzene) microspheres with diameters ranging from 6.6 ± 0.6 to 8.6 ± 0.2 μm was prepared in a multistep procedure involving precipitation polymerization synthesis of polystyrene seed particles, swelling of seed particles with plasticiser and porogen, and polymerization of styrene–divinylbenzene (S–DVB) inside the seed particles. Particles prepared with varying DVB feed ratios had comparable diameters (as evidenced by scanning electron microscopy) with specific surface areas increasing with DVB content from 11 to 467 m2 g−1 (measured by nitrogen adsorption). Residual double bonds were converted into azide functionality (through HBr addition and bromo-azide substitution) or alkyne functionality (Br2 addition followed by double elimination) which allowed for CuAAC-click chemistry conjugation with reagents carrying the respective complimentary alkyne or azide functional groups including the fluorescent dye derivatives 7-nitro-4-(prop-2-ynylamino)benzofuran (NBD-alkyne) and Rhodamine B hexylazide synthesised for this purpose. Efficiency of chemical transformations was determined using a combination of CHN and IC elemental analyses, solid state NMR spectroscopy, FT-IR spectroscopy, Raman spectroscopy, and confocal scanning fluorescence microscopy. Although the respective second steps in each modification route (substitution and elimination) suffered from lower yields (∼35%), porous particles with azide loadings of up to 0.71 mmol g−1 and alkyne loadings of up to 0.78 mmol g−1 were prepared. Confocal laser scanning microscopy on Rhodamine B-labelled microspheres indicated functionalization throughout the particles featuring a core–shell structure with higher functionalization in the outer layer of particles. Results are expected to contribute to the development of advanced, well-defined, macroporous particles with high, chemically accessible surface areas.

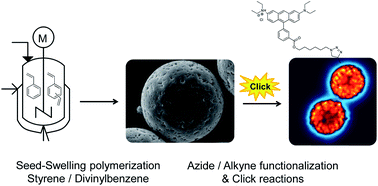

Graphical abstract: Macroporous uniform azide- and alkyne-functional polymer microspheres with tuneable surface area: synthesis, in-depth characterization and click-modification

Back to tab navigation

Supplementary files

Publication details

The article was received on 21 May 2014, accepted on 16 Jun 2014 and first published on 17 Jun 2014


Article type: Paper
DOI: 10.1039/C4PY00709C
Author version available: Download Author version (PDF)
Citation: Polym. Chem., 2014,5, 5689-5699
  •   Request permissions

    Macroporous uniform azide- and alkyne-functional polymer microspheres with tuneable surface area: synthesis, in-depth characterization and click-modification

    M. Albuszis, P. J. Roth, W. Pauer and H. Moritz, Polym. Chem., 2014, 5, 5689
    DOI: 10.1039/C4PY00709C
