Operation of lightly doped Si microwires under high-level injection conditions

Author affiliations

Abstract

The operation of lightly doped Si microwire arrays under high-level injection conditions was investigated by measurement of the current-potential behavior and carrier-collection efficiency of the wires in contact with non-aqueous electrolytes, and through complementary device physics simulations. The current-potential behavior of the lightly doped Si wire array photoelectrodes was dictated by both the radial contact and the carrier-selective back contact. For example, the Si microwire arrays exhibited n-type behavior when grown on a n+-doped substrate and placed in contact with the 1,1′-dimethylferrocene+/0–CH3OH redox system. The microwire arrays exhibited p-type behavior when grown on a p+-doped substrate and measured in contact with a redox system with a sufficiently negative Nernstian potential. The wire array photoelectrodes exhibited internal quantum yields of ∼0.8, deviating from unity for these radial devices. Device physics simulations of lightly doped n-Si wires in radial contact with the 1,1′-dimethylferrocene+/0–CH3OH redox system showed that the carrier-collection efficiency should be a strong function of the wire diameter and the carrier lifetime within the wire. Small diameter (d < 200 nm) wires exhibited low quantum yields for carrier collection, due to the strong inversion of the wires throughout the wire volume. In contrast, larger diameter wires (d > 400 nm) exhibited higher carrier collection efficiencies that were strongly dependent on the carrier lifetime in the wire, and wires with carrier lifetimes exceeding 5 μs were predicted to have near-unity quantum yields. The simulations and experimental measurements collectively indicated that the Si microwires possessed carrier lifetimes greater than 1 μs, and showed that radial structures with micron dimensions and high material quality can result in excellent device performance with lightly doped, structured semiconductors.

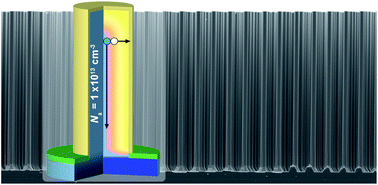

Graphical abstract: Operation of lightly doped Si microwires under high-level injection conditions

Back to tab navigation

Supplementary files

Publication details

The article was received on 18 Jan 2014, accepted on 18 Mar 2014 and first published on 20 Mar 2014


Article type: Paper
DOI: 10.1039/C4EE00202D
Citation: Energy Environ. Sci., 2014,7, 2329-2338
  •   Request permissions

    Operation of lightly doped Si microwires under high-level injection conditions

    E. A. Santori, N. C. Strandwitz, R. L. Grimm, B. S. Brunschwig, H. A. Atwater and N. S. Lewis, Energy Environ. Sci., 2014, 7, 2329
    DOI: 10.1039/C4EE00202D
