Syntheses, crystal structures, and optical properties of five metal complexes constructed from a V-shaped thiophene-containing ligand and different dicarboxylate ligands

Author affiliations

Abstract

Five new metal complexes, {[Ni(DIDP)(m-bdc)(H2O)]·5H2O}n (1), {[Zn(DIDP)(hfipbb)]·2DMA}n (2), {[Zn(DIDP)(4,4′-sdb)]·H2O}n (3), {[Co(DIDP)(p-bdc)]}n (4), and {[Co2(DIDP)(hfipbb)2]·H2O}n (5), have been synthesized by reactions of the corresponding metal ions with a V-shaped ligand 2,8-di(1H-imidazol-1-yl)dibenzothiophene (DIDP) and different aromatic dicarboxylic acids, namely isophthalic acid (m-H2bdc), terephthalic acid (p-H2bdc), 4,4′-(hexafluoroisopropylidene)bis(benzoic acid) (H2hfipbb), and 4,4′-sulfonyldicarboxylic acid (4,4′-H2sdb), respectively. The structures of the complexes were determined by X-ray single-crystal diffraction. Complex 1 is a 1D chain structure containing a one-dimensional channel along the a direction and is further extended via O–H⋯S hydrogen bonds and C–H⋯π stacking interactions into a 3D framework. Complex 2 exhibits a quasi 2D + 2D → 2D with parallel polycatenation of 2D (4, 4) nets. Complex 3 displays an unusual 2D + 2D → 3D parallel polycatenated framework based on a 2D 63-hcb network. Complex 4 shows a 2D 4-connected {44·62}-sql network containing a one-dimensional channel along the b direction. The adjacent 2D networks are further extended via C–H⋯O hydrogen bonds into a 3D supramolecular framework. Complex 5 features a 2-fold interpenetrating 3D framework with a 6-connected {412·63} pcu topology. Furthermore, the thermal stability for 1–5 and luminescence properties of 2 and 3 have been studied. Moreover, the solid-state UV-visible spectroscopy experiments show that complexes 1–5 are all optical semiconductors with band gaps of 3.06, 3.18, 3.23, 2.98, and 3.17 eV, respectively.

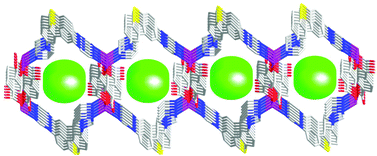

Graphical abstract: Syntheses, crystal structures, and optical properties of five metal complexes constructed from a V-shaped thiophene-containing ligand and different dicarboxylate ligands

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 13 May 2014, accepted on 05 Jul 2014 and first published on 09 Jul 2014


Article type: Paper
DOI: 10.1039/C4DT01400F
Citation: Dalton Trans., 2014,43, 13250-13258
  •   Request permissions

    Syntheses, crystal structures, and optical properties of five metal complexes constructed from a V-shaped thiophene-containing ligand and different dicarboxylate ligands

    Z. Shi, Z. Guo and H. Zheng, Dalton Trans., 2014, 43, 13250
    DOI: 10.1039/C4DT01400F
