Issue 6, 2014
Previous Article Next Article

Optical near-field excitation at commercial scanning probe microscopy tips: a theoretical and experimental investigation

Author affiliations

Abstract

A systematic study of the influence of the excitation angle, the light polarization and the coating thickness of commercial SPM tips on the field enhancement in an apertureless scanning near-field optical microscope is presented. A new method to optimize the alignment of the electric field vector along the major tip axis by measuring the resonance frequency was developed. The simulations were performed with a MNPBEM toolbox based on the Boundary Element Method (BEM). The influence of the coating thickness was investigated for the first time. Coatings below 40 nm showed a drastic influence both on the resonance wavelength and the enhancement. A shift to higher angles of incidence for the maximum enhancement could be observed for greater tip radii.

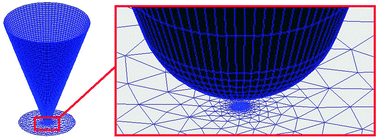

Graphical abstract: Optical near-field excitation at commercial scanning probe microscopy tips: a theoretical and experimental investigation

Back to tab navigation

Publication details

The article was received on 23 Apr 2013, accepted on 12 Sep 2013 and first published on 13 Sep 2013


Article type: Paper
DOI: 10.1039/C3CP51730F
Citation: Phys. Chem. Chem. Phys., 2014,16, 2289-2296
  • Open access: Creative Commons BY license
  •   Request permissions

    Optical near-field excitation at commercial scanning probe microscopy tips: a theoretical and experimental investigation

    C. Huber, A. Trügler, U. Hohenester, Y. Prior and W. Kautek, Phys. Chem. Chem. Phys., 2014, 16, 2289
    DOI: 10.1039/C3CP51730F

    This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. Material from this article can be used in other publications provided that the correct acknowledgement is given with the reproduced material.
