Fabrication and electrochemical performance of 3D hierarchical β-Ni(OH)2 hollow microspheres wrapped in reduced graphene oxide

Author affiliations

Abstract

A novel structured reduced graphene oxide/Ni(OH)2 (rGO/Ni(OH)2) hybrid composite with enhanced electrochemical performance was prepared by wrapping β-Ni(OH)2 hollow microspheres in rGO sheets via a facile solvothermal route, using poly(L-lysine) (PLL) as reductant and ethylene glycol (EG) as coupling agent. The structural, morphological and electrochemical properties of the composite were well examined. The results show that single-crystalline β-Ni(OH)2 hollow microspheres are enveloped in rGO sheets after thermal treatment in the hybrid composite, which exhibits a high specific capacitance of 1551.8 F g−1 at a current density of 2.67 A g−1 and a capacity retention of 102% after 2000 cycles. Notably, in comparison with pure β-Ni(OH)2 hollow microspheres and the simple mixture (mixture of rGO and Ni(OH)2 spheres), the rGO/β-Ni(OH)2 composite exhibited superior electrochemical properties, which may be due to the wrapped electrically conducting graphene sheets and the unique three-dimensional (3D) structure of the composite. The rational design, interesting structure and the ideal electrochemical performance of this graphene-based composite suggest its potential applications in high energy storage systems.

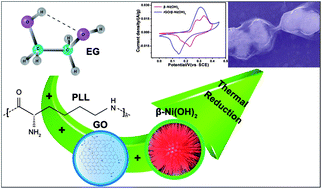

Graphical abstract: Fabrication and electrochemical performance of 3D hierarchical β-Ni(OH)2 hollow microspheres wrapped in reduced graphene oxide

Back to tab navigation

Supplementary files

Publication details

The article was received on 22 Mar 2013, accepted on 21 May 2013 and first published on 21 May 2013


Article type: Paper
DOI: 10.1039/C3TA11161J
Citation: J. Mater. Chem. A, 2013,1, 9083-9091
  •   Request permissions

    Fabrication and electrochemical performance of 3D hierarchical β-Ni(OH)2 hollow microspheres wrapped in reduced graphene oxide

    Y. Wang, S. Gai, N. Niu, F. He and P. Yang, J. Mater. Chem. A, 2013, 1, 9083
    DOI: 10.1039/C3TA11161J
