Epitaxial growth and enhanced conductivity of an IT-SOFC cathode based on a complex perovskite superstructure with six distinct cation sites

Author affiliations

Abstract

Epitaxial thin films of the 10 layer cubic perovskite superstructure Ba1.7Ca2.4Y0.9Fe5O13 were grown by pulsed laser deposition, retaining the six distinct cation sites found in the bulk material. Growth on single crystal strontium titanate (STO) (0 0 1) substrates changes the observed symmetry from orthorhombic to tetragonal and orients the layer stacking direction of the superstructure normal to the substrate plane. The material is a candidate cathode for solid oxide fuel cells (SOFCs) and in the intermediate temperature (IT) region at 600 °C we measure the in-plane AC conductivity of the thin film as 30 S cm−1, significantly enhanced over 3.5 S cm−1 found for the polycrystalline form. This is assigned to reduction of the grain boundary density and alignment of the planes predicted to have the highest electronic and ionic conductivities. High resolution electron microscopy measurements demonstrate the atomic site ordering producing the superstructure and reveal defects associated with stacking faults in the ordering sequence.

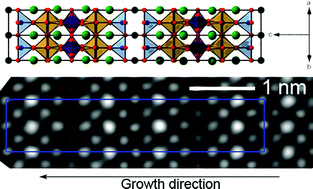

Graphical abstract: Epitaxial growth and enhanced conductivity of an IT-SOFC cathode based on a complex perovskite superstructure with six distinct cation sites

Back to tab navigation

Supplementary files

Publication details

The article was received on 07 Nov 2012, accepted on 01 Apr 2013 and first published on 03 Apr 2013


Article type: Edge Article
DOI: 10.1039/C3SC21931C
Citation: Chem. Sci., 2013,4, 2403-2412
  • Open access: Creative Commons BY license
  •   Request permissions

    Epitaxial growth and enhanced conductivity of an IT-SOFC cathode based on a complex perovskite superstructure with six distinct cation sites

    R. Sayers, N. L. O. Flack, J. Alaria, P. A. Chater, R. G. Palgrave, S. R. C. McMitchell, S. Romani, Q. M. Ramasse, T. J. Pennycook and M. J. Rosseinsky, Chem. Sci., 2013, 4, 2403
    DOI: 10.1039/C3SC21931C
