Jump to main content
Jump to site search

Issue 8, 2013
Previous Article Next Article

Improved thermoelectric properties for solution grown Bi2Te3−xSex nanoplatelet composites

Author affiliations

Abstract

We herein report the large-scale synthesis of Bi2Te3−xSex (0.6 ≤ x ≤ 0.75) nanoplatelets through a hydrothermal method and subsequent spark plasma sintering. The effect of selenium alloying and the spark plasma sintering temperature on the thermoelectric properties of the Bi2Te3 nanostructured bulk materials were investigated. The results indicate that compared to samples fabricated in an autoclave, preparing Bi2Te3−xSex in glass beaker with suitable Se alloying and appropriate sintered temperature is an efficient way to reduce the lattice thermal conductivity due to a large number of Bi2TeO5 nanodots with sizes of around 10 nm. Meanwhile, a decrease in electrical resistivity due to increase in carrier mobility and an enhancement of the Seebeck coefficient attribute to decrease in carrier concentration were observed. As a result, the thermoelectric figure-of-merit, ZT, is significantly improved and the maximum value reaches 0.96 for Bi2Te2.25Se0.75 at 490 K.

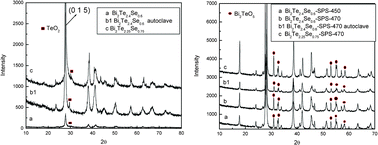

Graphical abstract: Improved thermoelectric properties for solution grown Bi2Te3−xSex nanoplatelet composites

Back to tab navigation

Publication details

The article was received on 18 Oct 2012, accepted on 10 Dec 2012 and first published on 10 Jan 2013


Article type: Paper
DOI: 10.1039/C2RA22562J
Citation: RSC Adv., 2013,3, 2632-2638
  •   Request permissions

    Improved thermoelectric properties for solution grown Bi2Te3−xSex nanoplatelet composites

    D. Li, X. Y. Qin, Y. F. Liu, N. N. Wang, C. J. Song and R. R. Sun, RSC Adv., 2013, 3, 2632
    DOI: 10.1039/C2RA22562J

Search articles by author

Spotlight

Advertisements
