Pen microfluidics: rapid desktop manufacturing of sealed thermoplastic microchannels

Author affiliations

Abstract

A unique technique for the rapid fabrication of thermoplastic microfluidic chips is described. The method enables the realization of fully-sealed microchannels in around one hour while requiring only minimal infrastructure by taking advantage of a solvent swelling mechanism that allows raised features to be patterned on the surface of homogeneous thermoplastic materials. Patterning is achieved without photolithography by simply drawing the desired microchannel pattern onto the polymer surface using a suitable ink as a masking layer, either manually or under robotic control, followed by timed exposure to solvent vapor to yield a desired depth for the masked channel features. The channels are then permanently sealed through solvent bonding of the microchannel chip to a mating thermoplastic substrate. The process is demonstrated using cyclic olefin copolymer as a thermoplastic material, with fully operational microfluidic devices fabricated following a true desktop manufacturing model suitable for rapid prototyping.

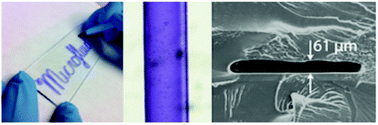

Graphical abstract: Pen microfluidics: rapid desktop manufacturing of sealed thermoplastic microchannels

Back to tab navigation

Publication details

The article was received on 18 Sep 2012, accepted on 03 Jan 2013 and first published on 07 Jan 2013


Article type: Paper
DOI: 10.1039/C2LC41057E
Citation: Lab Chip, 2013,13, 1102-1108
  •   Request permissions

    Pen microfluidics: rapid desktop manufacturing of sealed thermoplastic microchannels

    O. Rahmanian and D. L. DeVoe, Lab Chip, 2013, 13, 1102
    DOI: 10.1039/C2LC41057E
