Standardization of microfluidic cell cultures using integrated organic photodiodes and electrode arrays

Author affiliations

Abstract

Nanotechnology provides the tools to develop novel biosensors with improved performance, including sensitivity and response time that can be readily integrated into diagnostic devices. We have developed a miniaturized cell analysis platform to advance microfluidic cell cultures by combining two complementary, label-free and non-invasive cell analysis methods for the long-term monitoring of dynamic cell behavior. The novel dual-parameter cell-on-a-chip detects light scattering from adherent cells to provide information on cell numbers and intracellular granularity, while simultaneously performing impedance spectroscopy to monitor cell adhesion and cell-cell interaction. In the present work we have integrated spray-coated organic photodiode arrays with a lab-on-a-chip containing embedded interdigitated electrode structures to improve assay reproducibility, reliability and accuracy. We successfully demonstrate that the complementary cell chip technology can accurately detect cell numbers, clarify misleading results during cell-substance interaction assays, as well as the cytotoxicity screening of drug substances. The ability to precisely determine cell numbers within minutes constitutes a major step towards standardization.

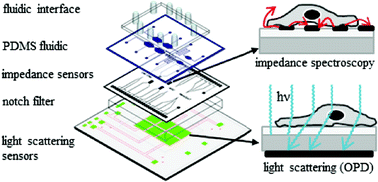

Graphical abstract: Standardization of microfluidic cell cultures using integrated organic photodiodes and electrode arrays

Back to tab navigation

Supplementary files

Publication details

The article was received on 23 Aug 2012, accepted on 22 Nov 2012 and first published on 28 Nov 2012


Article type: Paper
DOI: 10.1039/C2LC40965H
Citation: Lab Chip, 2013,13, 785-797
  •   Request permissions

    Standardization of microfluidic cell cultures using integrated organic photodiodes and electrode arrays

    V. Charwat, M. Purtscher, S. F. Tedde, O. Hayden and P. Ertl, Lab Chip, 2013, 13, 785
    DOI: 10.1039/C2LC40965H
