Hydrogen-evolution characteristics of Ni–Mo-coated, radial junction, n+p-silicon microwire array photocathodes

Author affiliations

Abstract

The photocathodic H2-evolution performance of Ni–Mo-coated radial n+p junction Si microwire (Si MW) arrays has been evaluated on the basis of thermodynamic energy-conversion efficiency as well as solar cell figures of merit. The Ni–Mo-coated n+p-Si MW electrodes yielded open-circuit photovoltages (Voc) of 0.46 V, short-circuit photocurrent densities (Jsc) of 9.1 mA cm−2, and thermodynamically based energy-conversion efficiencies (η) of 1.9% under simulated 1 Sun illumination. Under nominally the same conditions, the efficiency of the Ni–Mo-coated system was comparable to that of Pt-coated n+p-Si MW array photocathodes (Voc = 0.44 V, Jsc = 13.2 mA cm−2, η = 2.7%). This demonstrates that, at 1 Sun light intensity on high surface area microwire arrays, earth-abundant electrocatalysts can provide performance comparable to noble-metal catalysts for photoelectrochemical hydrogen evolution. The formation of an emitter layer on the microwires yielded significant improvements in the open-circuit voltage of the microwire-array-based photocathodes relative to Si MW arrays that did not have a buried n+p junction. Analysis of the spectral response and light-intensity dependence of these devices allowed for optimization of the catalyst loading and photocurrent density. The microwire arrays were also removed from the substrate to create flexible, hydrogen-evolving membranes that have potential for use in a solar water-splitting device.

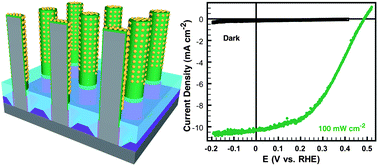

Graphical abstract: Hydrogen-evolution characteristics of Ni–Mo-coated, radial junction, n+p-silicon microwire array photocathodes

Back to tab navigation

Supplementary files

Publication details

The article was received on 16 Aug 2012, accepted on 13 Sep 2012 and first published on 08 Oct 2012


Article type: Paper
DOI: 10.1039/C2EE23192A
Citation: Energy Environ. Sci., 2012,5, 9653-9661
  •   Request permissions

    Hydrogen-evolution characteristics of Ni–Mo-coated, radial junction, n+p-silicon microwire array photocathodes

    E. L. Warren, J. R. McKone, H. A. Atwater, H. B. Gray and N. S. Lewis, Energy Environ. Sci., 2012, 5, 9653
    DOI: 10.1039/C2EE23192A
