Issue 41, 2012
Previous Article Next Article

Synthesis of cyclic polylactide catalysed by bis(salicylaldiminato)tin(II) complexes

Author affiliations


Eight bis(salicylaldiminato)tin(II) complexes have been synthesized from the reaction of Sn[N(SiMe3)2]2 and 2 equiv of the corresponding ligands at room temperature. The ligands, synthesized from salicylaldehyde and amines, were designed to have different electronic and steric properties using different amines to synthesize the tin(II) complexes as aniline (2a), 2,6-dimethylaniline (2b), 2,6-diisopropylaniline (2c), 4-methoxyaniline (2d), 4-trifluoromethylaniline (2e), methylamine (2g), and tert-butylamine (2h). Ligand variation at the salicyl group synthesized from 4-bromosalicylaldehyde and 2,6-diisopropylaniline was used to form complex 2f. Complex 2c was characterized crystallographically. All catalysts were active for the neat polymerization of L-lactide at 115 °C. At a lactide : Sn molar ratio of 10 : 1, cyclic polylactide (PLA) was obtained as demonstrated by 1H NMR and mass spectrometry. Addition of 1 equiv of benzyl alcohol in the polymerization produced linear PLA. At a higher lactide : Sn molar ratio of 200 : 1, high molecular weight PLAs with Mn up to 132 200 Daltons were obtained. Results from GPC coupled with light scattering detector and viscometer suggested that they are cyclic PLA. The order of reactivity based on conversion was determined to be 2c < 2b < 2a in accordance with lower steric hindrance. For electronic contribution, the order of 2e < 2a < 2d was observed in agreement with the increasing electron donation of the ligands. Complex 2g having the smallest substituents was found to be the most active catalyst.

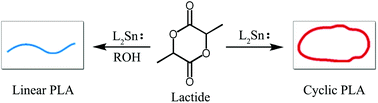

Graphical abstract: Synthesis of cyclic polylactide catalysed by bis(salicylaldiminato)tin(ii) complexes

Back to tab navigation

Supplementary files

Publication details

The article was received on 25 Jul 2012, accepted on 24 Aug 2012 and first published on 11 Sep 2012

Article type: Paper
DOI: 10.1039/C2DT31678A
Citation: Dalton Trans., 2012,41, 12704-12710
  •   Request permissions

    Synthesis of cyclic polylactide catalysed by bis(salicylaldiminato)tin(II) complexes

    P. Piromjitpong, P. Ratanapanee, W. Thumrongpatanaraks, P. Kongsaeree and K. Phomphrai, Dalton Trans., 2012, 41, 12704
    DOI: 10.1039/C2DT31678A
