Surface enhanced spatially offset Raman spectroscopic (SESORS) imaging – the next dimension

Author affiliations

Abstract

SESORS - Surface enhanced spatially offset Raman spectroscopy–imaging is explored for the first time in this study. Multiplexed surface enhanced Raman scattering (SERS) signals have been recovered non-invasively from a depth of 20 mm in tissues for the first time and reconstructed to produce a false colour image. Four unique ‘flavours’ of SERS nanoparticles (NPs) were injected into a 20 × 50 × 50 mm porcine tissue block at the corners of a 10 mm square. A transmission Raman data cube was acquired over an 11 × 11 pixel grid made up of 2 mm steps. The signals were reconstructed using the unique peak intensities of each of the nanoparticles. A false colour image of the relative signal levels was produced, demonstrating the capability of multiplexed imaging of SERS nanoparticles using deep Raman spectroscopy. A secondary but no less significant achievement was to demonstrate that Raman signals from SERS nanoparticles can be recovered non-invasively from samples of the order of 45–50 mm thick. This is a significant step forward in the ability to detect and identify vibrational fingerprints within tissue and offers the opportunity to adapt these particles and this approach into a clinical setting for disease diagnosis.

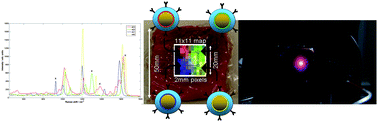

Graphical abstract: Surface enhanced spatially offset Raman spectroscopic (SESORS) imaging – the next dimension

Back to tab navigation

Publication details

The article was received on 11 Nov 2010, accepted on 13 Dec 2010 and first published on 07 Jan 2011


Article type: Edge Article
DOI: 10.1039/C0SC00570C
Citation: Chem. Sci., 2011,2, 776-780
  •   Request permissions

    Surface enhanced spatially offset Raman spectroscopic (SESORS) imaging – the next dimension

    N. Stone, M. Kerssens, G. R. Lloyd, K. Faulds, D. Graham and P. Matousek, Chem. Sci., 2011, 2, 776
    DOI: 10.1039/C0SC00570C
