DNA-templated assembly of droplet-derived PEG microtissues

Author affiliations

Abstract

Patterning multiple cell types is a critical step for engineering functional tissues, but few methods provide three-dimensional positioning at the cellular length scale. Here, we present a “bottom-up” approach for fabricating multicellular tissue constructs that utilizes DNA-templated assembly of 3D cell-laden hydrogel microtissues. A flow focusing-generated emulsion of photopolymerizable prepolymer is used to produce 100 μm monodisperse microtissues at a rate of 100 Hz (105 h−1). Multiple cell types, including suspension and adherently cultured cells, can be encapsulated into the microtissues with high viability (∼97%). We then use a DNA coding scheme to self-assemble microtissues “bottom-up” from a template that is defined using “top-down” techniques. The microtissues are derivatized with single-stranded DNA using a biotin–streptavidin linkage to the polymer network, and are assembled by sequence-specific hybridization onto spotted DNA microarrays. Using orthogonal DNA codes, we achieve multiplexed patterning of multiple microtissue types with high binding efficiency and >90% patterning specificity. Finally, we demonstrate the ability to organize multicomponent constructs composed of epithelial and mesenchymal microtissues while preserving each cell type in a 3D microenvironment. The combination of high throughput microtissue generation with scalable surface-templated assembly offers the potential to dissect mechanisms of cell–cell interaction in three dimensions in healthy and diseased states, as well as provides a framework for templated assembly of larger structures for implantation.

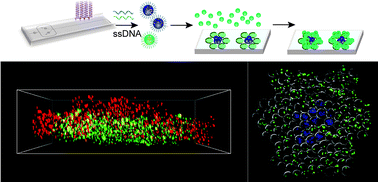

Graphical abstract: DNA-templated assembly of droplet-derived PEG microtissues

Back to tab navigation

Supplementary files

Publication details

The article was received on 14 Apr 2011, accepted on 15 Jun 2011 and first published on 21 Jul 2011


Article type: Paper
DOI: 10.1039/C1LC20318E
Citation: Lab Chip, 2011,11, 2967-2975
  •   Request permissions

    DNA-templated assembly of droplet-derived PEG microtissues

    C. Y. Li, D. K. Wood, C. M. Hsu and S. N. Bhatia, Lab Chip, 2011, 11, 2967
    DOI: 10.1039/C1LC20318E
