Issue 3, 2010
Previous Article Next Article

Wall-to-wall stress induced in (6,5) semiconducting nanotubes by encapsulation in metallic outer tubes of different diameters: A resonance Raman study of individual C60-derived double-wall carbon nanotubes

Author affiliations

Abstract

We measure resonant Raman scattering from 11 individual C60-derived double-wall carbon nanotubes all having inner semiconducting (6,5) tubes and various outer metallic tubes. The Raman spectra show the radial breathing modes (RBM) of the inner and the outer tubes to be simultaneously in resonance with the same laser energy. We observe that an increase in the RBM frequency of the inner tubes is related to an increase in the RBM frequency of the outer tubes. The Raman spectra also contain a sharp G feature that increases in frequency as the nominal diameter of the outer metallic tubes decreases. Finally, the one-phonon second-order D-band mode shows a two-way frequency splitting that decreases with decreasing nominal wall-to-wall distance. We suggest that the stress which increases with decreasing nominal wall-to-wall distance is responsible for the hardening that is observed in the frequencies of the RBM, D and G modes of the inner (6,5) semiconducting tubes.

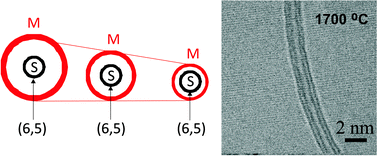

Graphical abstract: Wall-to-wall stress induced in (6,5) semiconducting nanotubes by encapsulation in metallic outer tubes of different diameters: A resonance Raman study of individual C60-derived double-wall carbon nanotubes

Back to tab navigation

Publication details

The article was received on 17 Sep 2009, accepted on 22 Oct 2009 and first published on 24 Nov 2009


Article type: Paper
DOI: 10.1039/B9NR00268E
Citation: Nanoscale, 2010,2, 406-411
  •   Request permissions

    Wall-to-wall stress induced in (6,5) semiconducting nanotubes by encapsulation in metallic outer tubes of different diameters: A resonance Raman study of individual C60-derived double-wall carbon nanotubes

    F. Villalpando-Paez, H. Muramatsu, Y. A. Kim, H. Farhat, M. Endo, M. Terrones and M. S. Dresselhaus, Nanoscale, 2010, 2, 406
    DOI: 10.1039/B9NR00268E
