Fabrication of micropatterns of nanoarrays on a polymeric gel surface

Author affiliations

Abstract

Micro–nano patterns of gold on the surface of poly(ethylene glycol) (PEG) hydrogels were prepared. The approach combines the technique of conventional photolithography (a top-down method for micropatterns), block copolymer micelle nanolithography (a bottom-up method for gold nanopatterns), and a linker-assistant technique to transfer a pattern on a hard surface to a polymeric surface. Hybrid micro–nano patterns on hydrogels were characterized using scanning electron microscopy, atomic force microscopy and X-ray photoelectron spectroscopy. The patterned Au nanoparticles were further modified by a peptide containing arginine-glycine-aspatate (RGD). The cell-adhesion contrast of the patterned hydrogel surface was confirmed by preliminary cell experiments.

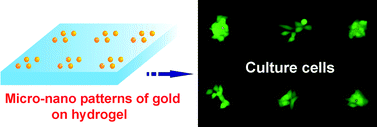

Graphical abstract: Fabrication of micropatterns of nanoarrays on a polymeric gel surface

Back to tab navigation

Publication details

The article was received on 15 Jun 2009, accepted on 24 Aug 2009 and first published on 30 Sep 2009


Article type: Paper
DOI: 10.1039/B9NR00124G
Citation: Nanoscale, 2010,2, 122-127
  •   Request permissions

    Fabrication of micropatterns of nanoarrays on a polymeric gel surface

    P. Liu, J. Sun, J. Huang, R. Peng, J. Tang and J. Ding, Nanoscale, 2010, 2, 122
    DOI: 10.1039/B9NR00124G
