A unified scaling model for flow through a lattice of microfabricated posts

Author affiliations

Abstract

A scaling model is presented for low Reynolds number viscous flow within an array of microfabricated posts. Such posts are widely used in several lab-on-a-chip applications such as heat pipes, antibody arrays and biomolecule separation columns. Finite element simulations are used to develop a predictive model for pressure driven viscous flow through posts. The results indicate that the flow rate per unit width scales as ∼h1.17g1.33/d0.5 where h is the post height, d post diameter and g is the spacing between the posts. These results compare favorably to theoretical limits. The scaling is extended to capillary pressure driven viscous flows. This unified model is the first report of a scaling that incorporates both viscous and capillary forces in the microfabricated post geometry. The model is consistent with Washburn dynamics and was experimentally validated to within 8% using wetting on microfabricated silicon posts.

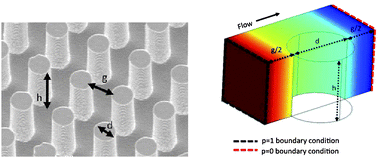

Graphical abstract: A unified scaling model for flow through a lattice of microfabricated posts

Back to tab navigation

Supplementary files

Publication details

The article was received on 25 Sep 2009, accepted on 14 Dec 2009 and first published on 09 Feb 2010


Article type: Paper
DOI: 10.1039/B919942J
Citation: Lab Chip, 2010,10, 1148-1152
  •   Request permissions

    A unified scaling model for flow through a lattice of microfabricated posts

    N. Srivastava, C. Din, A. Judson, N. C. MacDonald and C. D. Meinhart, Lab Chip, 2010, 10, 1148
    DOI: 10.1039/B919942J
