3-dimensional electrode patterning within a microfluidic channel using metal ion implantation

Author affiliations

Abstract

The application of electrical fields within a microfluidic channel enables many forms of manipulation necessary for lab-on-a-chip devices. Patterning electrodes inside the microfluidic channel generally requires multi-step optical lithography. Here, we utilize an ion-implantation process to pattern 3D electrodes within a fluidic channel made of polydimethylsiloxane (PDMS). Electrode structuring within the channel is achieved by ion implantation at a 40° angle with a metal shadow mask. The advantages of three-dimensional structuring of electrodes within a fluidic channel over traditional planar electrode designs are discussed. Two possible applications are presented: asymmetric particles can be aligned in any of the three axial dimensions with electro-orientation; colloidal focusing and concentration within a fluidic channel can be achieved through dielectrophoresis. Demonstrations are shown with E. coli, a rod shaped bacteria, and indicate the potential that ion-implanted microfluidic channels have for manipulations in the context of lab-on-a-chip devices.

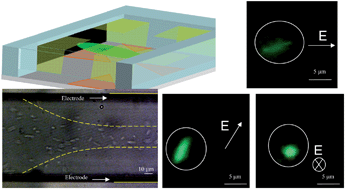

Graphical abstract: 3-dimensional electrode patterning within a microfluidic channel using metal ion implantation

Back to tab navigation

Publication details

The article was received on 28 Aug 2009, accepted on 03 Dec 2009 and first published on 07 Jan 2010


Article type: Paper
DOI: 10.1039/B917719A
Citation: Lab Chip, 2010,10, 783-788
  •   Request permissions

    3-dimensional electrode patterning within a microfluidic channel using metal ion implantation

    J. Choi, S. Rosset, M. Niklaus, J. R. Adleman, H. Shea and D. Psaltis, Lab Chip, 2010, 10, 783
    DOI: 10.1039/B917719A
