Composition and the thermoelectric performance of β-Zn4Sb3

Author affiliations

Abstract

β-Zn4Sb3 is a promising thermoelectric material due to the abundance of zinc and antimony and reports of high efficiency in bulk samples. This work establishes the high temperature properties of β-Zn4Sb3 across the phase stability window. By controlling the stoichiometry, the Hall carrier concentration can be tuned from 6–9 × 1019 cm−3 without requiring extrinsic dopants. The trend in Seebeck coefficient on carrier concentration is rationalized with a single, parabolic band model. Extremely low lattice thermal conductivity (0.4–0.6 W m−1 K−1) coupled with a moderate effective mass (1.2 me) and mobility leads to a large figure of merit (zT of 0.8 by 550 K). The single parabolic band model is used to obtain the carrier concentration dependence of the figure of merit and an optimum carrier concentration near 5 × 1019 cm−3 is predicted.

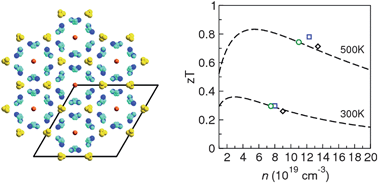

Graphical abstract: Composition and the thermoelectric performance of β-Zn4Sb3

Back to tab navigation
Please wait while Download options loads

Publication details

The article was received on 25 Jun 2010, accepted on 05 Aug 2010 and first published on 23 Sep 2010


Article type: Paper
DOI: 10.1039/C0JM02011G
Citation: J. Mater. Chem., 2010,20, 9877-9885
  •   Request permissions

    Composition and the thermoelectric performance of β-Zn4Sb3

    E. S. Toberer, P. Rauwel, S. Gariel, J. Taftø and G. Jeffrey Snyder, J. Mater. Chem., 2010, 20, 9877
    DOI: 10.1039/C0JM02011G
