Electrochemical deposition of Ptnanoparticles on carbon nanotube patterns for glucose detection

Abstract

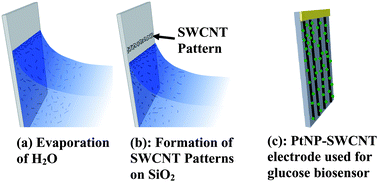

Single-walled carbon nanotube (SWCNT) microarrays are successfully patterned on SiO₂ substrates based on an evaporation-induced self-assembly mechanism. On these SWCNT micropatterns, the highly electroactive polycrystalline Pt nanoparticles (PtNPs) are deposited by using the electrochemical method. The obtained PtNP-SWCNT nanocomposites exhibit a low detection limit for hydrogen peroxide (4 μM). The further investigation on a glucose oxidase (GOx)/BSA/PtNP-SWCNT based biosensor indicates that the detection limit and sensitivity for glucose are 0.04 mM and 4.54 μA mM⁻¹ cm⁻², respectively. Our results prove that the improved electrocatalytic activity originates from the PtNP-SWCNT micropatterns, which provide a potential platform to immobilize different enzymes used for bioelectrochemical applications.
