Issue 11, 2009
Previous Article Next Article

Single-layer planar on-chip flow cytometer using microfluidic drifting based three-dimensional (3D) hydrodynamic focusing

Author affiliations

Abstract

In this work, we demonstrate an on-chip microfluidic flow cytometry system based on a three-dimensional (3D) hydrodynamic focusing technique, microfluidic drifting. By inducing Dean flow in a curved microfluidic channel, microfluidic drifting can be used to hydrodynamically focus cells or particles in the vertical direction and enables the 3D hydrodynamic focusing in a single-layer planar microfluidic device. Through theoretical calculation, numerical simulation, and experimental characterization, we found that the microfluidic drifting technique can be effectively applied to three-dimensionally focus microparticles with density and size equivalent to those of human CD4+ T lymphocytes. In addition, we developed a flow cytometry platform by integrating the 3D focusing device with a laser-induced fluorescence (LIF) detection system. The system was shown to provide effective high-throughput flow cytometry measurements at a rate of greater than 1700 cells s−1.

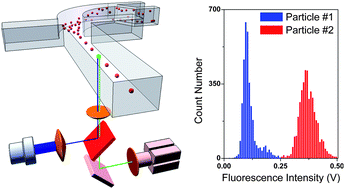

Graphical abstract: Single-layer planar on-chip flow cytometer using microfluidic drifting based three-dimensional (3D) hydrodynamic focusing

Back to tab navigation

Supplementary files

Publication details

The article was received on 12 Nov 2008, accepted on 23 Feb 2009 and first published on 12 Mar 2009


Article type: Paper
DOI: 10.1039/B820138B
Citation: Lab Chip, 2009,9, 1583-1589
  •   Request permissions

    Single-layer planar on-chip flow cytometer using microfluidic drifting based three-dimensional (3D) hydrodynamic focusing

    X. Mao, S. S. Lin, C. Dong and T. J. Huang, Lab Chip, 2009, 9, 1583
    DOI: 10.1039/B820138B
