Rapid and selective concentration of microparticles in an optoelectrofluidic platform

Author affiliations

Abstract

We demonstrate rapid manipulation and selective concentration of microparticles using AC electrokinetics such as dielectrophoresis (DEP) and AC electro-osmosis (ACEO) in an optoelectrofluidic platform based on a liquid crystal display (LCD). When 10 V bias at 10 kHz was applied to the optoelectrofluidic device, only the 1 µm-diameter polystyrene particles were concentrated into the projected LCD image patterns and closely packed, forming the crystalline structure by ACEO flow, while the 6 µm-diameter particles were repelled by negative DEP forces. We have characterized this frequency-dependency of the optoelectrofluidic particle behavior according to the particle diameter. On the basis of these results, we can rapidly concentrate the 1 µm-diameter particles and separate them from the 6 µm particles, by applying an AC signal of 10 kHz frequency. This novel technique can be applied to rapidly concentrate, separate and pattern micro-/nanoparticles in many biological and chemical applications.

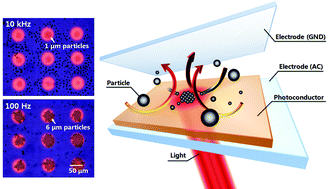

Graphical abstract: Rapid and selective concentration of microparticles in an optoelectrofluidic platform

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 09 Jul 2008, accepted on 17 Oct 2008 and first published on 17 Nov 2008


Article type: Paper
DOI: 10.1039/B811740C
Citation: Lab Chip, 2009,9, 199-206
  •   Request permissions

    Rapid and selective concentration of microparticles in an optoelectrofluidic platform

    H. Hwang and J. Park, Lab Chip, 2009, 9, 199
    DOI: 10.1039/B811740C
