Modification of an ITO anode with a hole-transporting SAM for improved OLED device characteristics

Author affiliations

Abstract

Modification of inorganic electrodes has attracted much attention in the study of organic semiconductor devices. An ethoxysilane functionalized hole-transporting triphenylamine (TPA–CONH–silane) was synthesized and was self-assembled to form a monolayer on an indium tin oxide (ITO) anode. The modified surface was characterized by water contact angle, X-ray photoelectron spectroscopy (XPS), ellipsometry and atomic force microscopy (AFM). The increase in surface work function is expected to facilitate hole injection from the ITO anode. To investigate the effect of a self-assembled monolayer (SAM) on the characteristics an organic light-emitting diode (OLED), a typical OLED device [SAM-modified ITO/TPD (50 nm)/Alq3 (60 nm)/LiF (1 nm)/Al (70 nm)] was fabricated. The SAM-modified device could endure a higher current and showed a much higher luminance (6300 cd m−2) than the bare ITO device (2700 cd m−2). The external quantum efficiency was also shown to improve as a result of the presence of the SAM. In addition to these device characteristics, a study of the TPD film morphology revealed an enhanced thermal stability for the SAM-modified device. The variation of the terminal group of the SAM and possible further optimization of SAM-modified OLEDs is under investigation.

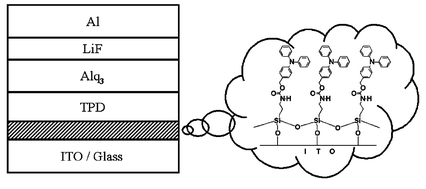

Graphical abstract: Modification of an ITO anode with a hole-transporting SAM for improved OLED device characteristics

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 16 Jul 2002, accepted on 02 Sep 2002 and first published on 04 Oct 2002


Article type: Paper
DOI: 10.1039/B206939C
Citation: J. Mater. Chem., 2002,12, 3494-3498
  •   Request permissions

    Modification of an ITO anode with a hole-transporting SAM for improved OLED device characteristics

    J. Lee, B. Jung, J. Lee, H. Y. Chu, L. Do and H. Shim, J. Mater. Chem., 2002, 12, 3494
